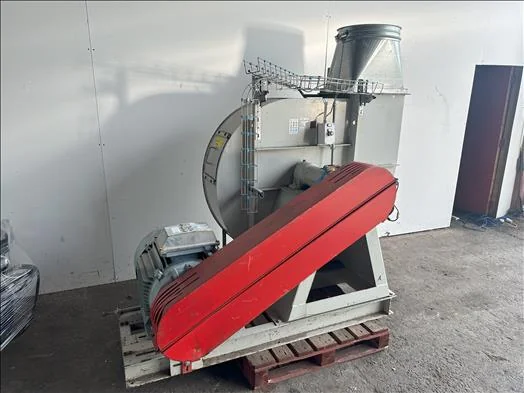

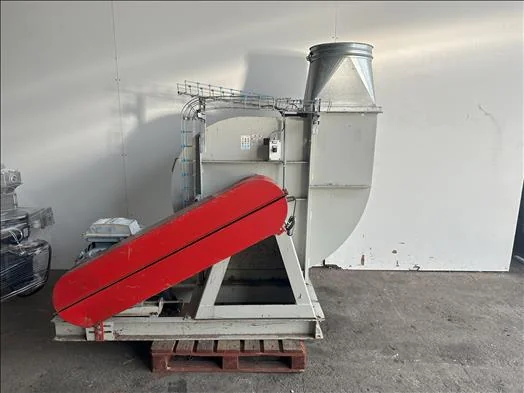

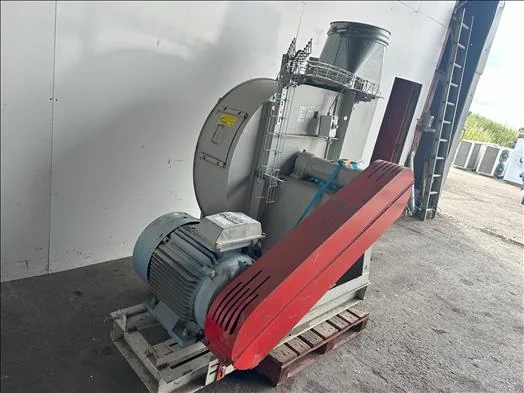

Euroventilatori XTTRC801LG0 Centrifugal Fan

Applications & Use Cases

• Used for pneumatic conveying of dry ingredients such as flour, sugar, and grains.
• Suitable for ventilation systems in food production areas to manage air quality and temperature.
• Applied in drying processes for various food products, removing moisture efficiently.
• Integral to dust extraction systems, maintaining hygiene and safety in food processing environments.
• Can be used for aeration in storage silos to prevent spoilage of bulk food items.

Typical Specifications

Typical air flow capacity

For this class of high-output centrifugal fan, typical air flow rates can range significantly, often from 10,000 to over 50,000 m³/h, depending on the specific impeller design and motor power.

Typical static pressure

Units of this type commonly generate static pressures from 1,500 Pa to 5,000 Pa, suitable for overcoming resistance in ducting and processing equipment.

Motor power

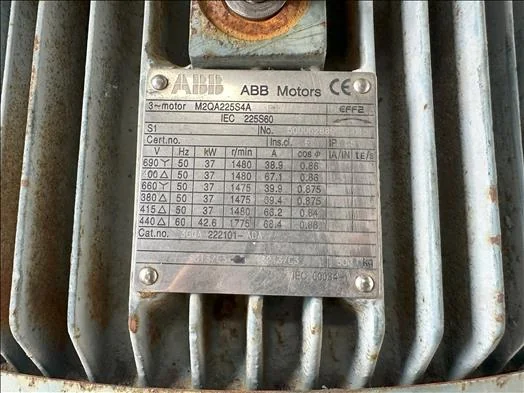

This unit is specified with a 37 kW motor. For high-output centrifugal fans, motor powers typically range from 15 kW to 75 kW, depending on performance requirements.

Power supply

As indicated, this unit requires a 3-phase electrical supply. Industrial centrifugal fans commonly operate on 400V, 50Hz, 3-phase power in the UK.

Typical construction material

For food processing applications, the fan casing and impeller are typically constructed from mild steel with appropriate coatings or stainless steel (e.g., 304 or 316) for contact parts, ensuring hygiene and corrosion resistance.

Mounting configuration

This unit is described as mounted on a stand, which is a common configuration for industrial fans, allowing for stable placement and integration into existing systems.

Inlet/outlet diameter

For a fan of this output class, inlet and outlet diameters are typically substantial, often ranging from 400 mm to 800 mm, to accommodate high air volumes.

Frequently Asked Questions

• What maintenance is typically required for a used centrifugal fan?

  Regular maintenance typically involves checking bearings for wear, inspecting the impeller for balance and build-up, verifying motor performance, and ensuring all fasteners are secure. Ductwork should also be inspected for leaks or blockages.

• Can this fan be used for conveying abrasive materials?

• What are the considerations for installing a fan of this size?

• Is this fan suitable for outdoor use?

• How can I determine the exact performance characteristics for this specific unit?
