What type of bins can this tipper handle?

Fixed bin tippers are designed for specific bin types and sizes. Buyers should confirm compatibility with their existing bins or request suitable bin options from the seller.

Is this unit suitable for outdoor use?

While constructed from stainless steel and featuring an IP65 control panel, prolonged outdoor exposure may require additional weather protection. It is primarily designed for indoor industrial environments.

What are the typical maintenance requirements?

Routine maintenance for this class of equipment typically involves checking chain tension, lubricating moving parts, inspecting electrical connections, and ensuring all safety features are operational. A planned preventative maintenance schedule is recommended.

Can the discharge height be adjusted?

This particular unit specifies a fixed discharge height of 1250mm. Some bin tippers offer adjustable discharge heights, but this should be confirmed with the seller for this specific unit.

What are the safety considerations for operating a fixed bin tipper?

Operators should be trained in safe use, adhering to 'hold to run' principles and understanding emergency stop procedures. Regular safety checks and adherence to PUWER regulations are crucial. Guarding requirements should be assessed based on site-specific risk assessments.

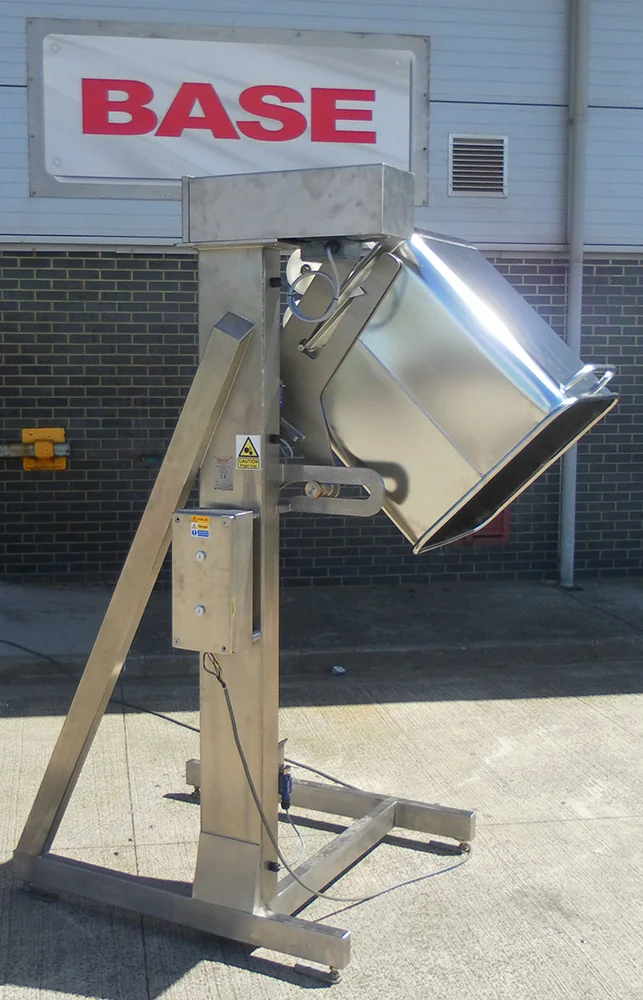

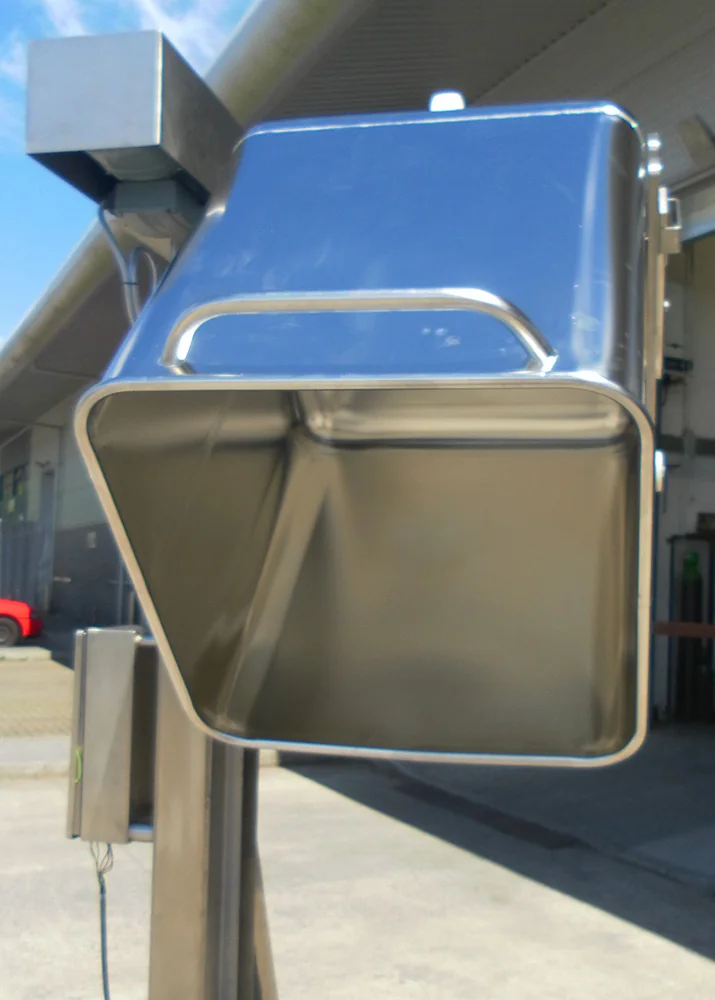

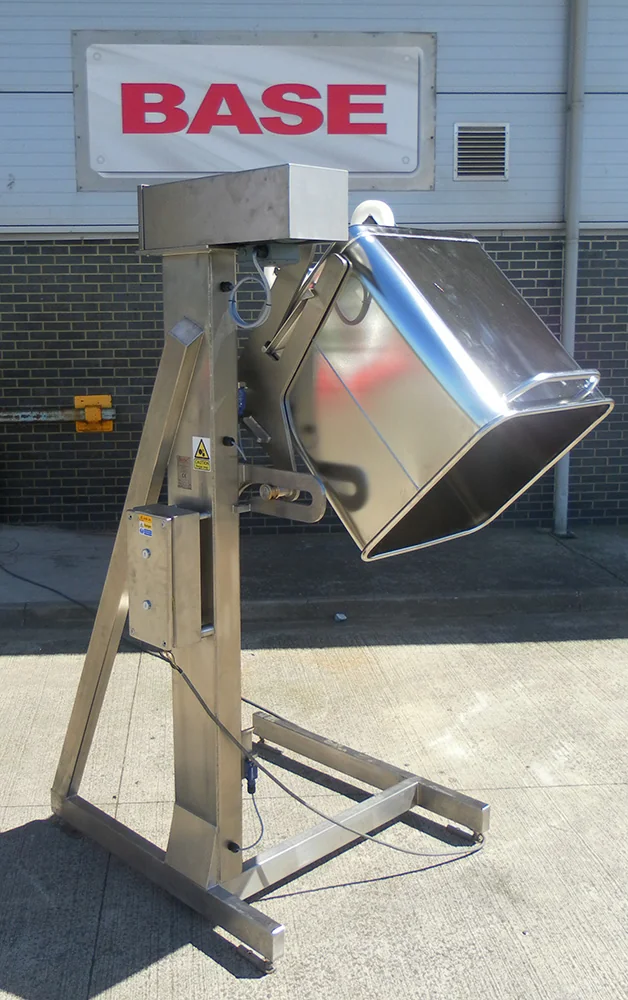

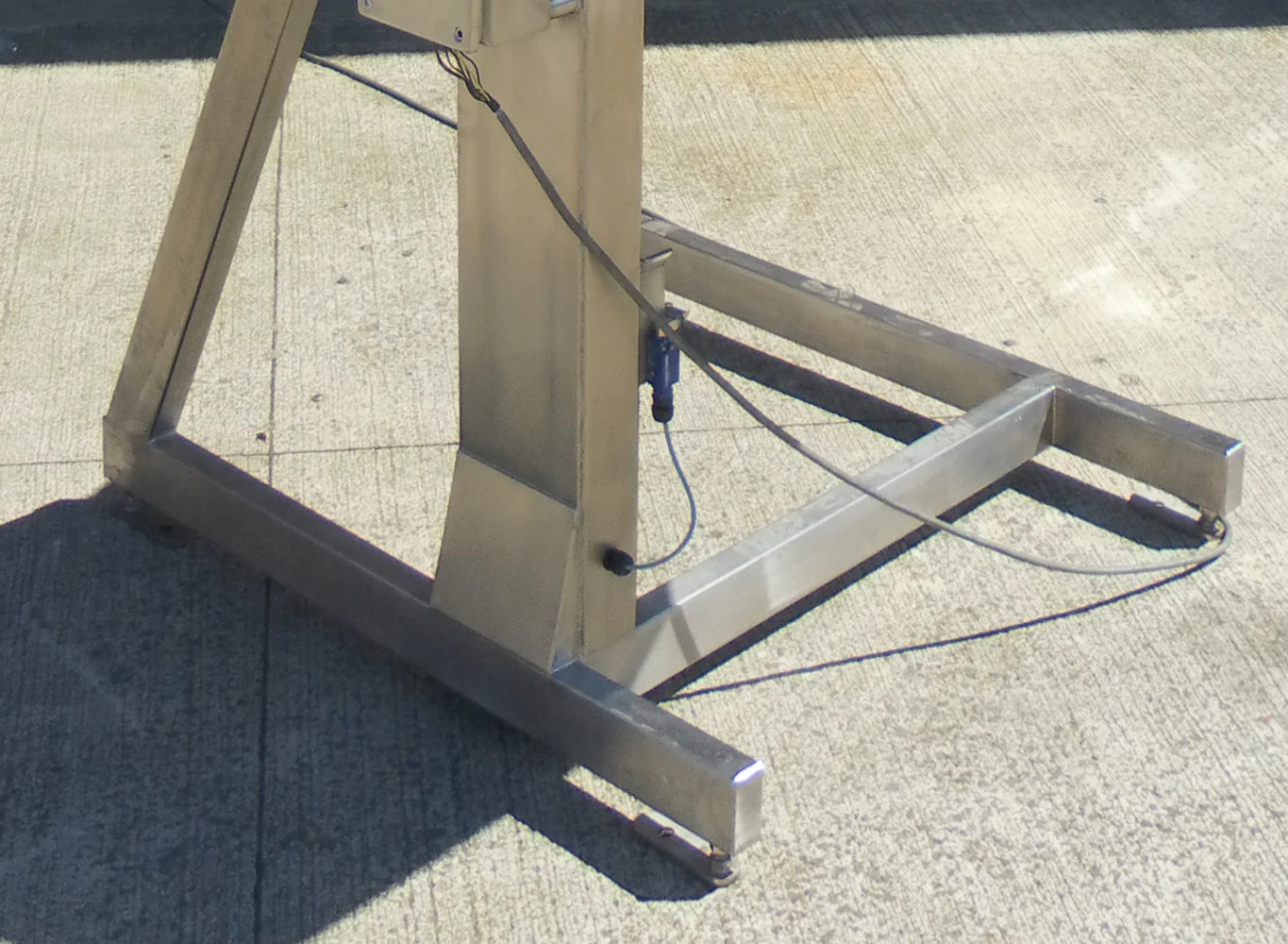

Fixed Bin Tipper - Lifting & Tipping, photo 1

Fixed Bin Tipper - Lifting & Tipping, photo 2

Fixed Bin Tipper - Lifting & Tipping, photo 3

Fixed Bin Tipper - Lifting & Tipping, photo 4

Fixed Bin Tipper - Lifting & Tipping, photo 5

Fixed Bin Tipper - Lifting & Tipping, photo 6

Available

Verified seller

Fixed Bin Tipper

Name: Fixed Bin Tipper
SKU: BTM/350/1250/B
Availability: InStock

Price: Contact seller for price

BTM/350/1250/B Heavy Duty Single Pillar Fixed Bin Tipper

This Heavy Duty Single Pillar Fixed Bin Tipper is designed to lift and tip at a discharge height of 1250mm. The Fixed Bin Tipper is constructed from Grade 304 stainless steel, is fully TIG welded throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Duplex chain driven by a motor gearbox mounted at the top of the main column. The fixed bin tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Fixed Bin Tipper Electrical Control

This Fixed Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded fixed bin tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the machine to operate. As soon as either button is released, the machine will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Fixed Bin Tipper

Model No.

BTM/350/1250/B

Capacity

350Kgs

Tipping Height

1250mm

Tipping Angle

130 Degrees

Overall Height

2320mm

Machine Handing

Right Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

300 Litre Tote Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Duplex

Tension Chain

¾” Simplex

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/350/1250/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from large bins into processing machinery.
Loading bulk materials into hoppers or mixers.
Emptying waste bins into skips or compactors.
Feeding product into packaging lines.
Handling ingredients in bakeries, dairies, and meat processing plants.

Typical Specifications

Construction material: Grade 304 stainless steel, suitable for food contact and washdown environments.
Discharge height: This unit is specified at 1250mm; other units in this class commonly offer a range of fixed or adjustable heights.
Lifting mechanism: Typically a duplex chain drive system powered by a motor gearbox.
Control panel rating: Commonly IP65 rated for protection against dust and water jets.
Safety features: Units of this type often include safety latches for chain failure and 'hold to run' controls.
Mounting: Designed for fixed floor mounting to ensure stability during operation.
Power supply: Typically 3-phase industrial power, commonly 400V, 50Hz in the UK.

Frequently Asked Questions

Fixed bin tippers are designed for specific bin types and sizes. Buyers should confirm compatibility with their existing bins or request suitable bin options from the seller.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
