What power supply is typically required for a fixed wheelie bin tipper?

Fixed wheelie bin tippers commonly operate on a 3-phase electrical supply, such as 400V, 50Hz, though specific requirements should be confirmed with the seller.

Can this type of tipper handle different sizes of wheelie bins?

While this unit is specified for 240-litre bins, many manufacturers offer models or adaptations to accommodate various standard wheelie bin sizes. Buyers should verify compatibility with the seller.

What are the typical maintenance requirements for a fixed bin tipper?

Routine maintenance typically involves checking the lift chain, motor gearbox, and limit switches, along with general cleaning. Specific schedules will be detailed in the manufacturer's manual.

Is this equipment suitable for outdoor use?

While constructed from stainless steel and featuring an IP65 control panel, prolonged outdoor exposure may require additional weather protection. Buyers should discuss specific environmental conditions with the seller.

What safety features should I look for in a bin tipper?

Key safety features commonly include 'hold to run' controls, upper and lower limit switches, emergency stop buttons, and mechanisms to prevent uncontrolled descent in case of chain failure. Always ensure compliance with PUWER regulations.

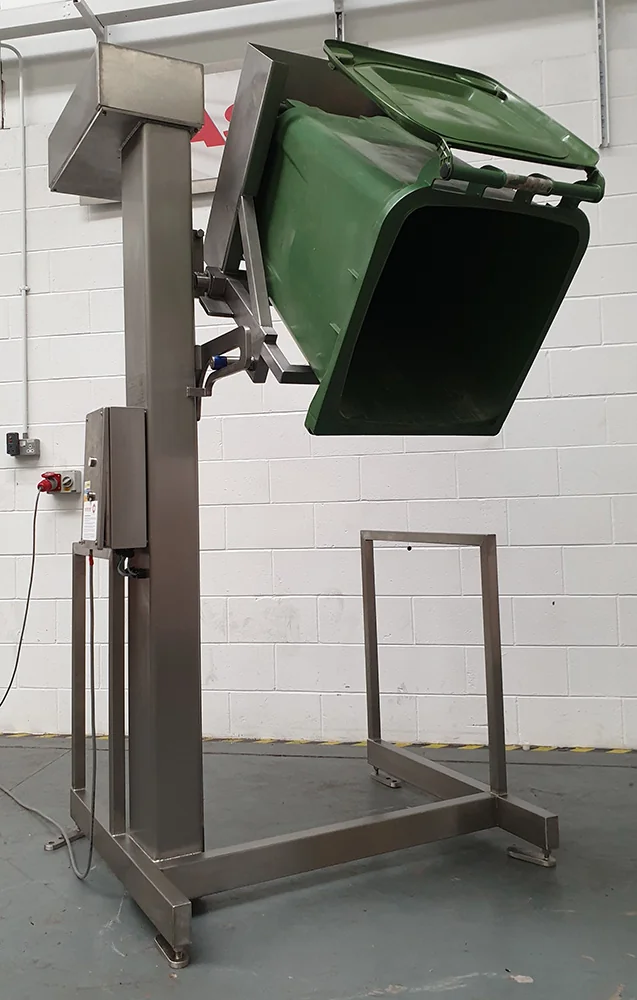

Fixed Wheelie Bin Tipper - Lifting & Tipping, photo 1

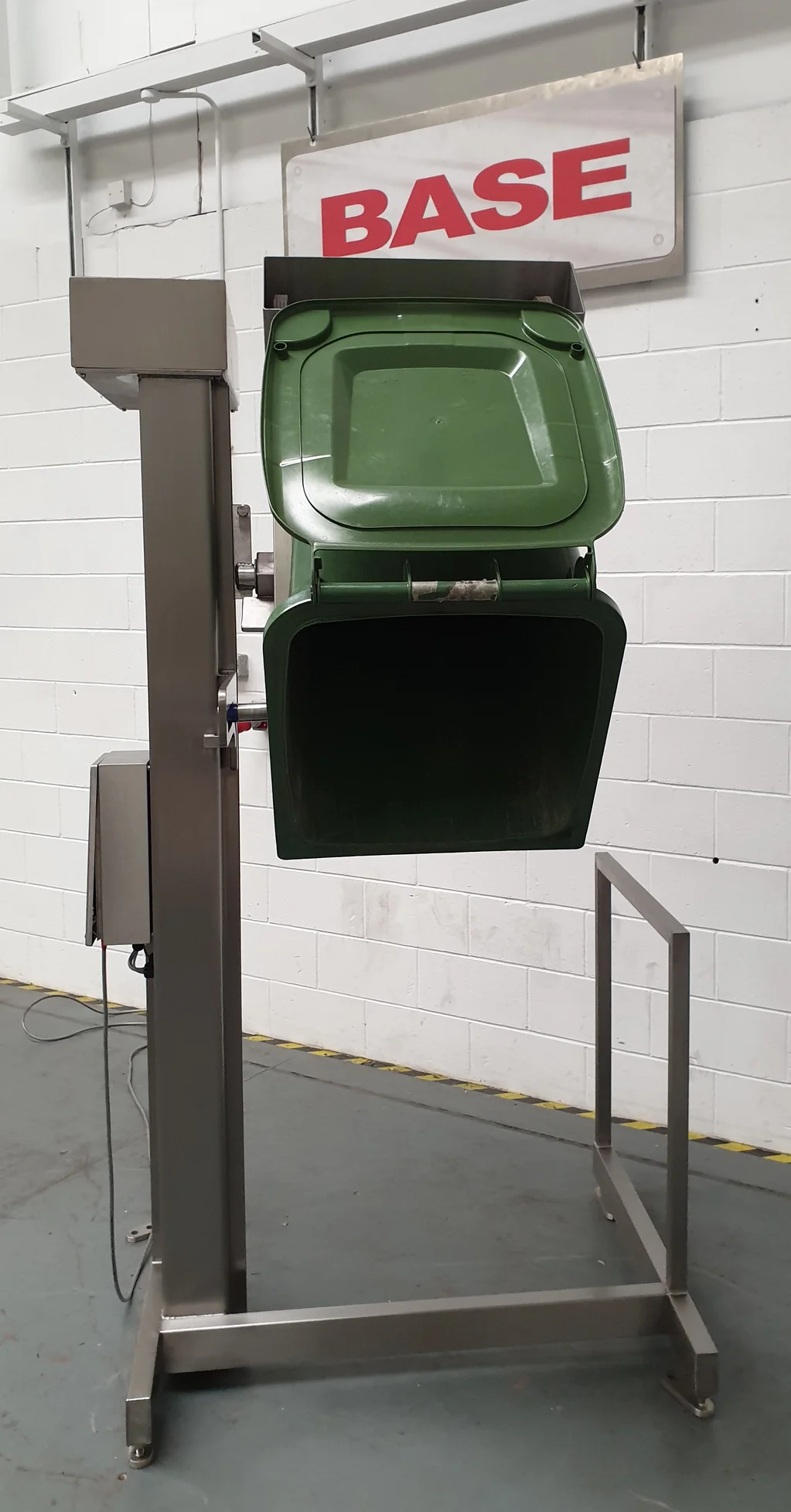

Fixed Wheelie Bin Tipper - Lifting & Tipping, photo 2

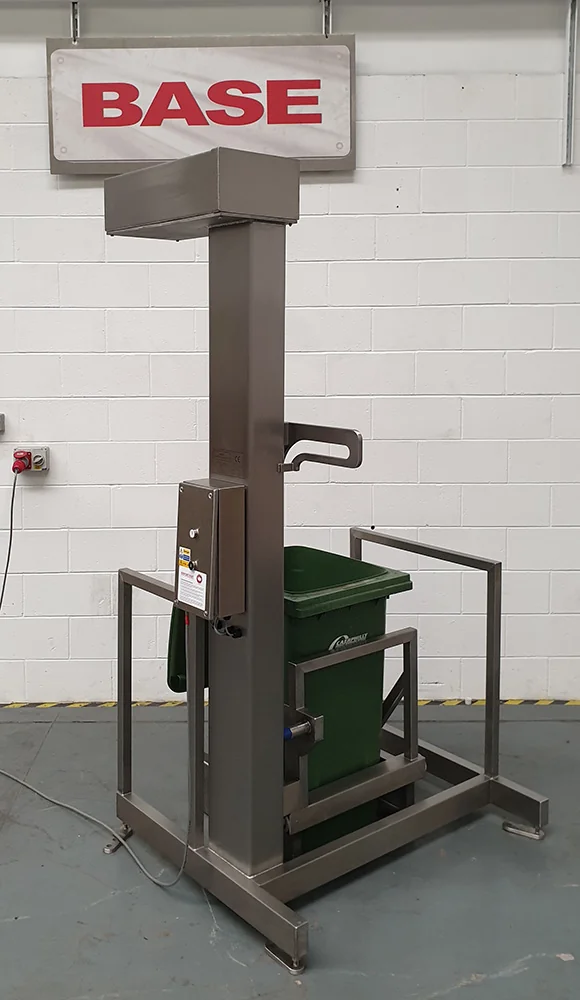

Fixed Wheelie Bin Tipper - Lifting & Tipping, photo 3

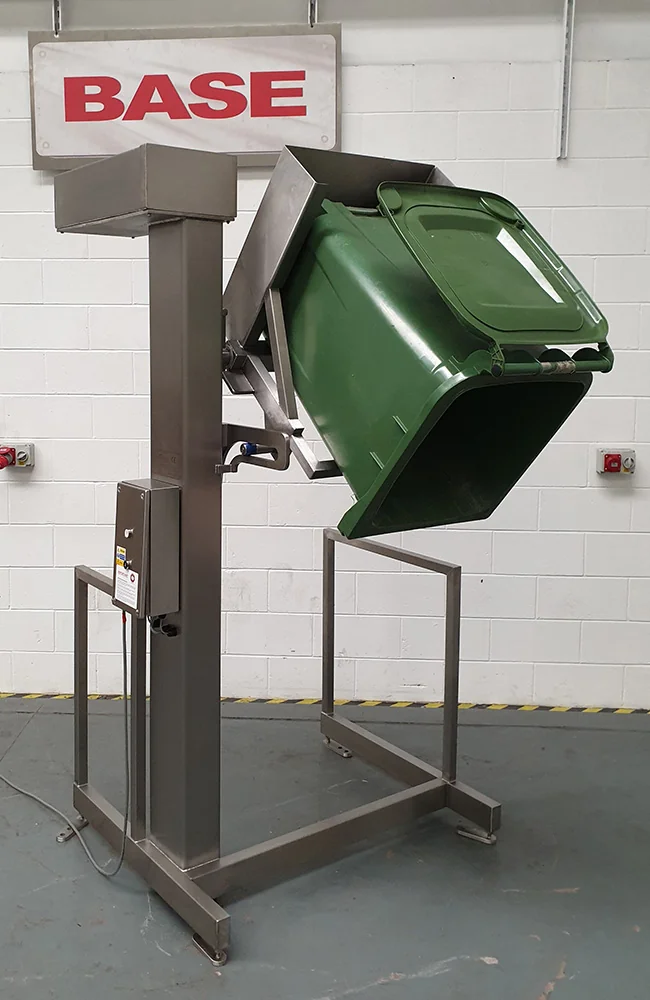

Fixed Wheelie Bin Tipper - Lifting & Tipping, photo 4

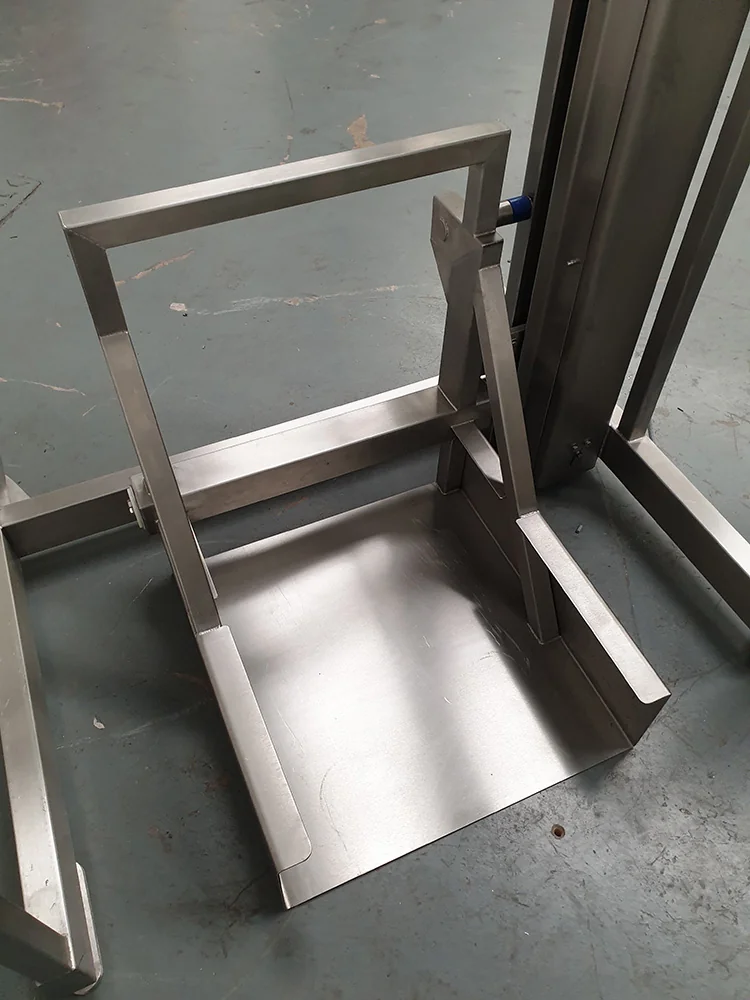

Fixed Wheelie Bin Tipper - Lifting & Tipping, photo 5

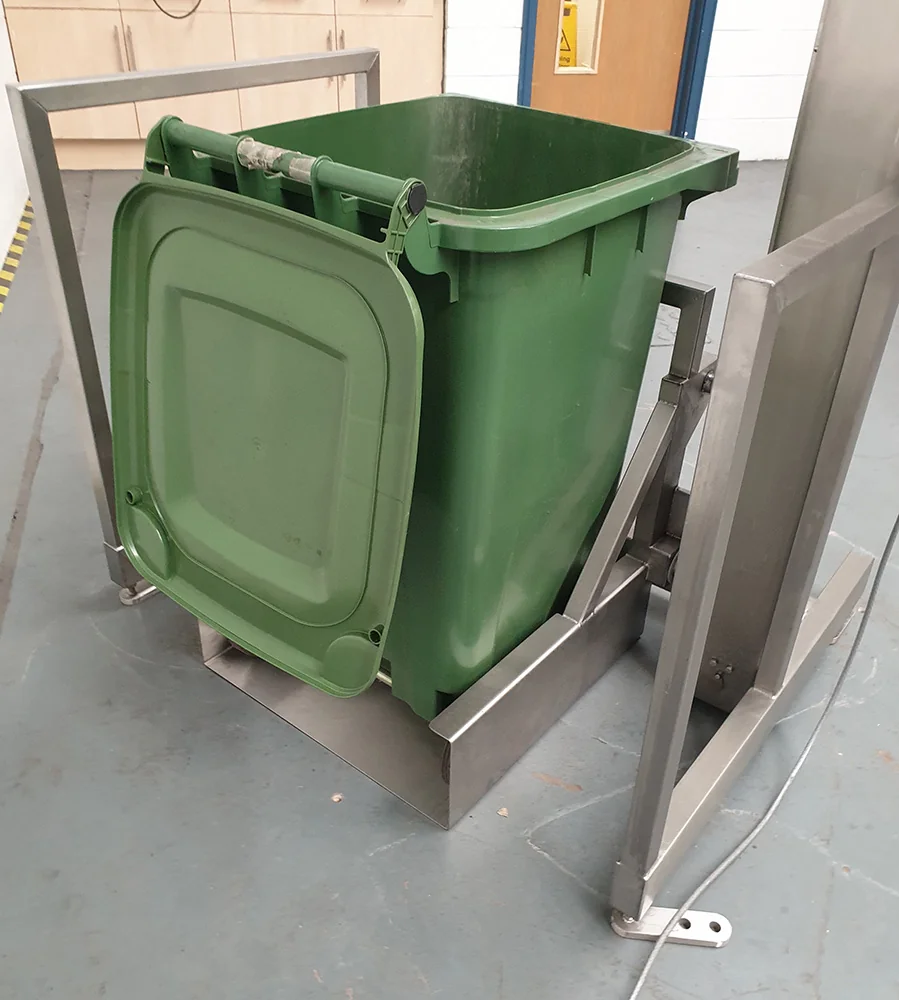

Fixed Wheelie Bin Tipper - Lifting & Tipping, photo 6

Fixed Wheelie Bin Tipper - Lifting & Tipping

Available

Verified seller

Fixed Wheelie Bin Tipper

Name: Fixed Wheelie Bin Tipper
SKU: BTM/300/1250/B
Availability: InStock

Price: Contact seller for price

BTM/300/1250/B Fixed Wheelie Bin Tipper

This Fixed Wheelie Bin Tipper is designed to lift and tip a 240 Litre Wheelie Bin at a discharge height of 1250mm. The Fixed Wheelie Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Fixed Wheelie Bin Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Fixed Wheelie Bin Tipper Electrical Control

This Fixed Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Fixed Wheelie Bin Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Fixed Wheelie Bin Tipper to operate. As soon as either button is released, the Fixed Wheelie Bin Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

240 Litre Fixed Wheelie Bin Tipper

Model No.

BTM/300/1250/B

Safe Working Load

300 Kgs

Tipping Height

1250mm

Tipping Angle

135 Degrees

Overall Height

2443mm

Machine Handing

Right Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

240 Litre Wheelie Bin

Base Arrangement

Bolted Column Base Frame

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/1250/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients or waste from wheelie bins into processing lines or larger containers.
Loading raw materials into hoppers or mixers in food production facilities.
Emptying waste bins into compactors or skips in hygienic environments.
Feeding product into packaging machinery at an elevated height.
Handling bulk ingredients in bakeries, dairies, and ready-meal factories.

Typical Specifications

Typical bin capacity: Designed for standard 240-litre wheelie bins; other capacities may be available for this class of equipment.
Discharge height: This unit specifies 1250mm; commonly, discharge heights vary to suit specific process requirements.
Construction material: Grade 304 stainless steel is standard for food-grade applications, ensuring hygiene and corrosion resistance.
Mounting: Units of this type are typically floor-mounted for stability and safety.
Lifting mechanism: Chain-driven systems are common, offering robust and controlled lifting.
Electrical control: IP65 rated control panels are typical for washdown environments, often featuring 'hold to run' operation for safety.
Safety features: Safety latches for chain failure and limit switches for travel are standard on modern units.

Frequently Asked Questions

Fixed wheelie bin tippers commonly operate on a 3-phase electrical supply, such as 400V, 50Hz, though specific requirements should be confirmed with the seller.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
