What is a Form-Fill-Seal machine?

A Form-Fill-Seal (FFS) machine, specifically a flow wrapper, forms a continuous tube of film around a product, seals it longitudinally, and then seals and cuts it transversely to create individual packages.

What kind of products can these machines typically handle?

These machines are versatile and commonly handle a wide range of solid products, including biscuits, chocolates, bread, pastries, and various non-food items, provided they fit within the machine's dimensions.

What is 'print registration'?

Print registration is a feature that ensures pre-printed film is accurately aligned with the product and cut marks, so the packaging design appears correctly on each finished pack.

What does 'no product, no cycle' mean?

This safety and efficiency feature prevents the machine from attempting to form and seal a package when no product is present on the infeed conveyor, reducing film waste and potential machine jams.

Are spare parts generally available for GEI Europack machines?

While specific availability depends on the model and age, GEI Europack was a known manufacturer. Buyers should inquire with the seller about the availability of critical spare parts and support.

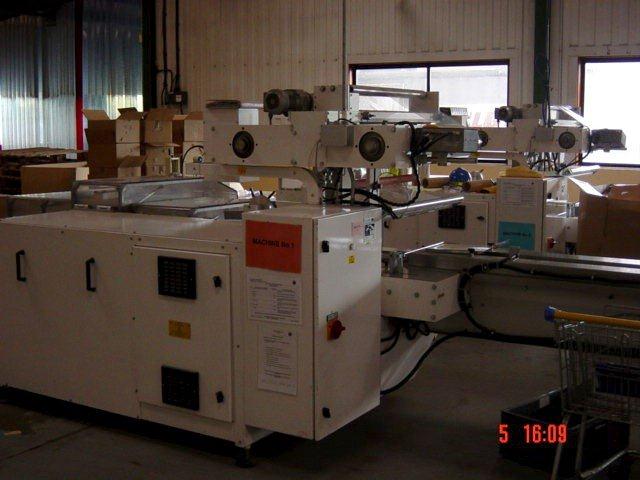

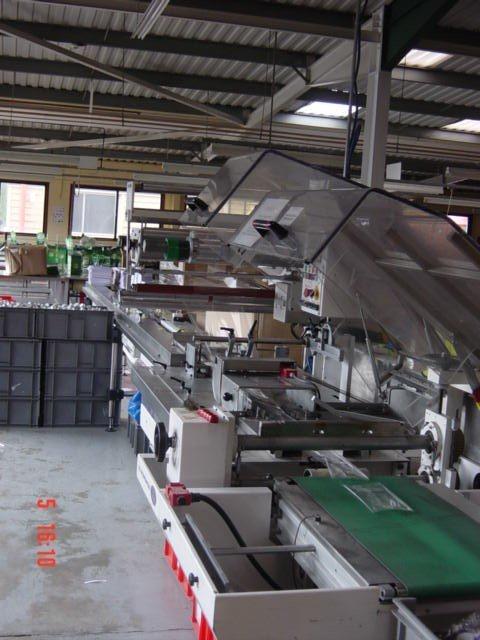

Used GEI Europack - Form-Fill-Seal Machines, photo 1

Used GEI Europack - Form-Fill-Seal Machines

used Equipment

Available

Verified seller

PA - GEI Europack

Name: GEI Europack
Brand: PA
SKU: 08fe2621d8e7

Price: Contact seller for price

2 x GEI Flowtronic 120 SE Flow Wrapper Year 1997/98 Normal 0 false false false EN-US X-NONE X-NONE MicrosoftInternetExplorer4 st1:*{behavior:url(#ieooui) } /* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal"; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-priority:99; mso-style-qformat:yes; mso-style-parent:""; mso-padding-alt:0cm 5.4pt 0cm 5.4pt; mso-para-margin:0cm; mso-para-margin-bottom:.0001pt; mso-pagination:widow-orphan; font-size:10.0pt; font-family:"Times New Roman","serif";} 400mm sealing jaws with 70mm jaw clearance Twin film reel holders with automatic splicing Print registration. Fitted with Markham’s smart date 2 coders installed and commissioned (Never used) 1 one machine has 450 mm pitch and the other has 350 pitch Removal Euro slot attachments. Adjustable forming folders 5m stainless steel in feed conveyor No product, no cycle feature. Alan Bradley PLC control with servo motor drives, normal running speed it was run at was 80/110 depending on the product size Full documentation, programmes, drawings, parts lists, operating manuals for the machines and the Markham’s coders as well The original owners still hold Â£ 10,000 of spare parts for both the machines (not included but available) Ran a variety of products with a film width of 900mm wide plus Please contact us for further information

Essex, United Kingdom

5,774 km away

Model Number

gei-europack

Stock Number

08fe2621d8e7

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Packaging of confectionery, bakery items, and snack foods.
Wrapping of small to medium-sized non-food products such as stationery or small components.
Sealing individual portions or multi-packs in a protective film.
High-speed packaging lines requiring automated product flow and sealing.

Typical Specifications

Typical throughput: For this class of equipment, speeds commonly range from 80 to 120 packs per minute, depending on product size and film type.
Power supply: Units of this type typically require a 3-phase electrical supply, commonly 400V, 50Hz.
Film compatibility: Flow wrappers are generally compatible with various heat-sealable films, including OPP, laminates, and barrier films.
Sealing jaw width: Units in this category commonly feature sealing jaws ranging from 300mm to 500mm, accommodating various product widths.
Control system: Modern flow wrappers typically utilise PLC control systems, often with servo motor drives for precise operation.
Infeed conveyor length: Standard infeed conveyors for this equipment class are commonly between 3m and 6m, facilitating product presentation.

Frequently Asked Questions

A Form-Fill-Seal (FFS) machine, specifically a flow wrapper, forms a continuous tube of film around a product, seals it longitudinally, and then seals and cuts it transversely to create individual packages.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
