What type of liquids can be used in this water bath?

This unit is designed to work with various liquids, including water, oil, and glycol mixtures. The system typically adjusts heater power and temperature parameters based on the selected liquid type.

Does this unit offer external circulation?

Yes, units like the Grant GD120 commonly feature an integral pump that allows for both sample immersion and external fluid circulation to other apparatus.

What safety features are typically included?

Common safety features include float-switch low liquid protection to prevent dry running and an adjustable over-temperature cut-out for sample and user safety.

Can I set multiple temperature points?

Units of this type typically support one adjustable operating setpoint plus several preset temperature options for quick switching between common temperatures.

Is this unit suitable for continuous operation?

Yes, stirred water baths like the GD120 are generally designed for continuous, high-precision operation in laboratory environments, offering robust temperature control.

How do I maintain temperature accuracy?

Maintaining the correct liquid level, using the appropriate liquid for the temperature range, and periodic calibration checks are key to ensuring optimal temperature accuracy.

Used - Water Baths & Heating Baths, photo 1

Used - Water Baths & Heating Baths, photo 2

Used - Water Baths & Heating Baths, photo 3

Used - Water Baths & Heating Baths, photo 4

Used - Water Baths & Heating Baths, photo 5

Used - Water Baths & Heating Baths, photo 6

Used - Water Baths & Heating Baths, photo 7

Used - Water Baths & Heating Baths, photo 8

used Equipment

Available

Verified seller

Grant GD120 Stirred Water Bath -

Brand: Grant GD120 Stirred Water Bath
SKU: 40841.SR3B
Price: 420 GBP
Availability: InStock

Price: £ 420

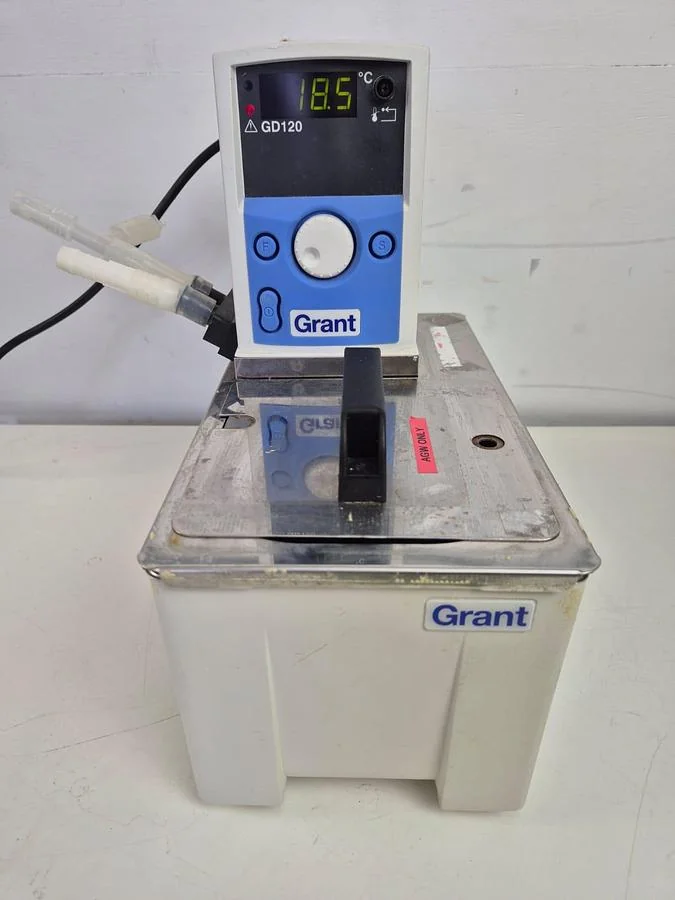

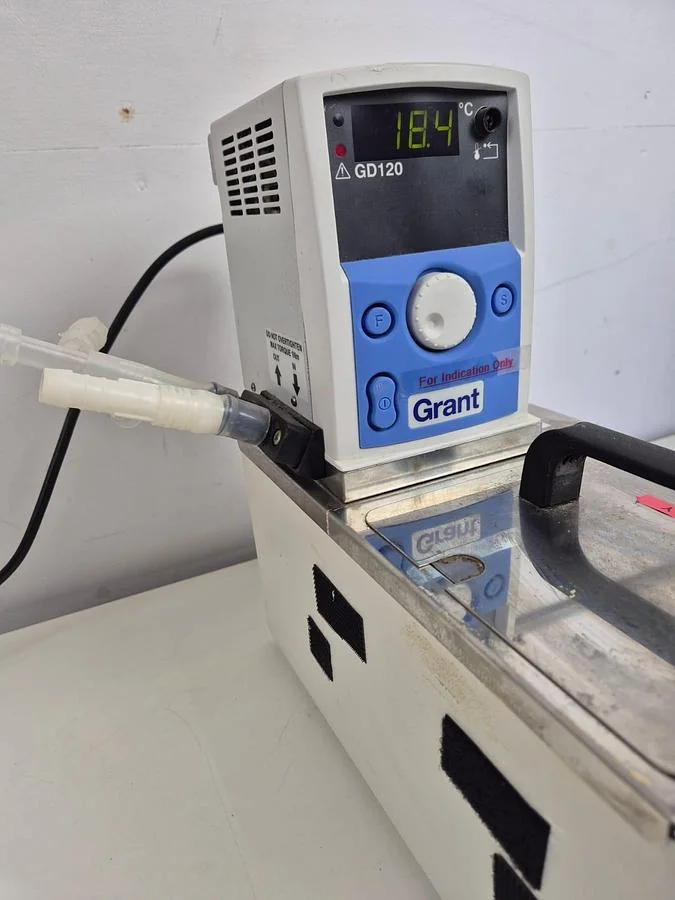

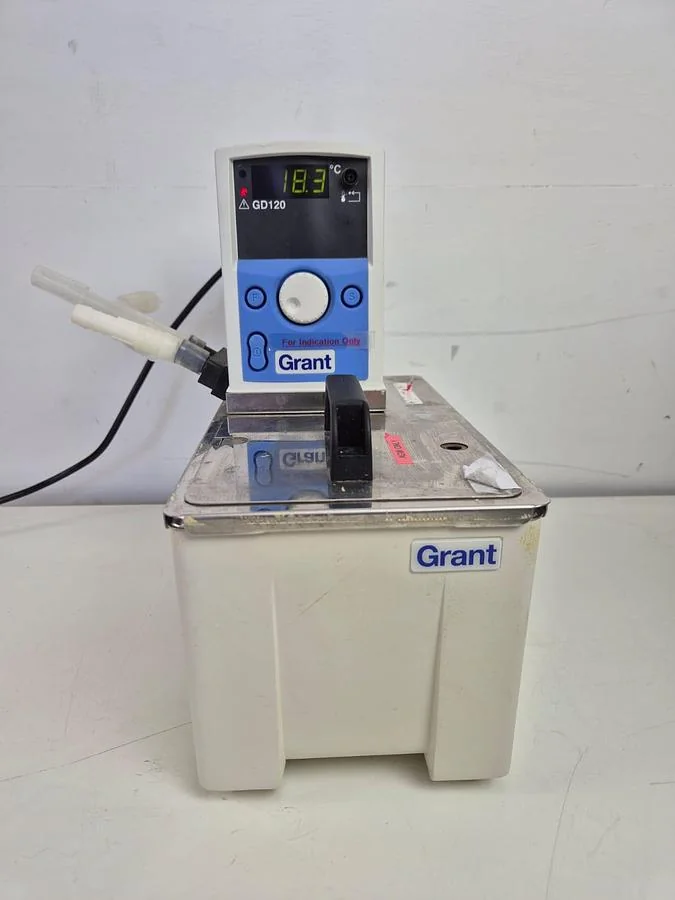

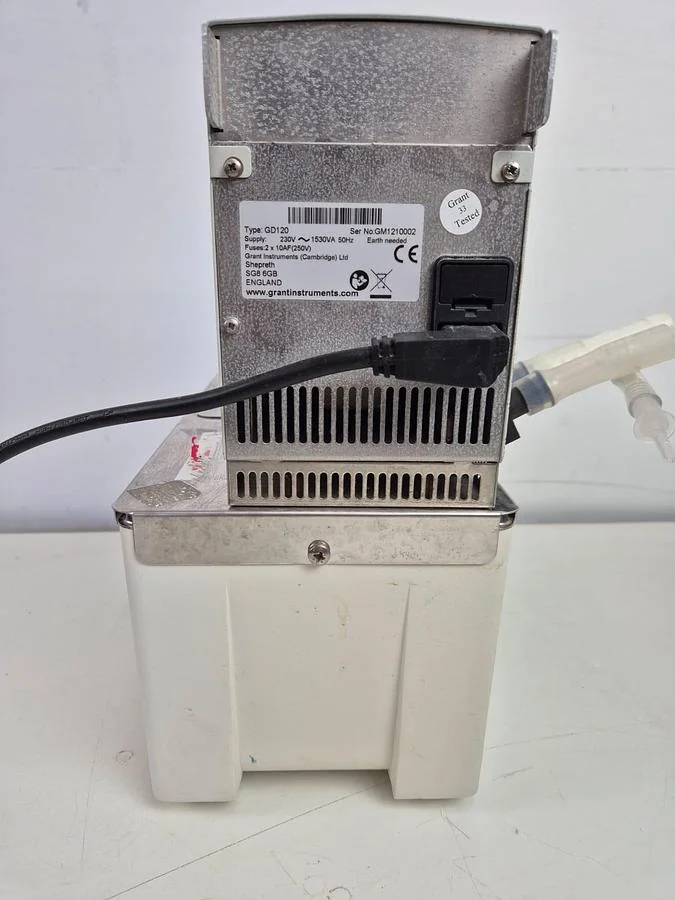

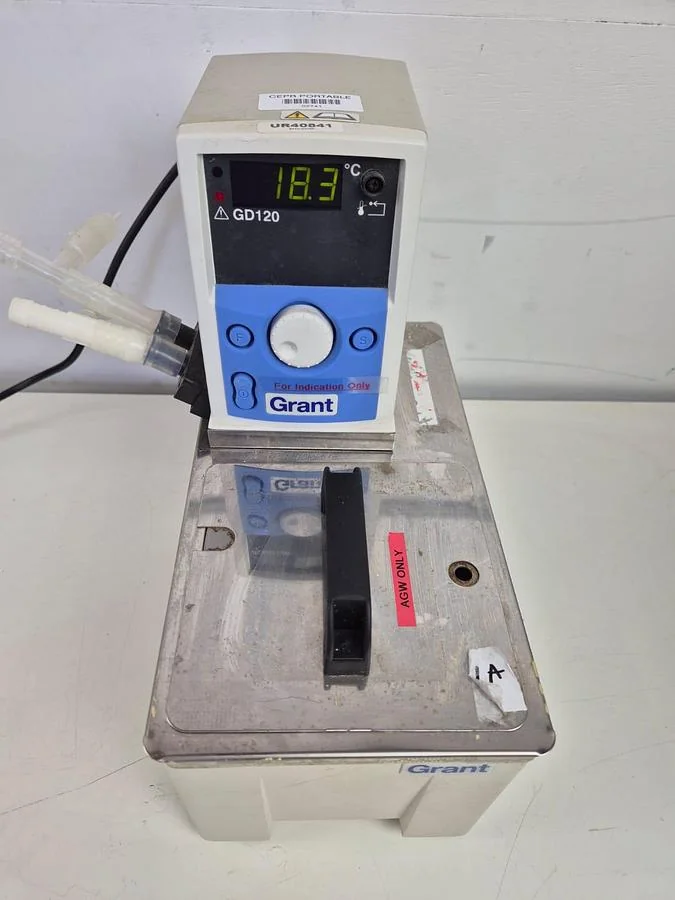

This listing is for the Grant GD120 Water Bath/Circulator

The unit is in full working condition and is ready for immediate use

The Grant GD120 is a digitally controlled stirred water bath and circulator ideal for laboratory use, offering high precision and flexibility. Here's a breakdown of its features and capabilities:

Key Features

Immersion Thermostat with Intelligent Control Optimisation (ICO): Enables adaptive PID control for exceptionally stable temperature regulation.

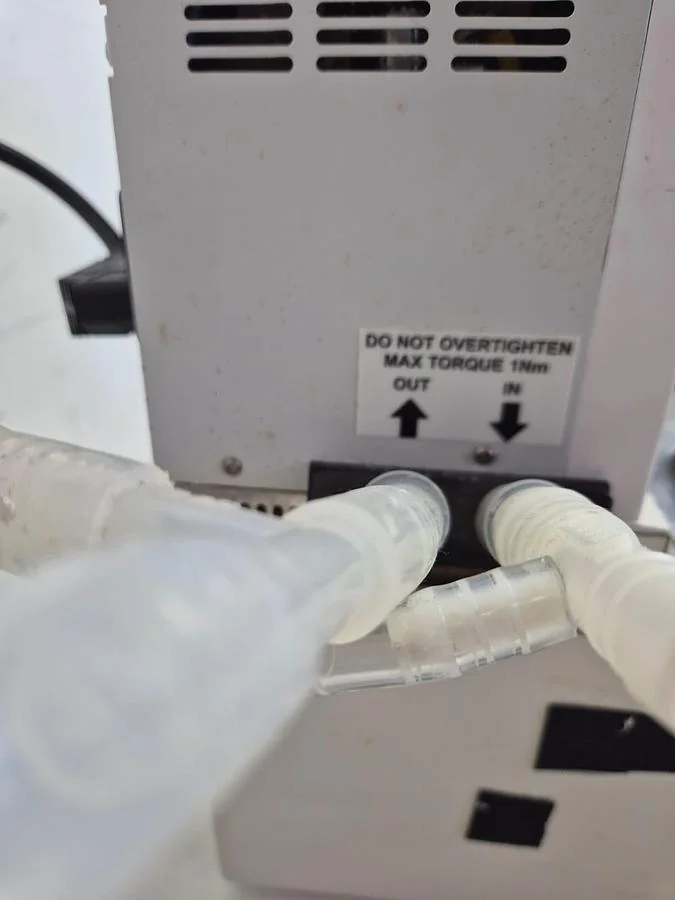

Integral Pump: Built-in circulation pump with a maximum flow rate of 17 L/min, allowing both sample immersion and external fluid circulation.

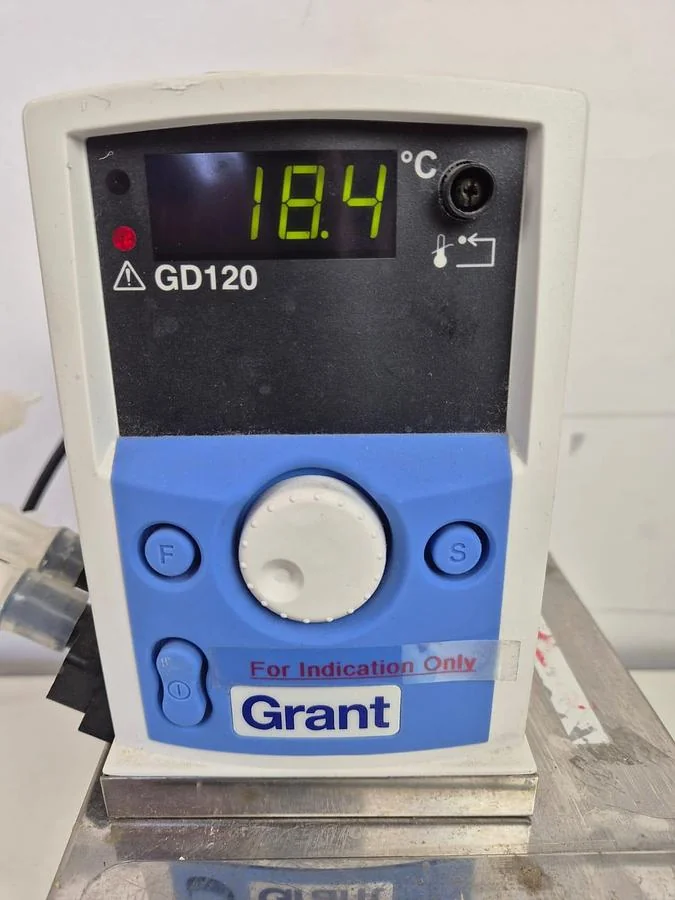

User Interface: Equipped with a clear digital display, a rotor plus two-key control, timer function for reaction timing, and visual + audible alarms to notify operators of critical conditions.

Preset Temperature Control: Supports one adjustable operating setpoint plus three preset temperature options for fast switching.

Safety Features: Includes float-switch low liquid protection and an adjustable over-temperature cut-out for sample and user safety.

Liquid Type Selection: Automatically adjusts heater power and temperature parameters depending on chosen liquid (e.g., water, oil, glycol mixtures).

Temperature Range & Accuracy

Plastic Tanks (P-series): From around ambient +5 °C up to ~99 °C.

Stainless Steel Tanks (S-series): From –15 °C up to ~120 °C.

High Stability: ±0.02 °C for stable temperature control.

Technical Specifications & Obsolescence

The GD120 series includes multiple tank sizes: plastic tanks (P5, P12, P18) and stainless steel tanks (S5, S12, S18, S26, S38), offering varied capacities for different lab needs.

This series is now considered obsolete, though it remains functional and reliable for many applications.

Supporting Documentation & Manual

Operating Manual: The GD120 is covered by the general purpose stirred thermostatic baths manual (shared with GD100), outlining temperature settings, calibration procedures, safety guidance, and maintenance.

Datasheet Summary: Positioned within the broader Grant Optima product range, the GD120 sits between simpler (GD100, up to 100 °C) and higher-spec models (GR150 up to 150 °C, GP200 up to 200 °C)

Cambridgeshire, United Kingdom

5,791 km away

Model Number

Grant GD120 Stirred Water Bath

Stock Number

40841.SR3B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Precise temperature control for chemical and biological reactions.
Sample incubation and conditioning in research and development laboratories.
Calibration of temperature sensors and other laboratory instruments.
Quality control testing requiring stable thermal environments.
External circulation to jacketed vessels or other apparatus.

Typical Specifications

Typical temperature range: Ambient +5°C up to approximately 120°C, depending on the tank material and liquid used.
Temperature stability: Typically ±0.02°C for this class of stirred water bath.
Circulation pump flow rate: Commonly up to 17 L/min for internal and external circulation.
Power supply: Typically single-phase 230V, 50Hz for units sold in the UK.
Tank material: Units of this type are commonly available with plastic (P-series) or stainless steel (S-series) tanks.
Control interface: Digitally controlled with a clear display and user-friendly input for setpoints and timer functions.
