What items are best suited for a gravity curve?

Gravity curves are ideal for conveying items with a flat, rigid base, such as boxes, cartons, and plastic totes. They are not suitable for items with irregular shapes or soft packaging.

Do gravity curves require a power supply?

No, gravity curves are unpowered. They rely on the momentum of items from an upstream powered conveyor or manual assistance to move products around the curve.

How do I choose the correct curve angle?

The correct curve angle depends on your facility's layout and the required change in direction. Common angles include 45°, 60°, 90°, and 180°.

What is the purpose of a guide edge?

Guide edges, either internal or external, help to keep items on the conveyor track as they navigate the curve, preventing them from falling off or jamming.

Can these curves handle heavy items?

Gravity curves of this type are typically designed for light to medium-weight items. For heavier loads, a powered curve or a more robust roller conveyor system would generally be more appropriate.

used Equipment

Available

Verified seller

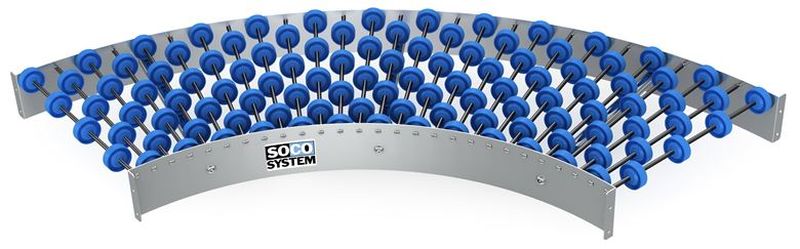

/images/stories/virtuemart/product/DG00083.jpg - Gravity Curve

Name: Gravity Curve
Brand: /images/stories/virtuemart/product/DG00083.jpg
SKU: DG00047
Availability: InStock

Price: Contact seller for price

Fixed curves with 48 wheel axles and single number of wheels. Suitable for flat-based items. The curves are available with a guide edge fitted on the inside or on the outside. Low edge = H1. High edge = H2. Suitable for light and small items.

Galway, Ireland

5,966 km away

Stock Number

DG00047

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Connecting straight conveyor sections to change product direction within a material handling system.
Integrating into packaging lines to guide items around obstacles or corners.
Used in warehousing and distribution centres for sorting and order fulfilment.
Suitable for assembly lines requiring directional changes for components or finished goods.

Typical Specifications

Typical capacity: Typically designed for light to medium loads, handling individual items up to approximately 10-20 kg, depending on the curve radius and wheel configuration.
Power supply: Gravity curves are unpowered and rely on the momentum of items from preceding powered conveyors or manual push.
Curve angle: Commonly available in 45°, 60°, 90°, and 180° configurations to suit various layout requirements.
Roller/wheel type: This class of equipment typically features free-spinning wheels or small rollers, suitable for items with flat, rigid bases.
Construction material: Frames are commonly constructed from mild steel or aluminium, with wheels typically made from plastic (e.g., polypropylene) or steel.
Suitable item types: Best suited for items with a stable, flat base such as boxes, cartons, totes, and trays. Not ideal for irregular shapes or soft bags.
Guide edge options: Units commonly feature internal or external guide edges (H1/H2) to prevent items from falling off the conveyor during directional changes.

Frequently Asked Questions

Gravity curves are ideal for conveying items with a flat, rigid base, such as boxes, cartons, and plastic totes. They are not suitable for items with irregular shapes or soft packaging.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
