What does 'multistage' mean for a centrifugal pump?

Multistage means the pump has multiple impellers in series, allowing it to generate higher pressures than a single-stage pump for a given flow rate.

What are the benefits of an IE5 classified motor?

An IE5 classified motor offers very high energy efficiency, leading to reduced operational costs and a lower environmental footprint compared to lower efficiency classes.

Can this pump handle viscous liquids?

While centrifugal pumps are primarily designed for low-viscosity liquids like water, their performance with more viscous fluids will be reduced. Specific application details should be discussed with the seller.

Is the integrated frequency converter beneficial?

Yes, an integrated frequency converter allows for precise control of pump speed and performance, enabling adaptation to varying system demands and often resulting in energy savings.

What is the 'Grundfos Eye indicator'?

The Grundfos Eye is a visual indicator on the pump's operating panel that provides immediate status feedback (e.g., power on, warning, alarm) through different coloured lights.

Home
/
Food Processing
/
Food Handling & Storage
/
Pumps & Transfer Pumps
/
Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100

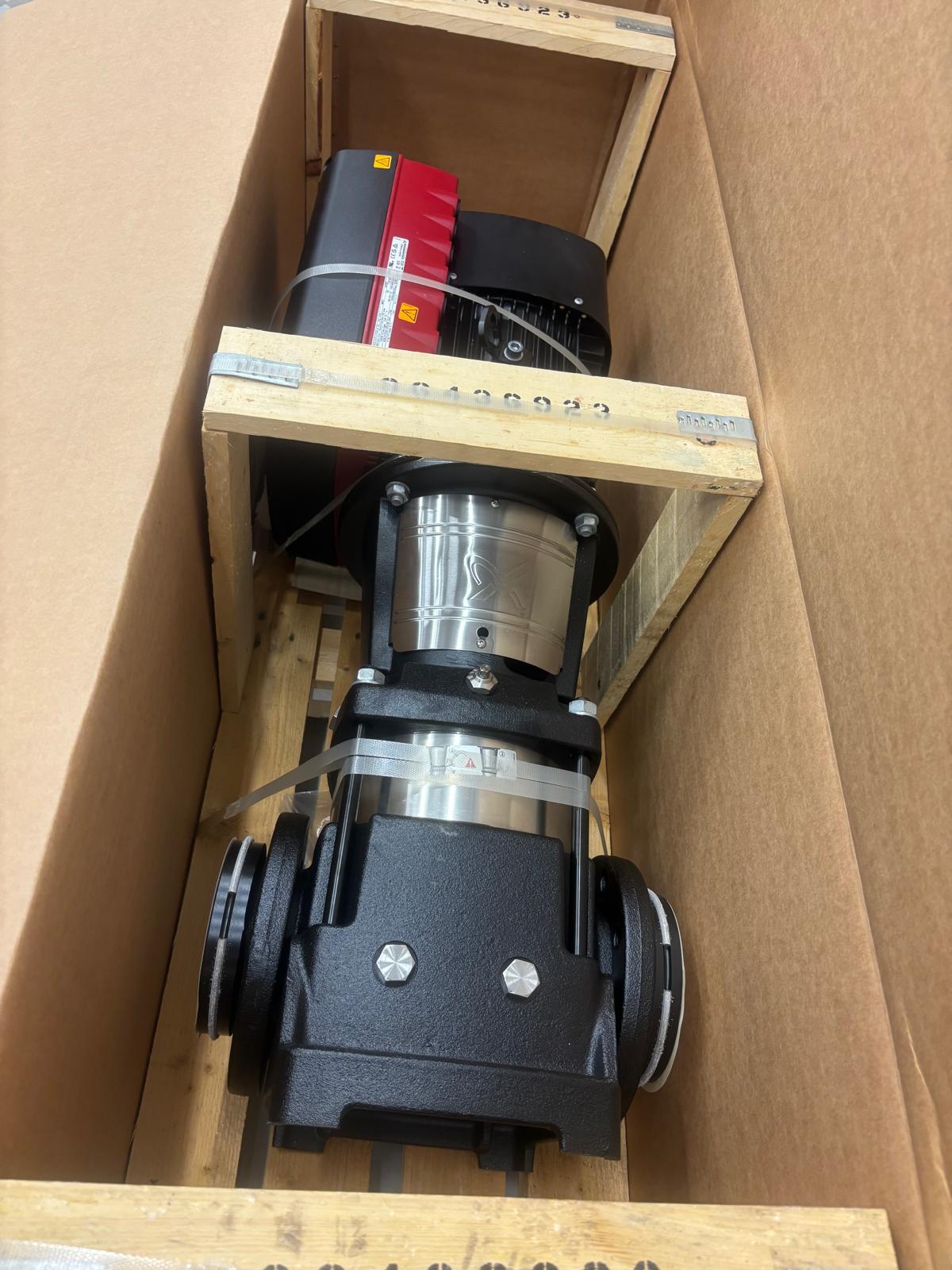

Used Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100 - Pumps & Transfer Pumps, photo 1

Used Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100 - Pumps & Transfer Pumps, photo 2

Used Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100 - Pumps & Transfer Pumps, photo 3

Used Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100 - Pumps & Transfer Pumps, photo 4

Used Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100 - Pumps & Transfer Pumps, photo 5

Used Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100 - Pumps & Transfer Pumps, photo 6

Used Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100 - Pumps & Transfer Pumps, photo 7

Used Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100 - Pumps & Transfer Pumps

used Equipment

Available

Verified seller

Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100

Name: Grundfos Vertical, multistage centrifuga CRE 64-1-1 A F A E HQQE DN100
Brand: Grundfos
SKU: SKU4046
Availability: InStock

Price: Contact seller for price

Used Equipment NEW Grundfos.

The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor.

The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2.

The motor includes a frequency converter and PI controller in the motor terminal box.

This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.

An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min." or "Max." operation or to "Stop".

The Grundfos Eye indicator on the operating panel provides visual indication of pump status:

"Power on": Motor is running (rotating green indicator lights) or not running (permanently green indicator lights).

"Warning": Motor is still running (rotating yellow indicator lights) or has stopped (permanently yellow indicator lights).

"Alarm": Motor has stopped (flashing red indicator lights).

Communication with the pump is possible by means of Grundfos GO Remote (accessory).

The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption".

The terminal box has a number of inputs and outputs enabling the motor to be used in advanced applications where many inputs and outputs are required:

two dedicated digital inputs
three analog inputs, 0(4)-20 mA, 0-5 V, 0-10 V, 0.5 – 3.5 V
5 V voltage supply to potentiometer and sensor
one analog output, 0-10 V, 0(4)-20 mA
two configurable digital inputs or open-collector outputs
two Pt100/Pt1000 inputs
LiqTec, dry-running protection sensor input
Grundfos Digital Sensor input and output
24 V voltage supply for sensors
two signal-relay outputs (potential-free contacts)
GENIbus connection
interface for Grundfos CIM fieldbus module.

Galway, Ireland

5,948 km away

Stock Number

SKU4046

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring liquids in food processing plants, such as water, brines, or cleaning solutions.
Boosting pressure in water supply systems for washdown or process applications.
Circulating cooling or heating fluids within process loops.
Handling condensate return in steam systems.
Use in beverage production for moving product or CIP solutions.

Pump Type: Vertical, multistage centrifugal pump, commonly used for high-pressure applications.
Motor Type: Typically fitted with a 3-phase, fan-cooled, permanent-magnet synchronous motor, often with IE5 efficiency classification.
Integrated Control: Units of this type commonly include an integrated frequency converter and PI controller for variable speed operation.
Connectivity: Often supports remote communication via proprietary systems like Grundfos GO Remote for monitoring and control.
Inputs/Outputs: Terminal boxes typically offer multiple digital and analog inputs/outputs for advanced system integration.
Connection Size: For this model, DN100 connections are specified, indicating a substantial flow capacity.

Food processing pumps are valued for reliability and durability in continuous operations. Buyers typically prioritise corrosion resistance, hygiene compliance, and consistent flow rates. When purchasing used units, inspecting seals, impellers and motor condition proves essential. Industry sentiment favours models with straightforward maintenance requirements and availability of spare parts. Stainless steel construction and gentle handling capabilities for delicate products are consistently sought features.
