What types of drums can this tipper handle?

Guarded drum tippers are typically designed to handle standard industrial drums, including steel, plastic, and fibre drums, often with specific cradle attachments for different drum diameters and heights. Buyers should confirm compatibility with their specific drum types.

Is this unit suitable for hazardous environments?

While the description highlights robust safety features, suitability for hazardous (e.g., ATEX) environments is not specified. Buyers requiring ATEX compliance should confirm this directly with the seller.

What maintenance is typically required for a drum tipper?

Routine maintenance commonly involves checking hydraulic fluid levels (if applicable), inspecting moving parts for wear, lubricating bearings, and verifying the functionality of safety interlocks and limit switches. Regular cleaning is also essential, especially in food processing environments.

Can the tipping angle be adjusted?

Many drum tippers offer adjustable tipping angles to ensure complete discharge of various materials. The extent of adjustability can vary between models, so buyers should confirm this with the seller.

What are the key safety considerations for operating a guarded drum tipper?

Key safety considerations include ensuring the safety guard is fully closed and interlocked during operation, adherence to PUWER regulations, proper training for operators, and regular inspection of emergency stop functions and limit switches. The described unit's guarding to BS EN 14120:2015 is a significant safety feature.

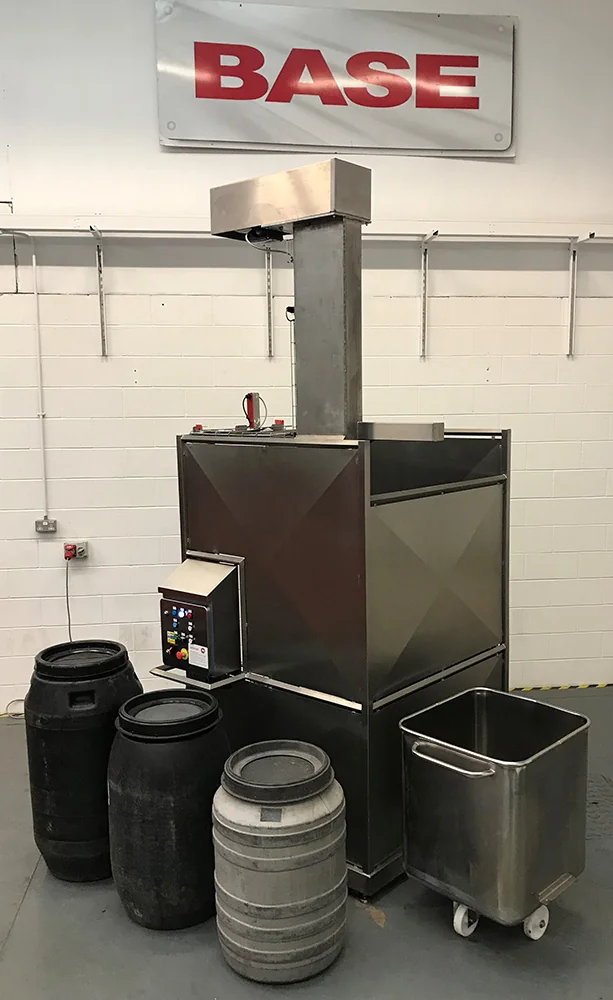

Guarded Drum Tipper - Lifting & Tipping, photo 1

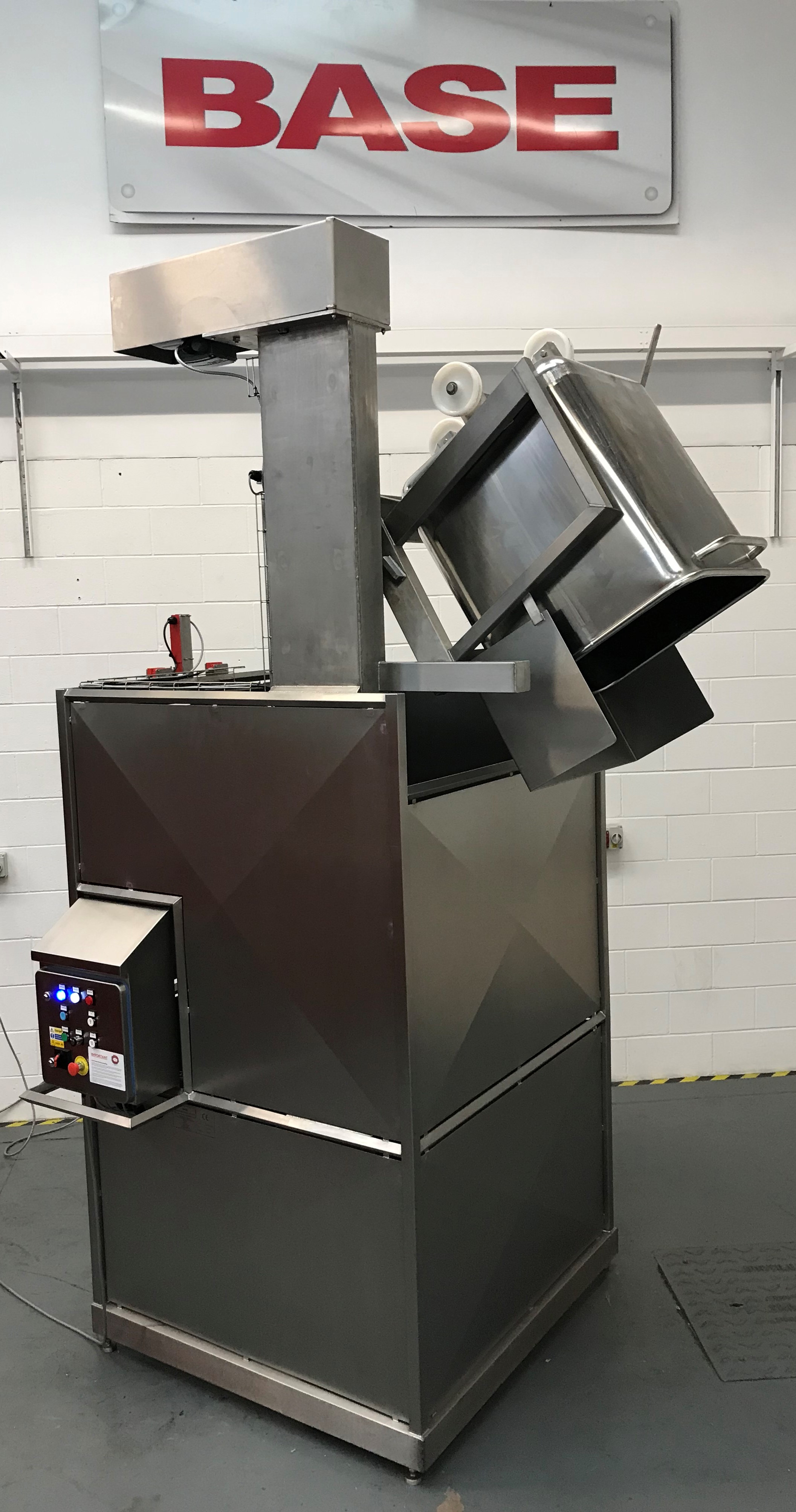

Guarded Drum Tipper - Lifting & Tipping, photo 2

Guarded Drum Tipper - Lifting & Tipping, photo 3

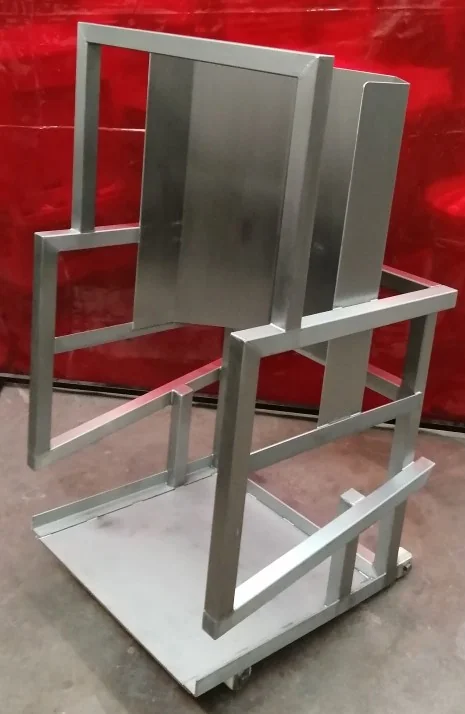

Guarded Drum Tipper - Lifting & Tipping, photo 4

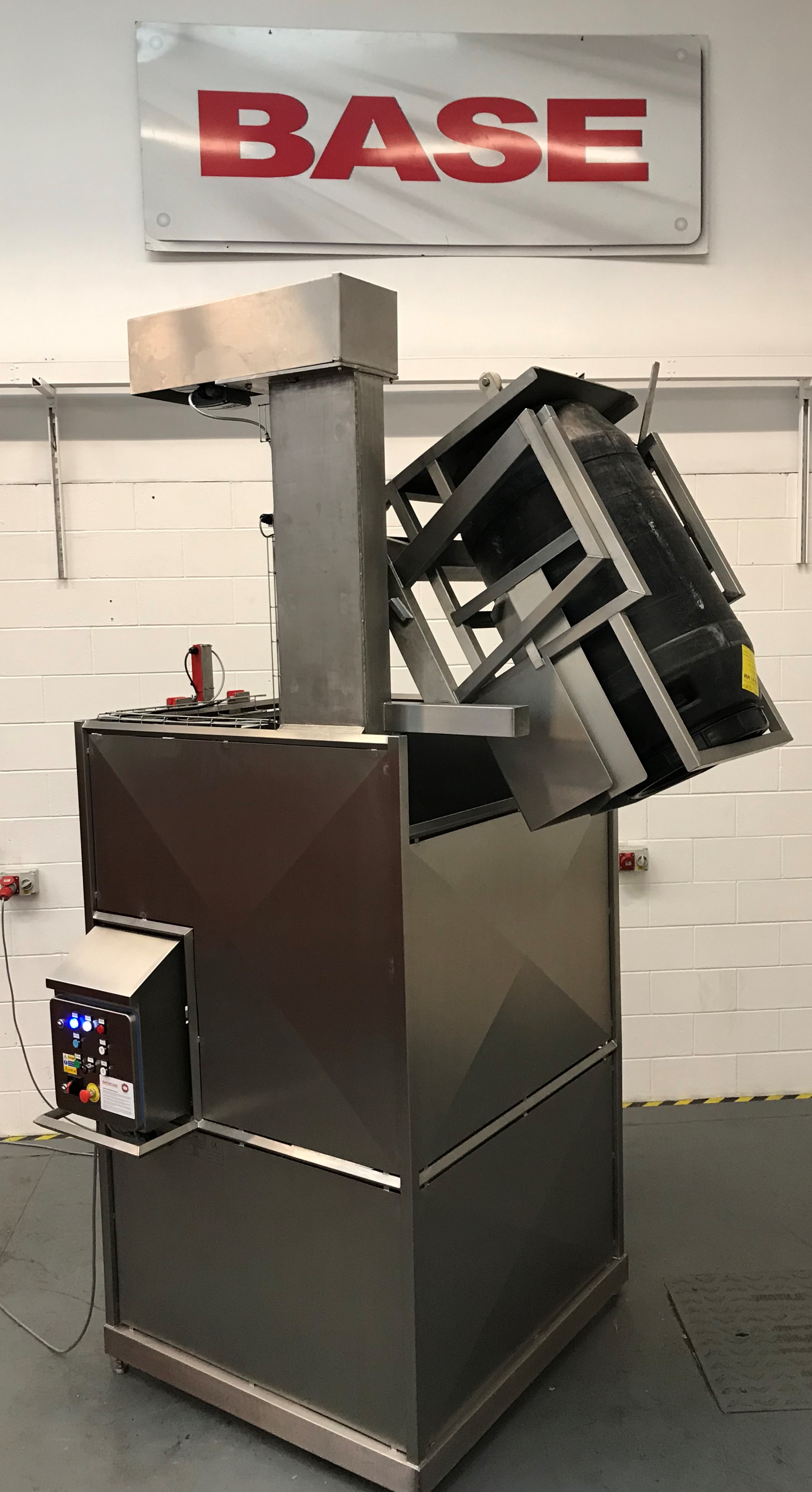

Guarded Drum Tipper - Lifting & Tipping, photo 5

Available

Verified seller

Guarded Drum Tipper

Name: Guarded Drum Tipper
SKU: BTM/300/1900/B/G/140
Availability: InStock

Price: Contact seller for price

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

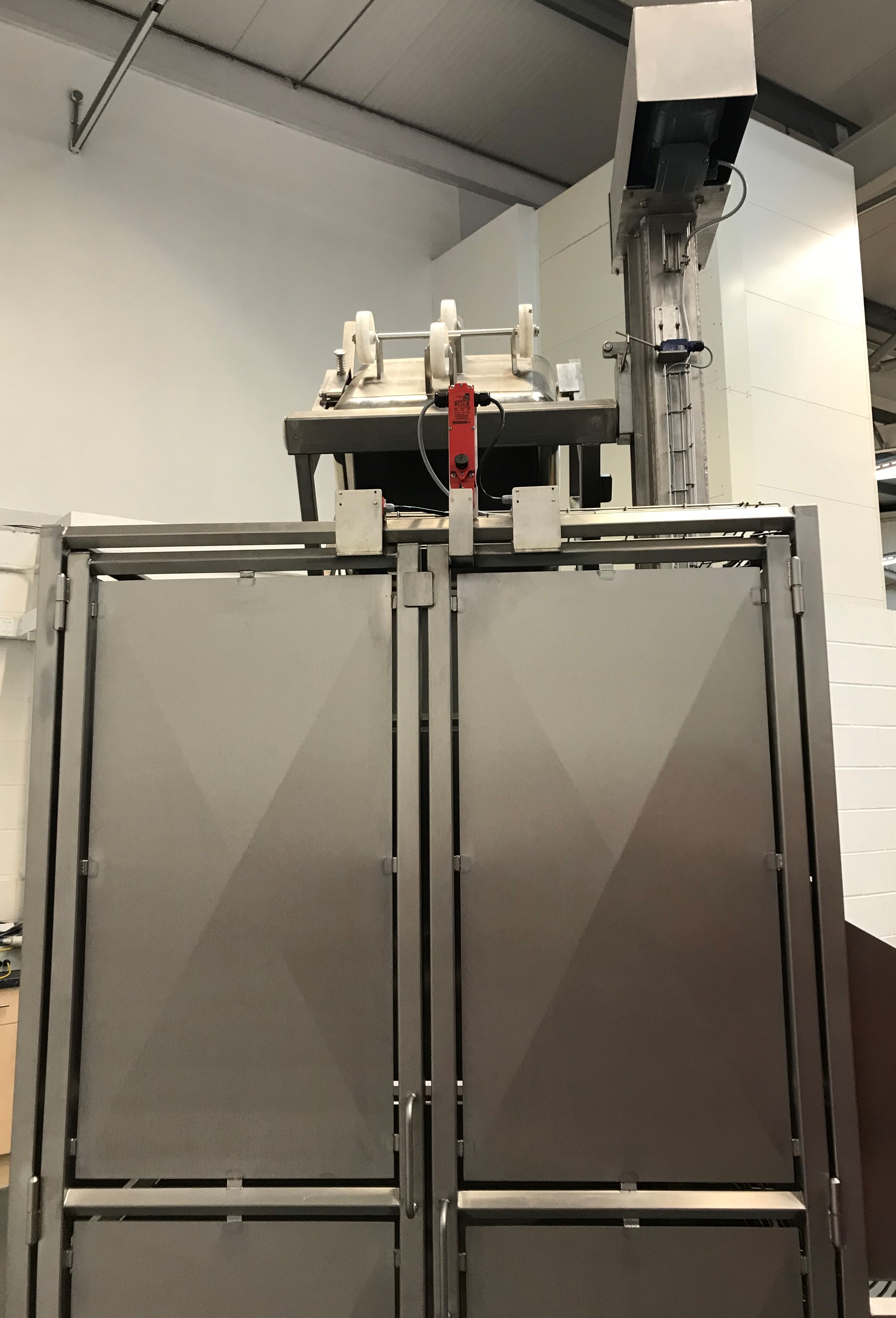

This Guarded Drum Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. The safety guard encloses the Guarded Drum Tipper to a height of 2200mm on two sides, 1800mm on the tipping side with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Guarded Drum Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the down position to prevent access whilst a load is raised.

Guarded Drum Tipper Electrical Control

This Guarded Drum Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility.

The Guarded Drum Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Guarded Drum Tipper to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Guarded Drum Tipper

Model No.

BTM/300/1900/B/G/140

Capacity

300 Kgs

Tipping Height

1900mm

Tipping Angle

140 Degrees For Tote Bins, 150 Degrees For Drums

Overall Height

3403mm

Machine Handing

Right Hand

Maximum Headroom

4000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Duplex

Tensile Strength

6000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/1900/B/G/140

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Used for controlled discharge of ingredients from drums into processing vessels or hoppers.
Suitable for transferring bulk solids or liquids in food, pharmaceutical, and chemical industries.
Often integrated into production lines for ergonomic and safe material handling.
Facilitates the emptying of drums containing powders, granules, or viscous products.

Typical Specifications

Typical capacity: Units of this class commonly handle drums from 50kg to 300kg, depending on the specific design.
Power supply: Typically requires a 3-phase electrical supply, commonly 400V, 50Hz, with a control voltage of 24V DC.
Tipping height: For this class of equipment, tipping heights commonly range from 1200mm to 2500mm, adjustable to suit receiving hoppers.
Construction material: Often constructed from 304 or 316-grade stainless steel, particularly for food and pharmaceutical applications, ensuring hygiene and corrosion resistance.
Safety features: Units of this type commonly include safety guarding to standards like BS EN 14120, with electrically and mechanically interlocked doors and emergency stop functionality.
Ingress protection: Control panels are typically rated to IP65 for washdown environments.
Footprint: The base footprint for a guarded unit can typically range from 1500mm x 1500mm upwards, depending on the drum size and guarding requirements.

Frequently Asked Questions

Guarded drum tippers are typically designed to handle standard industrial drums, including steel, plastic, and fibre drums, often with specific cradle attachments for different drum diameters and heights. Buyers should confirm compatibility with their specific drum types.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
