What type of containers can this tipper handle?

This type of tipper is specifically designed for standard tote bins, often referred to as 'buggies' or 'eurobins'. Buyers should confirm the exact bin compatibility with the seller.

Is this equipment suitable for washdown environments?

Yes, the Grade 304 stainless steel construction and IP65 rated control panel indicate suitability for regular washdown in food processing environments.

What are the typical safety features of a guarded tipper?

Common safety features include full guarding with interlocked access doors, proximity sensors to ensure correct bin loading, and emergency stop functionality. This unit includes such features.

Can the discharge height be adjusted?

For this particular unit, the discharge height is stated as fixed at 1854mm. Some tippers offer adjustable discharge heights, but this should be confirmed with the seller for this specific unit.

What maintenance is typically required for this equipment?

Routine maintenance typically involves checking the lifting chain and gearbox, lubricating moving parts, and inspecting electrical connections and safety interlocks. Regular cleaning is also essential.

Is installation complex for a mobile unit like this?

Installation for a mobile unit is generally straightforward, primarily involving connection to a suitable electrical supply. Positioning and safety zone considerations are important.

Guarded Dump Buggie Tipper - Lifting & Tipping, photo 1

Guarded Dump Buggie Tipper - Lifting & Tipping, photo 2

Guarded Dump Buggie Tipper - Lifting & Tipping, photo 3

Guarded Dump Buggie Tipper - Lifting & Tipping, photo 4

Guarded Dump Buggie Tipper - Lifting & Tipping, photo 5

Guarded Dump Buggie Tipper - Lifting & Tipping, photo 6

Guarded Dump Buggie Tipper - Lifting & Tipping

Available

Verified seller

Guarded Dump Buggie Tipper

Name: Guarded Dump Buggie Tipper
SKU: BTM/300/1854/M/G
Availability: InStock

Price: Contact seller for price

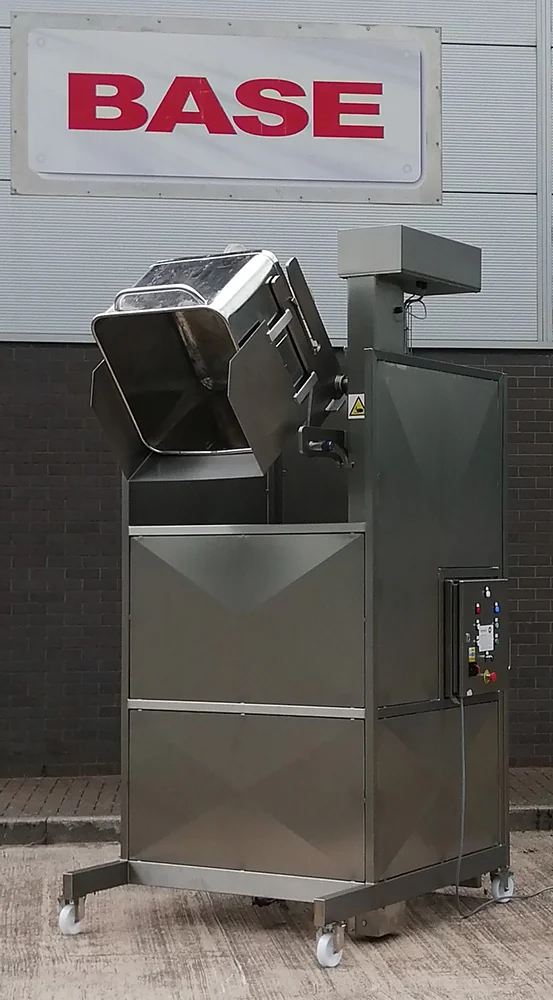

BTM/300/1854/M/G Single Pillar Guarded Dump Buggie Tipper

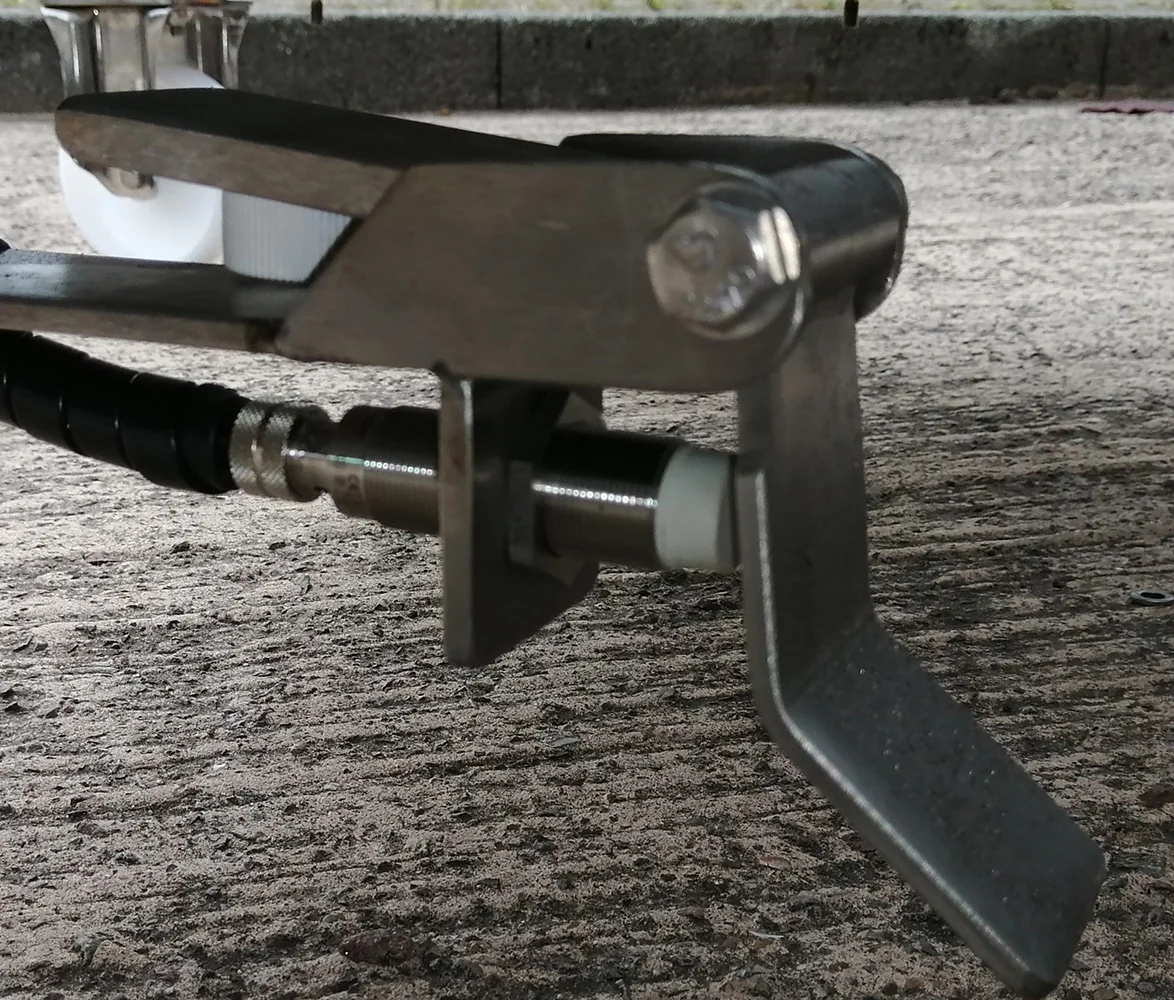

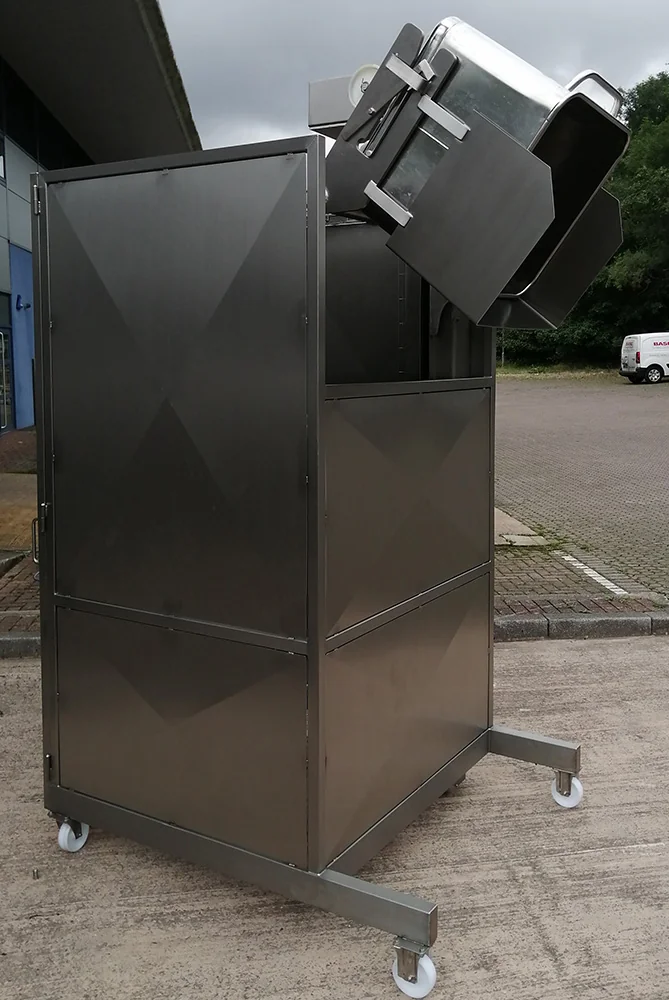

This Guarded Dump Buggie Tipper is designed to lift and tip at a discharge height of 1854mm. The Guarded Dump Buggie Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be mobile on two fixed and two swivel castors. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Guarded Dump Buggie Tipper was fitted with a proximity sensor that will only permit the Guarded Dump Buggie Tippers operation if the tote bin has been correctly loaded.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

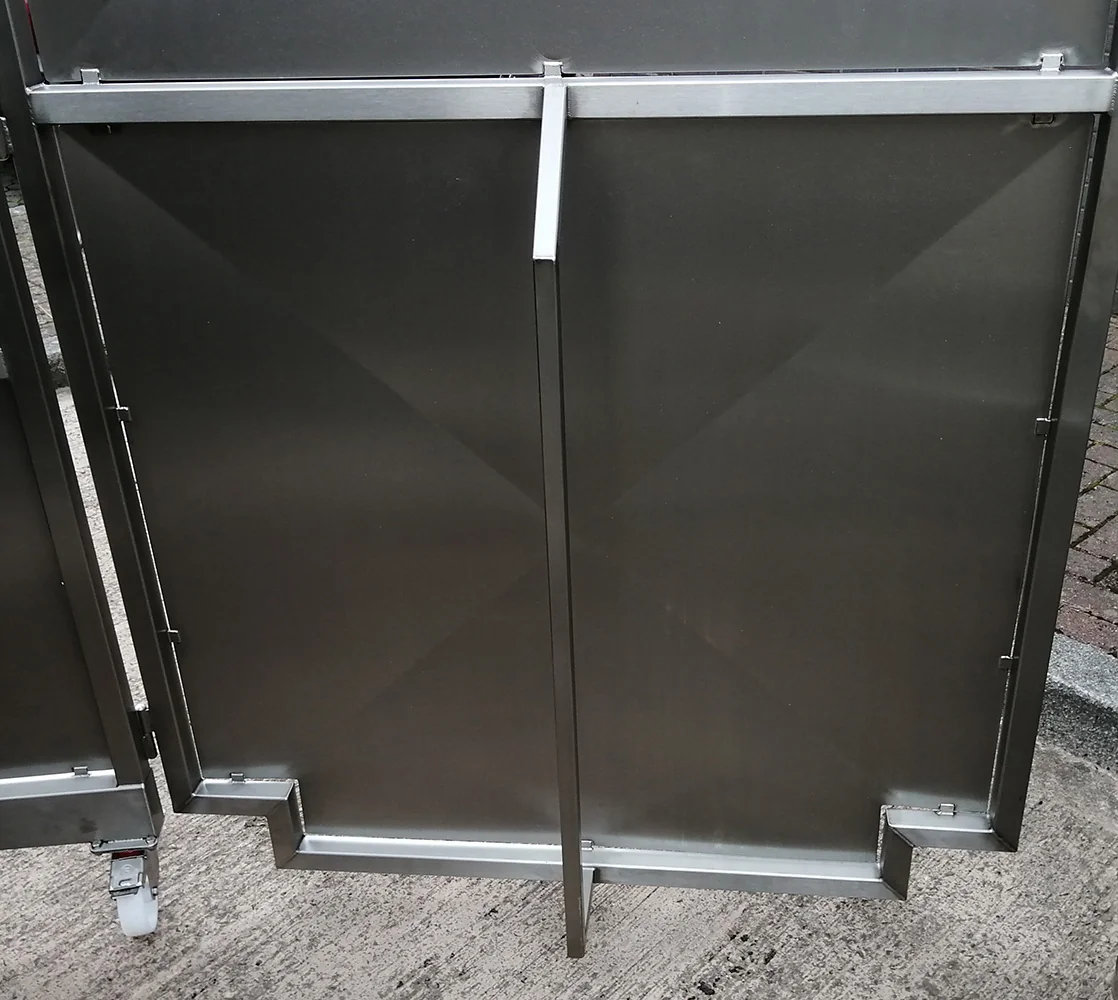

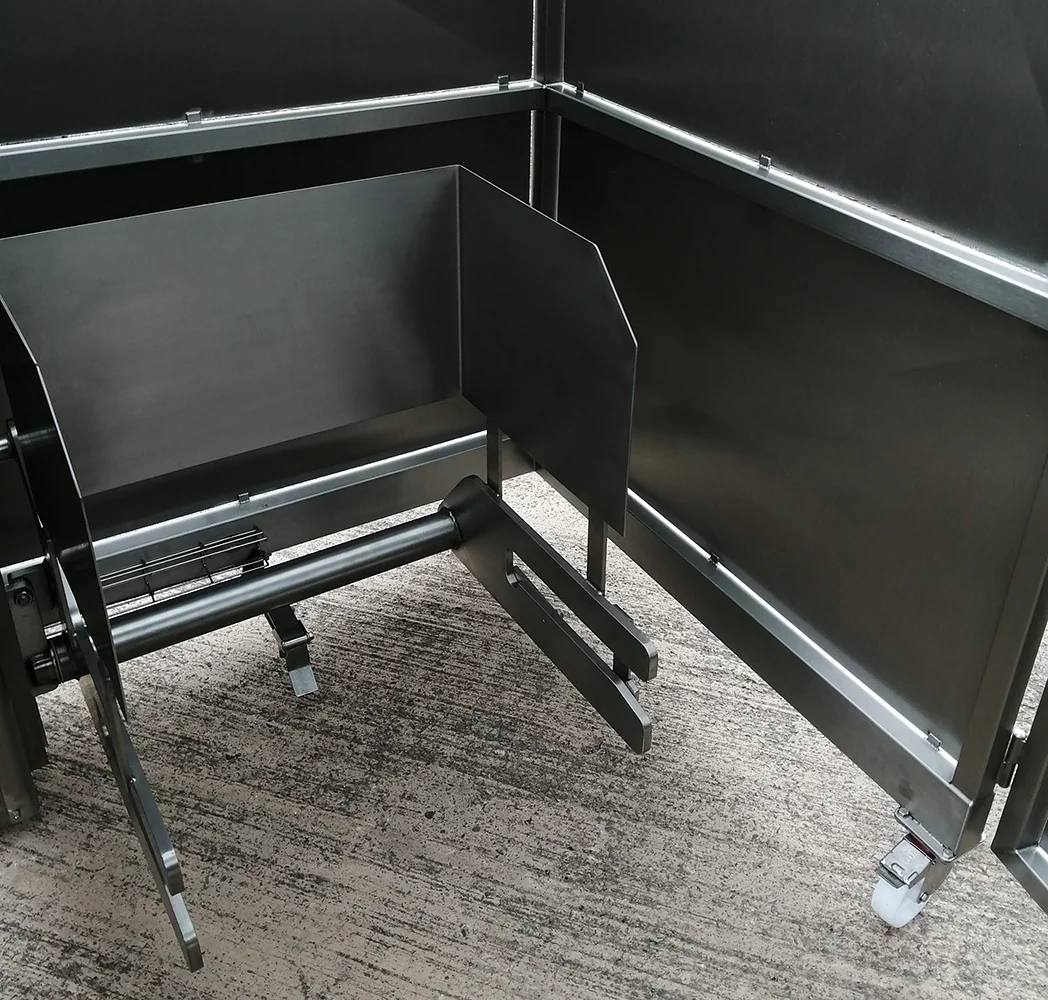

This Guarded Dump Buggie Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. It encloses the Guarded Dump Buggie Tipper to a height of 2400mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Guarded Dump Buggie Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Guarded Dump Buggie Tipper Electrical Control

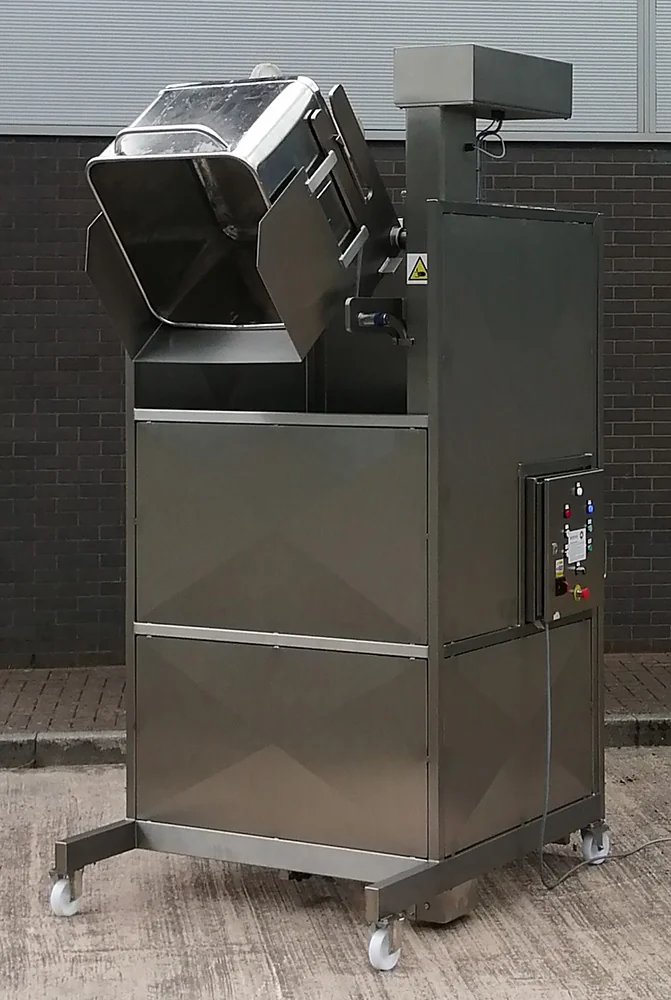

This Guarded Dump Buggie Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Guarded Dump Buggie Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Guarded Dump Buggie Tipper to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Guarded Dump Buggie Tipper

Model No.

BTM/300/1854/M/G

Capacity

300 Kgs

Tipping Height

1854mm

Tipping Angle

135 Degrees

Machine Handing

Left Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

200 Litre Tote Bin

Base Arrangement

Mobile On 2 Fixed & 2 Swivel Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 480V, 3 PHASE, 60 CYCLE, c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/1854/M/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from tote bins into mixers or processing vessels.
Loading raw materials into hoppers for further processing.
Discharging finished products from containers onto conveyor systems.
Elevating waste materials into skips or disposal units.
Ergonomic lifting of heavy containers to reduce manual handling risks.

Typical Specifications

Typical capacity: Units in this class commonly handle standard 200-litre tote bins (buggies), with a typical safe working load of up to 300kg.
Discharge height: For this particular unit, the stated discharge height is 1854mm. Other units of this type commonly offer discharge heights ranging from 1200mm to 2500mm.
Construction material: This unit is manufactured from Grade 304 stainless steel, which is standard for food processing equipment due to its hygiene and corrosion resistance.
Mobility: This unit is designed to be mobile on two fixed and two swivel castors, a common feature for flexible plant layouts.
Lifting mechanism: Lifting is typically achieved by a chain drive system, powered by a motor gearbox, as described for this unit.
Power supply: Units of this type commonly require a 3-phase electrical supply, typically 400V, 50Hz.
Safety features: Integrated safety guarding to standards like BS EN 14120:2015, with interlocked doors and proximity sensors, is a critical safety feature commonly found on modern units.
Control panel rating: An IP65 rated stainless steel control panel is typical for food processing environments, offering protection against dust and water ingress.
