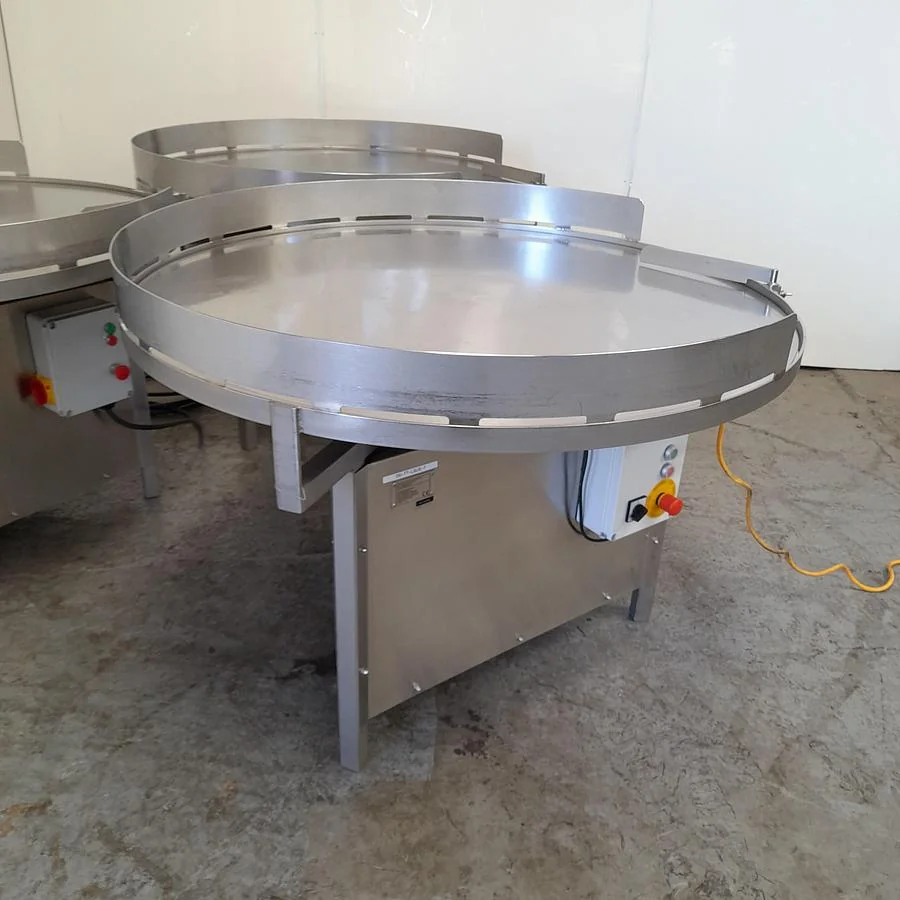

Havantec - Rotary Table

Applications & Use Cases

• Accumulating products at the end of a production line before packing.
• Buffering items between different stages of a processing or packaging line.
• Orienting products for subsequent processes like labelling or inspection.
• Providing a workstation for manual sorting, inspection, or assembly of food items.

Typical Specifications

Table Diameter

Typically ranges from 600mm to 1500mm, depending on the model and intended throughput.

Table Material

Commonly food-grade stainless steel (304 or 316) for hygiene and corrosion resistance.

Drive System

Typically features a geared motor, often with variable speed control for integration into different line speeds.

Power Supply

Commonly 230V single-phase or 400V three-phase, 50Hz, suitable for industrial environments in the UK.

Height

Adjustable working height is common, typically between 700mm and 900mm, to align with existing conveyors.

Throughput

Dependent on table size and product characteristics, but designed to handle continuous flow from upstream equipment.

Construction

Robust, hygienic design, often with open frames for ease of cleaning and maintenance.

Frequently Asked Questions

• What types of products can a rotary table handle?

  Rotary tables are versatile and can handle a wide range of products, including bottles, jars, pouches, trays, small packaged goods, and individual food items, provided they are stable enough on the rotating surface.

• Is variable speed control important?

• What maintenance is typically required for a rotary table?

• Can a rotary table be integrated into an automated line?

• What are the space requirements for a rotary table?
