What type of bins can this tipper handle?

This class of tipper is typically designed for standard industrial wheelie bins, such as 660-litre models. Buyers should confirm compatibility with their specific bin dimensions and types.

What are the power requirements for this equipment?

Wheelie bin tippers commonly operate on a 3-phase electrical supply, with specific voltage and current requirements varying by motor size. Buyers should consult the seller for exact electrical specifications.

Is this tipper suitable for washdown environments?

While this unit is described as mild steel, which is not ideal for regular washdown, variants or units with stainless steel construction are available for hygiene-critical food processing environments. The IP65 rating on the electrical box indicates good dust and water jet protection.

What maintenance is typically required?

Routine maintenance commonly involves checking the drive chain tension and lubrication, inspecting safety interlocks, and ensuring all bolted connections remain secure. Adherence to PUWER regulations for maintenance access is a design consideration.

Can the discharge height be adjusted?

For this class of equipment, the discharge height is typically fixed as part of its welded construction. Customisation for specific discharge heights may be possible with new builds or significant modification.

What safety standards does this equipment meet?

Units are commonly designed to meet UK and European safety standards, such as BS EN 14120:2015 for machinery guarding, ensuring operator safety through features like interlocked doors.

Available

Verified seller

Heavy Duty Wheelie Bin Tipper

Name: Heavy Duty Wheelie Bin Tipper
SKU: BTM/600/2100/B/G
Availability: InStock

Price: Contact seller for price

BTM/600/2100/B/G Heavy Duty Wheelie Bin Tipper

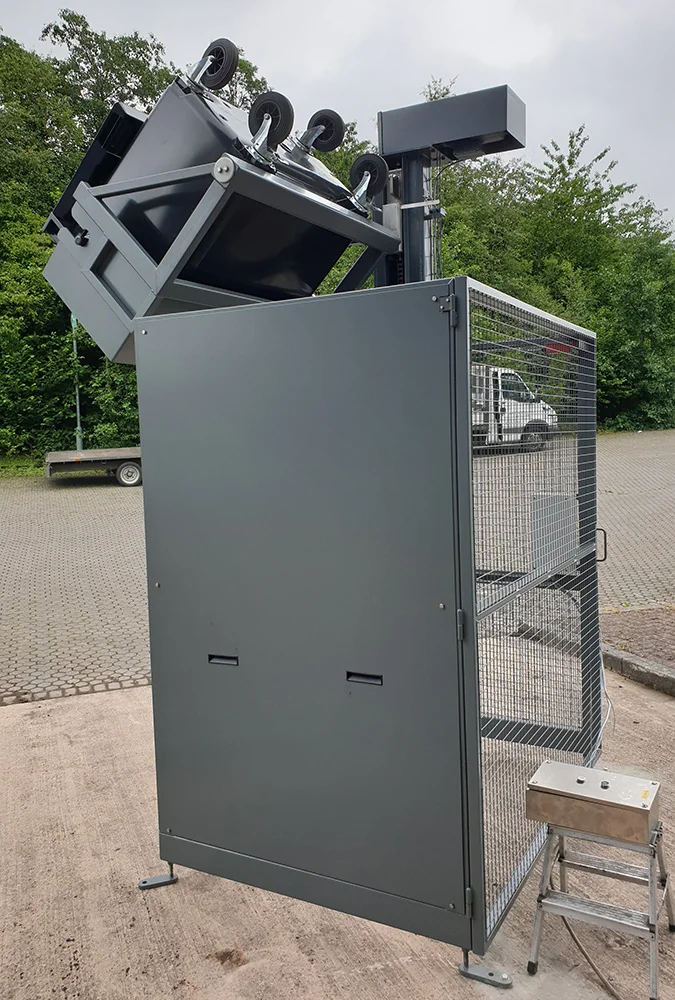

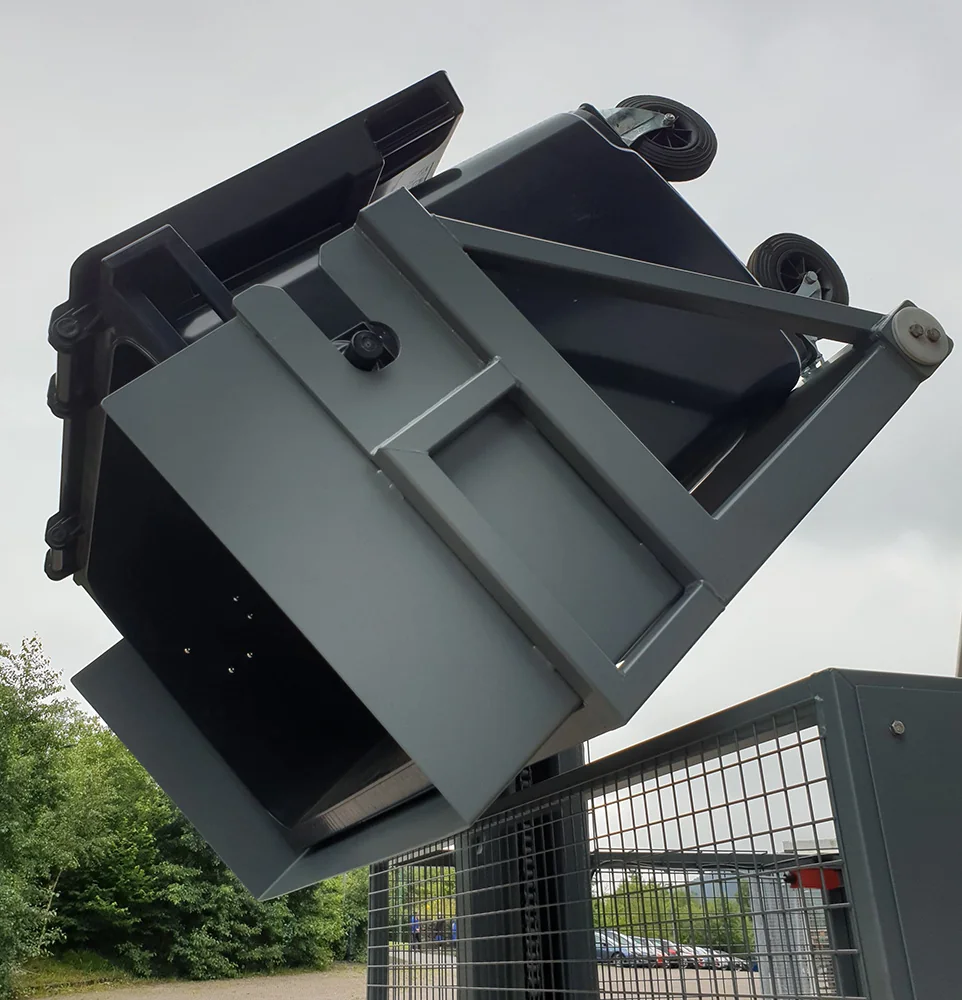

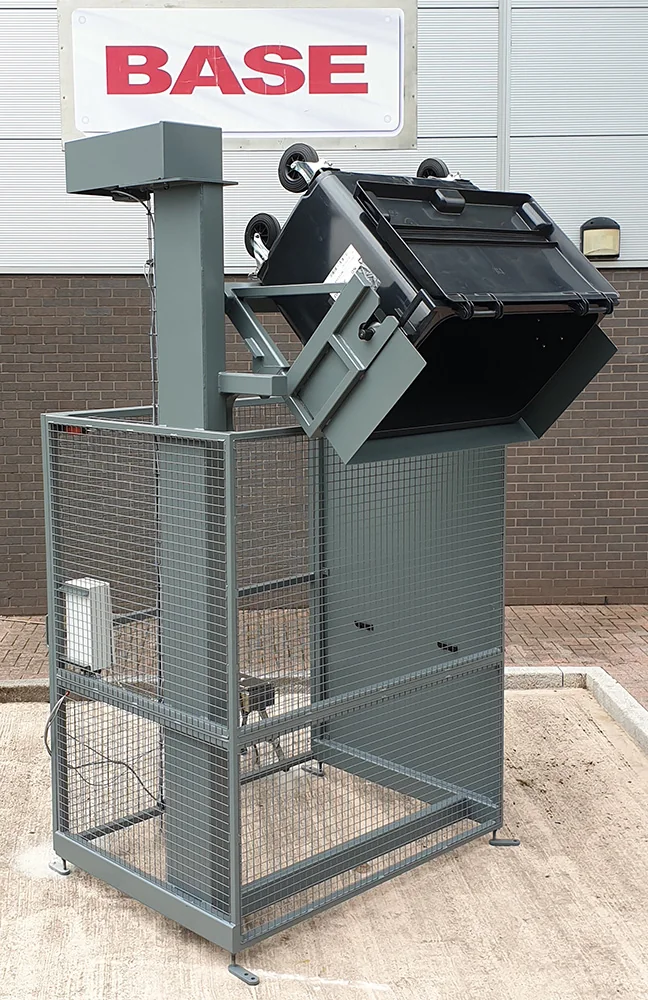

This Heavy Duty Wheelie Bin Tipper is designed to lift and tip a 660 Litre Wheelie Bin at a discharge height of 2100mm. The Heavy Duty Wheelie Bin Tipper is manufactured from mild steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a 1” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

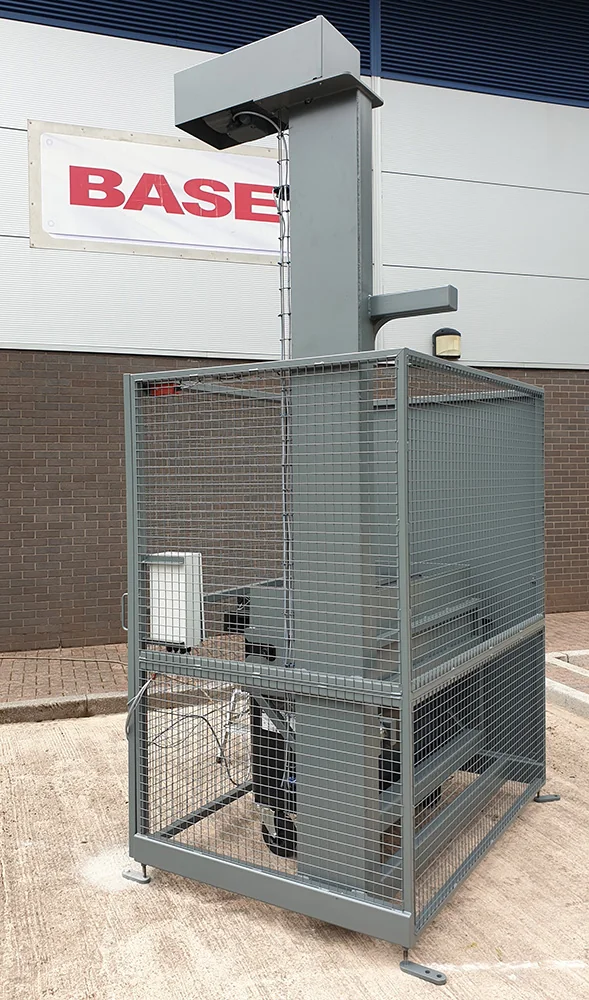

This Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm box section and 2.0mm sheet. The safety guard encloses the Heavy Duty Wheelie Bin Tipper to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Heavy Duty Wheelie Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Heavy Duty Wheelie Bin Tipper Electrical Control

This Heavy Duty Wheelie Bin Tipper is fitted with an IP65 Terminal Box which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control was incorporated into the Main Control System by others.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Heavy Duty Wheelie Bin Tipper

Model No.

BTM/600/2100/B/G

Capacity

600 Kgs

Tipping Height

2100mm

Tipping Angle

135 Degrees

Overall Height

3425mm

Machine Handing

Right Hand

Maximum Headroom

4100mm

Tipping Chute

Yes

Container Description

660 Litre Wheelie Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

1.1kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

1" Simplex

Tensile Strength

6000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/600/2100/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from bins into mixers or processing lines in bakeries and food manufacturing.
Emptying waste bins into compactors or larger receptacles in food production facilities.
Loading raw materials into hoppers for further processing in various industrial settings.
Handling bulk ingredients in pharmaceutical and chemical industries where contained transfer is required.

Typical Specifications

Typical capacity: Designed to handle standard industrial wheelie bins, commonly 660 litres or similar capacities.
Discharge height: Units of this type typically offer discharge heights around 2100mm, suitable for elevated hoppers or conveyors.
Construction material: Often constructed from mild steel, with options for stainless steel in hygiene-critical environments.
Drive mechanism: Lifting is commonly achieved via a chain drive system, powered by a motor gearbox.
Safety features: Typically includes comprehensive guarding to standards such as BS EN 14120:2015, with interlocked access doors.
Electrical control: Units commonly feature an IP-rated terminal box for local control or integration into a wider control system.
Mounting: Designed for floor bolting to ensure stability during operation.
