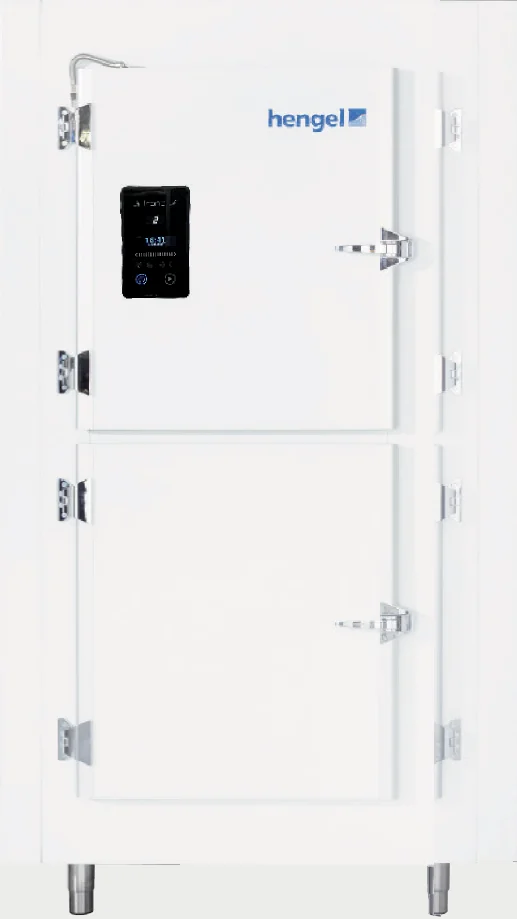

Hengel - RS110E-US Chock Freezer-Storage Cabinet

Price: $ 58,000

RS110E-US

The RS110E-US is a double depth shock freezer-storage cabinet with 12 doors, operating at temperatures of -35°C to -16°C.

Stainless steel exterior with white interior, insulated with 100mm polyurethane foam (43 kg/m3).

Features 7 shock freezer levels (14 trays) and 110 storage door levels (220 trays), using 460x660mm trays with 2 per level.

Controlled via Bi-Tronic Slide interface with electronic expansion valve and programmable electric heater defrosting.

Cooling power of 3.18kW using R448A or R449A refrigerant. High density foam and heated door cable gaskets.

Legs standard, wheels optional. Delivered disassembled, pre-assembled.

Washington, United States

Distance: 12,311 km away

Length

560 cm

Width

118.5 cm

Height

225 cm

Construction

Interior white, exterior stainless steel

Insulation

Polyurethane foam, 43 kg/m3, thickness 100mm

Doors

12 total - 2 on left hinges, remaining on right hinges

Door Gasket

High density foam and heat door cable

Legs/Wheels

Legs standard, wheels optional

Temperature Range

-35°C / -16°C

Chock Freezer Capacity

7 levels (14 trays)

Storage Capacity

110 doors (220 trays)

Tray Size

460 x 660mm (2 per level)

Control Interface

Bi-Tronic Slide

Pressure Regulator

Electronic expansion valve

Defrosting

Programmable by electric heater

Cooling Power

3.18kW (at -30°C evap. / 32°C ext.)

Refrigeration Voltage

230V + G, 60Hz / P = 4400W (separate power supply)

Optimum Operating Temperature

35°C

Maximum Operating Temperature

48°C

Cabinet Electrical Power

2850W

Cabinet Voltage

230V Tri

Gross Weight

1021 kg

Year of Manufacture

2026
