What types of foreign objects can an X-ray inspection system detect?

X-ray systems like the Heuft eXaminer are typically effective at detecting metallic contaminants (ferrous, non-ferrous, stainless steel), glass, dense plastics, stones, and calcified bone fragments within products.

Is specialist training required to operate an X-ray inspection machine?

Yes, specialist training is typically required for safe and effective operation of X-ray inspection systems. This usually covers radiation safety, system setup, calibration, and routine maintenance procedures.

What are the typical maintenance requirements for an X-ray inspection system?

Routine maintenance typically includes regular cleaning of the conveyor and inspection area, checking and calibrating the X-ray generator and detector, and verifying the rejection mechanism. X-ray tube replacement is an infrequent but significant maintenance item.

Can this system be integrated into an existing production line?

Yes, X-ray inspection systems are designed for inline integration. They commonly feature adjustable conveyor speeds and I/O for communication with upstream and downstream equipment, such as flowrappers or cartoners.

What safety features are typically included with an industrial X-ray system?

Industrial X-ray systems commonly incorporate robust shielding, interlocked access panels, emergency stop buttons, and warning lights to ensure operator safety and compliance with radiation regulations.

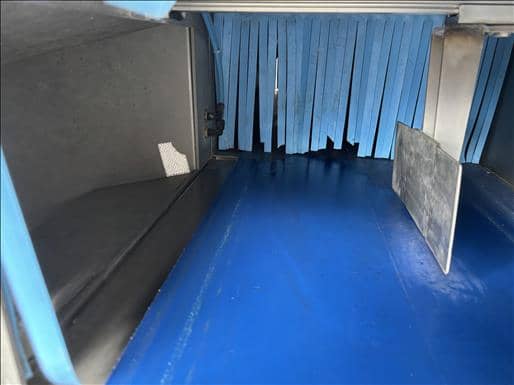

Used Heuft Systemtechnik GMBH Examiner - X-ray Inspection Systems, photo 1

Used Heuft Systemtechnik GMBH Examiner - X-ray Inspection Systems

used Equipment

Recently Sold

Verified seller

Heuft Systemtechnik GMBH - Heuft Systemtechnik GMBH Examiner

Name: Heuft Systemtechnik GMBH Examiner
Brand: Heuft Systemtechnik GMBH
SKU: 5fa9e41bfec0

Price: Contact seller for price

Heuft eXaminer XB – Full Container Inspector – X-Ray machine. The intended use of this machine is to detect foreign objects in packed and unpacked products which are transported through the machine on the conveyor using x-ray and image processing technologies. The eXaminer XB rejects faulty products automatically or emits a rejection signal when detecting faulty products. For the purpose of inspection the products (units) to be inspected are transported on the conveyor system along different measuring systems depending on the equipment. The measuring systems are attached to the standard device which controls the measuring systems electrically and processes their measured values. An evaluation result is produced for each unit. It has been running in line inspecting bars of chocolate in conjunction with Machine ID: 1895 – PFM Pearl Flowrapper (selling separately). Comes complete with Reflexx Image Processing system. Excellent running condition and available immediately. Location: UK Great Value machine. Complete with Operating Manual.

Essex, United Kingdom

5,774 km away

Model Number

Examiner

Stock Number

5fa9e41bfec0

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Detecting foreign objects in packaged food products such as confectionery, baked goods, and ready meals.
Inspecting pharmaceutical products for contaminants or missing components within packaging.
Quality control for non-food items, including small electronics or consumer goods, to identify defects or foreign material.
Ensuring product integrity and safety in high-speed production lines by automatically rejecting faulty units.
Verifying fill levels and product completeness in sealed containers.

Typical Specifications

Typical throughput: For this class of equipment, throughput can typically range from 300 to over 1,000 products per minute, depending on product size and inspection complexity.
Power supply: Units of this type commonly require a 3-phase electrical supply, typically 400V, 50Hz, with varying current draw based on the X-ray generator and conveyor system.
X-ray generator power: Commonly, X-ray generators in these systems operate at 40-80 kV and 0.2-1.0 mA, optimised for detecting a range of foreign materials.
Typical conveyor belt width: Conveyor belt widths on units of this type commonly vary, but are typically between 200mm and 400mm, accommodating various product sizes.
Detection capabilities: These systems are typically capable of detecting metals, glass, dense plastics, calcified bone, and stones, down to sub-millimetre sizes depending on product density.
Footprint: The footprint for a full container X-ray inspector typically ranges from 1.5m to 2.5m in length, and 0.8m to 1.2m in width, excluding any infeed/outfeed extensions.
Operating environment: Units are commonly designed for industrial environments, with typical operating temperatures between 5°C and 40°C and relative humidity up to 90% (non-condensing).

Frequently Asked Questions

X-ray systems like the Heuft eXaminer are typically effective at detecting metallic contaminants (ferrous, non-ferrous, stainless steel), glass, dense plastics, stones, and calcified bone fragments within products.
