Hobart Mixing Bowl Tipper
Copied to clipboard!
Price: Contact seller for price

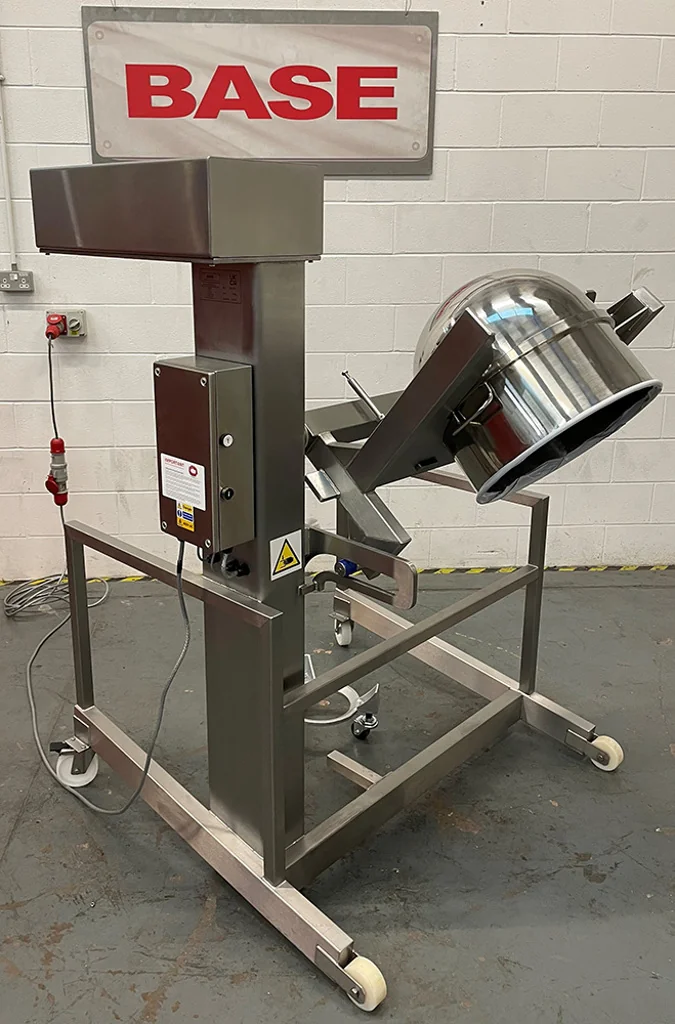

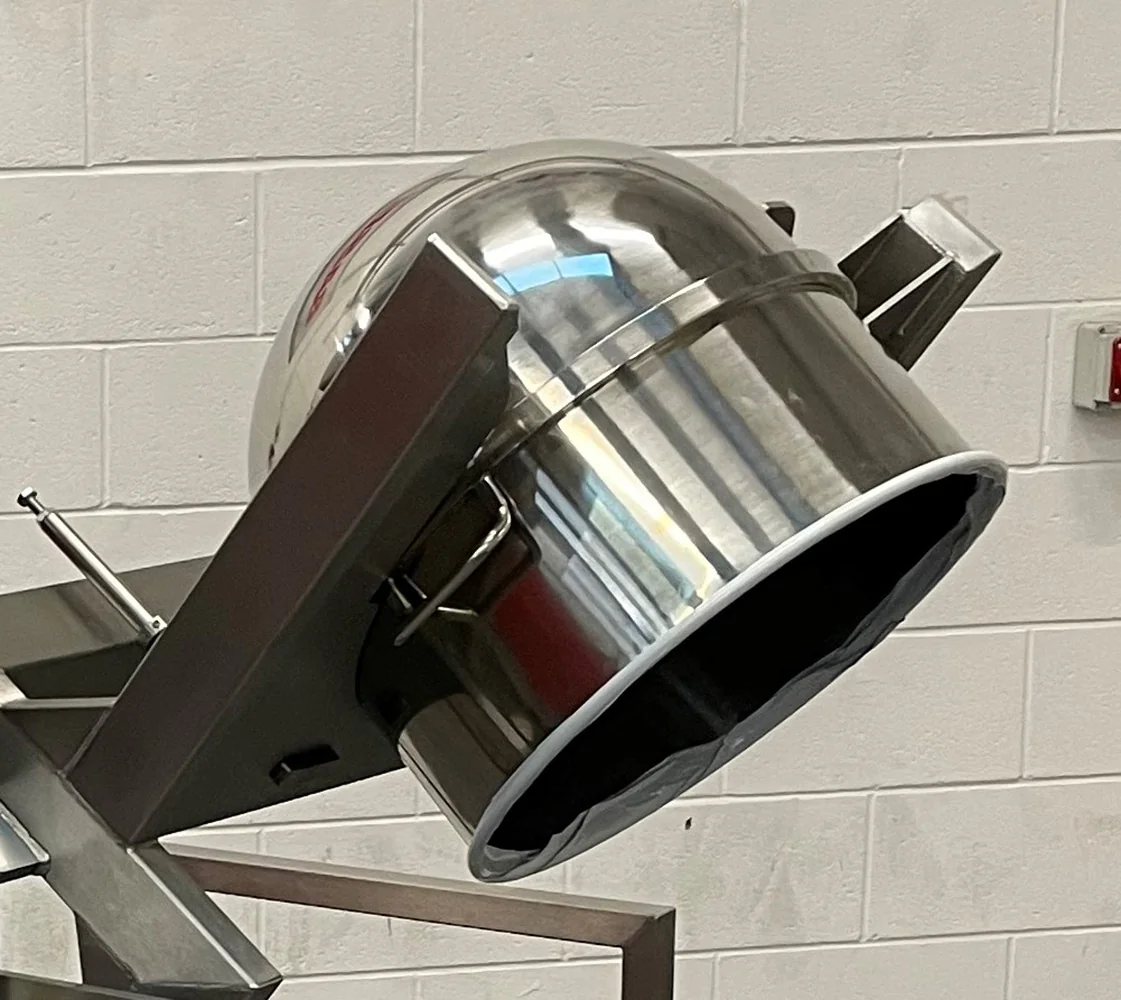

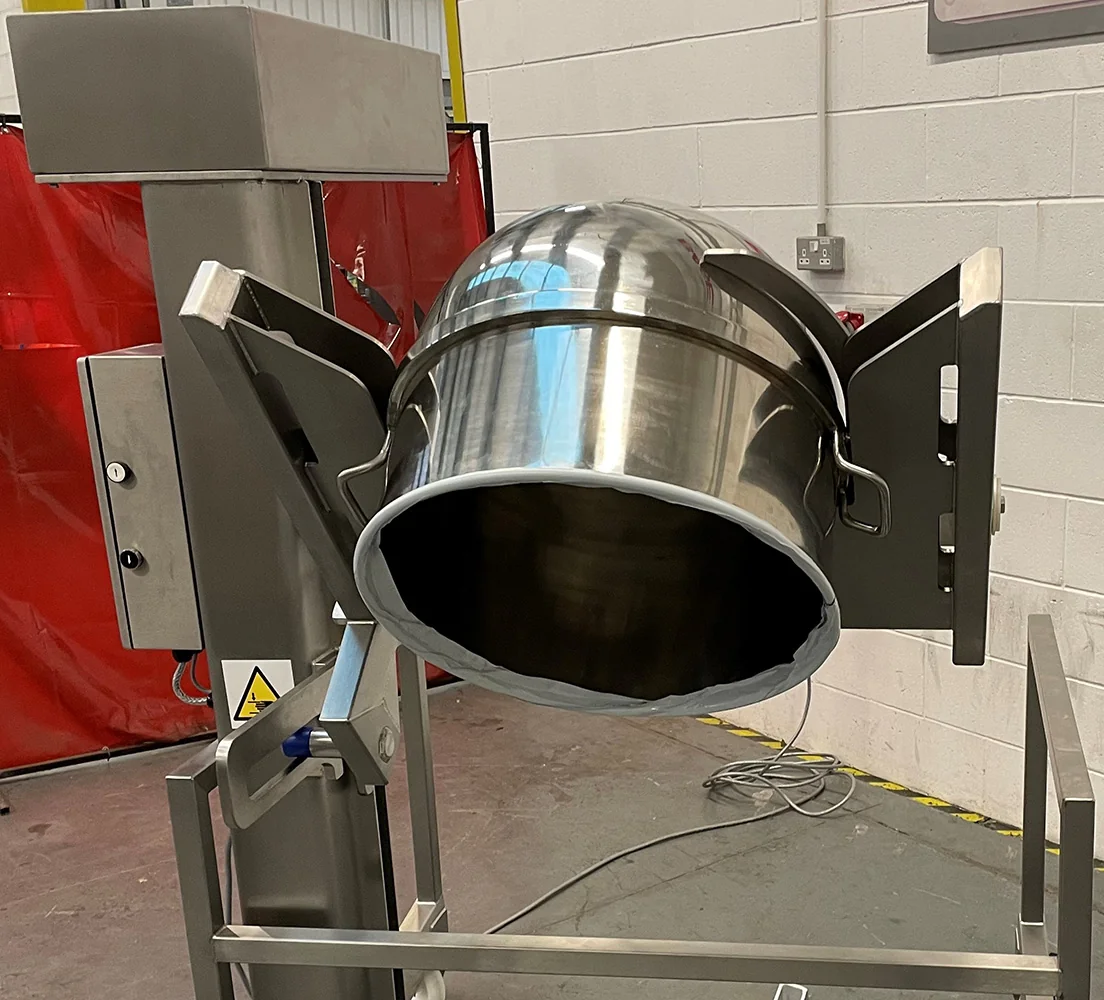

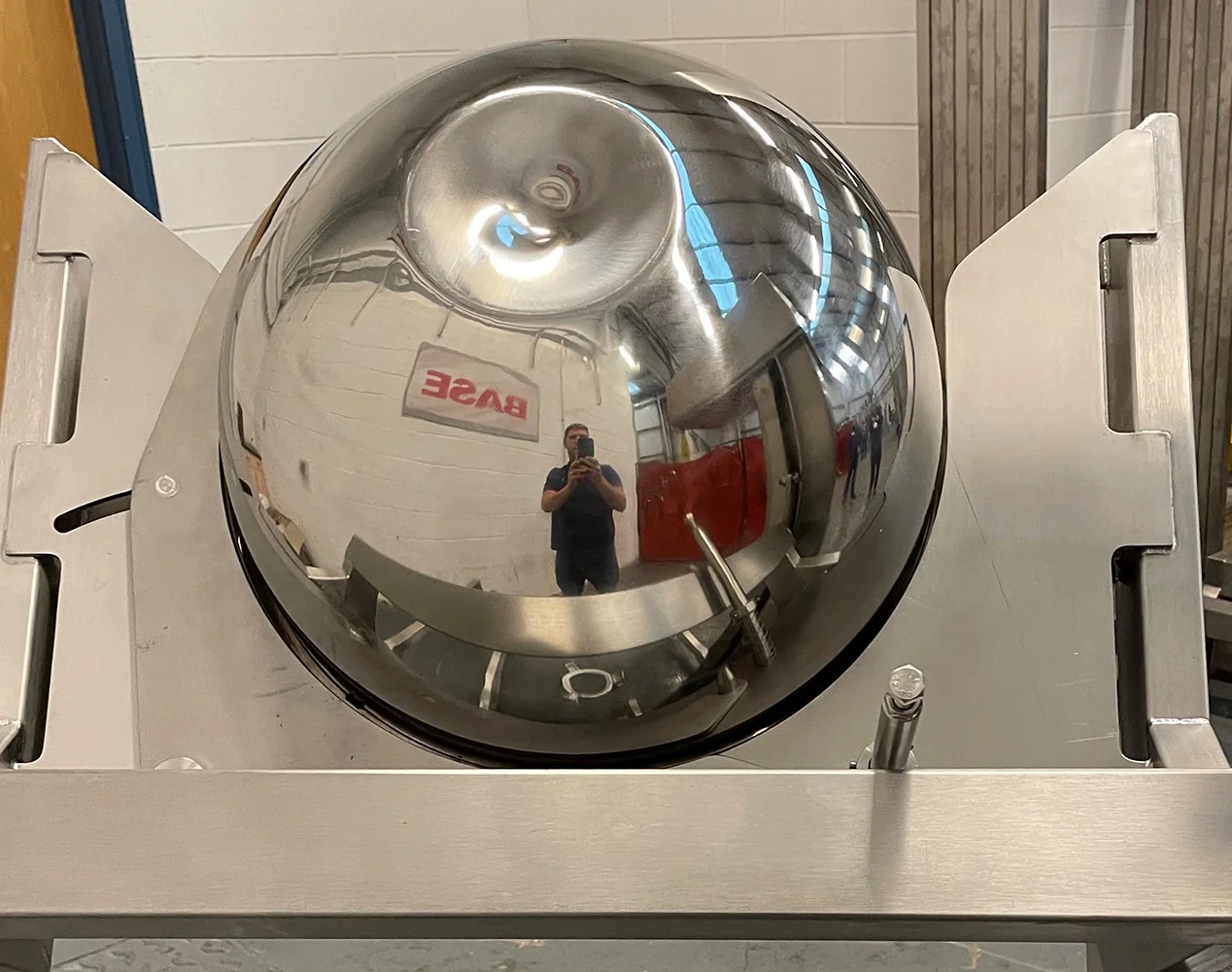

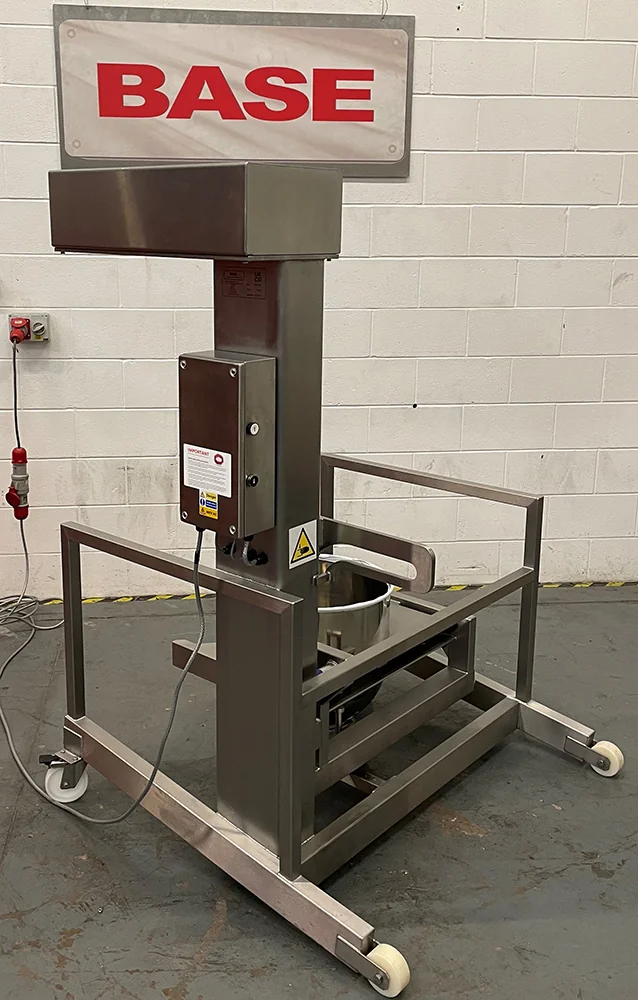

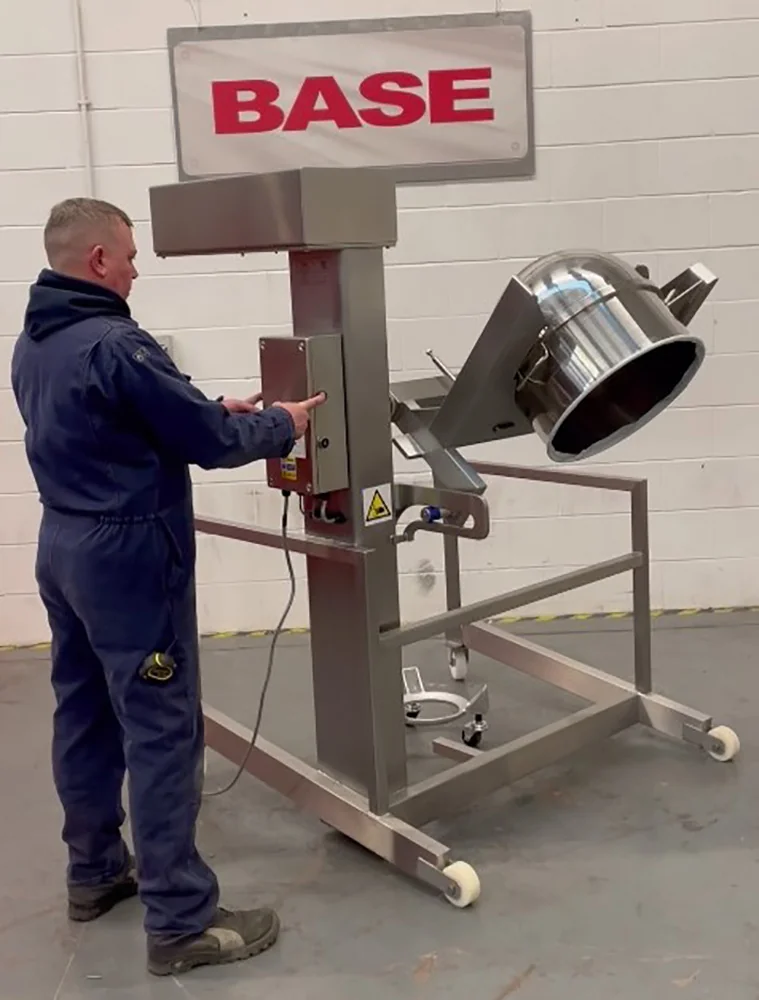

BTM/150/1000/M Single Pillar Hobart Mixing Bowl TipperThis Single Pillar Hobart Mixing Bowl Tipper is designed to lift and tip at a discharge height of 1000mm. The Hobart Mixing Bowl Tipper is manufactured from Grade 304 stainless steel and is a welded construction throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Hobart Mixing Bowl Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure. Hobart Mixing Bowl Tipper Electrical ControlThis Hobart Mixing Bowl Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Hobart Mixing Bowl Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Hobart Mixing Bowl Tipper to operate. As soon as the button is released, the Hobart Mixing Bowl Tipper will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required. |
Blaenau Gwent County Borough, United Kingdom5,762 km away
Description
Single Pillar Hobart Mixing Bowl Tipper
Model No.
BTM/150/1000/M
Capacity
150 Kgs
Tipping Height
1000mm
Tipping Angle
130 Degrees
Overall Height
1840mm
Machine Handing
Right Hand
Maximum Headroom
To Be Confirmed
Tipping Chute
No
Container Description
60 Litre Hobart Mixing Bowl
Base Arrangement
Mobile On Castors
Control Circuit
24Vac
Electrical Rating
IP65
Limit Switches
Telemecanique
Motor Detail
0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE
Gearbox Detail
SEW Eurodrive
Output R.P.M
28 R.P.M.
Ratio
50:1
Load/Lift/Tension Chain
¾" Simplex
Tensile Strength
3000 Kgs
Lift Speed
6.4 Meters/Minute
Stock Number
BTM/150/1000/M
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Transferring ingredients from large mixing bowls into hoppers or other processing equipment.
- Elevating and discharging dough, batters, or other food products in bakeries and food production lines.
- Loading bulk ingredients into packaging machinery.
- Moving semi-liquid or solid food items between different stages of a processing line.
- Facilitating ergonomic material handling to reduce manual lifting in food factories.
Typical Specifications
- Typical capacity
- Designed for standard Hobart mixing bowls, commonly ranging from 60 to 140 litres, depending on the specific model compatibility.
- Power supply
- Typically 3-phase electrical supply, often 400V, 50Hz, suitable for industrial environments.
- Discharge height
- This unit specifies 1000mm, but other models in this class can vary to suit different receiving equipment.
- Construction material
- Grade 304 stainless steel is standard for food contact and hygiene requirements, as seen on this unit.
- Safety features
- Units commonly include 'dead man's handle' controls and safety latches for chain failure, as described for this tipper.
- Control panel rating
- IP65 rated control panels are typical for washdown environments in food processing.
- Footprint
- Single pillar designs offer a relatively compact footprint for their lifting capacity, suitable for integrating into existing lines.
Frequently Asked Questions
- This specific tipper is designed for Hobart mixing bowls. Buyers should confirm the exact bowl model and size compatibility with the seller to ensure a correct fit.
