What types of bins can this tipper handle?

This specific unit is designed for 240-litre wheelie bins. Other models may be available for different bin sizes or custom containers.

What are the typical power requirements for a hydraulic tipper?

Hydraulic tippers typically require a 3-phase electrical supply for their power pack. Buyers should confirm the exact voltage and amperage with the seller.

Is this equipment suitable for a washdown environment?

Units constructed from stainless steel with an IP65 rated control panel are generally suitable for washdown environments common in food processing. Always confirm specific IP ratings and material grades.

What maintenance is required for a hydraulic bin tipper?

Routine maintenance typically involves checking hydraulic fluid levels, inspecting hoses and seals for wear, and ensuring all safety interlocks and guarding are functioning correctly. Regular cleaning is also essential.

Can the discharge height be adjusted?

This particular unit has a fixed discharge height. Bin tippers with adjustable discharge heights are available, but buyers should confirm this feature with the seller for specific models.

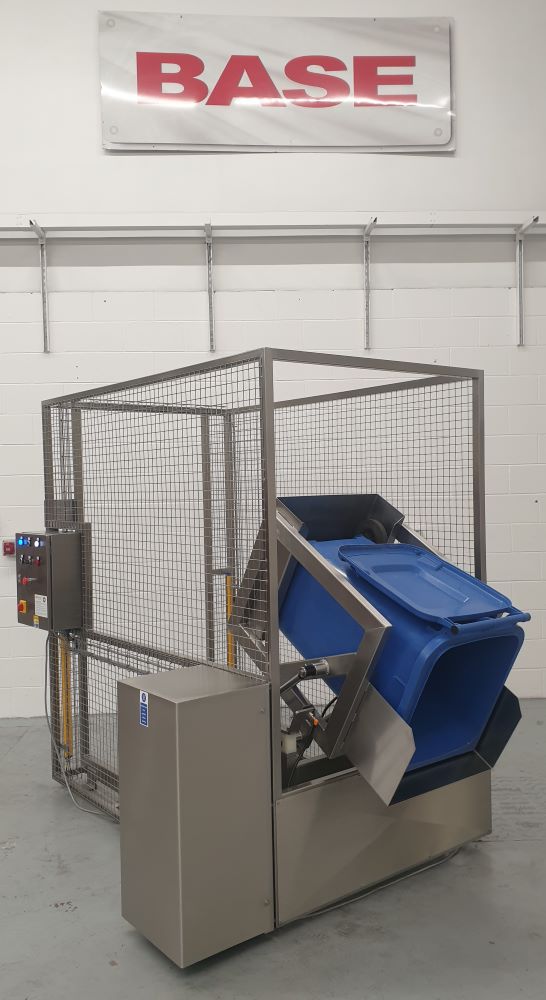

Hydraulic 240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 1

Hydraulic 240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 2

Hydraulic 240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 3

Hydraulic 240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 4

Hydraulic 240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 5

Hydraulic 240 Litre Wheelie Bin Tipper - Lifting & Tipping, photo 6

Hydraulic 240 Litre Wheelie Bin Tipper - Lifting & Tipping

Available

Verified seller

Hydraulic 240 Litre Wheelie Bin Tipper

Name: Hydraulic 240 Litre Wheelie Bin Tipper
SKU: BTH/200/500/B/G
Availability: InStock

Price: Contact seller for price

BTH/200/500/B/G Hydraulic 240 Litre Wheelie Bin Tipper

This Hydraulic 240 Litre Wheelie Bin Tipper was designed to lift and tip a 240 Litre Wheelie Bin at a discharge height of 500mm and had a Safe Working Load of 200 Kgs. The machine is a TIG welded construction throughout and was bolted to the floor. The Hydraulic 240 Litre Wheelie Bin Tipper was powered via a hydraulic powerpack and tipped the 240 Litre Wheelie Bin by the extension of a hydraulic cylinders to an angle of 30 degrees past the horizontal. The hydraulic cylinder was fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin would be safely arrested.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

The Hydraulic 240 Litre Wheelie Bin Tipper is supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 40 x 40mm aperture, 3mm wire stainless steel weld mesh that encloses the machine to a height of 2200mm on two sides. The loading and unloading position was guarded using a Safety Light Barrier.

Hydraulic 240 Litre Wheelie Bin Tipper

The Hydraulic 240 Litre Wheelie Bin Tipper was fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates the following controls; Control On, Auto Tip Cycle Start, Emergency Stop and a Reset Facility. The Hydraulic 240 Litre Wheelie Bin Tipper operation is based on an automated tip cycle such that once a bin is loaded and the tip cycle is initiated, the machine will travel to the full up position, pause while the bin discharges and then return to the full down position. If the Light Barrier is broken at any time, the machine will stop.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Hydraulic 240 Litre Wheelie Bin Tipper

Model No.

BTH/200/500/B/G

Tipping Height

500mm

Machine Handing

Right Hand

Container Description

240 Litre Wheelie Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Powerpack

0.75kW, 415V, 3 PHASE, 50 CYCLE

Tip Angle

120 Degrees

Lifting Capacity

200Kgs

Stock Number

BTH/200/500/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Efficiently transferring ingredients or waste within food processing lines.
Loading raw materials into mixers, hoppers, or other processing machinery.
Discharging waste products into larger collection bins or skips.
Handling bulk ingredients in bakeries, dairies, and ready-meal facilities.

Typical capacity: Designed for standard 240-litre wheelie bins, with a Safe Working Load commonly around 200 kg for this class of equipment.
Power supply: Typically hydraulic, requiring a suitable electrical supply for the integrated power pack, often 3-phase.
Discharge height: Commonly around 500mm for units designed for bin-to-bin or low-level hopper transfer.
Construction material: Units for food processing are typically constructed from TIG welded stainless steel for hygiene and durability.
Safety features: Often includes safety guarding to BS EN 14120:2015, safety light barriers, and hydraulic safety check valves.
Control panel rating: Typically IP65 rated for washdown environments, mounted for convenient access and compliance with PUWER.
Mounting: Units of this type are commonly bolted to the floor for stability and safety.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
