Hydraulic Bin Tipper
Copied to clipboard!
Price: Contact seller for price

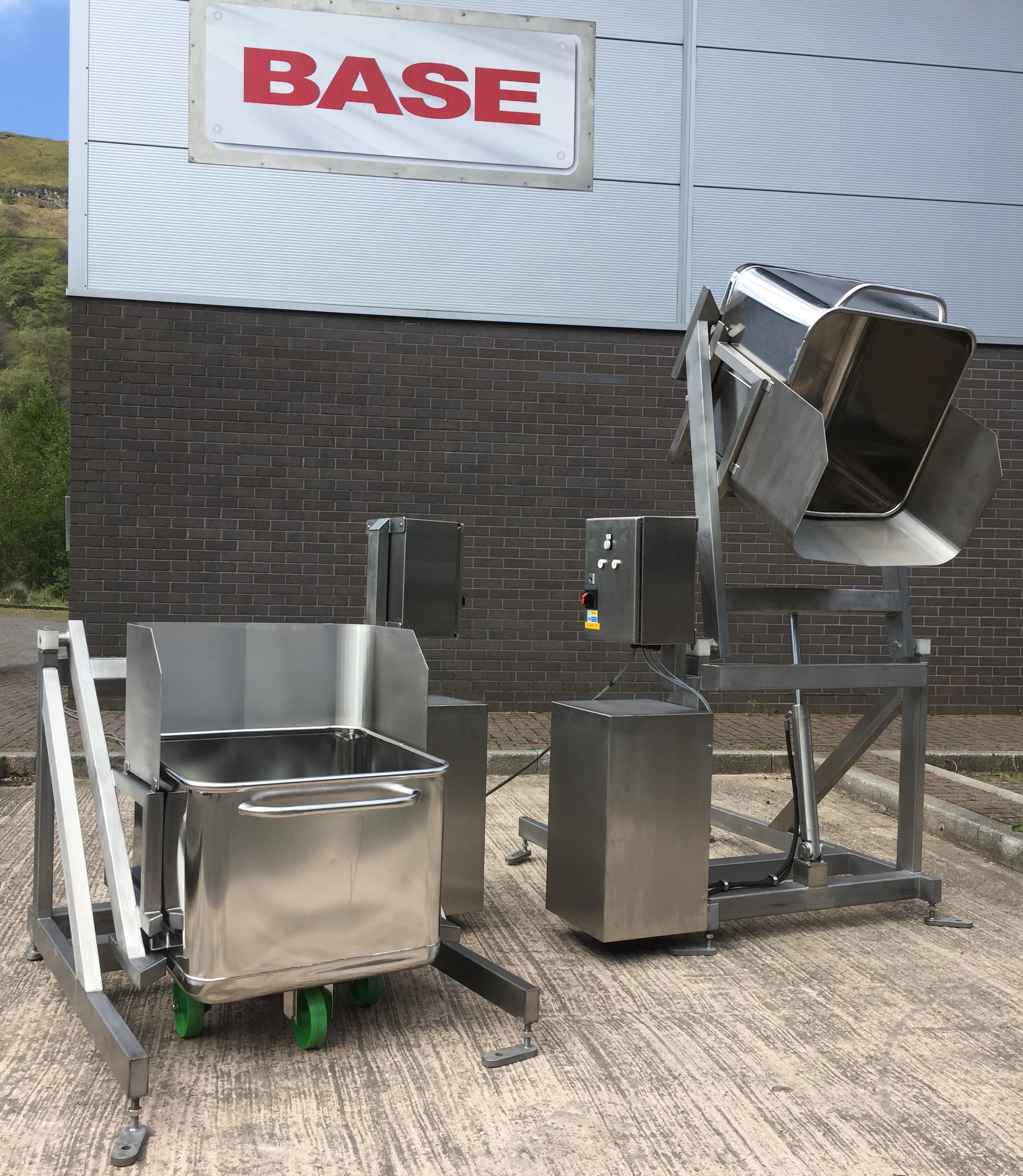

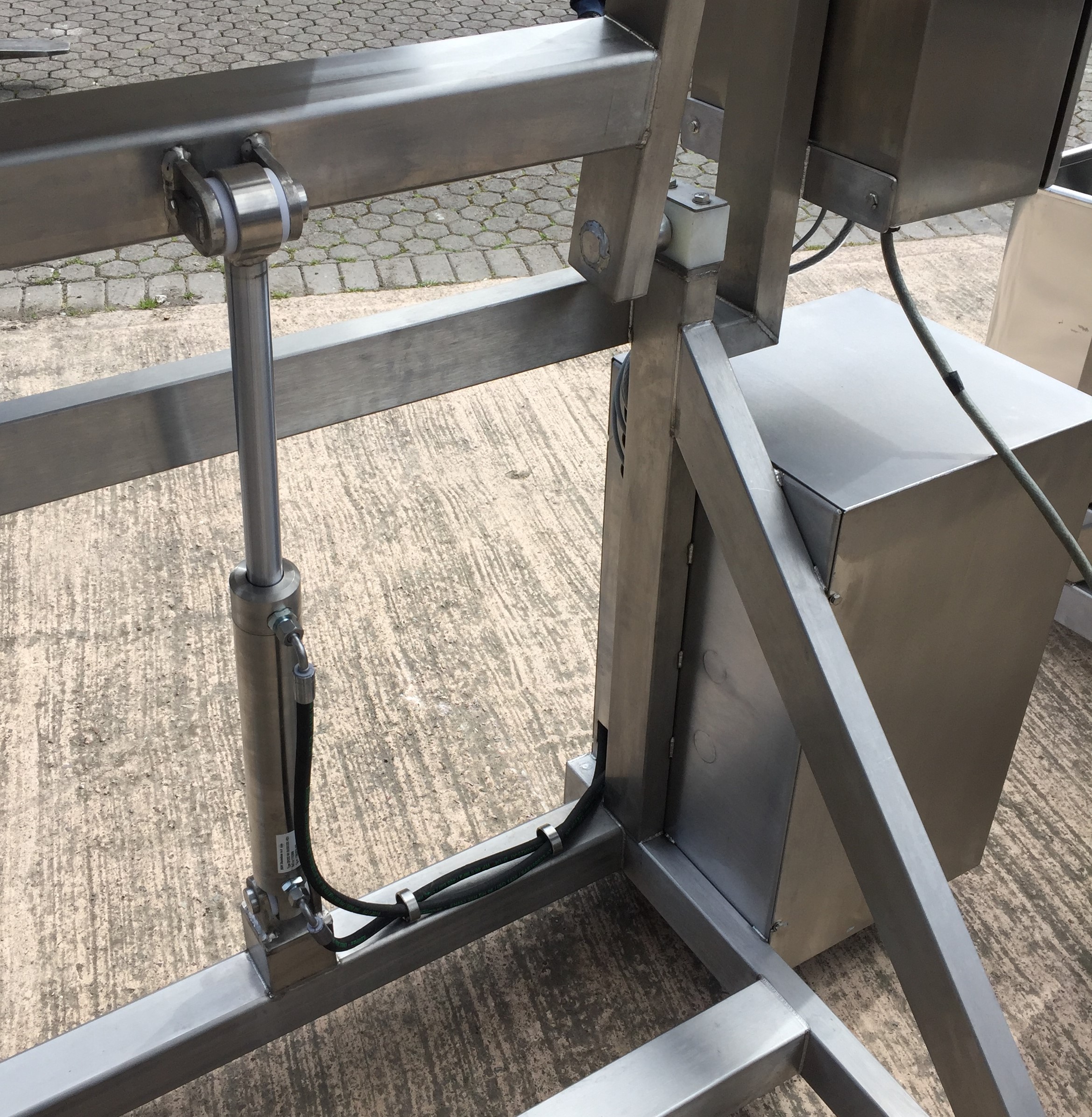

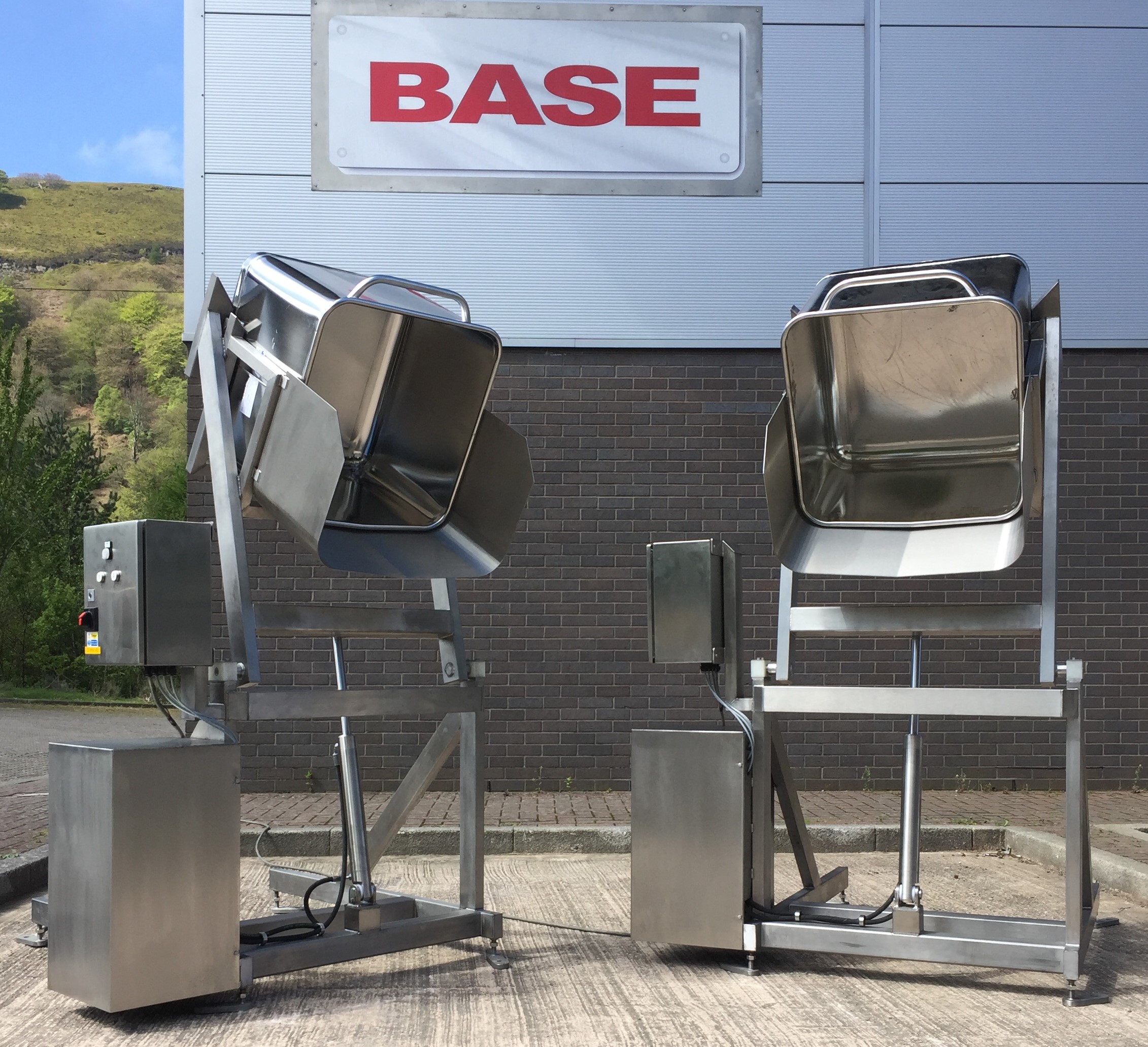

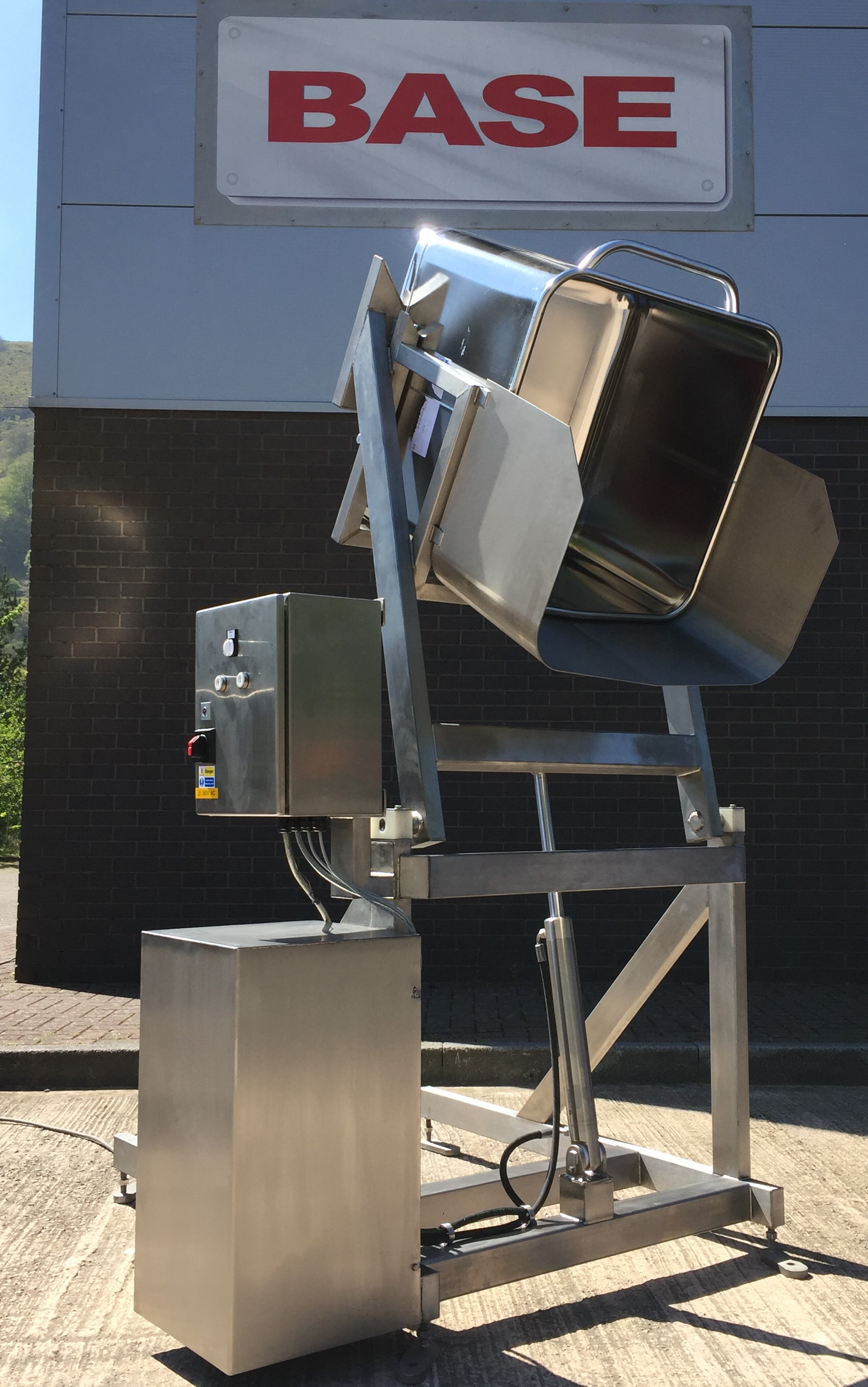

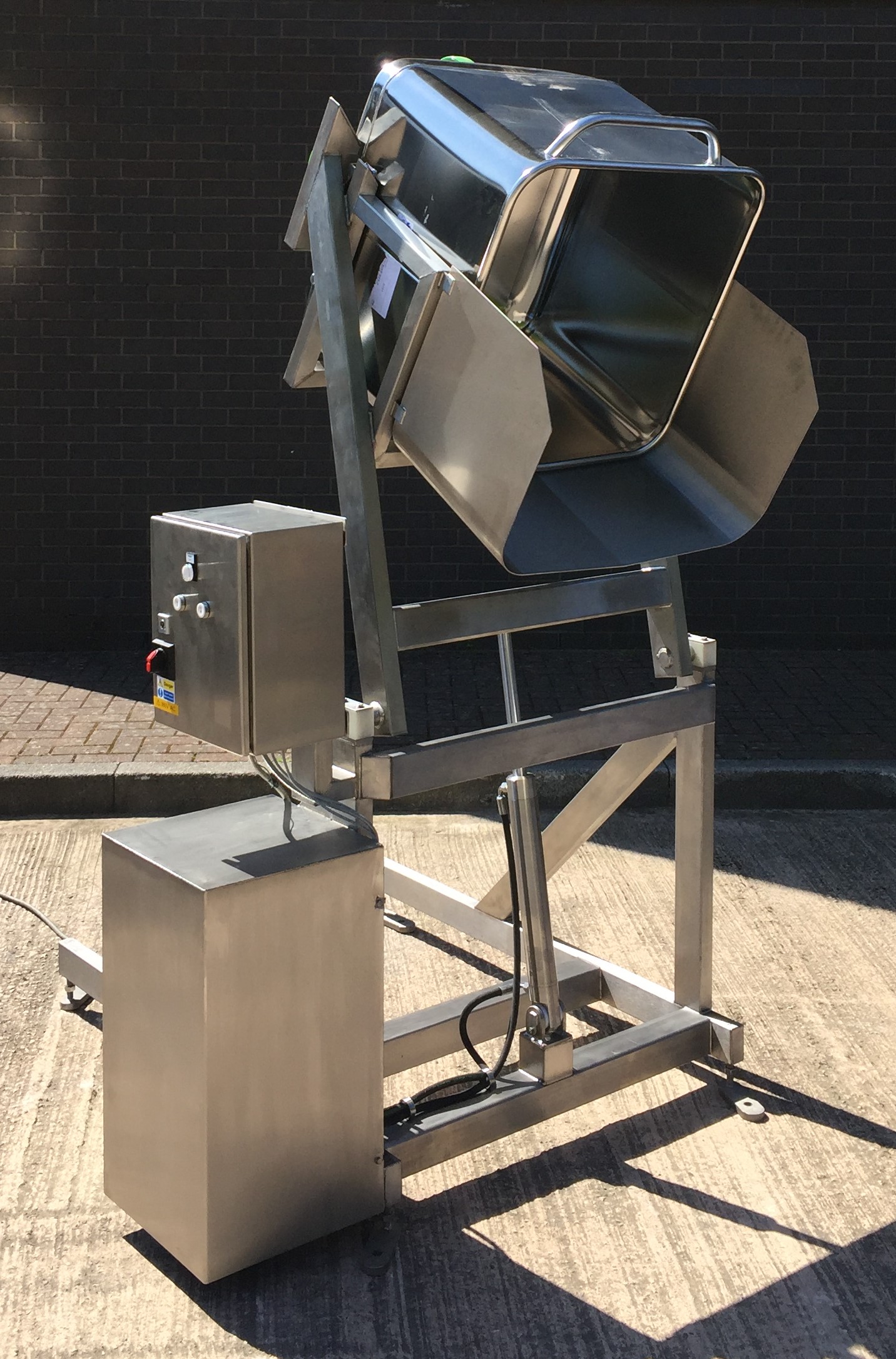

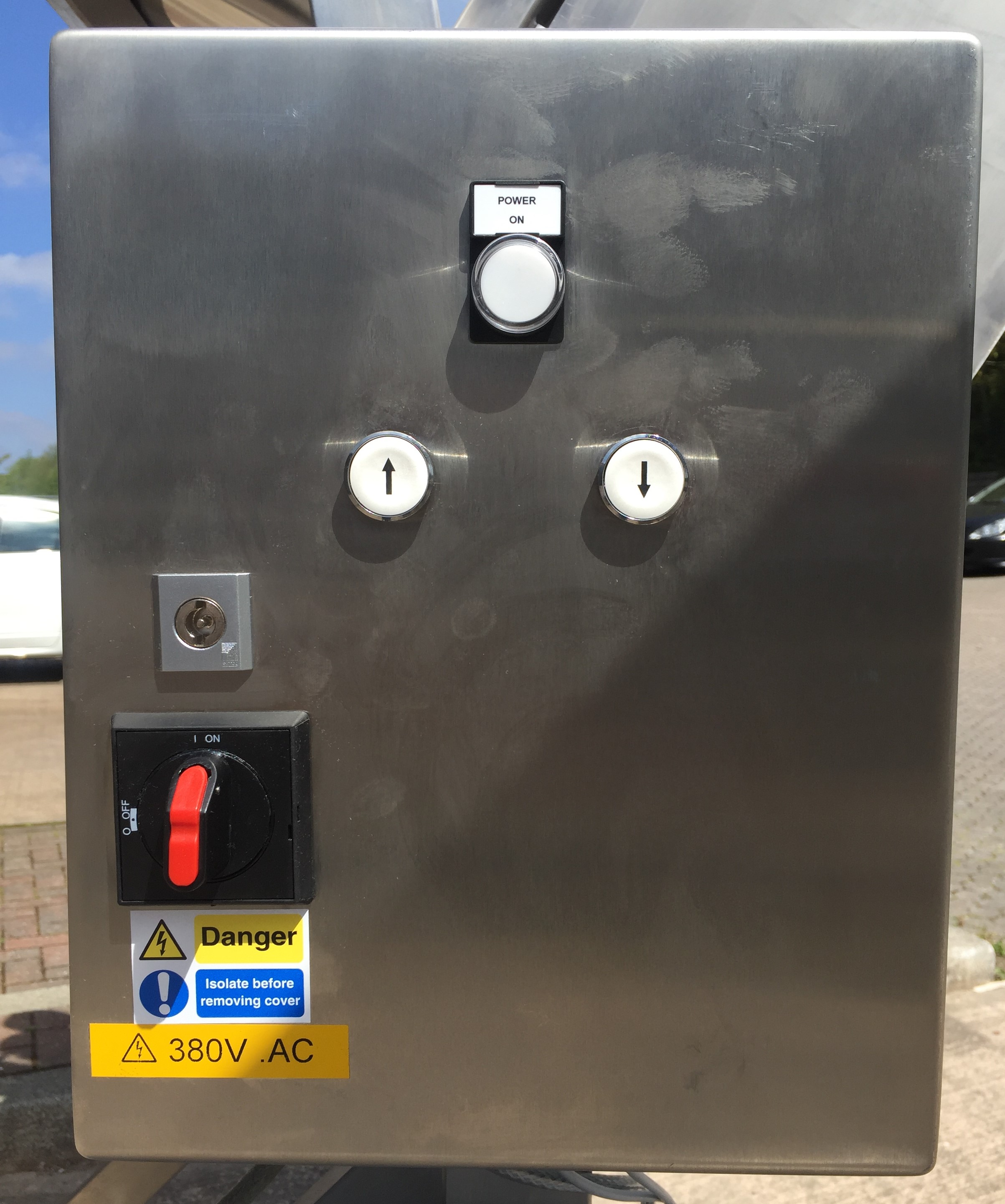

BTH/250/1200/B Hydraulic Bin TipperThis Hydraulic Bin Tipper is designed to lift and tip a standard 200 Litre Tote Bin at a height of 1200mm and would have a Safe Working Load of 250 Kgs. The Hydraulic Bin Tipper is constructed from Grade 304 stainless steel, is a TIG welded construction throughout and would be bolted to the floor. This Hydraulic Bin Tipper would be powered via a hydraulic powerpack and would tip the containers by the extension of a stainless steel hydraulic cylinder to an angle of 30 degrees past the horizontal. The hydraulic cylinder is fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor. Hydraulic Bin Tipper Electrical ControlThis Hydraulic Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Hydraulic Bin Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the machine to operate. As soon as the button is released, the machine will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required. |
Blaenau Gwent County Borough, United Kingdom5,762 km away
Description
Hydraulic Bin Tipper
Model No.
BTH/250/1200/B
Lifting Capacity
250Kgs
Tipping Height
1200mm
Tipping Angle
120 Degrees
Machine Handing
Right Hand
Tipping Chute
Yes, Fitted To Lift Carriage
Container Description
200 Litre Tote Bin
Base Arrangement
Bolted To The Floor
Powerpack
0.55kW, 415V, 3 PHASE, 50 CYCLE
Control Circuit
24Vac
Electrical Rating
IP65
Stock Number
BTH/250/1200/B
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Transferring ingredients from tote bins into mixers or processing vessels.
- Loading raw materials into hoppers for further processing.
- Discharging waste or by-products from containers into collection systems.
- Feeding bulk solids or liquids from standard bins into production lines.
- Ergonomically lifting and tipping heavy containers in food production environments.
Typical Specifications
- Typical capacity
- Units of this class commonly handle standard 200-litre tote bins, with a Safe Working Load typically around 250 kg.
- Construction material
- For food processing applications, units are typically constructed from Grade 304 stainless steel with TIG welded construction.
- Tipping height
- This type of equipment commonly offers a tipping height of approximately 1200mm, suitable for various receiving vessels.
- Tipping angle
- Bin tippers typically achieve a tipping angle of 30 degrees past horizontal to ensure complete discharge.
- Power supply
- Units are typically powered by a hydraulic powerpack; electrical control panels commonly feature an IP65 rating.
- Safety features
- Common safety features include a 'dead man's handle' control and a safety check valve on the hydraulic cylinder to prevent uncontrolled descent.
- Installation
- For stability and safety, units are typically designed to be bolted to the floor.
Frequently Asked Questions
- This class of hydraulic bin tipper is typically designed to accommodate standard 200-litre tote bins, also known as Eurobins or DIN 9797 bins.
