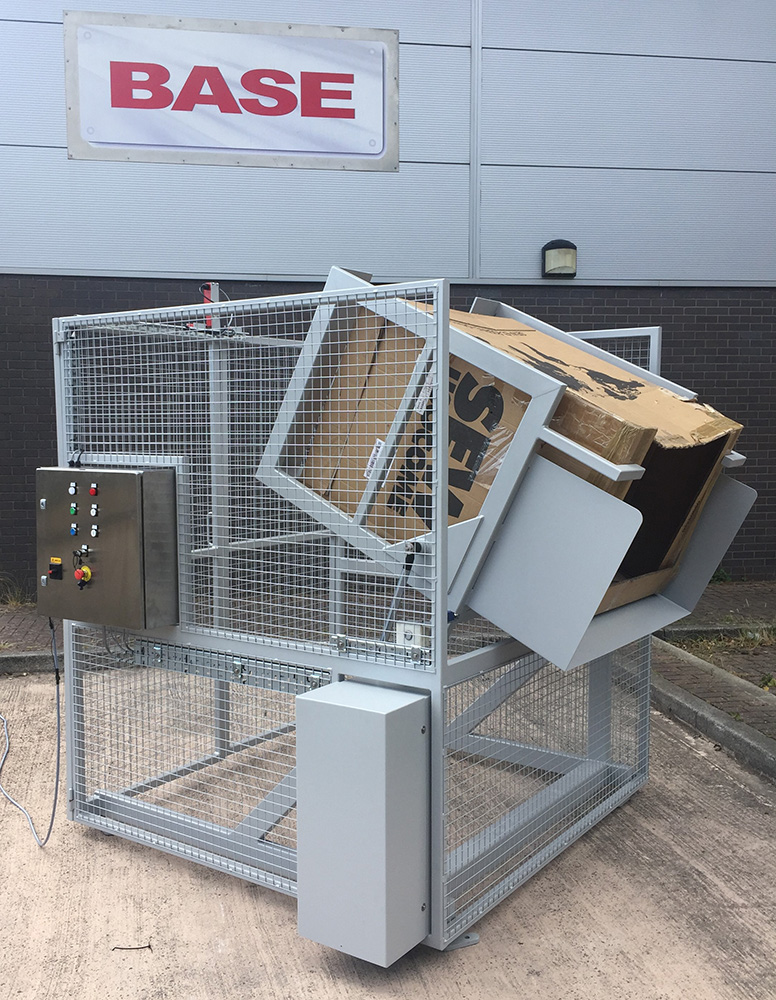

Hydraulic Box Tipper

Applications & Use Cases

• Emptying bulk containers of raw materials into processing lines.
• Transferring waste products from collection bins into larger disposal units.
• Feeding ingredients from tote bins into mixers or hoppers in food processing.
• Discharging components from stillages onto conveyor belts for further assembly.
• Handling aggregates, powders, or small parts in manufacturing and recycling operations.

Typical Specifications

Typical capacity

For this class of equipment, capacities commonly range from 500 kg to 2,000 kg, depending on the specific design and intended use.

Power supply

Units of this type typically require a 3-phase electrical supply, commonly 400V, 50Hz, with varying power ratings based on lift capacity and speed.

Tipping height

The maximum tipping height is highly variable but typically ranges from 1,200 mm to 3,000 mm, designed to suit specific receiving hoppers or conveyors.

Container compatibility

This equipment is generally designed to accommodate standard industrial bins, boxes, or stillages, with custom cradles often available for specific container types.

Footprint

The footprint can vary significantly, but buyers should anticipate a base area of approximately 1,500 mm x 1,500 mm to 2,500 mm x 2,500 mm, plus operational clearance.

Construction material

Typically constructed from mild steel with a painted finish for general industrial use, or stainless steel for food-grade or corrosive environments.

Control system

Commonly features push-button controls for 'raise' and 'lower' functions, often with safety interlocks and emergency stop buttons.

Frequently Asked Questions

• What safety features should I look for on a used hydraulic box tipper?

  Key safety features include interlocked guarding, emergency stop buttons, hydraulic flow restrictors to prevent rapid descent, and robust container retention mechanisms. Always ensure the unit complies with current safety standards.

• Can this tipper handle different sizes of boxes or containers?

• What kind of maintenance does a hydraulic box tipper require?

• Is installation complex for this type of equipment?

• What is the typical operational noise level?
