What types of containers can this tipper handle?

Hydraulic combo tippers are versatile and can typically be configured to lift and tip a range of standard industrial containers, including plastic or stainless steel combo bins, drums, dolavs, and palletainers.

Is customisation available for specific operational needs?

Yes, manufacturers commonly offer customisation options for factors such as lifting capacity, tip height, container type compatibility, and safety guarding to suit specific product, process, and building requirements.

What are the typical safety features on these machines?

Common safety features include fully enclosed safety guard options, hydraulic hose burst fuses, emergency stop buttons, and interlocked access gates to ensure operator safety during operation.

What are the hygiene considerations for this equipment?

For food and pharmaceutical applications, units are typically constructed from stainless steel with fully TIG/MIG welded seams to minimise crevices and facilitate thorough cleaning and sanitation.

What is the typical footprint of a hydraulic combo tipper?

The footprint varies significantly based on lifting capacity, tip height, and guarding options. Buyers should consult the seller for exact dimensions relevant to their specific model and configuration.

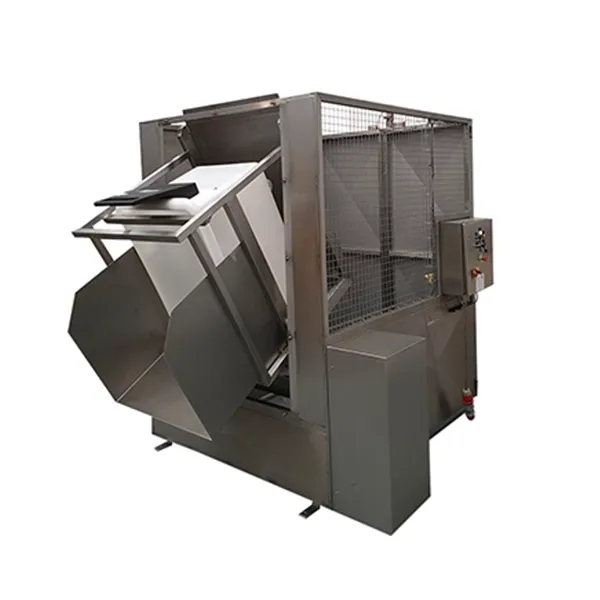

New Hydraulic Combo Tipper - Lifting & Tipping, photo 1

New Hydraulic Combo Tipper - Lifting & Tipping

new Equipment

Available

Verified seller

Hydraulic Combo Tipper

Name: Hydraulic Combo Tipper
SKU: 1185
Availability: InStock

Price: Contact seller for price

ISCA’S Hydraulic Combo Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.

Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Dolafs, Palletainers etc
-Tip Heights up to 1500mm
-Lifting Capacity – No Maximum
-Hydraulic or Pneumatic Cylinders Complete with Hose Burst Fuses
-Fully Enclosed Safety Guard Option

Pennsylvania, United States

8,794 km away

Stock Number

1185

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients or finished products from large containers into processing machinery.
Loading bulk materials into hoppers, mixers, or conveyors.
Emptying waste bins or by-product containers into larger collection systems.
Handling and positioning ingredients in bakeries, dairies, and meat processing plants.
Facilitating ergonomic material handling in pharmaceutical and chemical industries.

Typical Specifications

Typical lifting capacity: For this class of equipment, lifting capacities commonly range from 500 kg to over 2000 kg, depending on the specific model and design.
Power supply: Units of this type typically require a 3-phase electrical supply, commonly 400V, 50Hz, for the hydraulic power pack.
Construction material: Often constructed from 304 or 316 grade stainless steel for hygiene-critical applications, though mild steel options are also available.
Maximum tip height: Commonly, these machines offer tip heights up to 1500mm, with custom options for greater elevations.
Container compatibility: Designed to lift and tip various standard industrial containers, including combo bins, drums, dolavs, and palletainers.
Control system: Typically features a simple push-button control panel, often with safety interlocks.

Frequently Asked Questions

Hydraulic combo tippers are versatile and can typically be configured to lift and tip a range of standard industrial containers, including plastic or stainless steel combo bins, drums, dolavs, and palletainers.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
