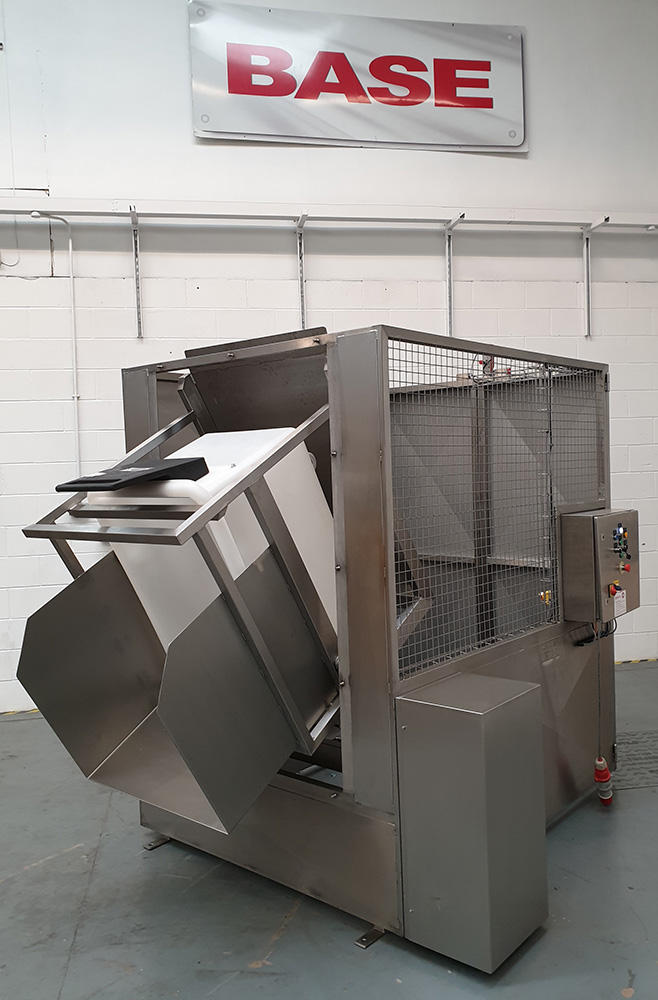

Hydraulic Crate Tipper

Applications & Use Cases

• Efficiently empties bulk containers into processing lines or hoppers.
• Used for controlled discharge of ingredients in food manufacturing.
• Facilitates ergonomic transfer of materials in waste management and recycling.
• Integrates into automated production lines for continuous material flow.

Typical Specifications

Typical capacity

For this class of equipment, units commonly handle loads from 250 kg to 1,000 kg, depending on design.

Power supply

Typically requires a 3-phase electrical supply, commonly 400V, 50Hz, for the hydraulic power pack.

Tipping height

Commonly designed to tip at heights ranging from 1,200 mm to 2,500 mm, suitable for various receiving hoppers.

Crate compatibility

Units of this type are often configured for standard Euro crates (e.g., 600x400 mm) or specific industrial bins, with custom cradles available.

Construction material

Typically constructed from mild steel with a painted finish, or stainless steel for food-grade and corrosive environments.

Footprint

A typical footprint for a standalone unit might be around 1,500 mm (L) x 1,000 mm (W) x 2,500 mm (H) when lowered.

Frequently Asked Questions

• What safety features are typically included on a hydraulic crate tipper?

  Common safety features include interlocked guarding, emergency stop buttons, hydraulic flow restrictors, and safety light curtains to prevent operation during access.

• Can this unit be integrated into an existing production line?

• What kind of maintenance does a used hydraulic crate tipper require?

• Is operator training required for this type of equipment?

• What are the common causes of wear and tear on a used hydraulic tipper?
