What type of bins can this tipper accommodate?

This specific unit is designed for standard Dolav bins (1200 x 1000 x 800mm High). Buyers should confirm compatibility for other bin types with the seller.

Is this unit suitable for washdown environments?

Given its 304 stainless steel construction and IP65 rated control panel, this type of equipment is generally suitable for washdown environments common in food processing. However, buyers should confirm specific sealing and electrical protection details with the seller.

What are the typical safety considerations for operating a hydraulic bin tipper?

Key safety features commonly include 'hold to run' controls, safety check valves on hydraulic cylinders, and compliance with regulations such as PUWER. Proper guarding and operator training are also essential.

Does this unit require a dedicated hydraulic power supply?

This unit is described as being powered via a hydraulic powerpack, which is typically an integrated component. Buyers should confirm if the powerpack is included and its specific electrical requirements.

Can the tipping angle be adjusted?

This unit is specified to tip to an angle of 30 degrees past the horizontal. Buyers requiring a different or adjustable tipping angle should discuss this with the seller.

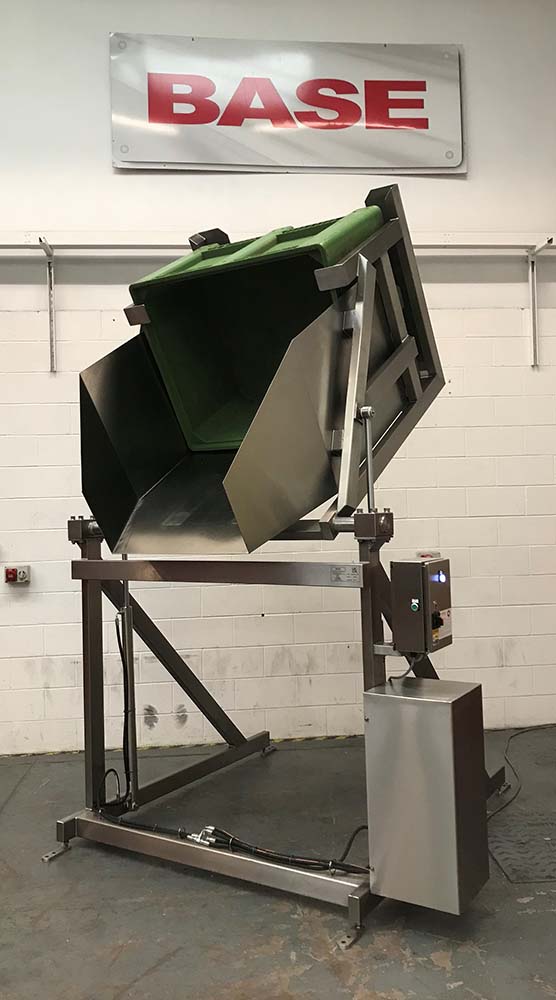

Hydraulic Dolav Bin Tipper - Lifting & Tipping, photo 1

Hydraulic Dolav Bin Tipper - Lifting & Tipping, photo 2

Hydraulic Dolav Bin Tipper - Lifting & Tipping, photo 3

Hydraulic Dolav Bin Tipper - Lifting & Tipping, photo 4

Hydraulic Dolav Bin Tipper - Lifting & Tipping, photo 5

Hydraulic Dolav Bin Tipper - Lifting & Tipping, photo 6

Hydraulic Dolav Bin Tipper - Lifting & Tipping

Available

Verified seller

Base Handling Ltd - Hydraulic Dolav Bin Tipper

Name: Hydraulic Dolav Bin Tipper
Brand: Base Handling Ltd
SKU: BTH/600/1500/B
Availability: InStock

Price: Contact seller for price

BTH/600/1500/B Hydraulic Dolav Bin Tipper.

This Hydraulic Dolav Bin Tipper was designed to lift and tip a standard Dolav Bin (1200 x 1000 x 800mm High) at a height of 1500mm and has a Safe Working Load of 600 Kgs.

The Hydraulic Dolav Tipper is constructed from Grade 304 stainless steel, is a fully welded construction throughout and is designed to be bolted to the floor.

This Hydraulic Dolav Bin Tipper was powered via a hydraulic powerpack and tipped the containers by the extension of a pair of stainless steel hydraulic cylinder to an angle of 30 degrees past the horizontal.

The hydraulic cylinders are fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor.

Hydraulic Dolav Bin Tipper Electrical Control.

This Hydraulic Dolav Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

The unguarded Hydraulic Dolav Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Hydraulic Dolav Tipper to operate.

As soon as either button is released, the Hydraulic Dolav Tipper will stop.

The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Hydraulic Dolav Bin Tipper

Model No.

BTH/600/1500/B

Tipping Height

1500mm

Machine Handing

Left Hand

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

600 Litre Dolav Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Powerpack

1.5kW, 415V, 3 PHASE, 50 CYCLE

Tip Angle

120 Degrees

Lifting Capacity

600 Kgs

Stock Number

BTH/600/1500/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring bulk ingredients from Dolav bins into processing lines or hoppers.
Emptying raw materials such as meat, fish, or vegetables in food production facilities.
Discharging waste products or by-products from Dolav bins into collection systems.
Loading mixing or blending equipment with pre-weighed or pre-portioned ingredients.
Facilitating ergonomic material handling by reducing manual lifting and tipping tasks.

Typical capacity: Units of this class commonly handle Dolav bins with a Safe Working Load (SWL) up to 600 kg.
Power supply: Typically powered by an integrated hydraulic powerpack, requiring an electrical supply commonly 3-phase, 400V.
Construction material: For food processing applications, units are typically constructed from Grade 304 stainless steel with fully welded seams.
Tipping height: Commonly designed to tip at discharge heights around 1500mm, suitable for various receiving equipment.
Control system: Typically features an IP65 rated control panel, often with 'hold to run' operation for safety.
Safety features: Units commonly include hydraulic safety check valves to prevent uncontrolled descent of a raised bin.
Installation: Designed for floor mounting, requiring secure bolting to the facility floor for stability.

This specific unit is designed for standard Dolav bins (1200 x 1000 x 800mm High). Buyers should confirm compatibility for other bin types with the seller.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
