What type of drums can this tipper handle?

This class of tipper is typically designed for standard 500-litre drums. Buyers should confirm specific drum dimensions with the seller.

What are the safety features of this equipment?

Common safety features include a 'dead man's handle' control, requiring continuous button press for operation, and safety check valves on hydraulic cylinders to prevent uncontrolled descent.

Is this unit suitable for washdown environments?

With Grade 304 stainless steel construction and an IP65 rated control panel, units of this type are generally suitable for washdown in food processing environments.

What maintenance is typically required?

Routine maintenance for hydraulic drum tippers commonly involves checking hydraulic fluid levels, inspecting hoses and seals, and ensuring electrical connections are secure. Specific schedules should be outlined in the manufacturer's manual.

Does this tipper require special installation?

Units of this type are typically bolted to the floor for stability and safety during operation. A suitable power supply for the hydraulic power-pack will also be required.

Available

Verified seller

Hydraulic Drum Tipper

Name: Hydraulic Drum Tipper
SKU: DTH/200/850/B
Availability: InStock

Price: Contact seller for price

DTH/200/850/B Hydraulic Drum Tipper

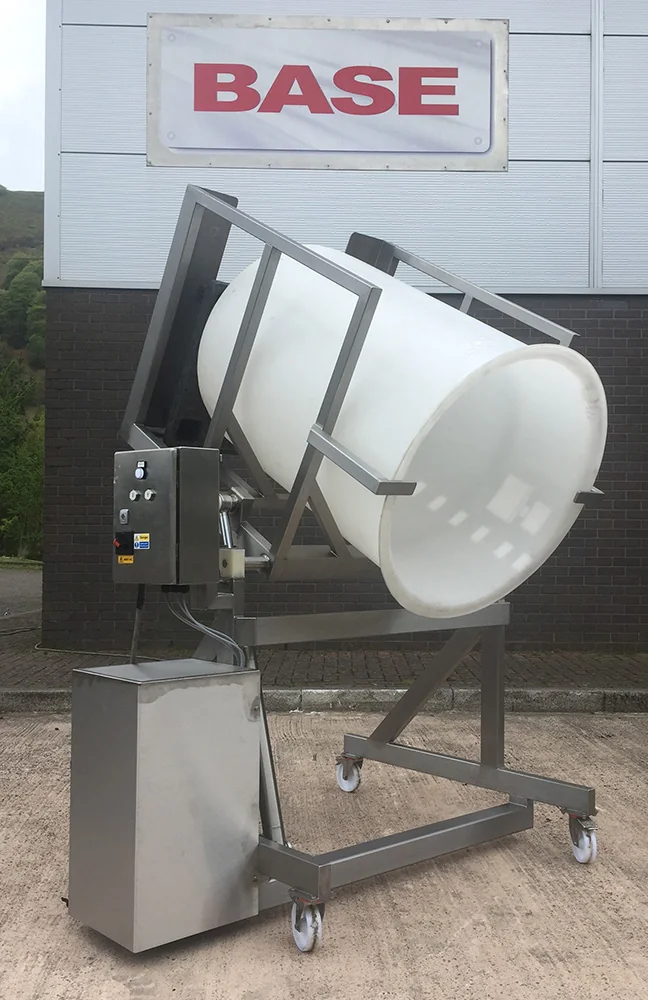

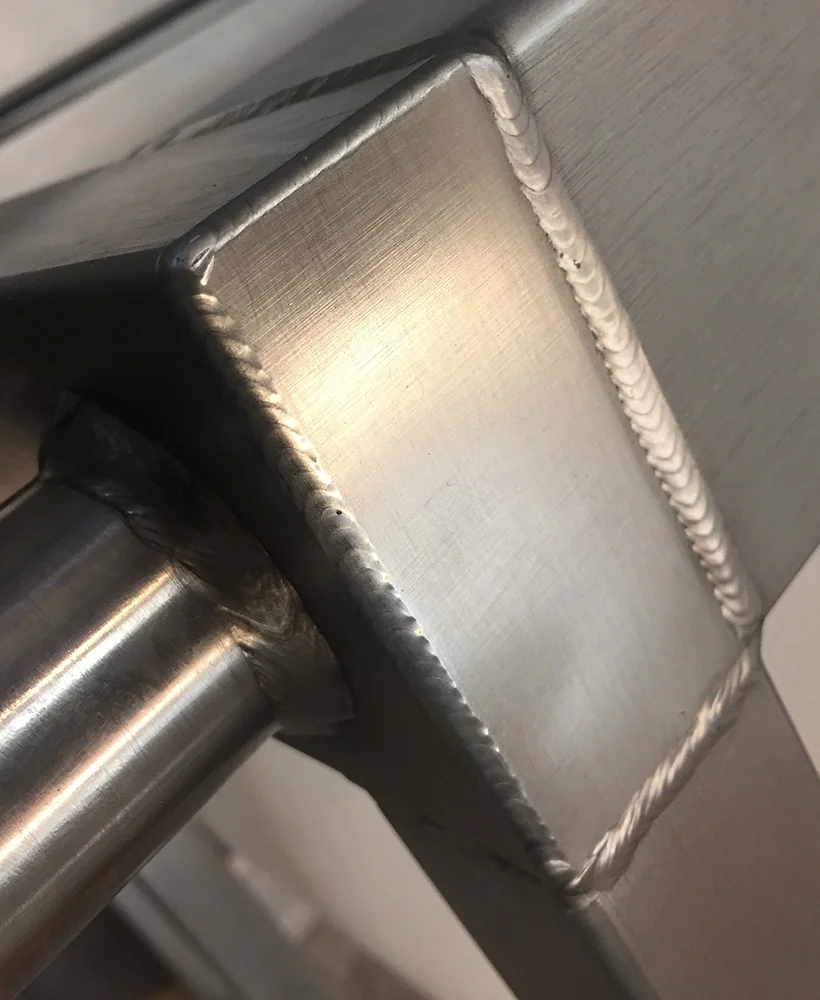

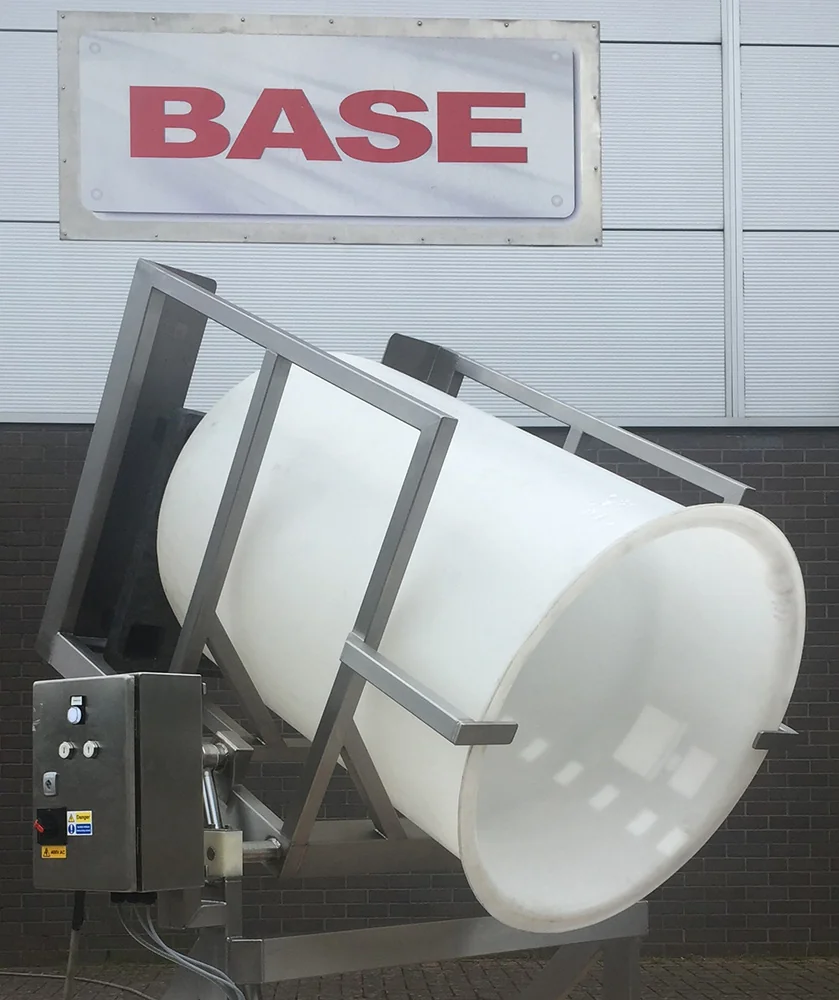

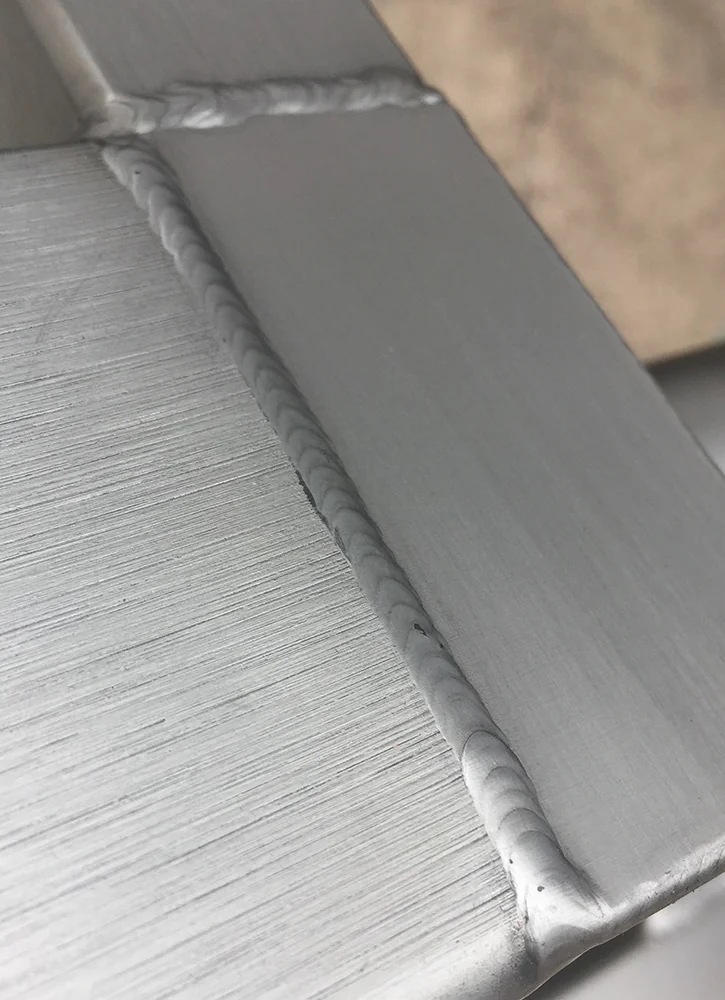

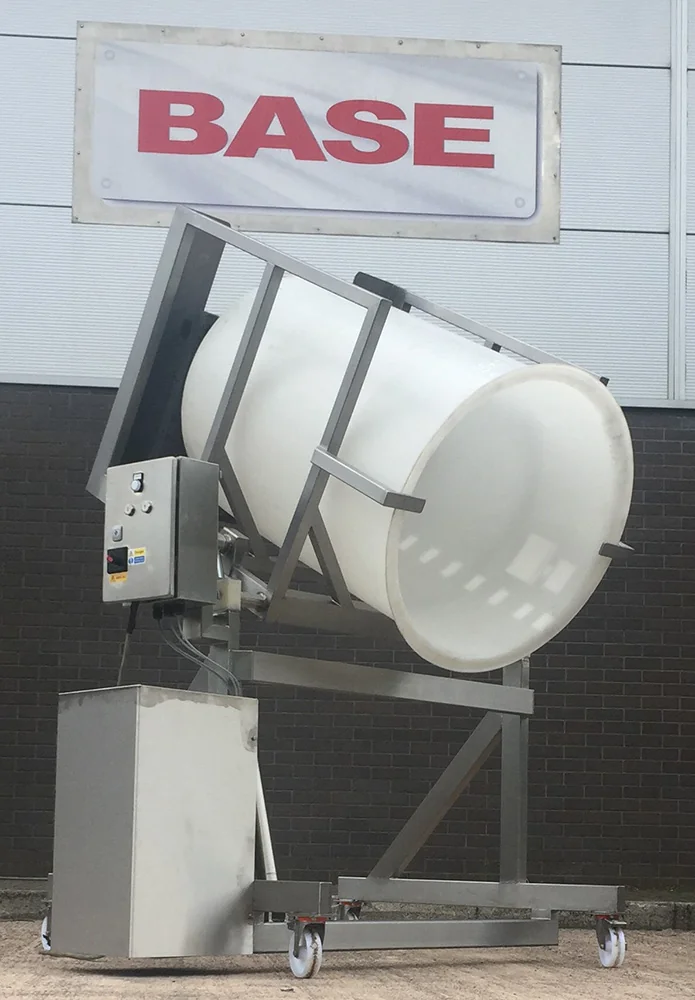

This Hydraulic Drum Tipper is designed to lift and tip your 500 Litre drum at a height of 850mm and would have a Safe Working Load of 200 Kgs. The Hydraulic Drum Tipper is constructed from Grade 304 stainless steel, is a fully TIG welded construction throughout and would be bolted to the floor. This Hydraulic Drum Tipper would be powered via a hydraulic power-pack and would tip the bin by the extension of a pair of stainless steel hydraulic cylinders to a maximum angle of 30 degrees past the horizontal. The hydraulic cylinders are fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor.

Hydraulic Drum Tipper Electrical Control

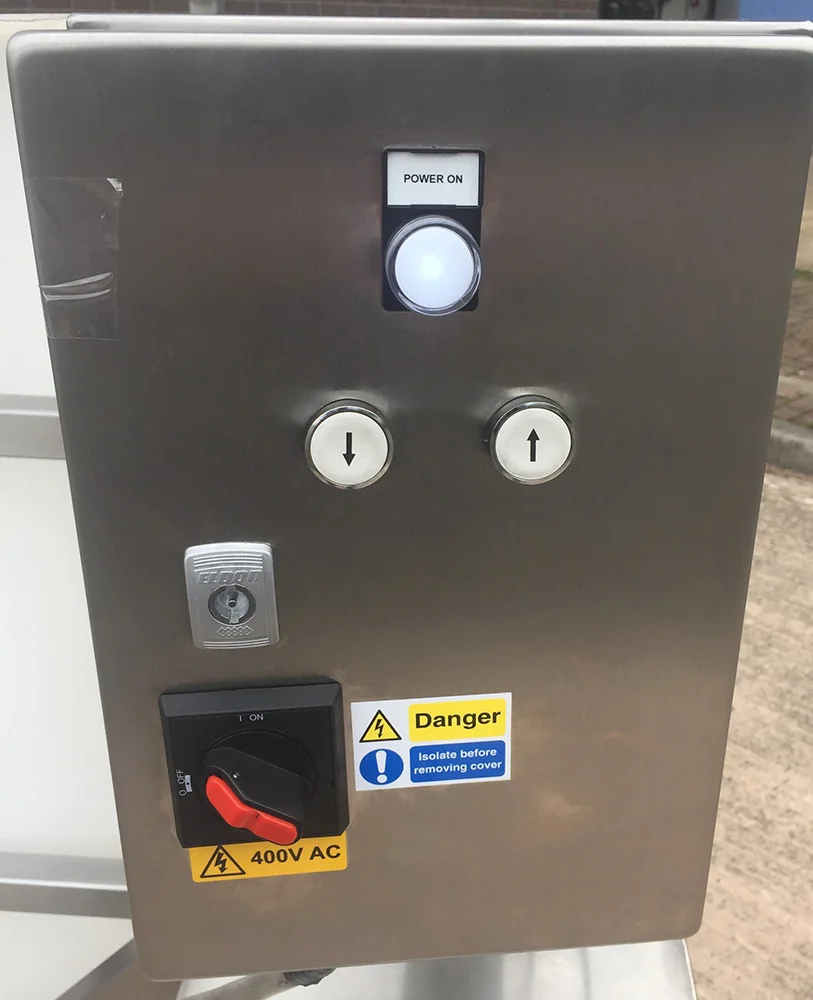

This Hydraulic Drum Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The unguarded Hydraulic Drum Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Hydraulic Drum Tipper to operate. As soon as the button is released, the Hydraulic Drum Tipper will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Hydraulic Drum Tipper

Model No.

DTH/200/850/B

Lifting Capacity

200Kgs

Tipping Height

850mm

Tipping Angle

120 Degrees

Machine Handing

Right Hand

Container Description

500 Litre Drum

Base Arrangement

Bolted To The Floor

Powerpack

1.1kW, 415V, 3 PHASE, 50 CYCLE

Control Circuit

24Vac

Electrical Rating

IP65

Stock Number

DTH/200/850/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from drums into mixers or processing vessels.
Controlled discharge of bulk materials in food manufacturing.
Loading hoppers or conveyors with raw ingredients.
Emptying waste drums in hygienic environments.

Typical Specifications

Typical drum capacity: Units in this class commonly handle drums up to 500 litres.
Safe Working Load (SWL): Typically 200 kg for this type of drum tipper.
Construction material: Grade 304 stainless steel is standard for food processing applications, ensuring hygiene and corrosion resistance.
Tipping height: Commonly around 850mm for this class, suitable for various receiving vessels.
Tipping angle: Typically up to 30 degrees past horizontal for complete discharge.
Power supply: Requires a hydraulic power-pack; electrical supply for the control panel is typically 3-phase, 400V, 50Hz.
Control system: Features an IP65 rated stainless steel control panel, commonly with 'dead man's handle' operation for safety.
Installation: Units of this type are typically floor-mounted for stability and safety.

Frequently Asked Questions

This class of tipper is typically designed for standard 500-litre drums. Buyers should confirm specific drum dimensions with the seller.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
