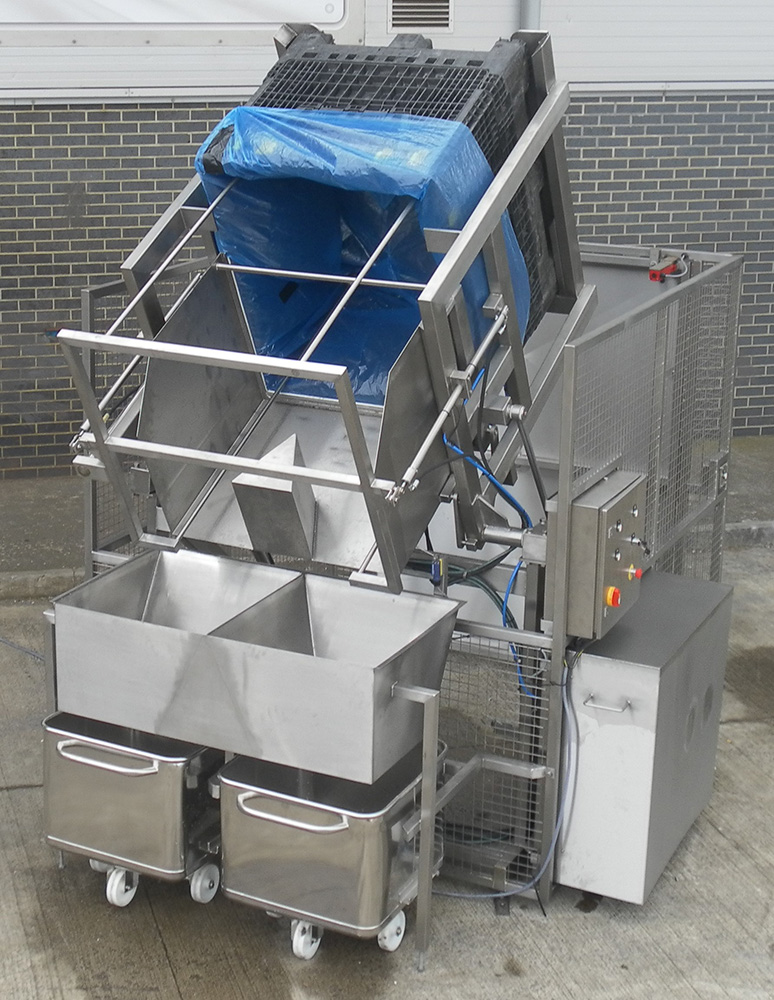

Hydraulic Tipper

Applications & Use Cases

• Used for controlled discharge of bulk materials from bins or containers into processing lines or other receptacles.
• Commonly found in food processing for transferring ingredients or waste products.
• Utilised in chemical and pharmaceutical industries for batch feeding of raw materials.
• Applied in waste management for emptying refuse bins into larger compactors or conveyors.
• Essential in manufacturing for ergonomic loading of components into assembly or sorting systems.

Typical Specifications

Typical capacity

For this class of equipment, capacities commonly range from 500 kg to 2000 kg, depending on the specific design and intended use.

Power supply

Hydraulic tippers typically require a 3-phase electrical supply, commonly 400V, 50Hz, to power the hydraulic pump unit.

Tipping height

The maximum tipping height for units of this type can vary significantly, often between 1.5 metres and 3.5 metres, to suit various receiving hoppers.

Construction material

Units are commonly constructed from mild steel with a painted finish or stainless steel (grade 304 or 316) for hygiene-sensitive applications.

Footprint

The footprint for a hydraulic tipper typically ranges from 1.5m x 1.5m to 2.5m x 2.5m, requiring adequate clear space for operation and maintenance.

Safety features

Common safety features include interlocked guarding, emergency stop buttons, and hydraulic fail-safe mechanisms to prevent uncontrolled descent.

Frequently Asked Questions

• What types of containers can this hydraulic tipper handle?

  Hydraulic tippers are typically designed to handle standard bins, tote bins, or custom containers, often specified by their dimensions and weight capacity. Buyers should confirm compatibility with their existing containers.

• What are the typical maintenance requirements for a used hydraulic tipper?

• Can this unit be integrated into an existing production line?

• What are the common safety considerations for operating a hydraulic tipper?

• Is specialist installation required for this type of equipment?
