Hygienic Screw Hoist

BLM/250/2448/B Hygienic Screw Hoist

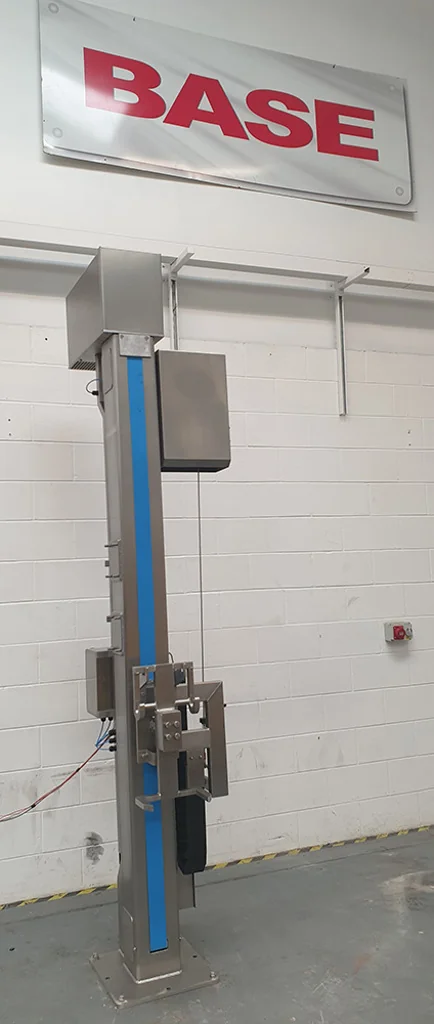

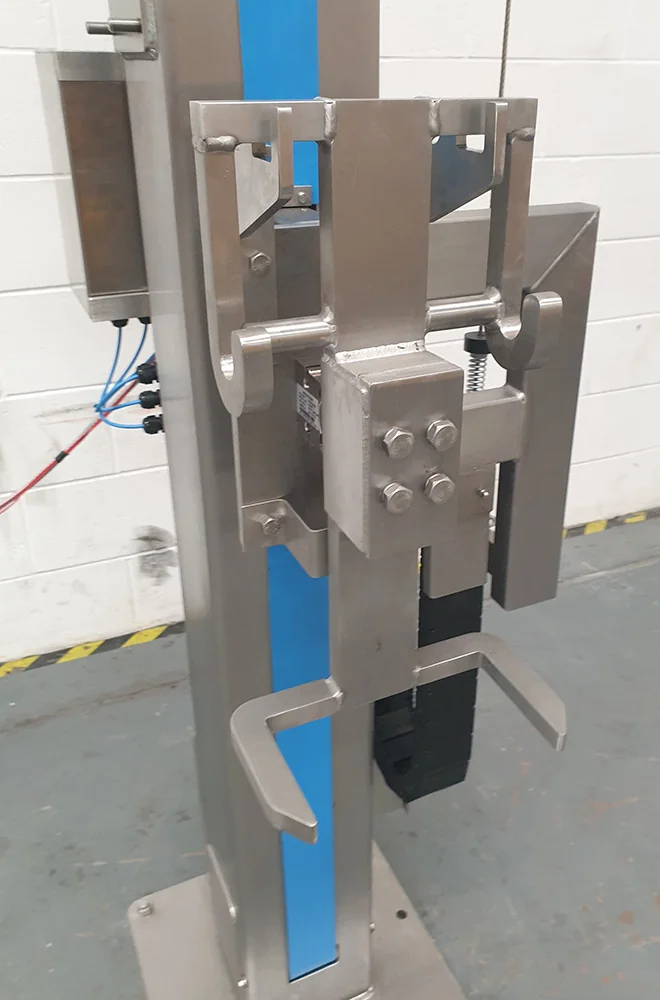

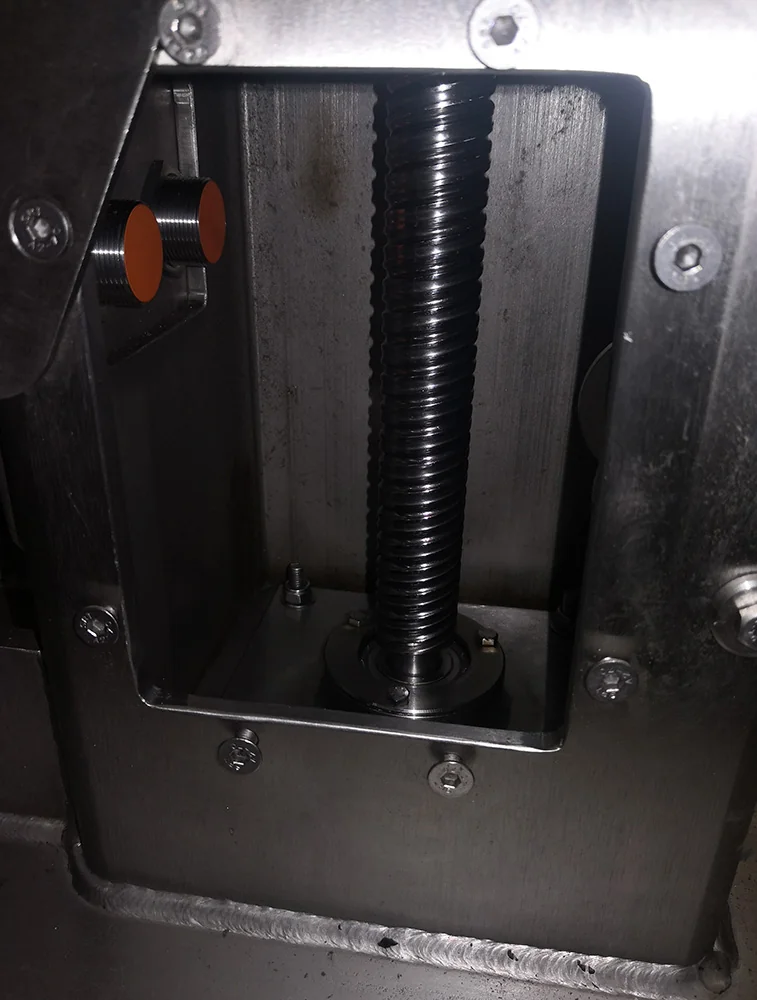

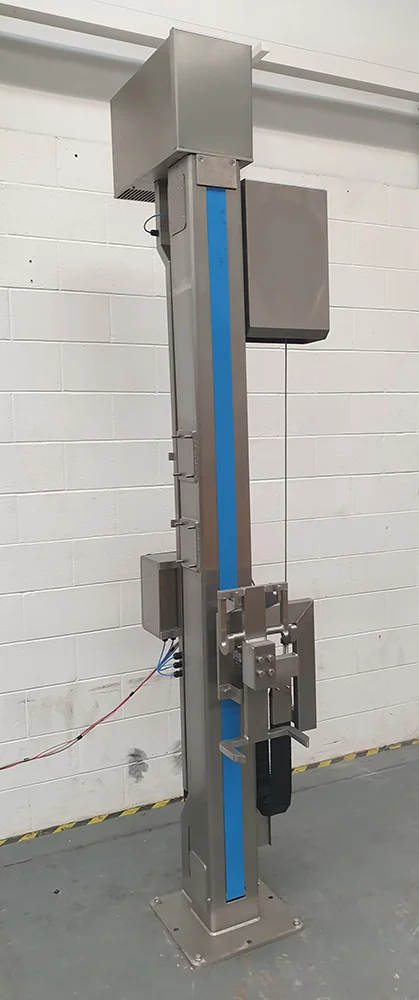

This Hygienic Screw Hoist was designed to lift a liquid tank to a maximum height of 2448mm above the floor and had a Safe Working Load of 250 Kgs. There was also an intermediate position where the tank stopped to enable the Operator to attach a discharge hose during the travel up and disconnect the hose during the travel down. The Hygienic Screw Hoist is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a 32mm x 20mm pitch ball screw driven by a motor gearbox mounted at the top of the main column. The Hygienic Screw Hoist incorporated a load arrestor mechanism, which prevented a load from falling to the floor in the extremely unlikely event of the ball screw failing.

Hygienic Screw Hoist Electrical Control

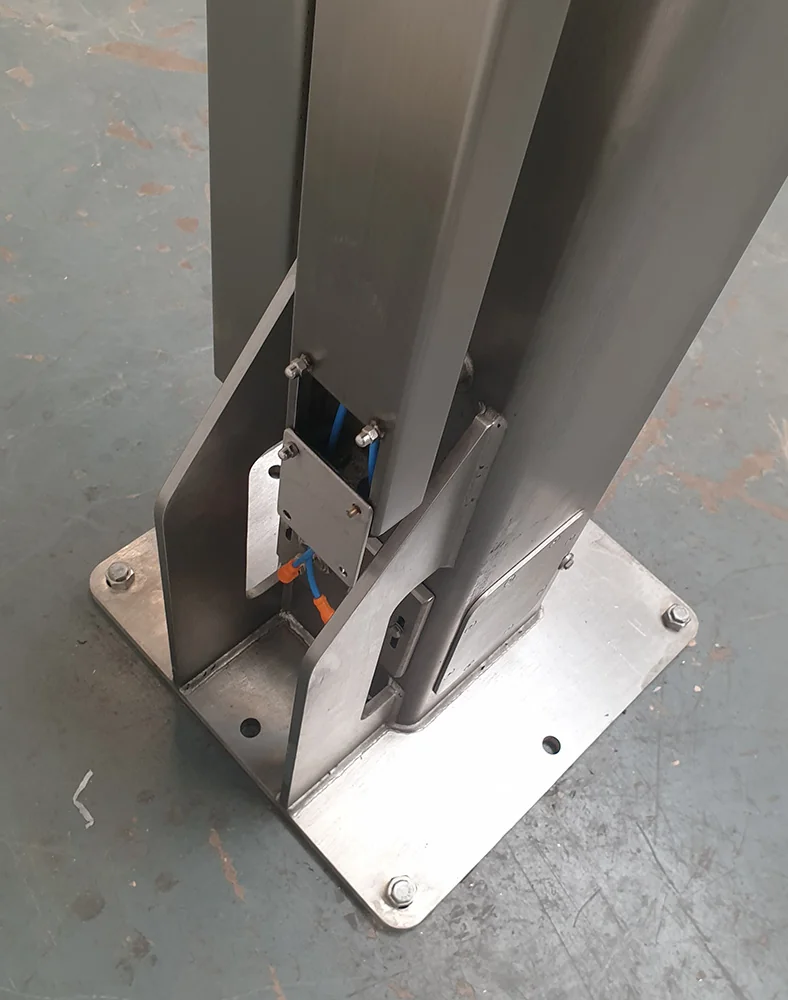

This Hygienic Screw Hoist was not fitted with a Control Panel, this was supplied by others. All devices on the Hygienic Screw Hoist were wired to a terminal Enclosure for connection to the main control system.

The following components were wired back to the Terminal Box:-

• 1 off Motor Gearbox & Brake
• 2 off Full Up or Discharge Position Proximity Switches
• 1 off Intermediate Proximity Switch
• 2 off Full Down Proximity Switches

Mettler Toledo Load Cell

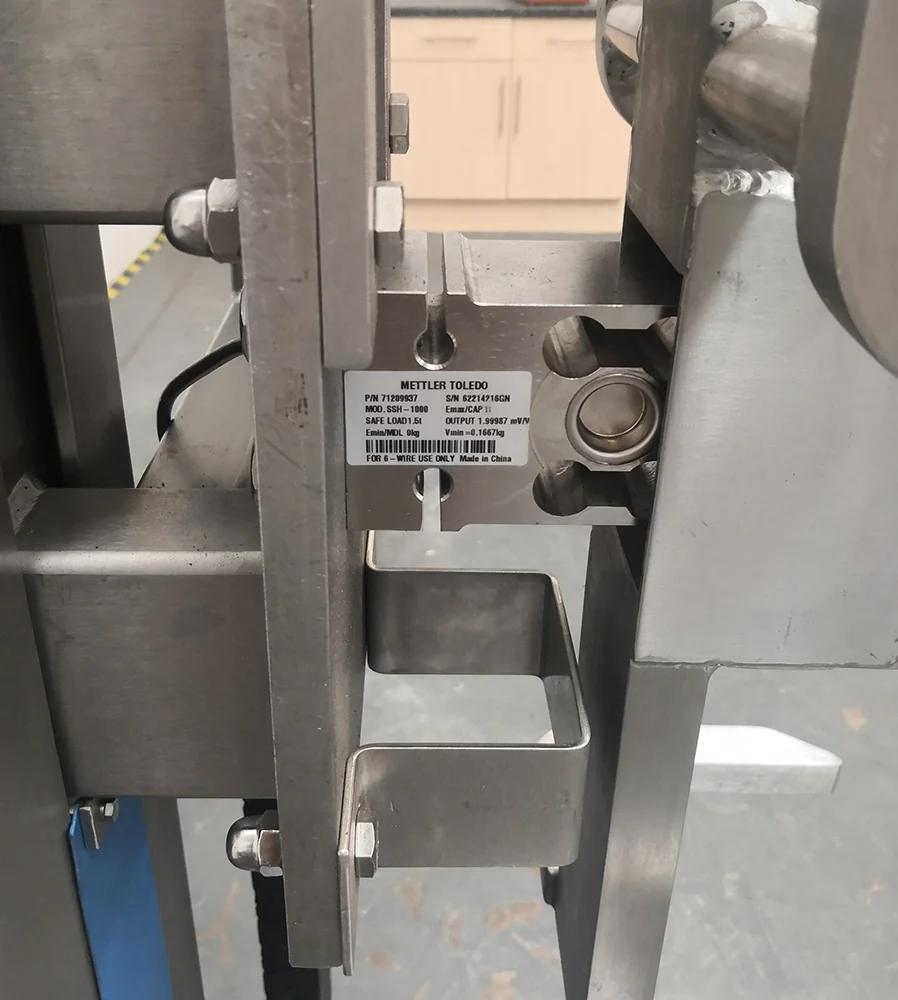

The Hygienic Screw Hoist was fitted with a Mettler Toledo Load Cell SSH-1t 2.5m and a Precision Junction Box. The Load Cell was connected via a summation card to the main control system to allow the detected weight to be displayed. The Load Cell cable was carried in an energy chain.
