What types of materials can this overhead stirrer mix?

This class of overhead stirrer is designed for mixing a wide range of liquids, from low-viscosity solutions to highly viscous media, including suspensions, emulsions, and gels. The specific stirrer shaft and impeller used will depend on the material properties.

Is this unit suitable for continuous operation?

Overhead stirrers of this type are generally built for robust and continuous operation in laboratory environments. Their maintenance-free motors contribute to their reliability over extended periods.

How is speed control managed on these units?

Units typically feature microprocessor-controlled speed regulation, which automatically adjusts motor power to maintain a consistent set speed, even when the viscosity of the sample changes during mixing.

What are the common safety features?

Common safety features include integrated overload protection, anti-stall mechanisms that prevent motor damage if the stirring element jams, and automatic shut-off functions to protect both the operator and the equipment.

Can this stirrer be integrated with other lab equipment or software?

Many modern overhead stirrers, particularly those with digital interfaces like RS 232 or USB, can be connected to PCs or laboratory information management systems (LIMS) for remote control, data logging, and documentation of stirring processes.

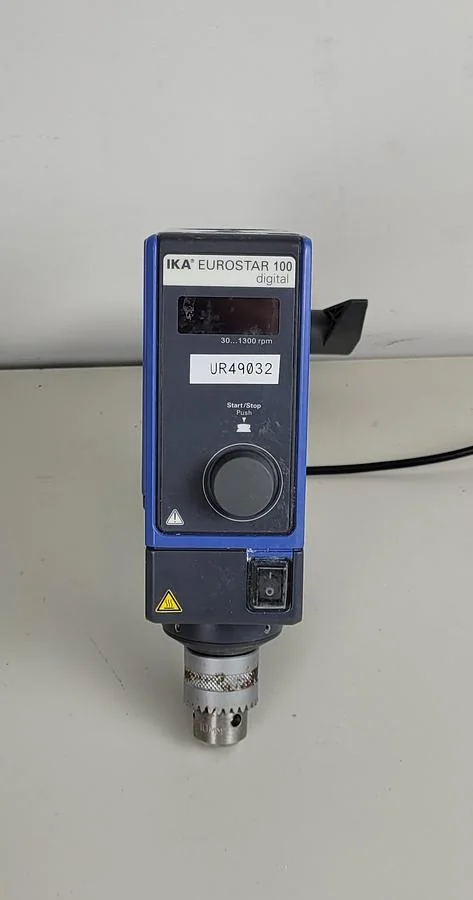

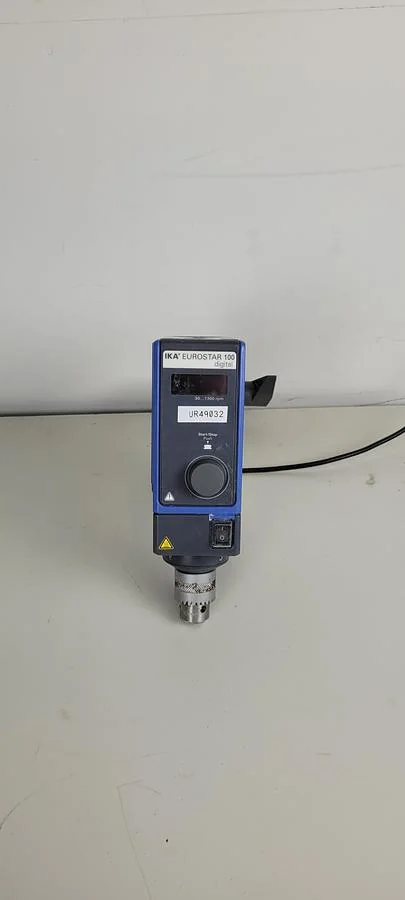

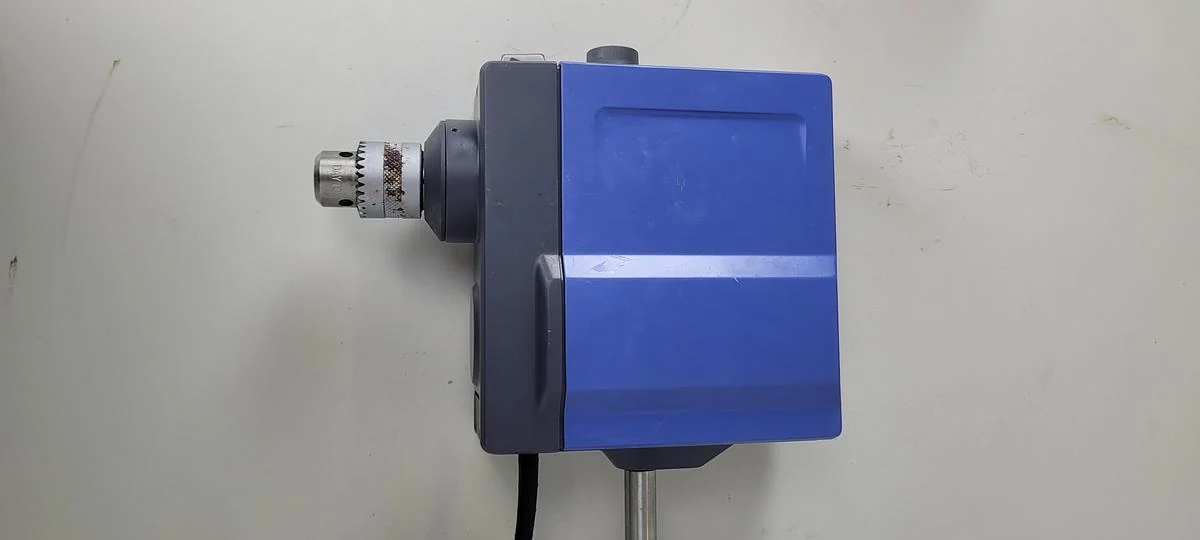

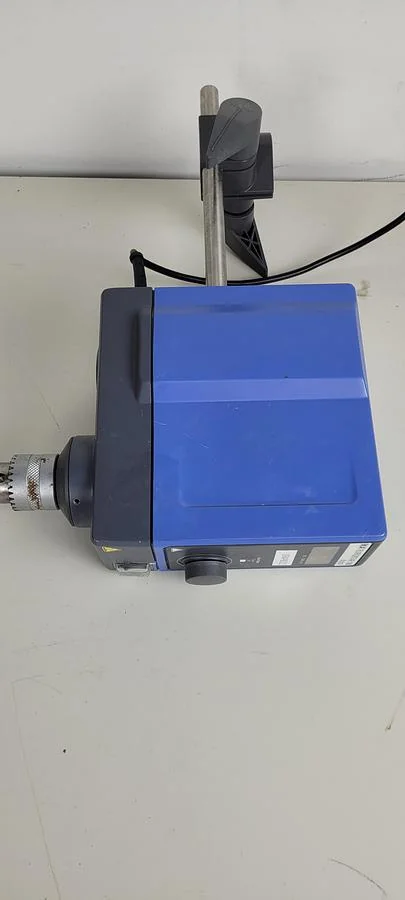

Used Euro-star 100 D S002 Overhead Stirrer - Mixers & Stirrers, photo 1

Used Euro-star 100 D S002 Overhead Stirrer - Mixers & Stirrers, photo 2

Used Euro-star 100 D S002 Overhead Stirrer - Mixers & Stirrers, photo 3

Used Euro-star 100 D S002 Overhead Stirrer - Mixers & Stirrers, photo 4

Used Euro-star 100 D S002 Overhead Stirrer - Mixers & Stirrers

used Equipment

Available

Verified seller

IKA - Euro-star 100 D S002 Overhead Stirrer

Name: Euro-star 100 D S002 Overhead Stirrer
Brand: IKA
SKU: 49032.SR8B
Price: 960 GBP
Availability: InStock

Price: £ 960

This listing is for a IKA Euro-star 100 D S002 Overhead Stirrer

The unit is in full working condition and is ready for immediate release

The IKA Eurostar 100 D S002 is a powerful laboratory overhead stirrer designed for a wide range of applications, ideal for mixing volumes up to 100 liters of water (H₂O). Engineered for precision and durability, it’s perfect for laboratories needing reliable and consistent mixing performance.

Specifications

Speed Range: 0/30 to 1300 rpm

Maximum Stirring Capacity: 100 liters (H₂O)

Maximum Viscosity: 70,000 mPas

Maximum Torque: 100 Ncm

Motor Rating Input/Output: 186 W / 136 W

Motor Type: Maintenance-free brushless DC motor

Chuck Range: 0.5 to 10 mm

Protection Class: IP 42

Interfaces: RS 232 and USB for control and data documentation

Dimensions (W x D x H): 86 x 208 x 248 mm

Weight: Approx. 3.9 kg

Power Supply: 230 V, 50/60 Hz

Key Features

Digital TFT Display: High-visibility screen for real-time parameter monitoring

Removable Wireless Controller: Enhances ease of use and flexibility

Microprocessor-Controlled Speed Regulation: Automatically adjusts speed to maintain precision within the set range, even with changes in sample viscosity

Integrated Torque Trend Display: Enables real-time monitoring of viscosity changes

Safety Systems: Built-in overload and anti-stall protection with automatic shut-off

Quiet Operation: Low-noise performance for lab comfort

Push-Through Agitator Shaft: Allows quick removal and easy cleaning

Error Code Display: Notifies users of system alerts or issues

Constant Speed Maintenance: Ensures uniform mixing, compensating for viscosity fluctuation

Cambridgeshire, United Kingdom

5,791 km away

Model Number

Euro-star 100 D S002

Stock Number

49032.SR8B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Chemical synthesis and reaction mixing in research and development laboratories.
Preparation of solutions, suspensions, and emulsions in pharmaceutical and biotech settings.
Quality control and analytical applications requiring precise sample homogenisation.
Mixing of viscous media in academic and industrial laboratory environments.

Typical Specifications

Typical stirring capacity: Units in this class commonly handle volumes up to 100 litres of water.
Speed range: Typically offers a broad speed range, often from 0/30 up to 1300 rpm, for varied applications.
Maximum viscosity: For this class of equipment, maximum viscosity can be up to 70,000 mPas.
Motor type: Commonly features a maintenance-free brushless DC motor.
Power supply: Typically operates on a standard 230 V, 50/60 Hz single-phase supply in the UK.
Control interface: Many units include digital displays and often offer interfaces such as RS 232 and USB for external control and data logging.
Safety features: Often includes overload and anti-stall protection with automatic shut-off.

Frequently Asked Questions

This class of overhead stirrer is designed for mixing a wide range of liquids, from low-viscosity solutions to highly viscous media, including suspensions, emulsions, and gels. The specific stirrer shaft and impeller used will depend on the material properties.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
