What is a Form-Fill-Seal (FFS) machine?

An FFS machine forms a package from a roll of film, fills it with product, and then seals it. This specific model is a horizontal FFS (HFFS) machine, also known as a flow wrapper.

What does 'print registration' mean?

Print registration ensures that pre-printed film is cut and sealed accurately in relation to the printed design, preventing misaligned graphics on the final package.

What maintenance is typically required for a used Ilapack Carrera 2000PC?

Regular maintenance typically involves checking wear parts such as belts, bearings, and heating elements, along with routine cleaning and lubrication. An engineer's report from 2011 is noted for this unit.

Can this machine handle different product sizes?

Yes, with adjustable forming folders and sealing jaws, units of this type can typically accommodate a range of product sizes. This unit offers optional adjustable folders.

What are 'forming folders'?

Forming folders shape the flat film into a tube around the product before the sealing process. This unit can be supplied with fixed or optional adjustable folders.

Is this machine suitable for food packaging?

Yes, Ilapack Carrera machines are commonly used in food packaging. Buyers should verify the current hygiene status and any necessary certifications for their specific application.

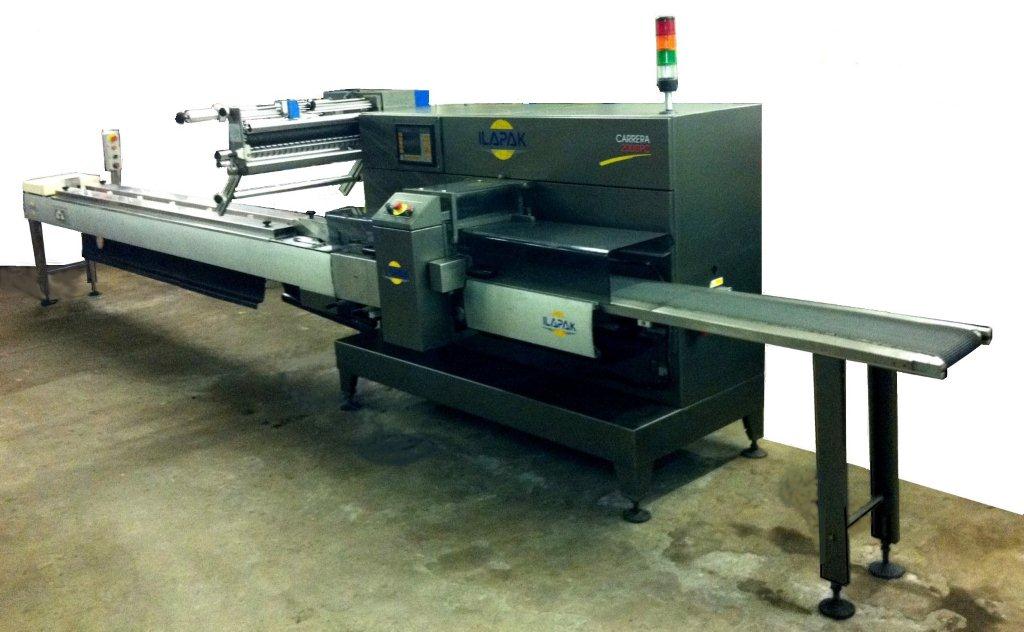

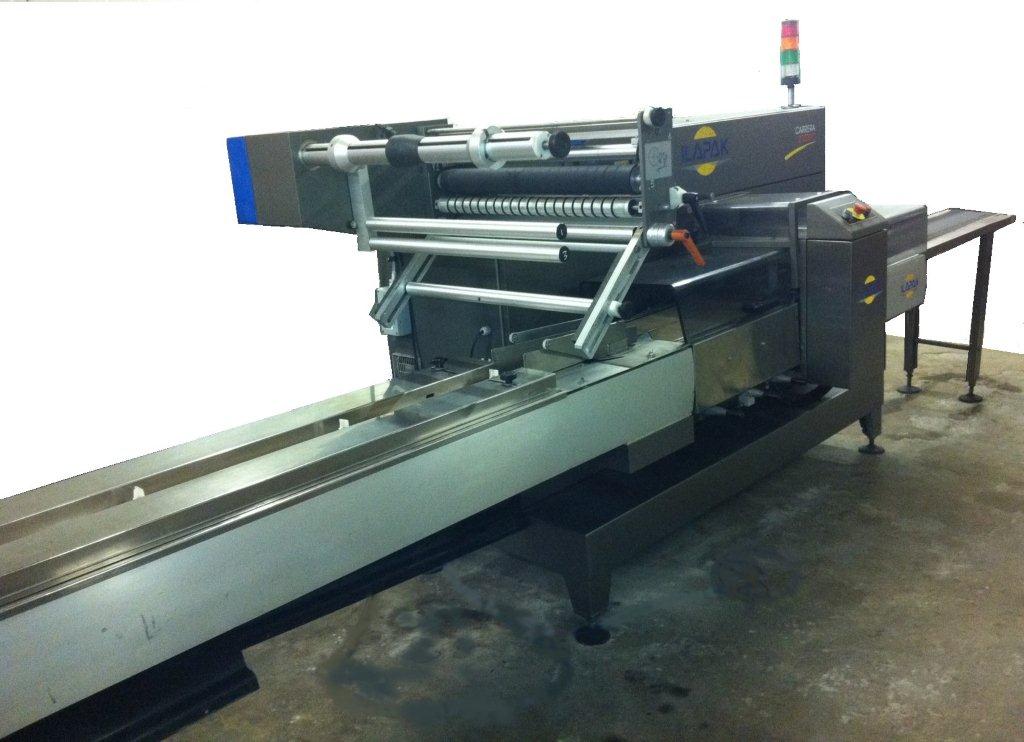

Used Ilapack - Form-Fill-Seal Machines, photo 1

used Equipment

Available

Verified seller

Ilapack - Ilapack

Name: Ilapack
Brand: Ilapack
SKU: 5d616dd38211

Price: Contact seller for price

Ilapack Carrera 2000PC – SOLD Normal 0 false false false EN-US X-NONE X-NONE MicrosoftInternetExplorer4 /* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal"; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-priority:99; mso-style-qformat:yes; mso-style-parent:""; mso-padding-alt:0cm 5.4pt 0cm 5.4pt; mso-para-margin:0cm; mso-para-margin-bottom:.0001pt; mso-pagination:widow-orphan; font-size:10.0pt; font-family:"Times New Roman","serif";} 1998 model very clean, painted finish with stainless steel in feed conveyor. 250 x 125 sealing jaws Print registration, PLC programmable settings New Berrette fitted. Optional Ilapak reconditioned adjustable forming folders with an additional 100mm folding plates, otherwise supplied with a fixed fitted folders. All functions electronic, mechanical components are tested and certified in good working condition by Ilapak engineer’s report carried out in December 2011 SOLD

Essex, United Kingdom

5,774 km away

Model Number

ilapack

Stock Number

5d616dd38211

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Packaging of bakery products such as biscuits, cakes, and pastries.
Wrapping of confectionery items including chocolate bars and sweets.
Sealing of fresh produce like fruits and vegetables in trays.
Packaging of non-food items such as small components or consumer goods.

Typical Specifications

Typical throughput: For this class of equipment, throughput can typically range from 50 to 200 packs per minute, depending on product size and film material.
Power supply: Commonly, units of this type require a 3-phase electrical supply, typically 400V, 50Hz, with varying power consumption based on configuration.
Sealing jaw dimensions: This particular unit features 250 x 125mm sealing jaws. Other Carrera 2000PC models may have different dimensions.
Film material compatibility: Typically compatible with a range of heat-sealable films, including BOPP, laminates, and co-extruded films.
Footprint: A Carrera 2000PC typically requires a significant operational footprint, often around 3-5 metres in length, plus space for material handling.
Control system: Units of this type commonly feature PLC programmable settings for operational control and recipe management.
Temperature control: Precision temperature control for sealing jaws is standard for consistent pack integrity.

Frequently Asked Questions

An FFS machine forms a package from a roll of film, fills it with product, and then seals it. This specific model is a horizontal FFS (HFFS) machine, also known as a flow wrapper.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
