What type of bins can this tipper handle?

This unit is designed for 240-litre wheelie bins. Buyers should confirm compatibility for other bin sizes with the seller.

What are the power requirements for this equipment?

Bin tippers typically operate on a standard industrial electrical supply, commonly 3-phase. Buyers should consult the seller for the exact voltage and amperage requirements of this specific unit.

Is this unit suitable for outdoor use?

The stainless steel construction and IP65 rated control panel suggest suitability for environments where moisture or dust is present. However, buyers should confirm specific outdoor suitability with the seller.

What maintenance is typically required for a bin tipper?

Routine maintenance usually involves checking the chain and motor gearbox, lubricating moving parts, and inspecting safety interlocks. A maintenance schedule will be provided by the manufacturer.

Can the discharge height be adjusted?

Units are typically built to a fixed discharge height for a specific application. Any potential for adjustment should be discussed directly with the seller.

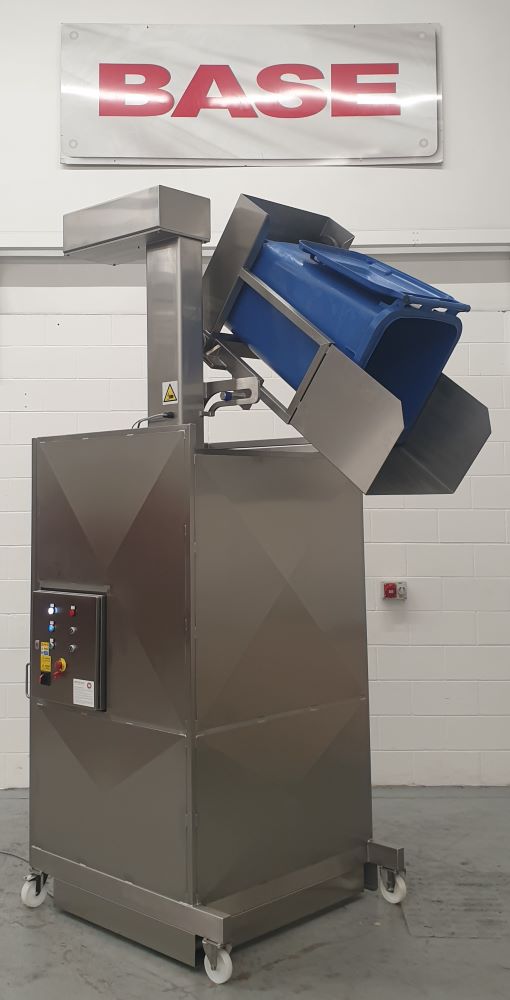

Incinerator Wheelie Bin Tipper - Bin Tippers and Dumpers, photo 1

Incinerator Wheelie Bin Tipper - Bin Tippers and Dumpers, photo 2

Incinerator Wheelie Bin Tipper - Bin Tippers and Dumpers, photo 3

Incinerator Wheelie Bin Tipper - Bin Tippers and Dumpers, photo 4

Incinerator Wheelie Bin Tipper - Bin Tippers and Dumpers, photo 5

Incinerator Wheelie Bin Tipper - Bin Tippers and Dumpers, photo 6

Incinerator Wheelie Bin Tipper - Bin Tippers and Dumpers

Available

Verified seller

Base Handling Ltd - Incinerator Wheelie Bin Tipper

Name: Incinerator Wheelie Bin Tipper
Brand: Base Handling Ltd
SKU: BTM/300/2100/M/G
Availability: InStock

Price: Contact seller for price

BTM/300/2100/M/G Incinerator Wheelie Bin Tipper.

This Incinerator Wheelie Bin Tipper was designed to lift and tip a 240 Litre Wheelie Bin at a discharge height of 2100mm to load an Incinerator.

The Incinerator Wheelie Bin Tipper was manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor.

The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards.

The Incinerator Wheelie Bin Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards.

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet.

It encloses the Incinerator Wheelie Bin Tipper to a height of 2200mm on two sides, 2000mm on the tipping side with a hinged guard door on the fourth side.

The guard door is electrically and mechanically interlocked preventing the Incinerator Wheelie Bin Tipper from operating when the door is open.

Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Incinerator Wheelie Bin Tipper Electrical Control.

The Incinerator Wheelie Bin Tipper was fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates the following controls:

Up
Down
Guard Release
Emergency Stop
a Reset Facility.

The Incinerator Wheelie Bin Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position.

Once the product has been discharged, pressing the ‘Down’ push button once will return the Incinerator Wheelie Bin Tipper to the full down position.

The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Incinerator Wheelie Bin Tipper

Model No.

BTM/300/2100/M/G

Capacity

300 Kgs

Overall Height

3235mm

Machine Handing

Right Hand

Maximum Headroom

3675mm

Tipping Chute

Container Description

240 Litre Wheelie Bin

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Tip Height

2100mm

Tip Angle

135 Degrees

Load/Tension Chain

¾” Simplex

Stock Number

BTM/300/2100/M/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Loading waste into incinerators in industrial or commercial settings.
Transferring materials from wheelie bins to elevated hoppers or processing lines.
Automating the emptying of standard wheelie bins for various waste streams.
Enhancing safety and efficiency in waste management operations by reducing manual handling.

Typical Bin Compatibility: Designed for standard 240-litre wheelie bins; other common sizes may be accommodated depending on the specific unit.
Typical Discharge Height: For this class of equipment, discharge heights commonly range from 1500mm to 2500mm, with this unit specified at 2100mm.
Construction Material: Units of this type, especially for incinerator loading, are typically constructed from Grade 304 stainless steel for durability and corrosion resistance.
Lifting Mechanism: Chain-driven systems are commonly found on units of this type, providing robust and controlled lifting.
Safety Features: Integrated safety guarding to BS EN 14120:2015 standards, with electrically and mechanically interlocked doors, is a common safety feature.
Electrical Control: Typically features an IP65 rated control panel, indicating protection against dust and water ingress, suitable for industrial environments.
Mounting: Units are commonly designed for floor bolting to ensure stability during operation.

Bin tippers and dumpers are valued across waste management, recycling, and manufacturing sectors for their reliability and durability. Buyers typically prioritise robust construction, hydraulic system condition, and container compatibility when purchasing used models. Industry sentiment favours equipment with well-maintained lifting mechanisms and minimal corrosion. Common strengths include straightforward operation, longevity with proper maintenance, and cost efficiency compared to new units. Potential buyers should inspect wear on hydraulic cylinders, structural integrity of the bin, and service history before purchase.
