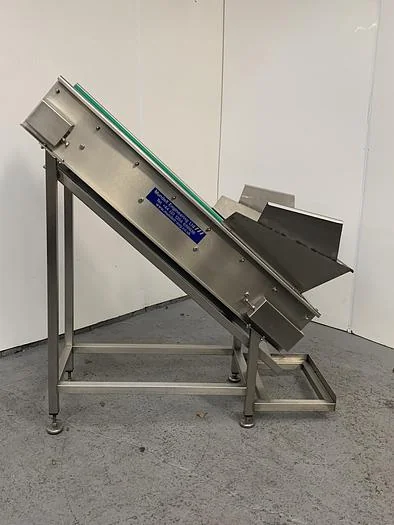

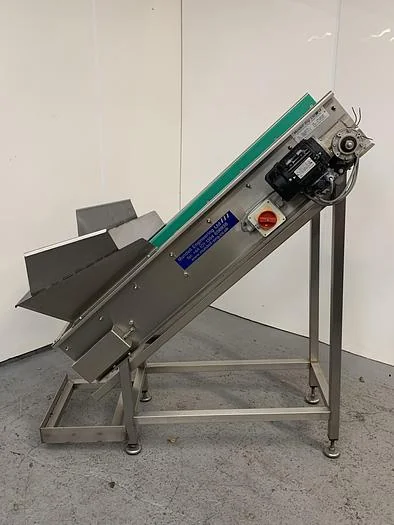

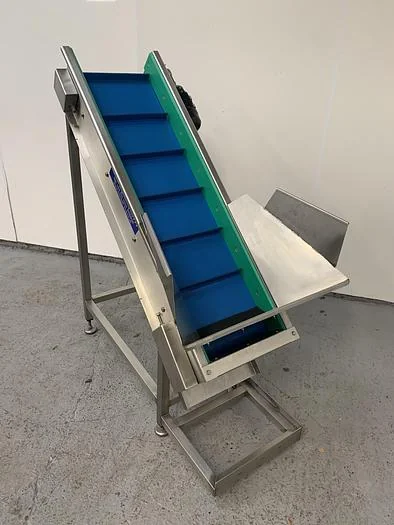

Mundell Engineering - Incline Conveyor

Applications & Use Cases

• Moving bulk ingredients or finished products between different processing stages.
• Elevating items to hoppers, packaging machines, or higher-level conveyors.
• Transporting goods over short to medium distances within a production facility.
• Integrating into automated production lines for continuous material flow.

Typical Specifications

Typical capacity

Varies significantly based on belt width and motor power, commonly ranging from 50 kg/hr to several tonnes/hr for this class of equipment.

Power supply

Typically 400V, 3-phase, 50Hz, with motor power commonly between 0.37 kW and 2.2 kW.

Belt material

Often food-grade PVC, PU, or modular plastic belting, selected for hygiene and product compatibility.

Incline angle

Commonly adjustable or fixed between 15 and 45 degrees, depending on the product and application.

Frame material

Typically stainless steel for food processing environments, ensuring durability and ease of cleaning.

Footprint

Dependent on length and width; for this type of unit, lengths commonly range from 2m to 6m, with belt widths from 300mm to 800mm.

Frequently Asked Questions

• What types of products are suitable for an incline conveyor?

  Incline conveyors are suitable for a wide range of products, including granular materials, powders, individual items, and packaged goods, provided the belt type and cleats are appropriate for the product's characteristics.

• How do I determine the correct incline angle?

• What maintenance is typically required for an incline conveyor?

• Can this type of conveyor be integrated into an existing line?

• What are the common safety features on incline conveyors?
