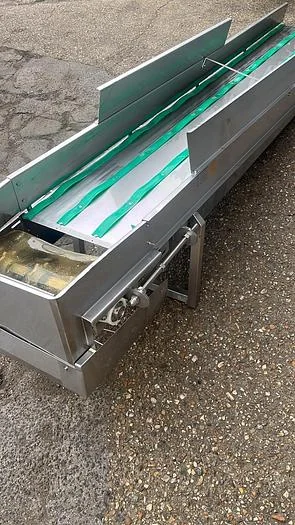

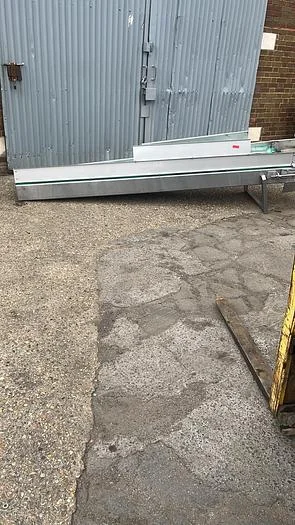

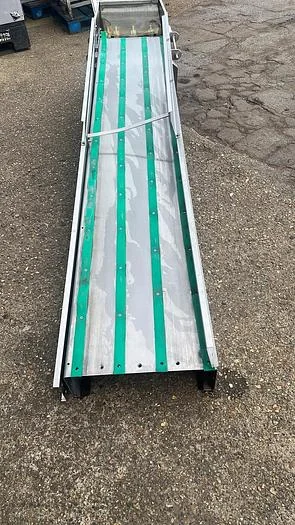

Incline Conveyor Frame

Applications & Use Cases

• Transporting bulk ingredients or finished products between different processing levels.
• Feeding packaging machinery or hoppers from a lower elevation.
• Moving waste materials or by-products to collection points.
• Integrating into existing production lines to bridge height differences.

Typical Specifications

Typical capacity

Varies significantly based on belt width and incline angle; commonly designed for throughputs ranging from 50 kg/hr to several tonnes/hr for this class of equipment.

Power supply

Units of this type typically require a 3-phase electrical supply, commonly 400V, 50Hz, for the motor, though smaller units may use single-phase.

Incline angle

Typically adjustable or fixed between 15 and 45 degrees, depending on the product and application.

Frame material

Often constructed from stainless steel (e.g., 304 or 316 grade) for food processing environments, or mild steel for less demanding applications.

Footprint

Dependent on length, width, and incline angle; buyers should consider the overall length required to achieve the desired height difference.

Motor power

Commonly ranges from 0.37 kW to 2.2 kW, influenced by load, belt speed, and incline.

Frequently Asked Questions

• What type of belt is suitable for this incline conveyor frame?

  The suitable belt type depends on the product being conveyed. Common options include modular plastic belts, PVC, PU, or rubber belts, often with flights or grip patterns for incline applications.

• Can this frame be integrated into an existing production line?

• What maintenance is typically required for an incline conveyor frame?

• Is this unit suitable for washdown environments?

• What considerations are there for product stability on an incline?
