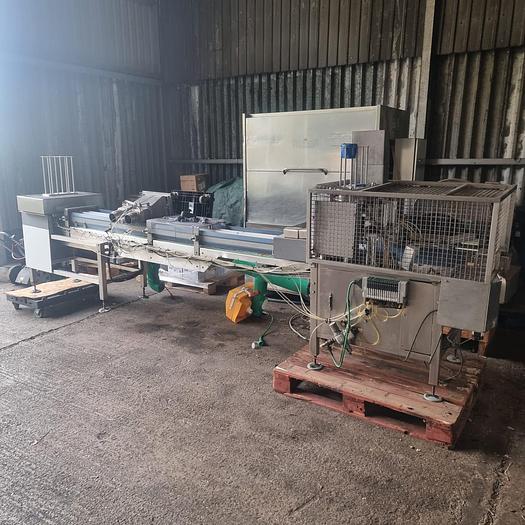

Omron - Indexing Conveyor

Applications & Use Cases

• Precision assembly lines requiring intermittent product movement.
• Packaging operations where items need to be stopped for filling or sealing.
• Automated inspection systems for discrete parts.
• Robotic pick-and-place applications requiring accurate positioning.

Typical Specifications

Typical indexing accuracy

Typically within +/- 0.1mm to 0.5mm for this class of equipment.

Power supply

Commonly 400V, 3-phase, 50Hz, with control voltage typically 24V DC.

Indexing speed

Typically 10 to 60 indexes per minute, depending on load and step distance.

Conveyor belt material

Commonly PU, PVC, or modular plastic, selected based on application and product contact.

Control interface

Often PLC-controlled, with options for HMI integration or simple push-button operation.

Footprint

Highly variable; for this type of unit, length typically ranges from 1.5m to 6m, and width from 0.3m to 1m.

Frequently Asked Questions

• What is the primary benefit of an indexing conveyor over a continuous one?

  Indexing conveyors provide precise, intermittent movement, allowing for operations like assembly, inspection, or packaging to be performed on stationary products at specific points along the line.

• Can the indexing step distance be adjusted?

• What maintenance is typically required for an indexing conveyor?

• Is this type of conveyor suitable for heavy loads?

• What safety features should I expect on an indexing conveyor?
