What is the typical footprint of a semi-automatic cartoner like the NSX3?

The footprint can vary, but for this type of semi-automatic machine, buyers should expect a length of approximately 3-4 metres and a width of 1.5-2 metres, plus space for operator access and material handling.

Can this machine handle different carton sizes?

Yes, semi-automatic cartoners like the NSX3 are designed with adjustable settings to accommodate a range of carton dimensions within specified parameters. Changeover typically involves manual adjustments with hand wheels and scales.

What level of operator involvement is required?

As a semi-automatic machine, an operator is required to manually load products into the erected cartons. The machine handles carton erection, flap forming, sealing, and discharge automatically.

Is this machine suitable for washdown environments?

Given its all stainless steel construction, units of this type are generally suitable for environments requiring regular cleaning, though buyers should confirm specific IP ratings and washdown procedures with the seller.

What kind of maintenance does a cartoner like this typically require?

Routine maintenance typically includes checking and lubricating moving parts, inspecting timing belts and chains, cleaning glue nozzles, and ensuring all safety interlocks are functional. Regular servicing helps maintain optimal performance and longevity.

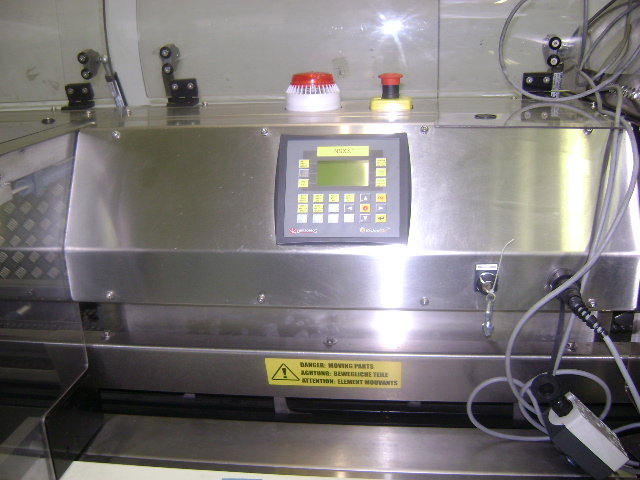

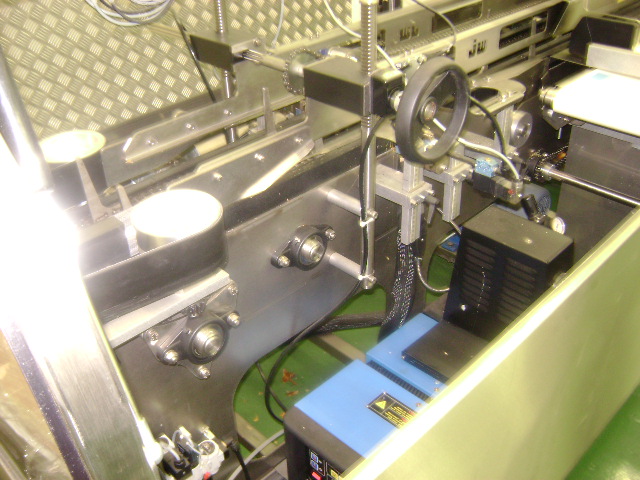

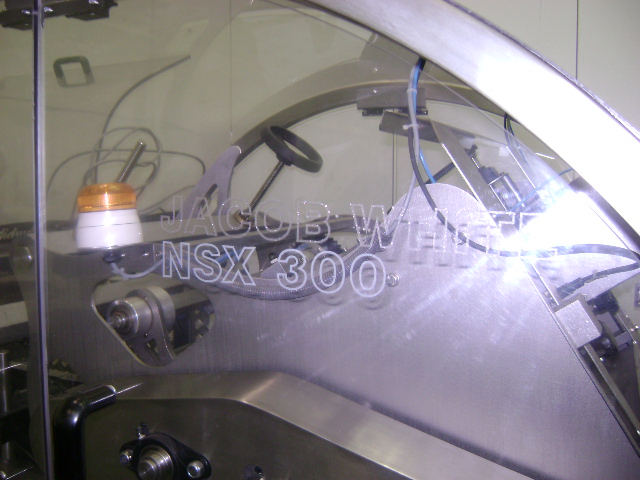

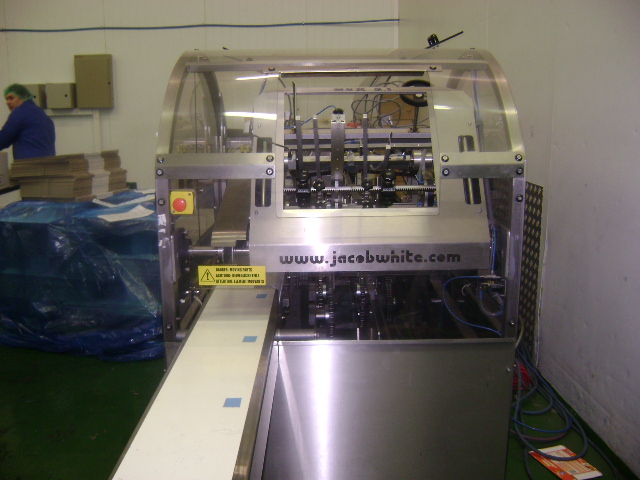

Used Jacob White NSX3 - Cartoning, photo 1

used Equipment

Available

Verified seller

Jacob White - Jacob White NSX3

Name: Jacob White NSX3
Brand: Jacob White
SKU: 9b698eb3105b

Price: Contact seller for price

Jacob White Semi Automatic Cartoner – SOLD Model NSX-3 Year 2007 All stainless steel Throughput up to 100cpm Pack size parameters are Length 108mm to 355mm Width 20mm to 100mm Depth 44mm to 250mm The NSX3 series machine automatically erects cartons by means of a rotary motion vacuum pick off from a magazine on demand by the operator, and places them into continuously moving flighted chains. The flaps are then formed on the non-load side and folded open on the load side for the operator to insert the product. After loading, glue is applied to the bottom major flaps on both sides, These are then closed and sealed automatically. The cartons are discharged from the cartoner by powered side belts. * Designed for a three shift operation * Heavy welded steel frame * Stainless steel shafts and guides * Completely guarded by easily removable fixed guards and hinged see-through electrically interlocked top guards allowing a clear view of the machine operation. * Complies with BS5304 * Robust transmission chains with high quality carton lugs. * Overload protection on machine drive and all mechanisms. * Integral product conveyor * Hot melt jet applicator * Extensive use of heavy duty timing belts with duplex main drive chain * All adjusting points fitted with hand wheels, digital readouts, quick release handles and calibrated scales. * Mimic board fitted to electrical console with indicator lights showing machine stoppage points * Low level noise – below 80db (A) In as new condition. Excellent Value SOLD

Essex, United Kingdom

5,774 km away

Model Number

jacob-white-nsx3

Stock Number

9b698eb3105b

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Packaging of food products such as confectionery, baked goods, and frozen items.
Cartoning of pharmaceuticals, cosmetics, and personal care products.
Packing of household goods, hardware, and small electronic components.
Suitable for contract packing operations requiring flexible carton sizes.

Typical Specifications

Typical throughput: For this class of semi-automatic cartoner, throughput commonly ranges up to 100 cartons per minute, depending on product and operator efficiency.
Pack size parameters: Units of this type typically accommodate carton lengths from approximately 100mm to 360mm, widths from 20mm to 100mm, and depths from 40mm to 250mm.
Construction material: Commonly features all stainless steel construction for hygiene and durability, particularly in food and pharmaceutical applications.
Power supply: Typically requires a standard industrial electrical supply, often 400V, 3-phase, 50Hz, with a compressed air connection for pneumatic functions.
Sealing method: Units of this type commonly utilise hot melt jet applicators for carton sealing.
Safety features: Modern units are typically guarded with interlocked access points and overload protection, often complying with standards such as BS5304.

Frequently Asked Questions

The footprint can vary, but for this type of semi-automatic machine, buyers should expect a length of approximately 3-4 metres and a width of 1.5-2 metres, plus space for operator access and material handling.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
