What types of fluids can be used with this recirculating cooler?

These units are typically compatible with water, water-glycol mixtures, and various thermal bath fluids, depending on the required temperature range and application.

Is this unit suitable for continuous operation?

Recirculating coolers of this design are generally built for continuous, reliable operation in demanding laboratory and industrial environments.

How is the fluid level monitored and refilled?

Units commonly feature an easy-access top-fill port and a level indicator for convenient monitoring and replenishment of the cooling fluid.

What maintenance is typically required for this equipment?

Routine maintenance typically involves checking and topping up the cooling fluid, cleaning the condenser coils, and inspecting hoses for wear or leaks.

Can this cooler be integrated into an existing system?

Yes, recirculating coolers are designed for straightforward integration into various laboratory and industrial setups via standard hose connections.

What is the significance of the feed pressure indicator?

A feed pressure indicator, commonly found on units of this type, allows users to monitor the pump's output pressure, ensuring optimal flow and performance to the external application.

Used FL1201 Recirculating Cooler - Laboratory Refrigerators, photo 1

Used FL1201 Recirculating Cooler - Laboratory Refrigerators, photo 2

Used FL1201 Recirculating Cooler - Laboratory Refrigerators, photo 3

Used FL1201 Recirculating Cooler - Laboratory Refrigerators, photo 4

Used FL1201 Recirculating Cooler - Laboratory Refrigerators, photo 5

Used FL1201 Recirculating Cooler - Laboratory Refrigerators

used Equipment

Available

Verified seller

Julabo - FL1201 Recirculating Cooler

Name: FL1201 Recirculating Cooler
Brand: Julabo
SKU: 412992
Price: 2000 GBP
Availability: InStock

Price: £ 2,000

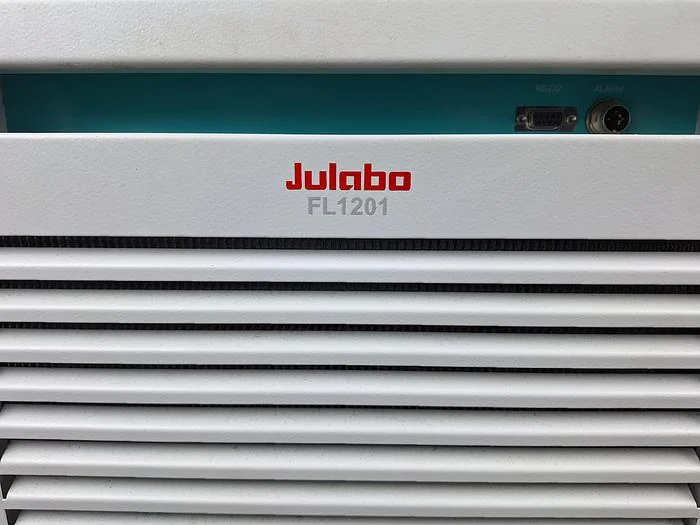

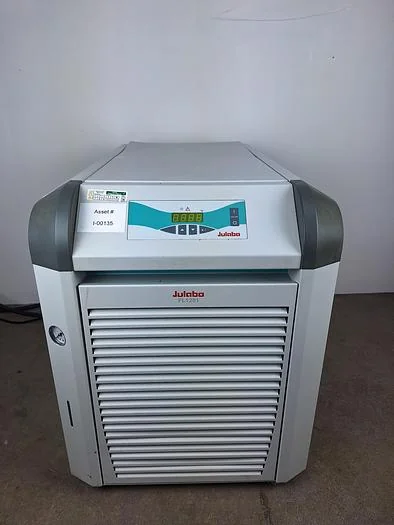

This listing is for a Julabo FL1201 Recirculating Cooler.

The unit is in full working condition and is ready for immediate release.

The recirculating coolers of the FL Series are suited for a wide

range of cooling tasks:- Up to 20 kW of cooling capacity- Easy access filling from above- Feed pressure indicator (from FL1201) and level indicator- Large compensation volume- Permissible return temperature up to +80 °C- May be used with water, water-glycol, Thermal bath fluid

Order No:

Model: FL1201

Working temperature range °C: -20 ... +40

Temperature:±0.5

stability °C:

Pump capacity Flow rate / Pressure: l/min: 23 bar:1

Filling volume liters: 12 … 17

Dimensions cm: 8W × L × H,50 × 76 × 64

Cambridgeshire, United Kingdom

5,791 km away

Model Number

FL1201

Stock Number

412992

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Cooling laboratory reactors and condensers in chemical and pharmaceutical research.
Maintaining precise temperatures for analytical instruments such as spectrophotometers and viscometers.
Providing stable temperature control for biotechnology processes like fermentation and cell culture.
Cooling industrial processes where precise temperature management is critical.
Heat removal from laser systems and other heat-generating equipment.

Typical Specifications

Typical cooling capacity: For this class of equipment, cooling capacities commonly range from a few hundred watts up to 20 kW.
Working temperature range: Units of this type typically operate within a range of -20 °C to +40 °C.
Temperature stability: Precision recirculating coolers commonly offer temperature stability of ±0.5 °C or better.
Pump capacity: Flow rates for this equipment class are typically around 20-25 l/min with pressures up to 1 bar.
Filling volume: The internal fluid volume for units of this size is commonly between 12 and 17 litres.
Power supply: Recirculating coolers are typically powered by standard single-phase or three-phase electrical supplies, commonly 230V or 400V, 50Hz in the UK.
Footprint: For this model, dimensions are typically around 50 cm (W) x 76 cm (L) x 64 cm (H), requiring moderate laboratory or industrial space.
Permissible return temperature: Units of this type commonly accept return temperatures up to +80 °C.

Frequently Asked Questions

These units are typically compatible with water, water-glycol mixtures, and various thermal bath fluids, depending on the required temperature range and application.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
