Mezzanine Floor Lift

Name: Mezzanine Floor Lift
SKU: PLM2P/1500/6570/B/G
Availability: InStock

Price: Contact seller for price

PLM/2P/1500/6570/B/G Mezzanine Floor Lift

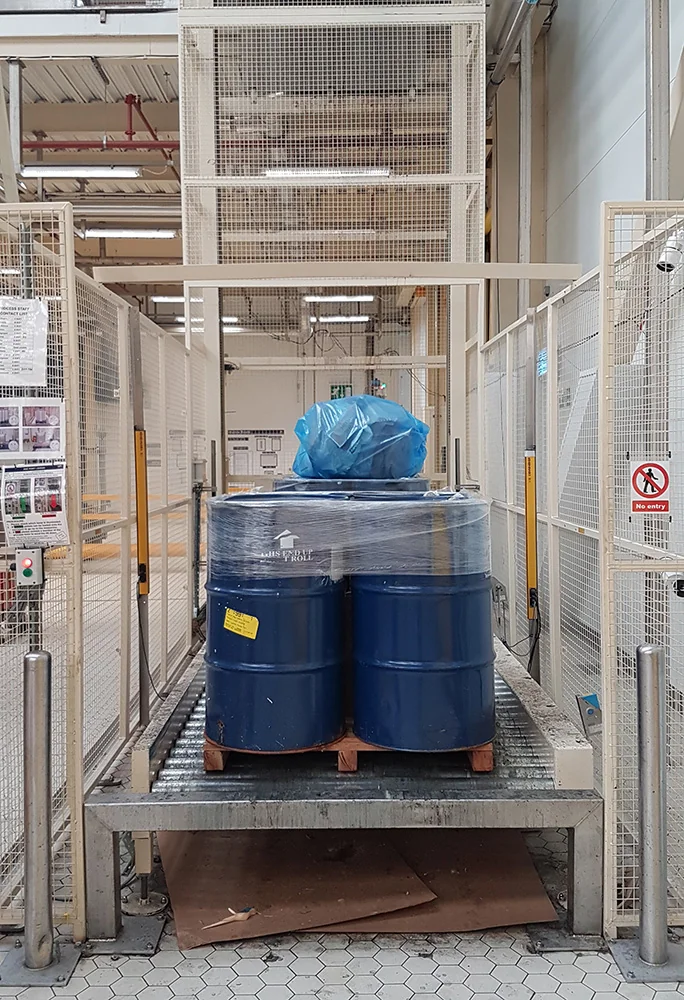

This Mezzanine Floor Lift System consists of an Infeed Conveying System, a Mezzanine Floor Lift and an Outfeed Conveying System. The Mezzanine Floor Lift would have a 1500 Kgs Safe Working Load and a 6570mm lift height. The maximum stacked height of a lift will not exceed 2000mm and the maximum load will not exceed 1500 Kgs. Some of the Pallets will contain 4 off Drums and the overall size of the load will be approximately 1250 x 1250mm.

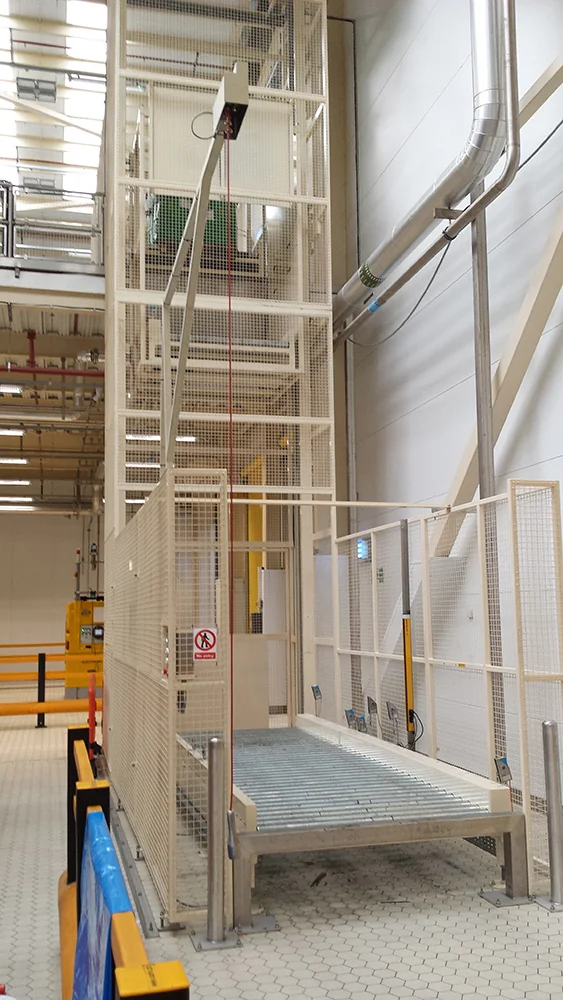

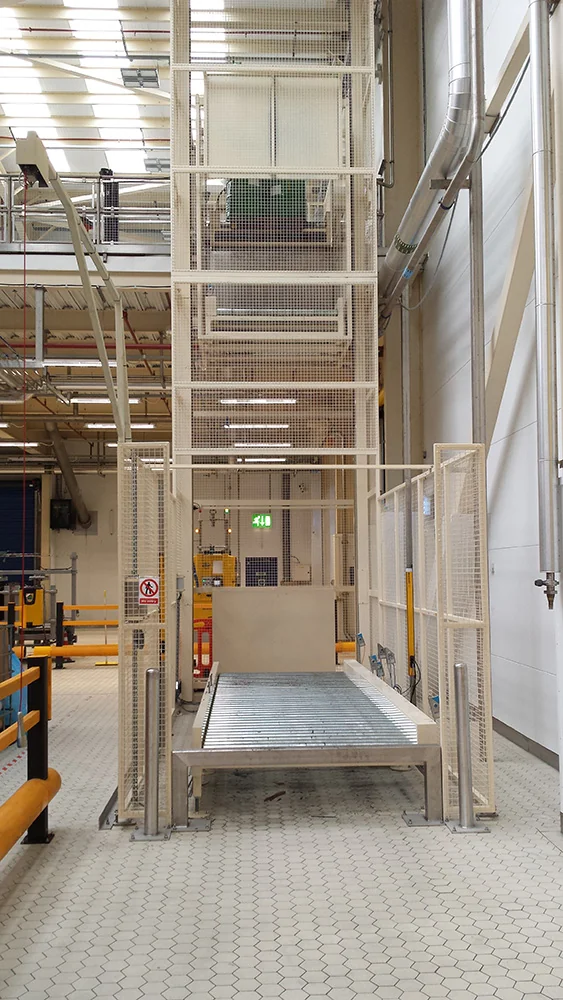

The Mezzanine Floor Lift was be positioned at the edge of a Mezzanine Floor with an Infeed Conveyor System at the bottom, a Transfer Conveyor on the Lift Carriage and an Outfeed Conveyor System at the top. All Conveyors were 1500mm Wide x 1500mm long with a Safe Working Load of 1500 Kgs. The Pallets were loaded onto the Infeed Conveyor System using a Fork Lift Truck and were unloaded at the Upper Level using a special lift truck. The Mezzanine Floor Lift was constructed from mild steel with a powder coated finish and was designed to be bolted to the floor without the need for a pit. The lifting is accomplished via a pair of Heavy Duty 1” Duplex Lifting Chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

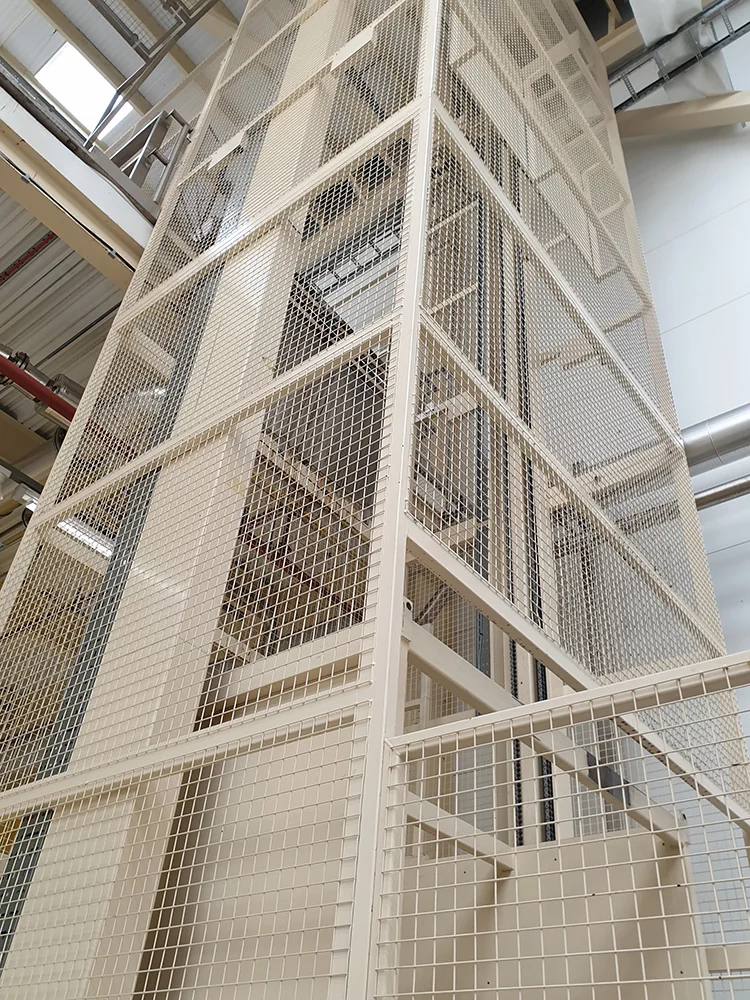

The safety guard is constructed from 40 x 40 x 3mm box section and 40 x 40 x 3mm wire weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery. The guard reached to a height of 2200mm above the upper floor level. There was also safety guarding along the sides of the Infeed and Outfeed Conveyor Systems with an opening at the end for loading and unloading. The entrance and exit from the systems will be protected by the use of Safety Light Barriers that will allow a Pallet to pass safely but will prevent the system from operating if personnel access the guarded area.

Mezzanine Floor Lift Electrical Control

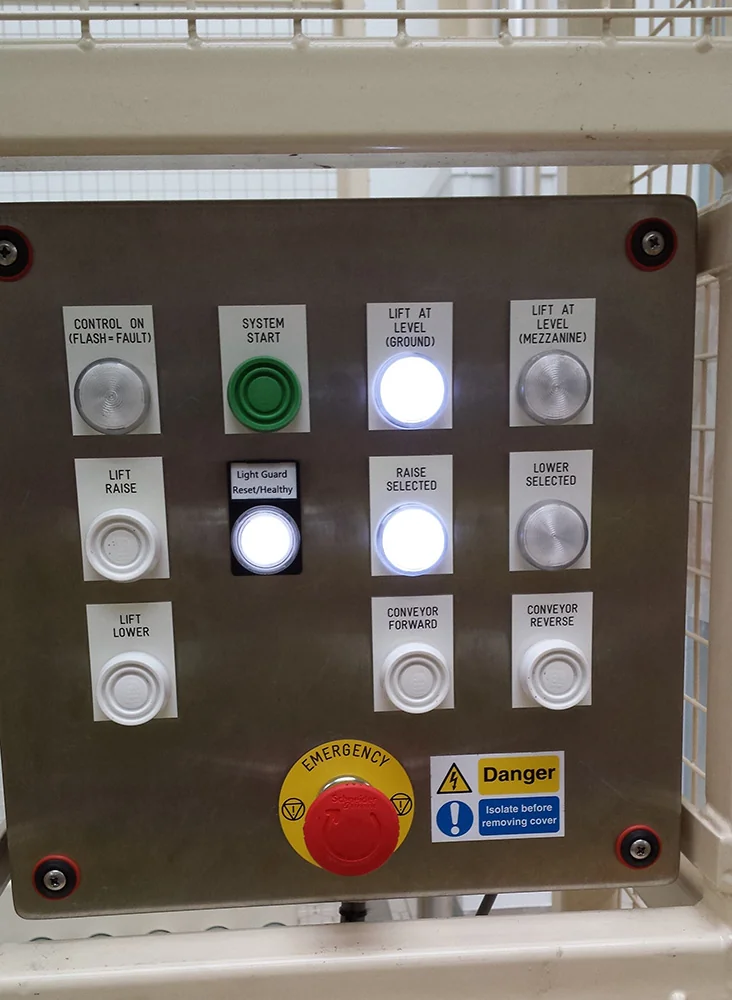

The Mezzanine Floor Lift was supplied with a bespoke control system including HMI Control on the Main Panel, PLC, appropriate safety circuit, Conveyor and Lift Controls and Remote Push Button Stations positioned to suit at the Upper and Lower levels

Mezzanine Floor Lift Cleaning System

This cleaning system will be fitted to the Mezzanine Floor Lift during manufacture to allow access to the floor beneath the lift carriage for cleaning. The cleaning system will operate as follows:-

The lift frame must be empty, at the full up position and the safety guard gate must be closed
At the full up position, the lift carriage is prevented from falling by a 50mm support bar driven out beneath the lift carriage using an electrical actuator
As the bar is engaged, it will alter the state of 2 off separate safety limit switches
The one switch will disable the Mezzanine Floor Lifts safety circuit and relay
The second limit switch will allow the lower safety guard door to be opened providing that the Cleaning Key Switch has been operated
It is now safe to enter the lift enclosure for cleaning purposes with the pallet lift disabled and the lift carriage supported

Once cleaning is complete, the above sequence is reversed

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

1500 Kgs Double Pillar Mezzanine Floor Lift

Model No.

PLM/2P/1500/6570/B/G

Capacity

1500Kgs

Lift Height

6570mm

Overall Height

10650mm

Platform Conveyor Size

1500 x 500mm

Machine Handing

Right Hand

Maximum Headroom

12000mm

Container Description

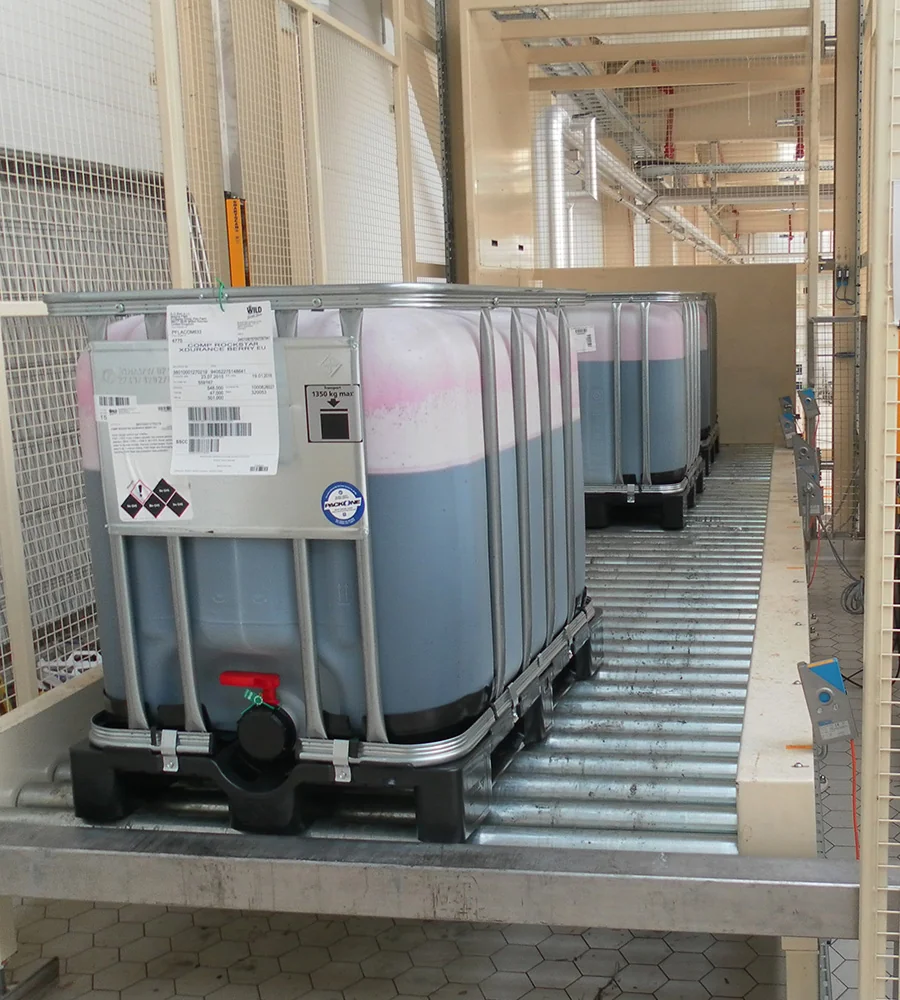

Palletainers (1200 x 1000 x 1400mm High) 4 off DRUMS (1250 x 1250 x 1400mm High)

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

3.0kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Load/Lift/Tension Chain

1" Duplex

Tensile Strength

12000 Kgs

Tension Chain

1" Simplex

Lift Speed

12.0 Meters/Minute

Stock Number

PLM2P/1500/6570/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Used for transferring palletised goods or bulk containers between different floor levels in warehouses or production facilities.
Ideal for integrating automated material handling systems across mezzanine structures.
Suitable for food processing environments requiring vertical transport of ingredients or finished products.
Facilitates efficient movement of goods in facilities with limited floor space for ramps or lifts.
Supports lean manufacturing by enabling multi-level production flows and storage.

Typical Specifications

Typical Safe Working Load (SWL): For this class of equipment, SWL commonly ranges from 500 kg to 2000 kg, with some heavy-duty units exceeding this.
Typical Lift Height: Units are typically designed for mezzanine heights, commonly ranging from 2.5 metres to 7 metres.
Power Supply: Typically requires a 3-phase electrical supply, commonly 400V, 50Hz, with varying amperage depending on motor size.
Lifting Mechanism: Often employs heavy-duty chains, wire ropes, or hydraulic cylinders for reliable vertical movement.
Construction Material: Commonly constructed from mild steel, often with a powder-coated finish; stainless steel versions are available for specific hygienic applications.
Safety Features: Units typically include safety guarding, emergency stop buttons, and overload protection, often designed to comply with standards like BS EN 14120.
Footprint: The base footprint is determined by the carriage size and column structure, typically requiring a clear area of approximately 2m x 2m per column.
