What type of mixing bowls can this dumper accommodate?

This specific unit is designed for a 140-quart Hobart Mixing Bowl. Buyers should confirm compatibility with their existing bowl types and sizes.

Is the discharge height adjustable?

While this unit specifies a 1200mm discharge height, the upper and lower limit switches are typically adjustable by trained personnel for fine-tuning on site.

What are the electrical requirements for this dumper?

The dumper is fitted with an IP65 control panel. Buyers should confirm the exact voltage and phase requirements with the seller, as industrial equipment typically requires a 3-phase supply.

What safety features are included?

Units of this type commonly include a unique safety latch for chain failure and 'hold to run' controls, ensuring operator presence during operation and allowing for immediate stopping.

Is this equipment suitable for a washdown environment?

Constructed from Grade 304 stainless steel with an IP65 rated control panel, this dumper is designed to withstand typical food processing washdown procedures. However, specific cleaning protocols should always be followed.

Can this dumper be integrated into an automated production line?

The control panel typically includes volt-free contacts for a 'Call to Run' signal, which can facilitate integration with other machinery in an automated line. Specific integration capabilities should be discussed with the seller.

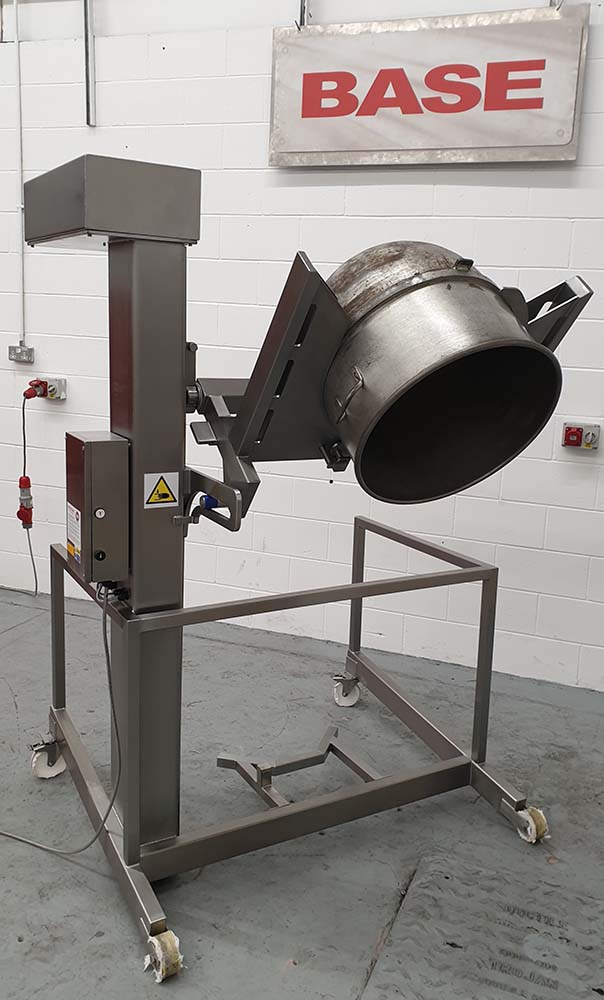

Mixing Bowl Dumper - Lifting & Tipping, photo 1

Mixing Bowl Dumper - Lifting & Tipping, photo 2

Mixing Bowl Dumper - Lifting & Tipping, photo 3

Mixing Bowl Dumper - Lifting & Tipping, photo 4

Mixing Bowl Dumper - Lifting & Tipping, photo 5

Mixing Bowl Dumper - Lifting & Tipping, photo 6

Available

Verified seller

Base Handling Ltd - Mixing Bowl Dumper

Name: Mixing Bowl Dumper
Brand: Base Handling Ltd
SKU: BTM/200/1200/M
Availability: InStock

Price: Contact seller for price

BTM/200/1200/M Single Pillar Mixing Bowl Dumper.

This Single Pillar Mixing Bowl Dumper is designed to lift and tip a 140 Quart Hobart Mixing Bowl at a discharge height of 1200mm.

The Mixing Bowl Dumper is manufactured from Grade 304 stainless steel and is a welded construction throughout.

The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

The Mixing Bowl Dumper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Mixing Bowl Dumper Electrical Control.

This Mixing Bowl Dumper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The unguarded Mixing Bowl Dumper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Mixing Bowl Dumper to operate.

As soon as either button is released, the Mixing Bowl Dumper will stop.

This will allow the operators to stop the tipping action at any angle for tipping into the Plastic Trays.

The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Single Pillar Mixing Bowl Dumper

Model No.

BTM/200/1200/M

Capacity

200 Kgs

Overall Height

2135mm

Machine Handing

Right Hand

Maximum Headroom

2500mm

Tipping Chute

Container Description

140 Quart Hobart Mixing Bowl

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Tip Height

1200mm

Tip Angle

130 Degrees

Load/Tension Chain

¾” Simplex

Stock Number

BTM/200/1200/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring ingredients from large mixing bowls into smaller containers or processing lines.
Loading dough or batter into hoppers for further processing such as dividing or depositing.
Ergonomically lifting and tipping heavy mixing bowls to reduce manual handling risks in bakeries and food factories.
Integrating with automated production lines for controlled discharge of mixed products.

Typical capacity: Designed for specific mixing bowl sizes, commonly 140-quart Hobart bowls or similar industrial mixing vessels.
Discharge height: Typically adjustable, with this unit specified at 1200mm, suitable for various receiving equipment.
Construction material: Commonly Grade 304 stainless steel, ensuring hygiene and corrosion resistance for food environments.
Lifting mechanism: Often chain-driven by a motor gearbox, providing robust and controlled lifting.
Electrical control: Typically features an IP65 rated stainless steel control panel, offering protection against dust and water jets.
Safety features: Units of this type commonly include safety latches and 'hold to run' controls for operator safety.
Power supply: Usually 3-phase industrial power, specific voltage and amperage should be confirmed with the seller.

This specific unit is designed for a 140-quart Hobart Mixing Bowl. Buyers should confirm compatibility with their existing bowl types and sizes.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
