Mixing Bowl Tipper
Copied to clipboard!
Price: Contact seller for price

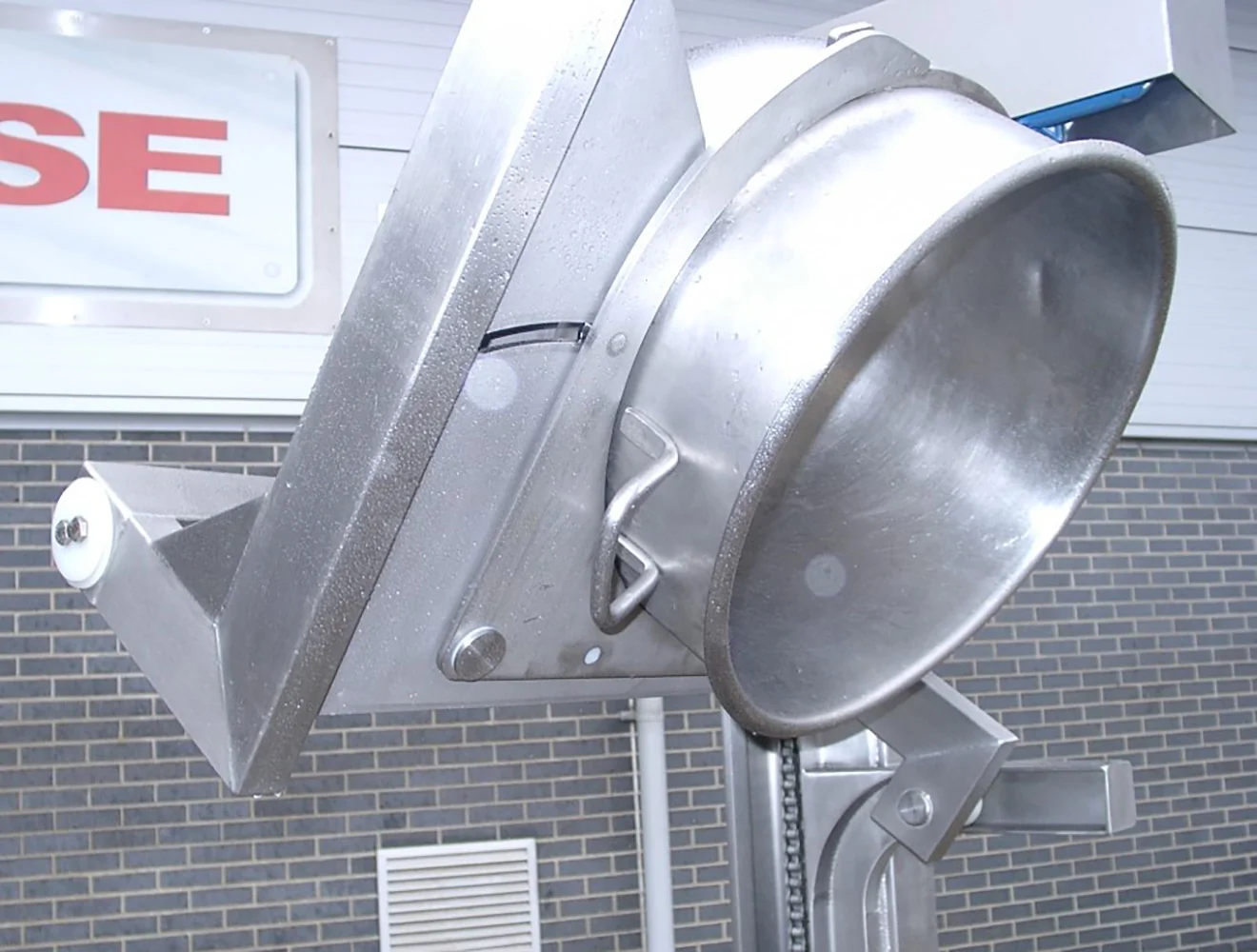

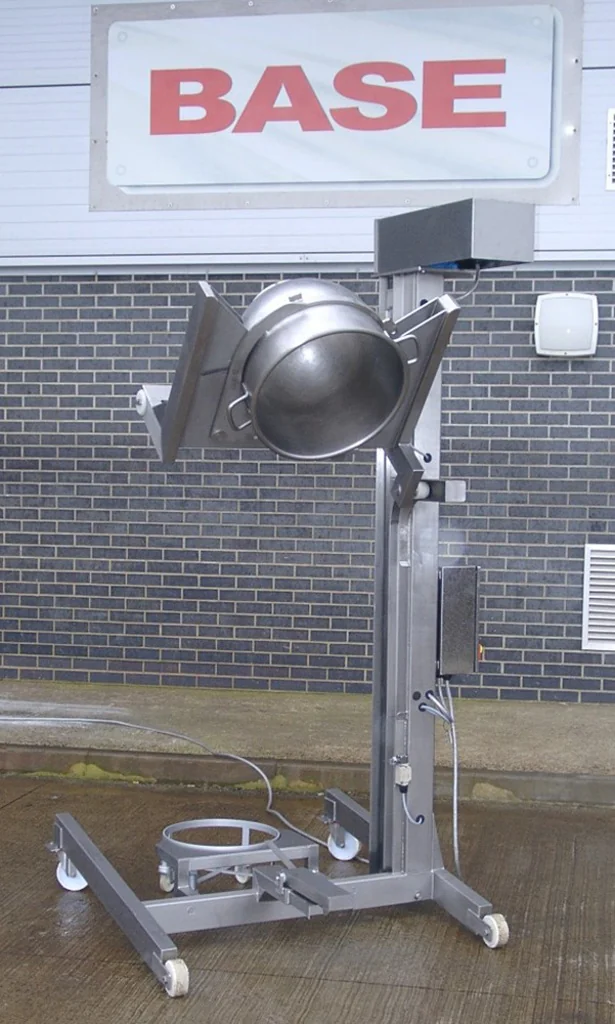

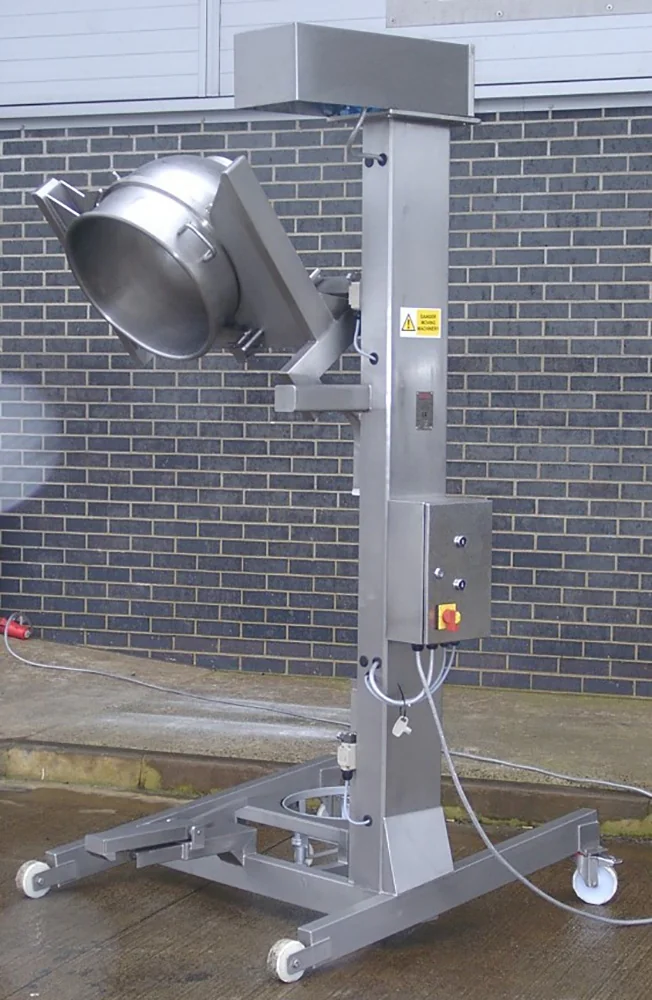

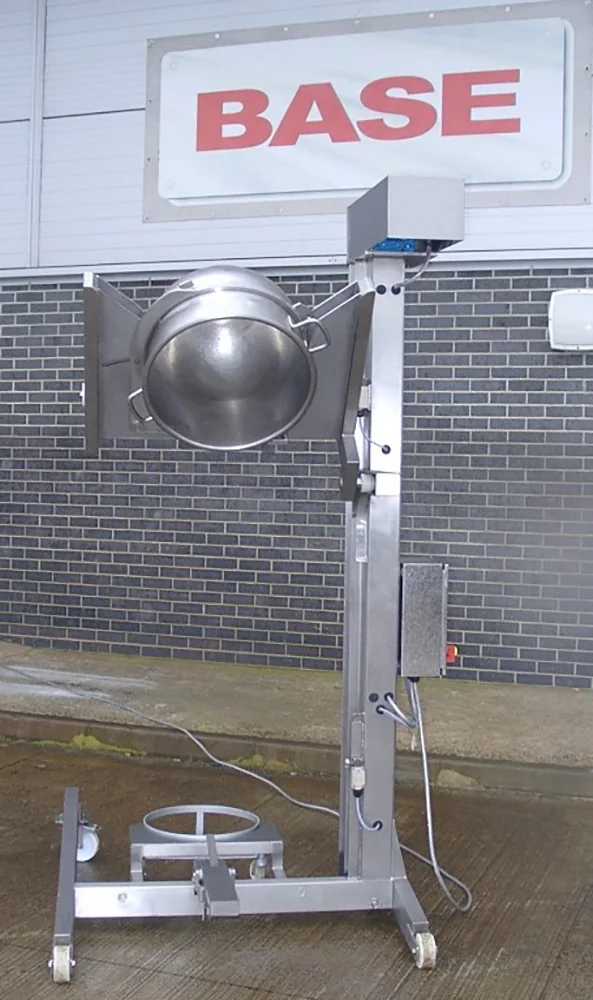

BTM/250/1525/M Single Pillar Mixing Bowl TipperThis Mobile Single Pillar Mixing Bowl Tipper is designed to lift and tip at a discharge height of 1525mm. The Mixing Bowl Tipper is manufactured from Grade 304 stainless steel and is a welded construction throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Mixing Bowl Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure. Mixing Bowl Tipper Electrical ControlThis Mixing Bowl Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Mixing Bowl Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Mixing Bowl Tipper to operate. As soon as the button is released, the Mixing Bowl Tipper will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required. |
Blaenau Gwent County Borough, United Kingdom5,762 km away
Description
Single Pillar Mixing Bowl Tipper
Model No.
BTM/250/1525/M
Capacity
250 Kgs
Tipping Height
1525mm
Tipping Angle
130 Degrees
Overall Height
2330mm
Machine Handing
Right Hand
Maximum Headroom
To Be Confirmed
Tipping Chute
No
Container Description
60 Quart Mixing Bowl
Base Arrangement

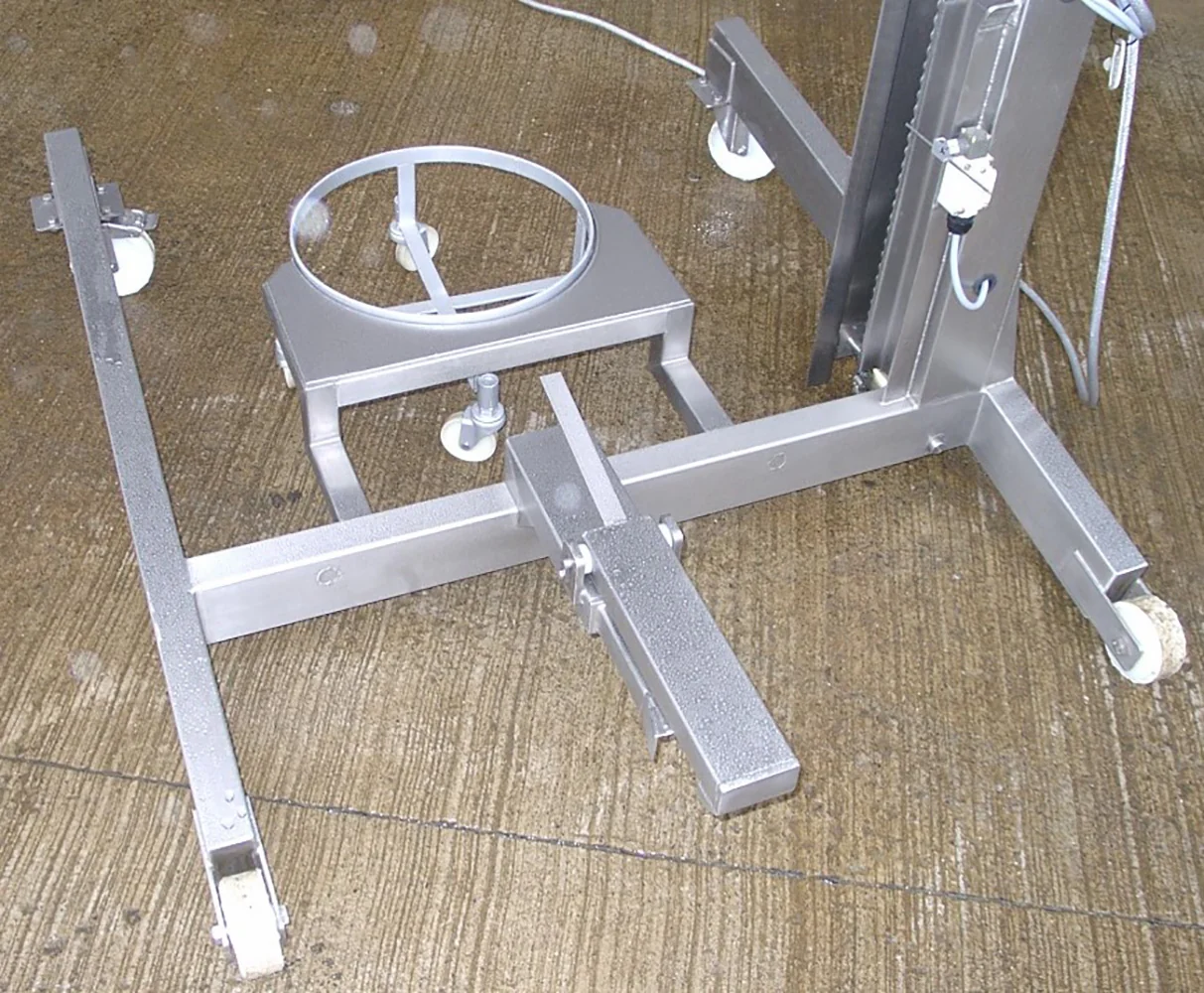

Mobile On Castors
Control Circuit
24Vac
Electrical Rating
IP65
Limit Switches
Telemecanique
Motor Detail
0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE
Gearbox Detail
SEW Eurodrive
Output R.P.M
28 R.P.M.
Ratio
50:1
Load/Lift/Tension Chain
¾" Simplex
Tensile Strength
3000 Kgs
Lift Speed
6.4 Meters/Minute
Stock Number
BTM/250/1525/M
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Transferring dough or batter from large mixing bowls to hoppers or depositors.
- Loading ingredients into processing lines, such as ovens or packaging machinery.
- Emptying bulk ingredients from mixing vessels into smaller containers for further processing.
- Handling and tipping ingredients in bakeries, confectioneries, and food manufacturing plants.
- Reducing manual handling and improving ergonomic safety in food production environments.
Typical Specifications
- Typical capacity
- Units of this type commonly handle mixing bowls ranging from 100 kg to 500 kg, depending on the specific model and design.
- Power supply
- Typically requires a 3-phase electrical supply, commonly 400V, 50Hz, with appropriate motor protection.
- Discharge height
- For this class of equipment, discharge heights are often customisable but commonly range from 1.5m to 3m to suit various receiving equipment.
- Construction material
- Units are typically constructed from Grade 304 stainless steel, suitable for food contact and washdown environments.
- Control type
- Commonly features 'dead man's handle' controls for safety, requiring continuous operator input during operation.
- Safety features
- Often includes safety latches or anti-fall mechanisms to prevent uncontrolled descent in the event of chain or component failure.
- Mobility
- Many units are mobile, fitted with castors, allowing for flexible positioning within a facility.
Frequently Asked Questions
- This type of tipper is typically designed to lift and tip standard industrial mixing bowls. Buyers should confirm the specific bowl dimensions and lug configurations with the seller.
