What types of loads can this autoclave sterilise?

This type of autoclave is suitable for sterilising heat-resistant solid instruments, porous loads, textiles, culture media, and liquids in vented containers. The specific cycle parameters will vary depending on the load type.

Is this unit suitable for cleanroom environments?

Many Vakulab HL units are designed with features like double-door pass-through options and stainless steel construction, making them suitable for installation between clean and non-clean areas, supporting GMP and cleanroom operations.

What maintenance is typically required for a medical autoclave?

Routine maintenance typically includes checking and cleaning seals, filters, and sensors, as well as periodic calibration and validation. Annual servicing by qualified technicians is generally recommended to ensure optimal performance and compliance.

Does this autoclave offer cycle documentation?

Modern medical autoclaves like the Vakulab HL commonly feature integrated monitoring and control systems that provide real-time cycle data and full batch documentation capabilities, which is crucial for regulatory compliance.

What are the typical installation requirements?

Installation typically requires a suitable footprint, connection to a 3-phase electrical supply, demineralised water for steam generation, and drainage for condensate. Depending on the model, a connection to a house steam supply or compressed air may also be needed.

used Equipment

Available

Verified seller

MMM Group - Vakulab HL Medical Autoclave

Name: Vakulab HL Medical Autoclave
Brand: MMM Group
SKU: 6073743
Price: 45000 GBP
Availability: InStock

Price: £ 45,000

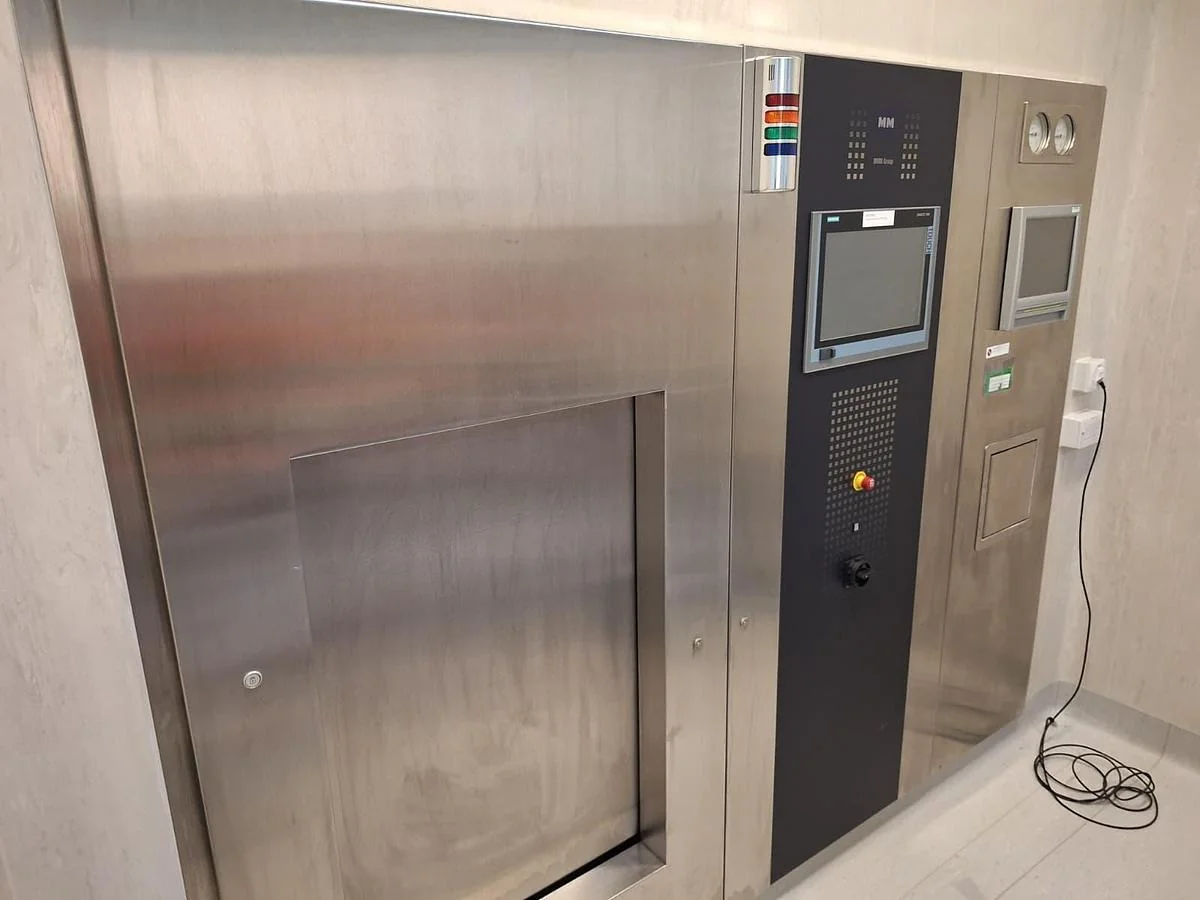

This listing is for the MMM Group Vakulab HL Medical Autoclave.

The unit is in full working condition and is ready for immediate use.

Overview

The Vakulab HL autoclave from MM Group Medical is a high-performance, GMP-compliant sterilizer designed for the safe, reliable, and validated sterilization of laboratory instruments, equipment, and materials. Specifically engineered for use in pharmaceutical manufacturing, biotechnology facilities, and research laboratories, the Vakulab HL combines advanced vacuum-assisted steam sterilization with robust stainless steel construction to ensure consistent results in even the most demanding applications.

Key Features

Advanced Steam Sterilization

Pre- and Post-Vacuum Cycles: Ensures efficient steam penetration and rapid drying

Optimized Steam Distribution: Uniform sterilization across all load types

Programmable Cycles: Fully adjustable parameters for different sterilization needs

GMP & Cleanroom Ready

Double-Door Pass-Through Design (optional): For installation between clean and non-clean areas

Stainless Steel Chamber & Piping: High-grade AISI 316L for corrosion resistance and hygienic operation

Integrated Monitoring: Real-time cycle control with full batch documentation capability

Operational Safety & Control

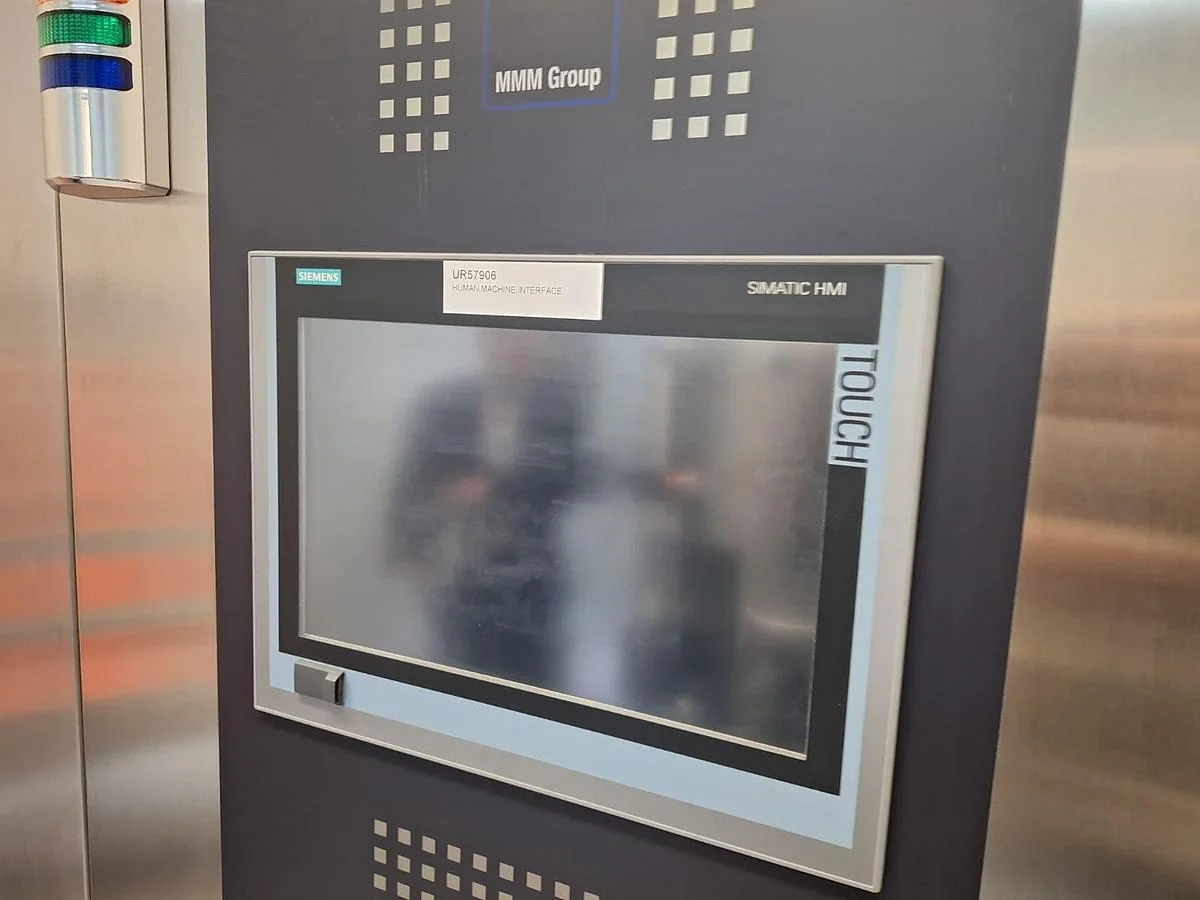

User-Friendly HMI: Touchscreen interface for programming and monitoring

Automatic Door Operation: With safety interlocks to prevent accidental opening under pressure

Built-In Diagnostics: Self-check functions for preventive maintenance

Technical Specifications

The Vakulab HL is a vacuum-assisted steam sterilizer available in multiple chamber volumes, typically ranging from 300 to 1,000 liters. The sterilization process operates at temperatures between 121 °C and 134 °C, controlled via a PLC-based system with an intuitive touchscreen human-machine interface (HMI). The chamber is constructed from AISI 316L stainless steel, ensuring corrosion resistance and compliance with GMP hygienic standards.

A water-ring or liquid-ring vacuum pump enables pre-vacuum and post-vacuum phases for thorough air removal and effective drying. Door configurations can be single or double-door in either sliding or hinged formats, with safety interlocks to prevent opening under pressure. The autoclave requires standard utility connections for steam, water, compressed air, and electricity. It is designed to meet EN 285, PED, ISO 9001, and GMP compliance requirements, and can be validated to ISO 17665 sterilization standards.

Applications

Pharmaceutical Manufacturing: Sterilization of equipment, components, and containers

Biotechnology: Sterilization of fermentation vessels, culture media, and instruments

Research Laboratories: Sterilization of glassware, tools, and lab consumables

Hospitals & Clinical Settings: Safe sterilization of surgical instruments and textiles

System Components

High-grade stainless steel chamber with polished finish

Vacuum pump system for pre- and post-cycle air removal

Steam generation and distribution system

Control panel with PLC and HMI touchscreen

Integrated temperature and pressure sensors for validation

Quality & Compliance

Manufactured in accordance with GMP guidelines

Complies with EN 285 and ISO 17665 sterilization standards

Full FAT/SAT/IQ/OQ/PQ support for validation in regulated environments

Designed for integration into cleanroom and production facilities

Benefits

Consistent, Validated Sterilization for a wide range of load types

Flexible Configurations to meet site-specific and regulatory needs

Long-Term Reliability thanks to robust materials and precision engineering

Full Data Traceability for GMP compliance and audit readiness

Energy-Efficient Operation with optimized steam and water usage

Cambridgeshire, United Kingdom

5,791 km away

Model Number

Vakulab HL

Stock Number

6073743

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Sterilisation of laboratory instruments and glassware in research and development settings.
Processing of media and reagents in biotechnology and pharmaceutical production.
Decontamination of waste materials from biological safety laboratories.
Sterilisation of components and tools within cleanroom environments.
Use in quality control laboratories for microbial testing and sterility assurance.

Typical Specifications

Typical chamber volume: For this class of medical autoclave, chamber volumes commonly range from 150 to 1000 litres, depending on the specific model variant.
Power supply: Units of this type typically require a 3-phase electrical supply, commonly 400V, 50Hz, with significant power draw for heating elements.
Steam generation: Integrated electric steam generators are common, or the unit may be designed for connection to a house steam supply.
Operating temperature range: Sterilisation temperatures are typically between 121°C and 134°C, with adjustable holding times.
Construction material: Chambers and piping are commonly constructed from high-grade stainless steel, such as AISI 316L, for corrosion resistance and hygiene.
Vacuum system: Pre- and post-vacuum cycles are standard for efficient air removal and load drying, often utilising a liquid ring vacuum pump.
Compliance: Equipment in this category is typically designed to meet standards such as EN 285, GMP guidelines, and relevant pressure equipment directives.

Frequently Asked Questions

This type of autoclave is suitable for sterilising heat-resistant solid instruments, porous loads, textiles, culture media, and liquids in vented containers. The specific cycle parameters will vary depending on the load type.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
