What type of bins can this hoist accommodate?

This specific unit is designed for 200-litre tote bins. Buyers should confirm compatibility with their existing bin types.

Is this hoist suitable for washdown environments?

Given its stainless steel construction and IP65-rated control panel, units of this type are typically suitable for regular washdown in food processing environments.

What are the typical safety features?

Common safety features include a 'hold to run' control, upper and lower limit switches, and a safety latch to prevent bin drop in case of chain failure. Buyers should always review specific unit safety documentation.

Can the discharge height be adjusted?

While the listed discharge height is fixed at 1850mm for this unit, the end of travel limit switches are typically adjustable by trained personnel for fine-tuning on site.

What are the power requirements?

Mobile bin hoists for industrial use in the UK typically operate on a 3-phase electrical supply, commonly 400V. Buyers should verify the exact voltage and current requirements with the seller.

Is installation complex for a mobile unit?

As a mobile unit, installation typically involves positioning the hoist, connecting to a suitable power supply, and conducting pre-operation checks. No fixed mounting is usually required.

Available

Verified seller

Mobile Bin Hoist

Name: Mobile Bin Hoist
SKU: BTM/300/1850/M
Availability: InStock

Price: Contact seller for price

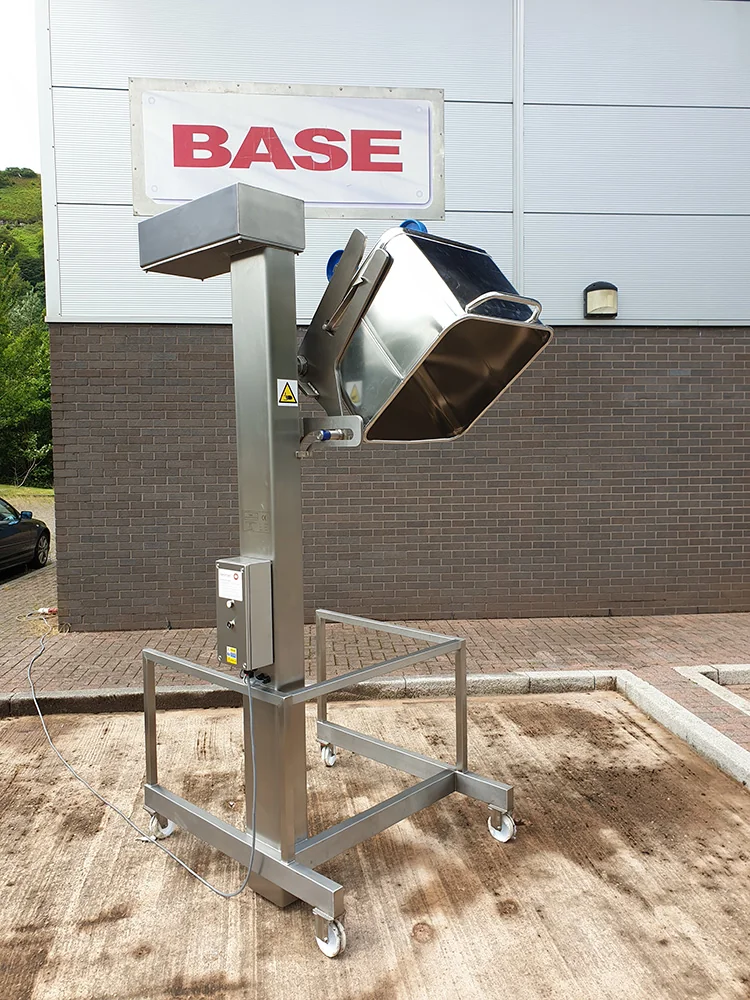

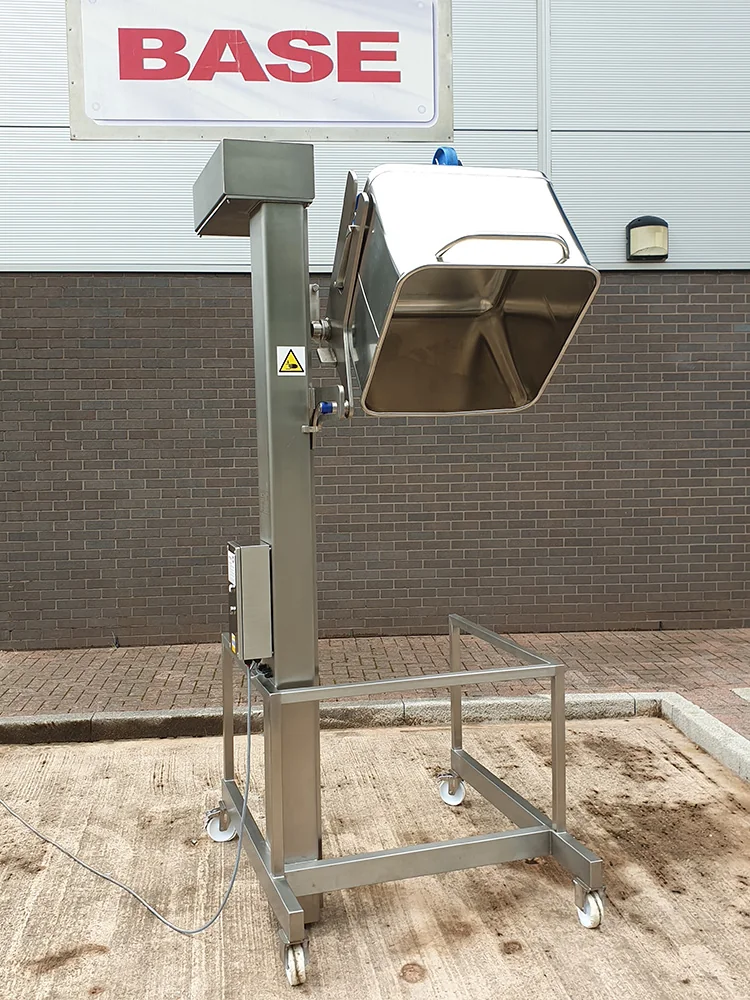

BTM/300/1850/M Single Pillar Mobile Bin Hoist

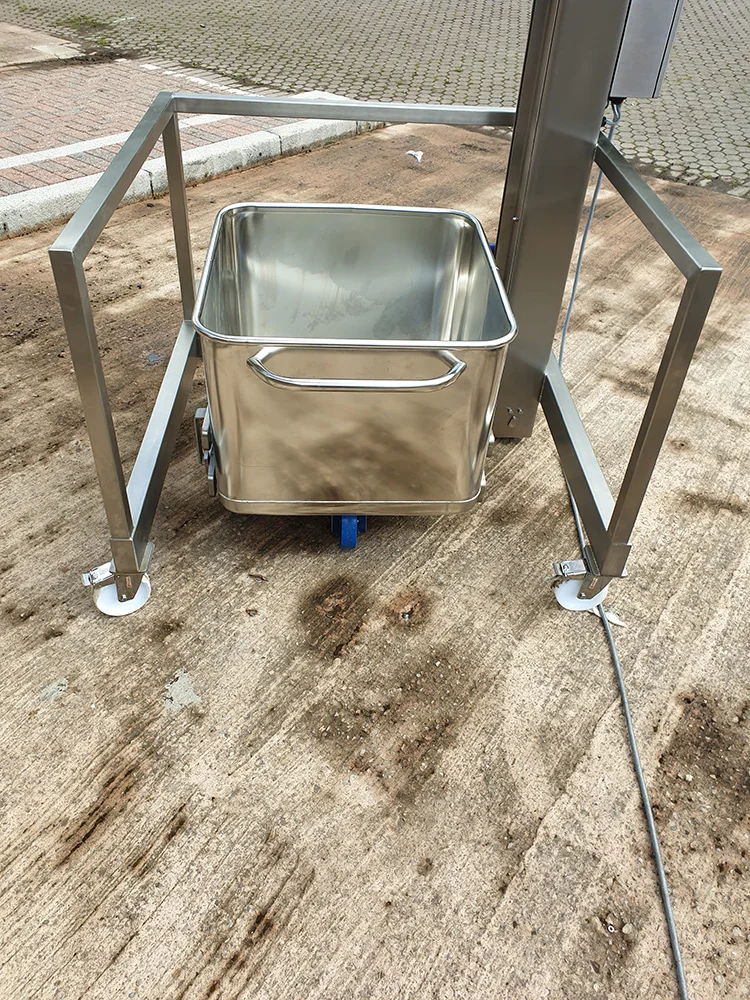

This Single Pillar Mobile Bin Hoist is designed to lift and tip a 200 Litre tote bin at a discharge height of 1850mm. The Mobile Bin Hoist is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be mobile on castors on a horizontal base frame. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Mobile Bin Hoist is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

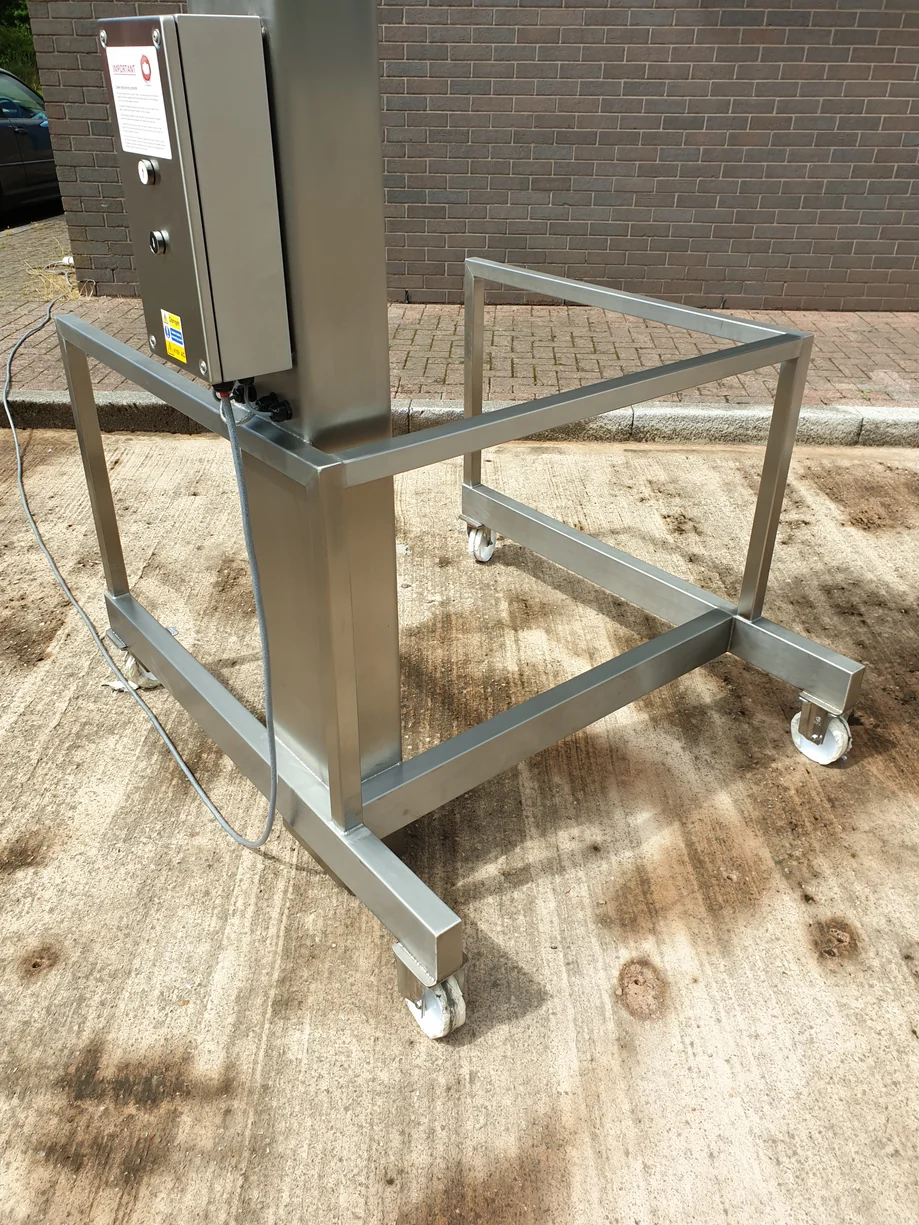

Mobile Bin Hoist Electrical Control

This Mobile Bin Hoist is fitted with an IP65 Stainless Steel Control Panel mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Mobile Bin Hoist operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Mobile Bin Hoist to operate. As soon as either button is released, the Mobile Bin Hoist will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Mobile Bin Hoist

Model No.

BTM/300/1850/M

Safe Working Load

300 Kgs

Tipping Height

1850mm

Tipping Angle

135 Degrees

Overall Height

2785mm

Machine Handing

Right Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

200 Litre Tote Bin

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/300/1850/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from floor-level bins to processing machinery, such as mixers or depositors.
Loading raw materials into hoppers or feed systems in bakery, confectionery, or meat processing lines.
Elevating product for packaging lines or further processing stages.
Moving waste or by-products into larger collection containers for disposal or recycling.
Integrating into automated production lines for controlled material feeding.

Typical Specifications

Typical capacity: This class of hoist is typically designed for standard 200-litre tote bins, common in food processing.
Discharge height: Units of this type commonly offer discharge heights around 1850mm, suitable for many processing vessels.
Construction material: Food-grade equipment like this is typically manufactured from Grade 304 stainless steel for hygiene and durability.
Mobility: Mobile bin hoists are commonly fitted with castors on a horizontal base frame for easy repositioning within a facility.
Lifting mechanism: Lifting is often achieved via a simplex chain driven by a motor gearbox, mounted at the top of the main column.
Electrical control: Control panels typically feature an IP65 rating for washdown environments and 'hold to run' operation for safety.
Safety features: Units commonly include safety latches to prevent bin descent in the event of chain failure, and upper/lower limit switches.
Power supply: For industrial applications in the UK, these units typically require a 3-phase electrical supply, commonly 400V.

Frequently Asked Questions

This specific unit is designed for 200-litre tote bins. Buyers should confirm compatibility with their existing bin types.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
