What type of bins can this tipper accommodate?

Mobile bin tippers are typically designed to handle standard 200-litre Eurobins, but some models can be adapted for other bin sizes or custom containers. Buyers should confirm compatibility with the seller.

Is this equipment suitable for washdown environments?

Given its stainless steel construction and IP65-rated control panel, units of this type are generally suitable for regular washdown, which is essential in food processing environments.

What are the typical maintenance requirements?

Maintenance typically involves regular inspection of the lifting chain, motor gearbox, and electrical components, along with lubrication as per the manufacturer's guidelines. Specifics will be in the unit's manual.

Can the discharge height be adjusted?

While the listed unit has a fixed discharge height, many bin tippers offer adjustable upper and lower limit switches for fine-tuning the tipping angle and height on site by trained personnel.

What safety certifications should I look for?

Buyers should ensure the equipment complies with relevant UK and European safety standards, such as CE marking, and adheres to PUWER regulations for safe operation.

Available

Verified seller

Mobile Bin Tipper

Name: Mobile Bin Tipper
SKU: BTM/250/1100/M
Availability: InStock

Price: Contact seller for price

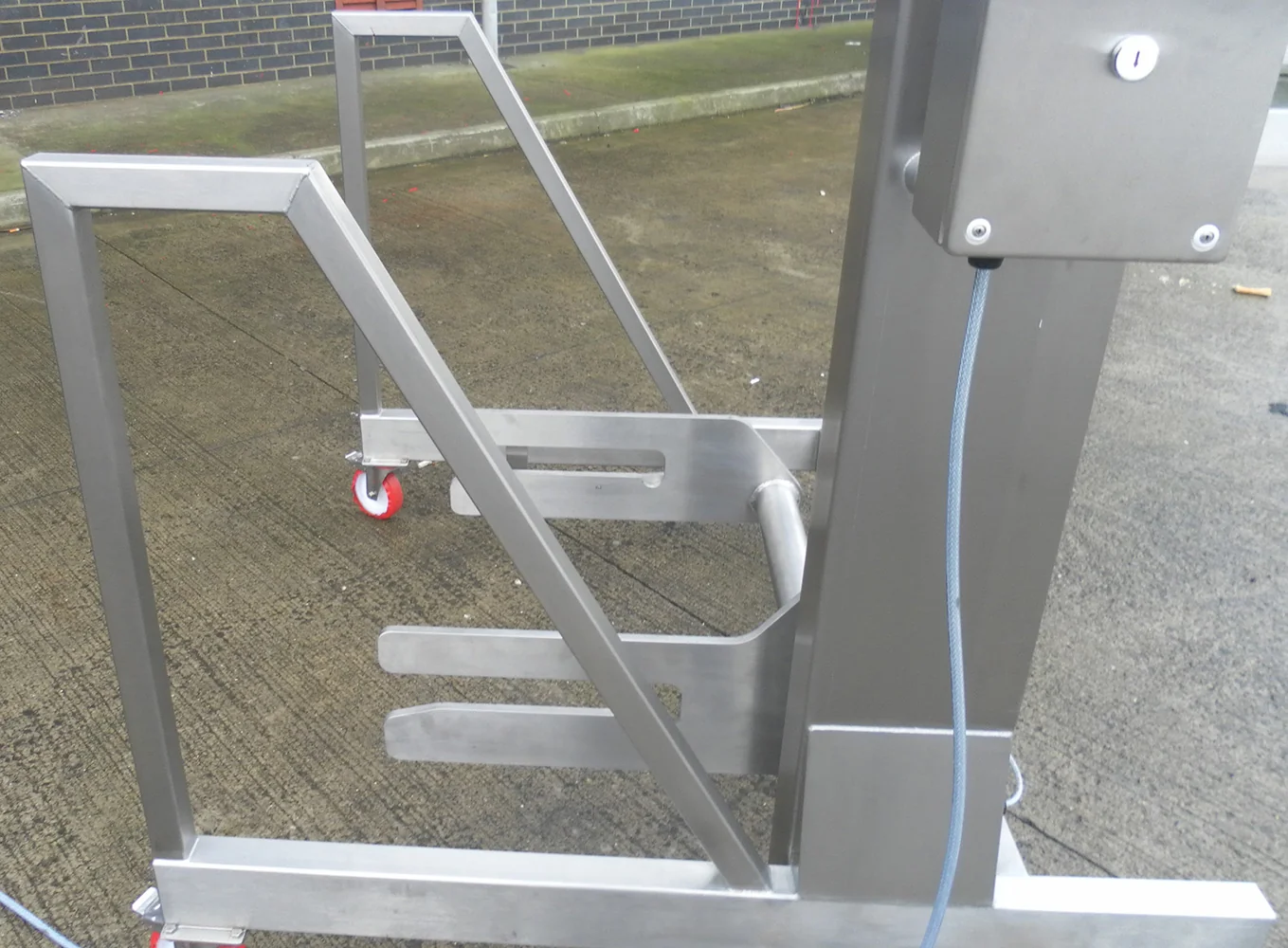

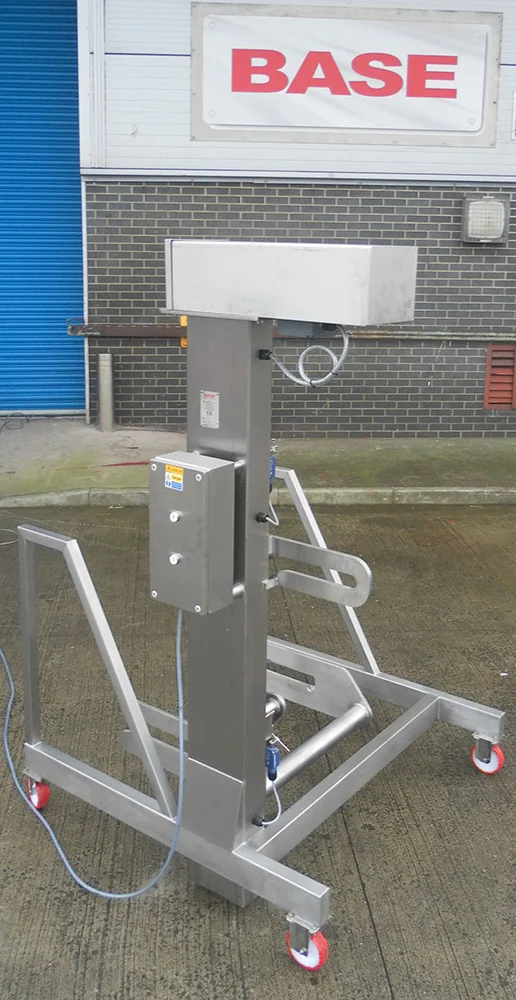

BTM/250/1100/M Single Pillar Mobile Bin Tipper

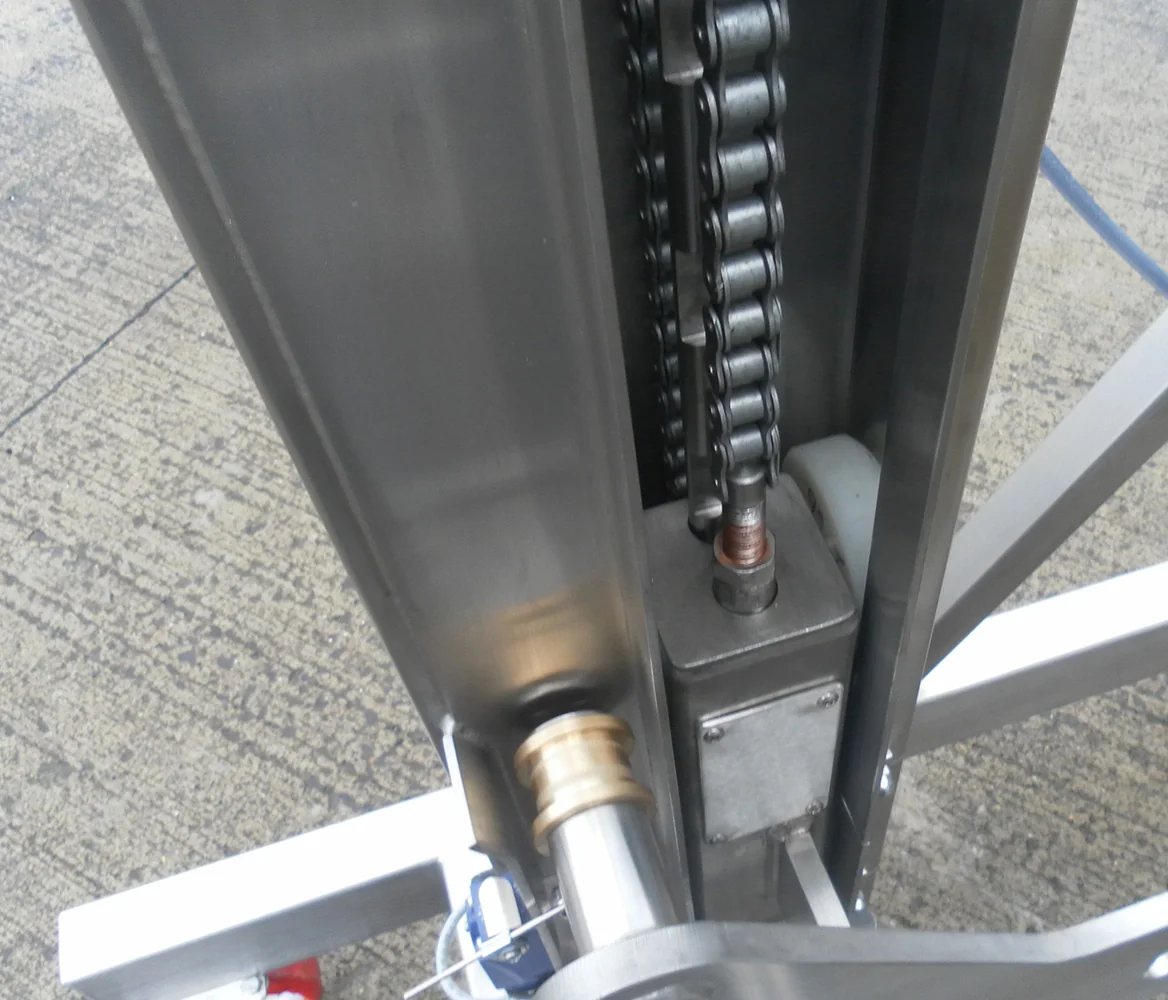

This Single Pillar 200 Litre Mobile Bin Tipper is designed to lift and tip at a discharge height of 1100mm. The Mobile Bin Tipper is manufactured from Grade 304 stainless steel and is a TIG welded construction throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Mobile Bin Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Mobile Bin Tipper Electrical Control

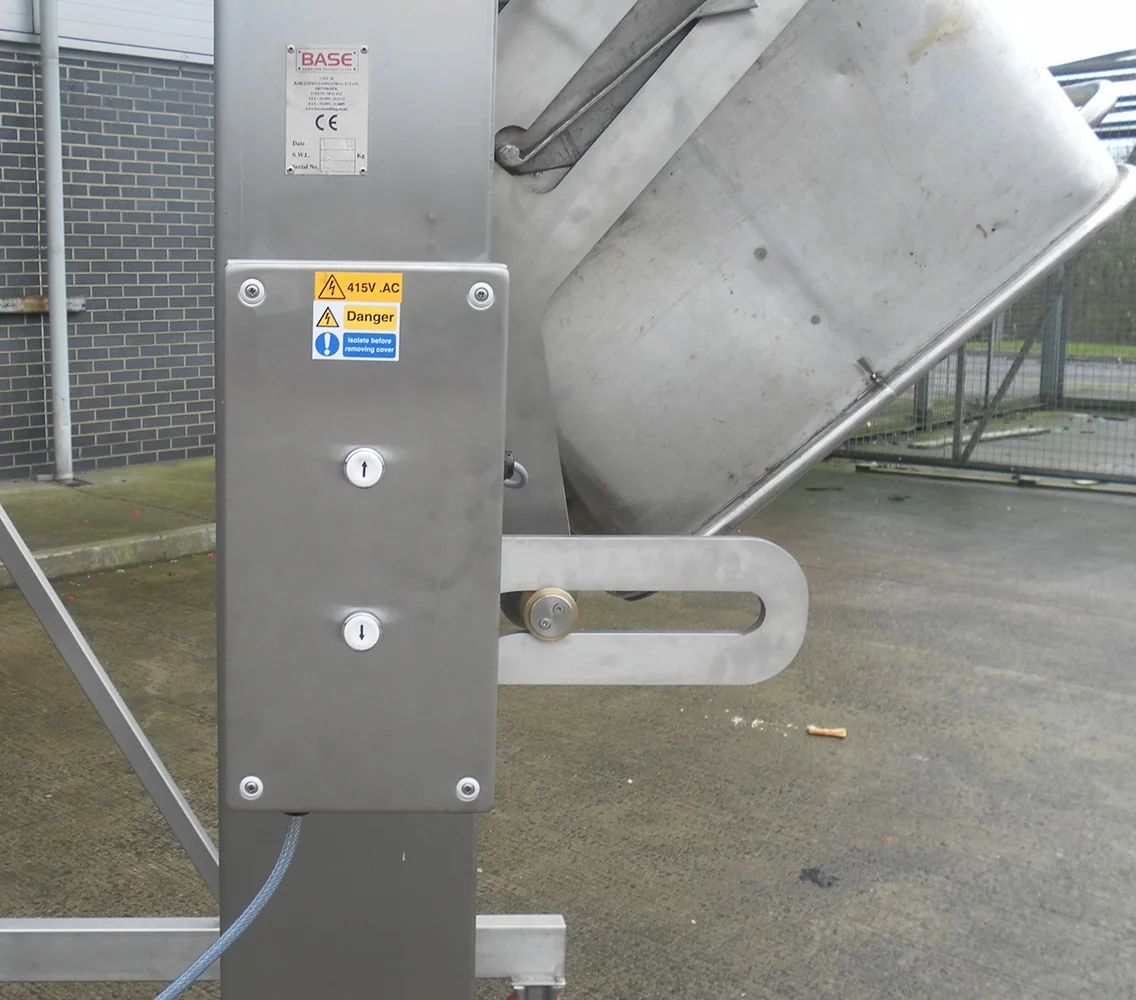

This Mobile Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The Mobile Bin Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the machine to operate. As soon as either button is released, the Mobile Bin Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Mobile Bin Tipper

Model No.

BTM/250/1100/M

Capacity

250 Kgs

Tipping Height

1100mm

Tipping Angle

130 Degrees

Overall Height

2000mm

Machine Handing

Right Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

200 Litre Tote Bin

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Gearbox Detail

SEW Eurodrive

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/250/1100/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from bins into mixers or processing vessels in bakeries and confectioneries.
Loading raw materials into hoppers for further processing in meat and poultry plants.
Discharging bulk ingredients like grains, powders, or liquids in food manufacturing.
Feeding packaging lines with products from bulk containers.
Moving waste products from collection bins into larger disposal units.

Typical Specifications

Typical capacity: For this class of equipment, capacities commonly range from 100 to 300 litres, suitable for standard Eurobins or similar containers.
Discharge height: Units of this type typically offer discharge heights between 1000mm and 2000mm, depending on the application.
Material construction: Equipment for food processing is typically manufactured from Grade 304 stainless steel, with Grade 316 used for more corrosive environments.
Power supply: Commonly, these units operate on a 3-phase electrical supply, typically 400V, 50Hz, though single-phase options may be available for smaller models.
Control system: Control panels are typically rated to IP65 for washdown environments and feature 'hold to run' controls for operator safety.
Safety features: Units commonly include safety latches, upper and lower limit switches, and emergency stop functionality.

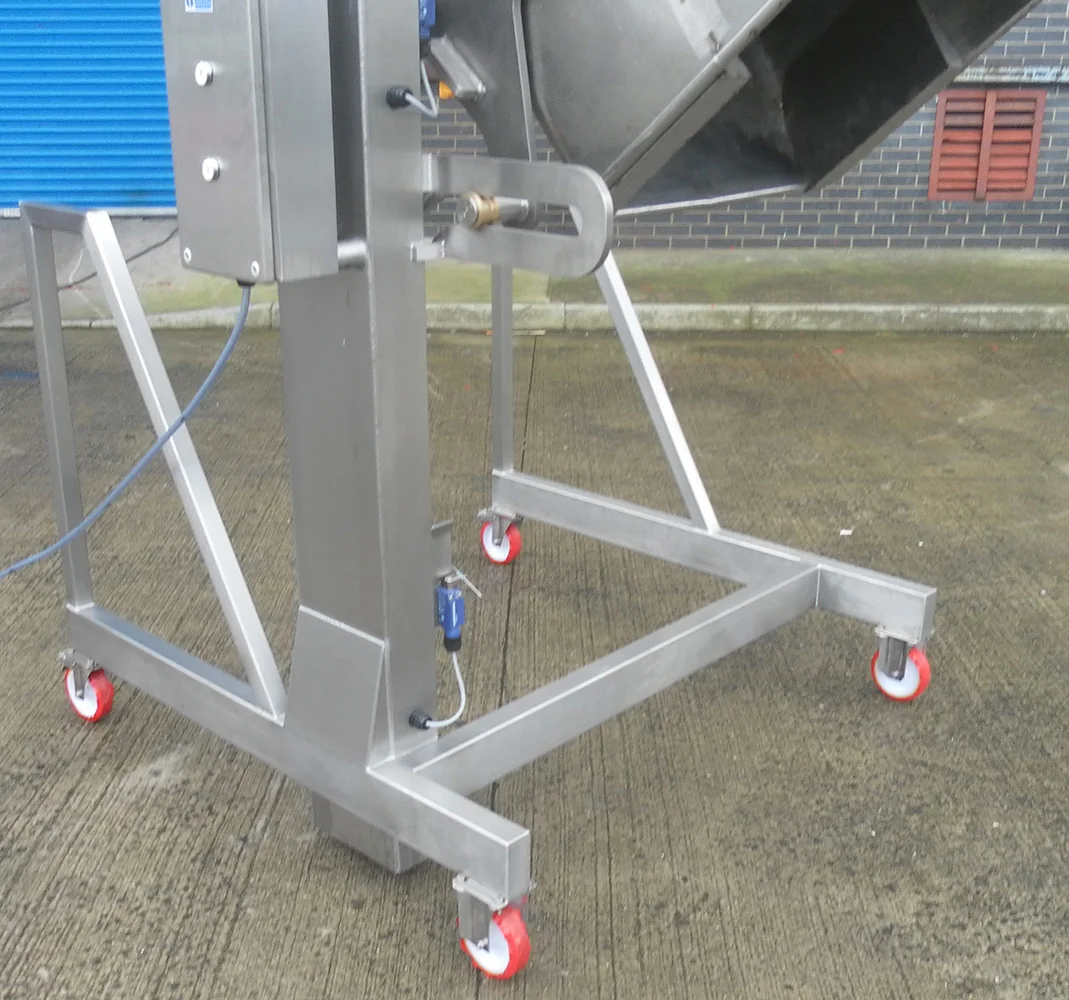

Mobility: Mobile bin tippers are typically fitted with heavy-duty castors, often with brakes, for easy repositioning within a facility.

Frequently Asked Questions

Mobile bin tippers are typically designed to handle standard 200-litre Eurobins, but some models can be adapted for other bin sizes or custom containers. Buyers should confirm compatibility with the seller.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
