What types of drums can this tipper handle?

This type of tipper is generally designed for standard cylindrical drums. Buyers should confirm the exact drum dimensions and weight capacity with the seller for this specific unit.

Is this unit suitable for both solid and liquid materials?

Yes, mobile drum tippers are typically versatile enough to handle both solid granular materials and liquids, provided the drum itself is suitable for the material.

What are the typical maintenance requirements?

Maintenance usually involves regular inspection of the chain, motor, gearbox, and safety features, along with general cleaning. Lubrication points should be checked periodically.

Can the discharge height be adjusted?

While some drum tippers offer adjustable discharge heights, this unit is described with a fixed 1200mm discharge. Buyers should verify any adjustability with the seller.

What safety features are typically included?

Common safety features include upper and lower limit switches, a safety latch for chain failure, emergency stop buttons, and guarding to protect operators.

Is this unit suitable for a washdown environment?

Given its Grade 304 stainless steel construction and IP65 rated control panel, this unit is designed to withstand regular washdown procedures, making it suitable for hygienic environments.

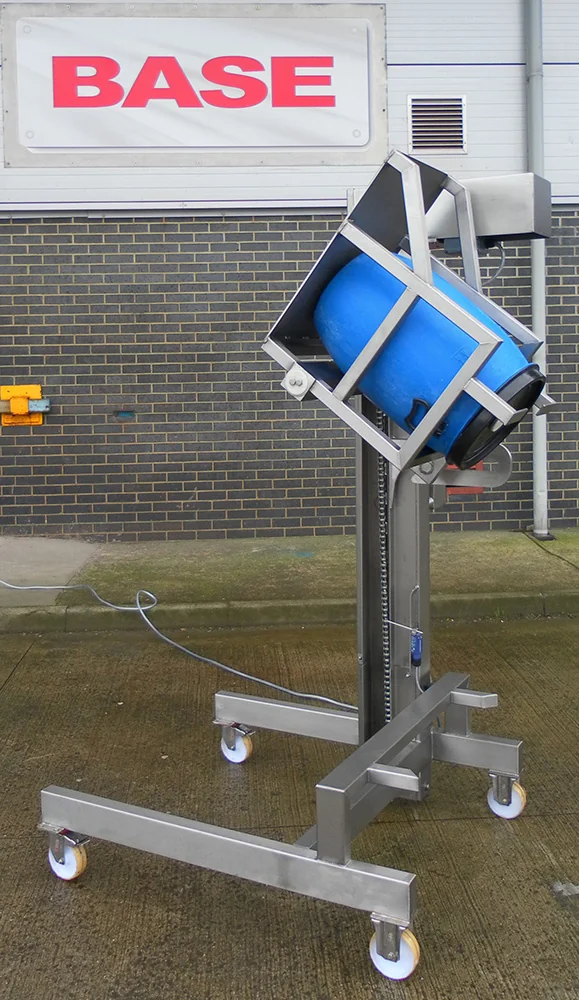

Mobile Drum Tipper - Lifting & Tipping, photo 1

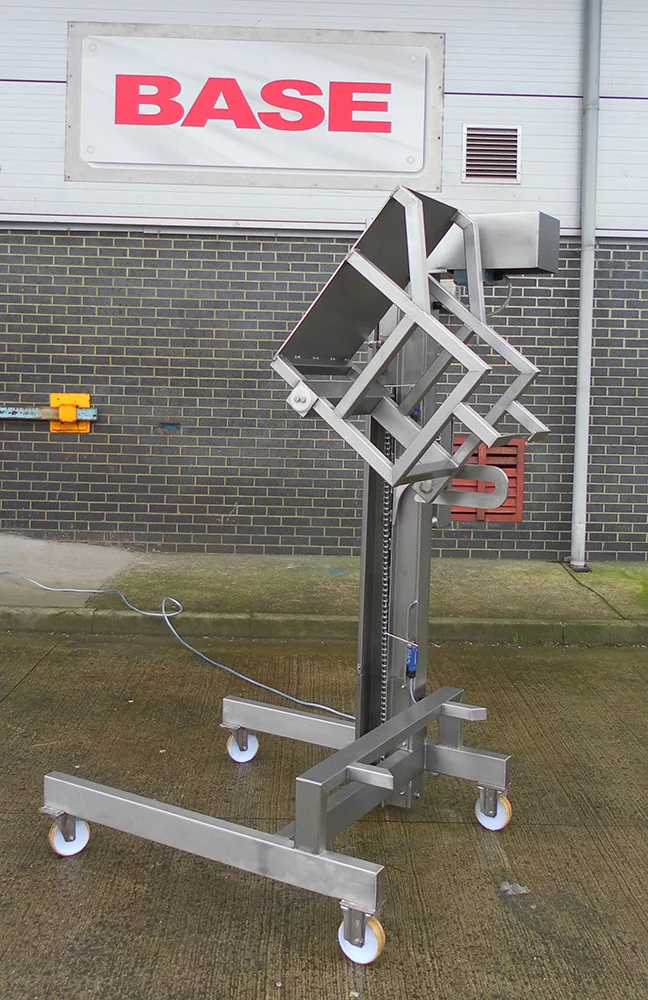

Mobile Drum Tipper - Lifting & Tipping, photo 2

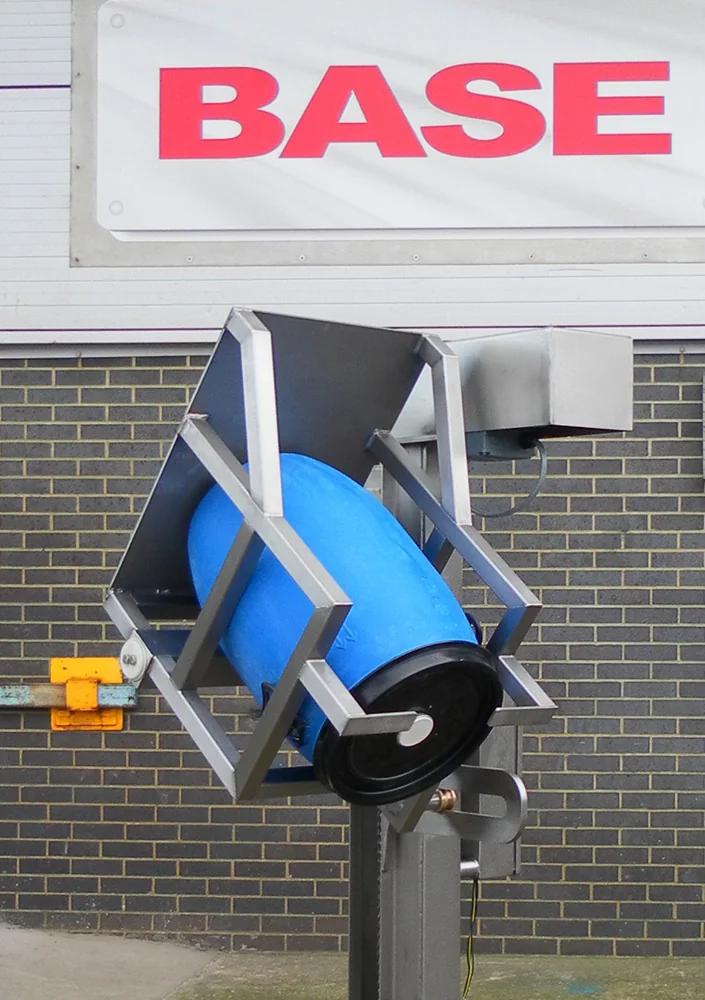

Mobile Drum Tipper - Lifting & Tipping, photo 3

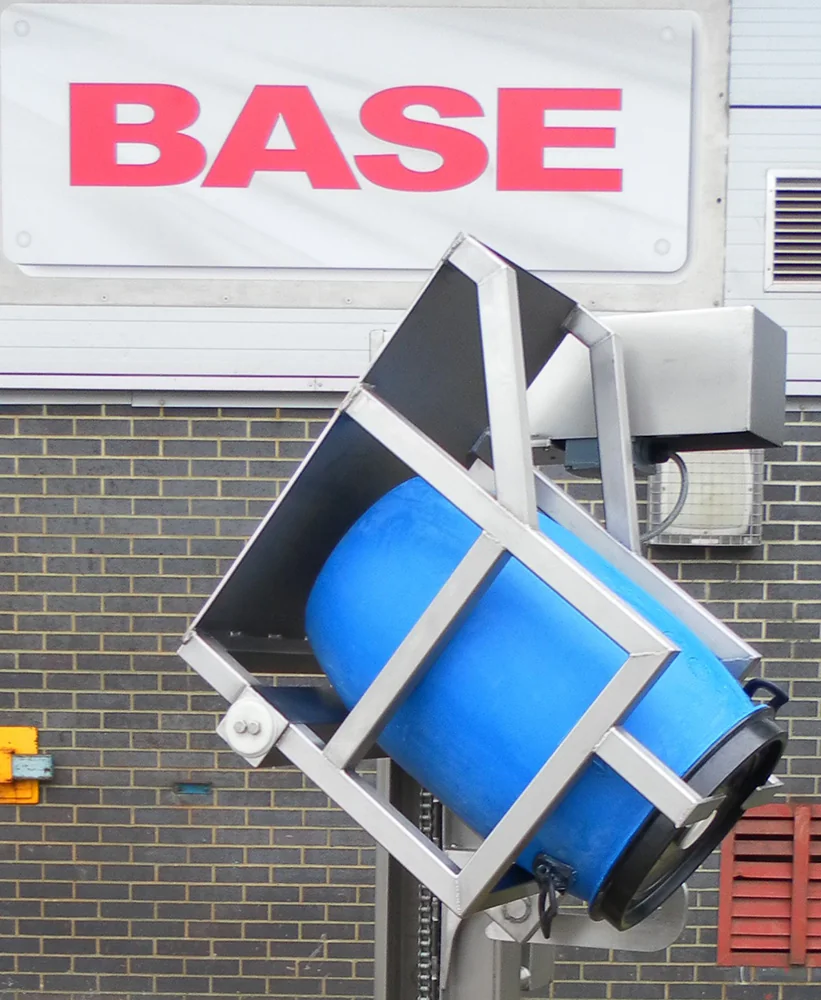

Mobile Drum Tipper - Lifting & Tipping, photo 4

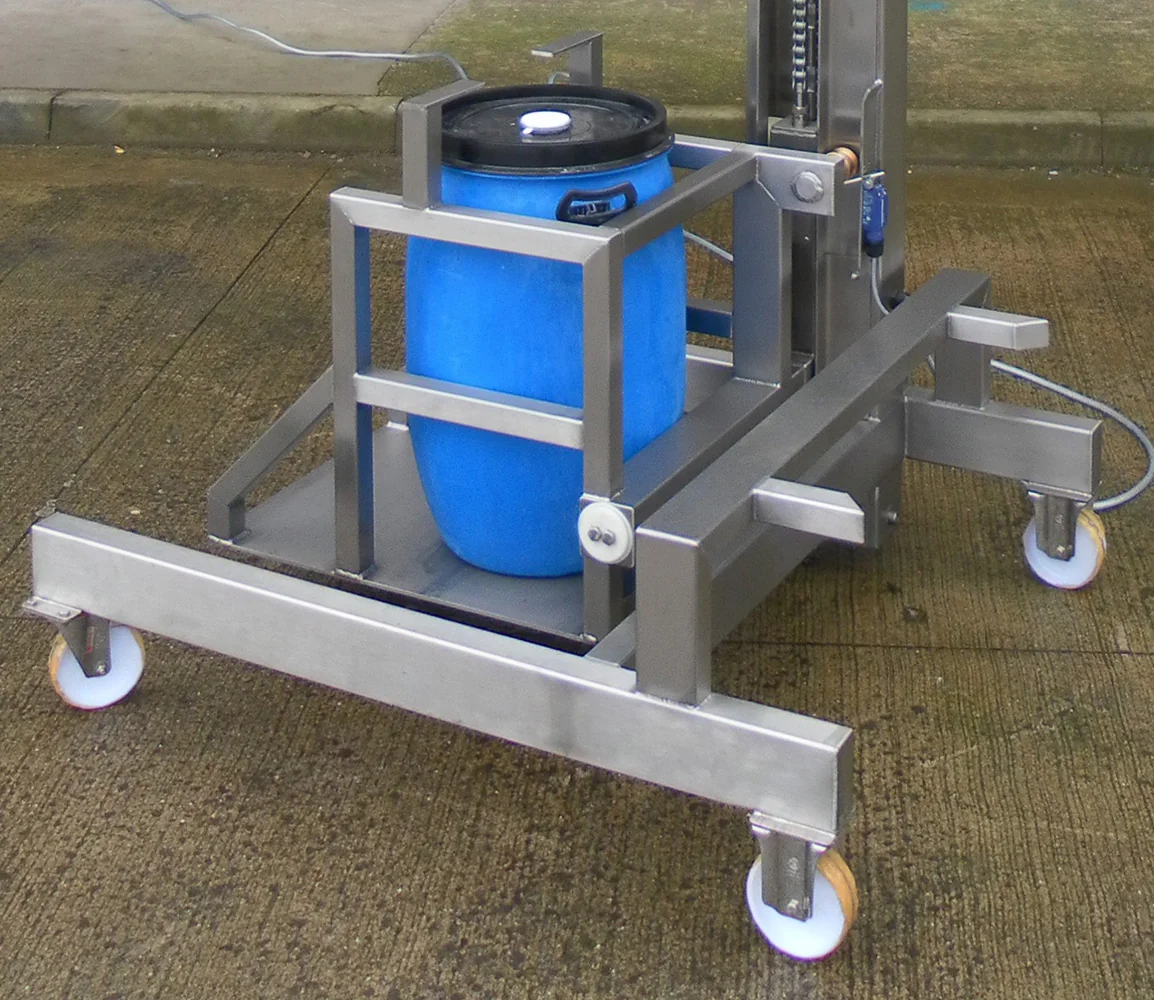

Mobile Drum Tipper - Lifting & Tipping, photo 5

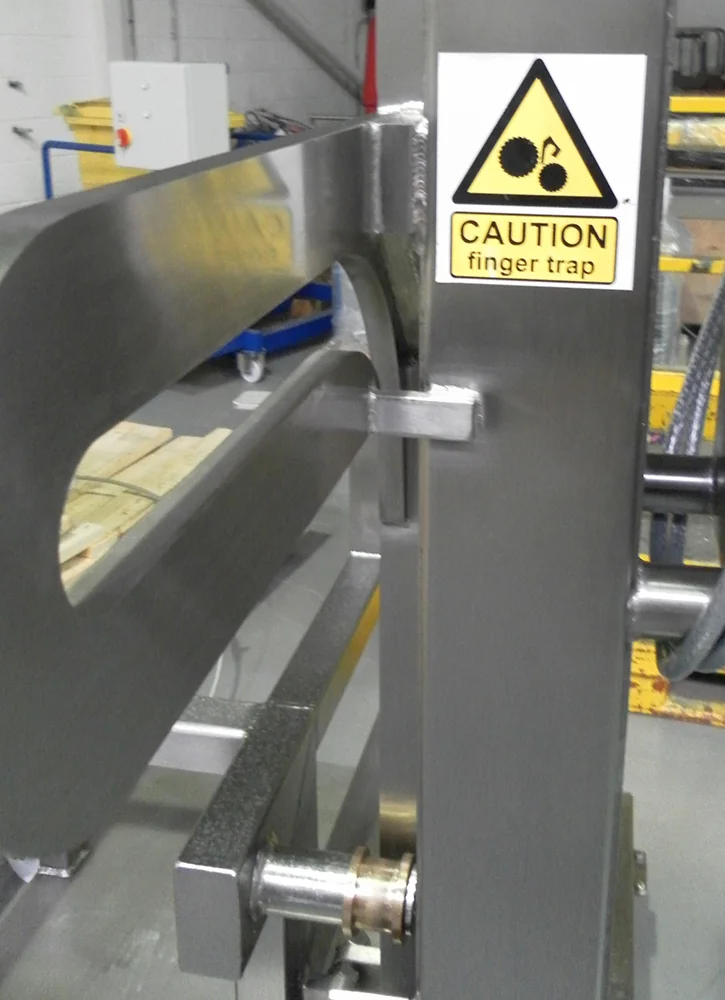

Mobile Drum Tipper - Lifting & Tipping, photo 6

Available

Verified seller

Mobile Drum Tipper

Name: Mobile Drum Tipper
SKU: BTM/100/1200/M
Availability: InStock

Price: Contact seller for price

BTM/100/1200/M Single Pillar Mobile Drum Tipper

This Single Pillar Mobile Drum Tipper that is designed to lift and tip at a discharge height of 1200mm. The Mobile Drum Tipper is constructed from Grade 304 stainless steel and is fully TIG welded throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Mobile Drum Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

The Mobile Drum Tipper will be wheeled into position at the end of the flume and will locate using the flume support legs and brackets mounted on the base frame cross member on the lift. This will position the tipper such that the drum discharges on the centre line of the flume and with sufficient reach into the flume to prevent spillage. The lifting carriage will be a fixed stainless steel plate onto which the drums will be manoeuvred from the pallet. The lift carriage base plate will be at the same height as the pallet in the full down position.

Mobile Drum Tipper Electrical Control

This Mobile Drum Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded machine operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the machine to operate. As soon as either button is released, the machine will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Mobile Drum Tipper

Model No.

BTM/100/1200/M

Capacity

100 Kgs

Tipping Height

1200mm

Tipping Angle

130 Degrees

Overall Height

2100mm

Machine Handing

Left Hand

Maximum Headroom

3000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

650mm High x 380mm Diameter

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

1.1kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/100/1200/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from drums into processing vessels or hoppers.
Loading bulk solids or liquids into mixing tanks or blenders.
Discharging waste materials from drums into skips or compactors.
Feeding product into packaging lines from bulk containers.
Moving ingredients between different stages of a food production process.

Typical Specifications

Typical Drum Capacity: Units of this type commonly handle standard 200-litre (45-gallon) drums, with some variations for smaller or larger containers.
Discharge Height: As specified, this unit is designed for a 1200mm discharge height, which is common for feeding into standard processing equipment.
Construction Material: Constructed from Grade 304 stainless steel, which is standard for food-grade applications due to its corrosion resistance and ease of cleaning.
Power Supply: Typically requires a 3-phase electrical supply, commonly 400V, 50Hz, though specific motor requirements vary.
Lifting Mechanism: A simplex chain driven by a motor gearbox is a common, robust lifting method for this class of equipment.
Mobility: Being mobile, these units offer flexibility in plant layout and can be moved between different workstations as needed.
Safety Features: Units commonly include safety latches, limit switches, and emergency stops to comply with PUWER regulations.
Control System: An IP65 rated stainless steel control panel is typical, ensuring protection against dust and water ingress in washdown environments.

Frequently Asked Questions

This type of tipper is generally designed for standard cylindrical drums. Buyers should confirm the exact drum dimensions and weight capacity with the seller for this specific unit.
