What types of drums can this tipper handle?

This specific unit is designed for a Blue Mauser drum. Buyers should confirm compatibility for other drum types, as cradles are often specific to drum dimensions and styles.

Is this unit suitable for washdown environments?

Constructed from Grade 304 stainless steel and featuring an IP65 rated control panel, this unit is built to withstand typical washdown procedures in food processing.

What are the power requirements for this mobile drum tipper?

While not specified for this unit, mobile drum tippers typically require a 3-phase electrical supply, commonly 400V, 50Hz. Buyers should verify the exact requirements with the seller.

What safety features are typically included?

Units of this type commonly include a safety latch to prevent uncontrolled descent, 'dead man's handle' controls requiring continuous operator input, and emergency stop buttons.

Can this tipper be integrated into an automated line?

The control panel has a 'Call to Run' signal facility, indicating potential for integration into a wider automated system. Further details would be required from the seller regarding specific PLC or SCADA connectivity.

Does this unit come with an infeed conveyor?

This particular unit was supplied with gravity rollers in the lift carriage base and a separate 1500mm long x 600mm wide gravity roller conveyor for loading.

Mobile Drum Tipper - Lifting & Tipping, photo 1

Mobile Drum Tipper - Lifting & Tipping, photo 2

Mobile Drum Tipper - Lifting & Tipping, photo 3

Mobile Drum Tipper - Lifting & Tipping, photo 4

Mobile Drum Tipper - Lifting & Tipping, photo 5

Mobile Drum Tipper - Lifting & Tipping, photo 6

Available

Verified seller

Mobile Drum Tipper

Name: Mobile Drum Tipper
SKU: BTM/250/1200/M
Availability: InStock

Price: Contact seller for price

BTM/250/1200/M Single Pillar Mobile Drum Tipper

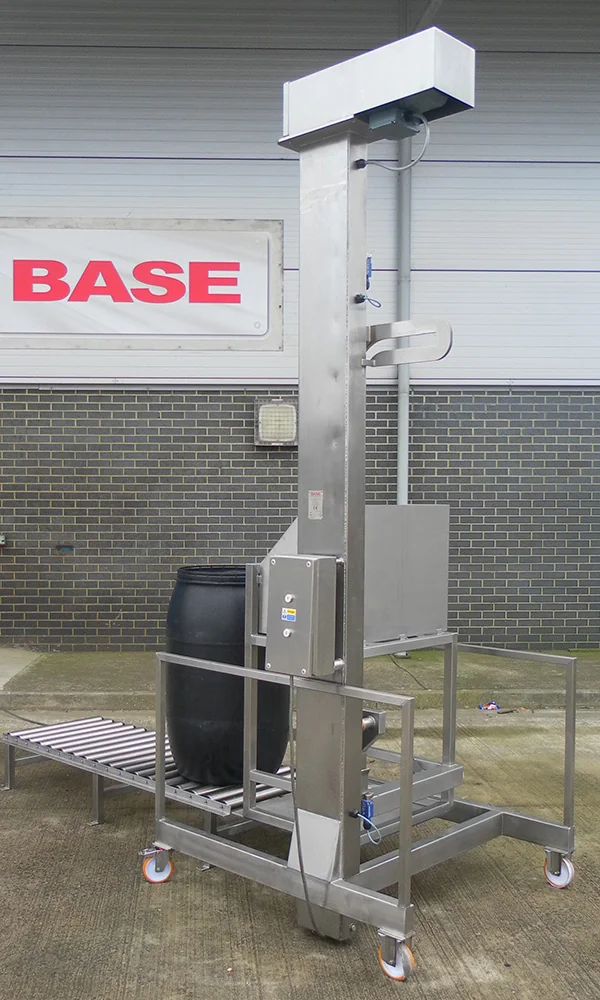

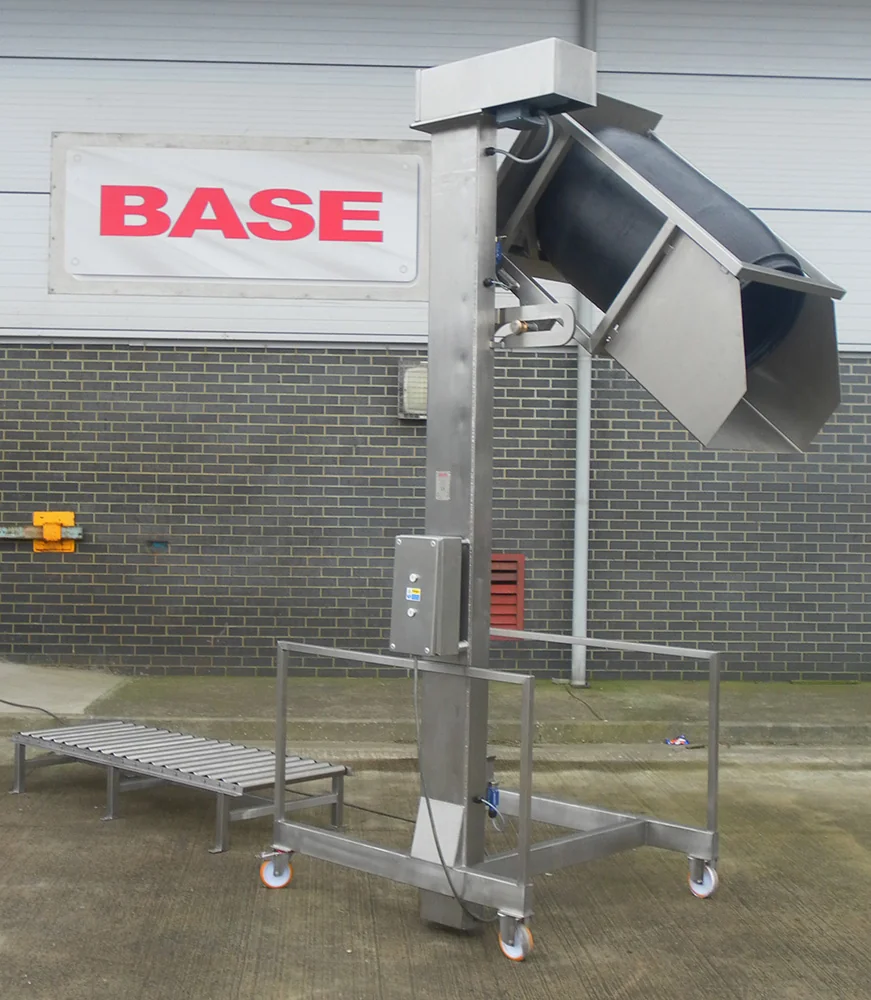

This Single Pillar Mobile Drum Tipper is designed to lift and tip a Blue Mauser at a discharge height of 1200mm. The Mobile Drum Tipper is constructed from Grade 304 stainless steel and is fully TIG welded throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Mobile Drum Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Infeed Gravity Roller Track

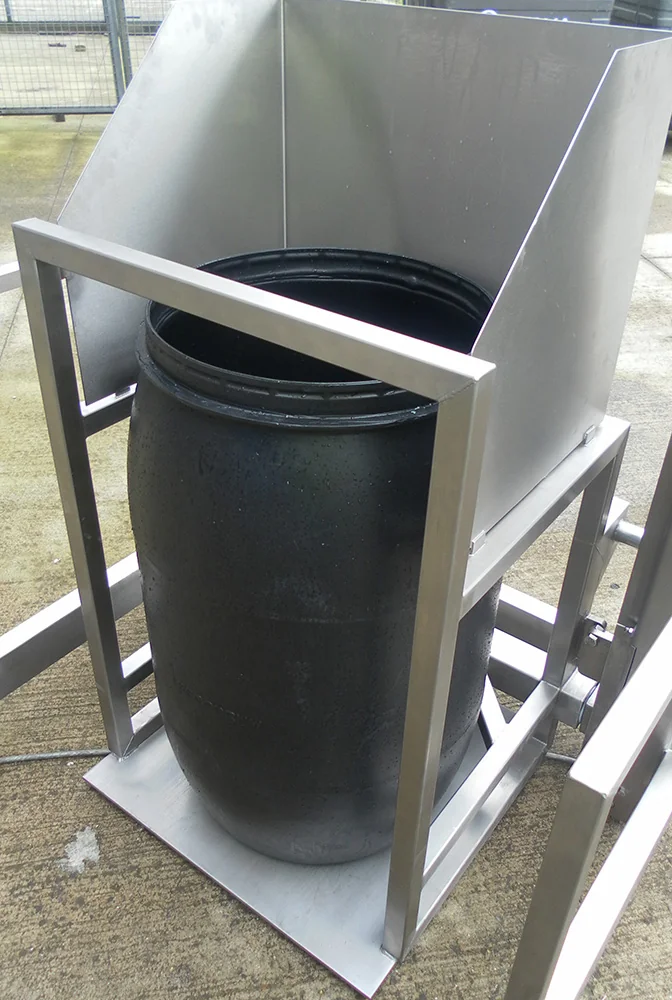

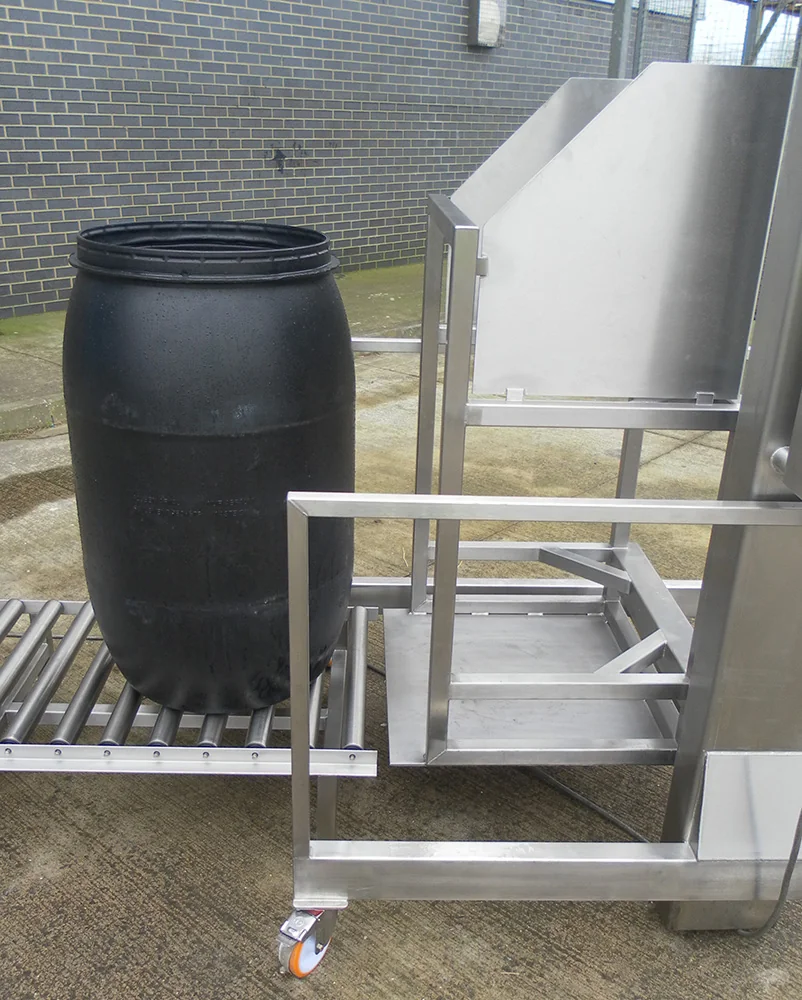

The Mobile Drum Tipper was supplied with gravity rollers in the base of the lift carriage and with a 1500mm long x 600mm wide gravity roller conveyor which would be positioned at the loading point of the tipper. The Mauser was slid off the pallet onto the roller conveyor and then rolled into the lift carriage to be tipped.

Mobile Drum Tipper Electrical Control

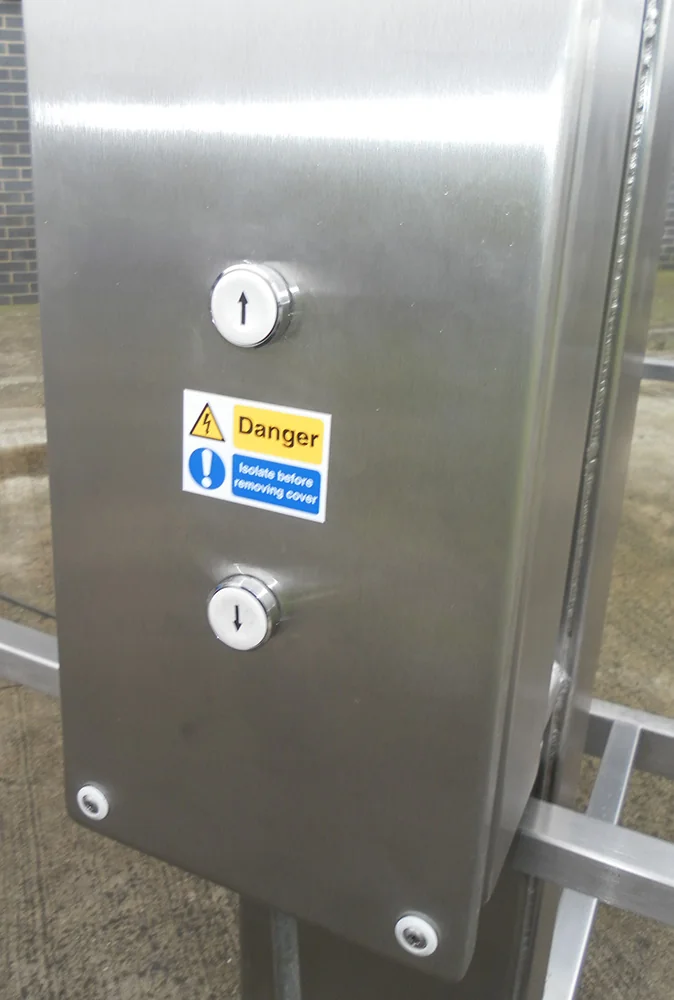

This Mobile Drum Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Mobile Drum Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Mobile Drum Tipper to operate. As soon as the button is released, the Mobile Drum Tipper will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Single Pillar Mobile Drum Tipper

Model No.

BTM/250/1200/M

Capacity

250 Kgs

Tipping Height

1200mm

Tipping Angle

130 Degrees

Overall Height

Tip Height + 950mm

Machine Handing

Right Hand

Maximum Headroom

Mounted Outside

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

Blue Mauser

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.55kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Load/Lift/Tension Chain

¾" Simplex

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Stock Number

BTM/250/1200/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Transferring ingredients from drums into process vessels in bakeries and confectionery.
Loading bulk solids or liquids from drums into mixing tanks in pharmaceutical production.
Discharging raw materials from drums into hoppers for snack food manufacturing.
Moving ingredients from storage drums to filling lines in beverage production.
Tipping waste or by-products from drums into collection bins in various food processing operations.

Typical Specifications

Typical lift capacity: For this class of equipment, units commonly handle drums up to 250-300 kg.
Discharge height: This unit is specified for 1200mm; other units typically range from 900mm to 3000mm depending on application.
Construction material: Grade 304 stainless steel is standard for food processing environments, ensuring hygiene and corrosion resistance.
Power supply: Typically 400V, 3-phase, 50Hz, with a control voltage commonly 24V DC or 110V AC.
Control system: IP65 rated control panels are common, offering protection against dust and water jets, suitable for washdown.
Safety features: Units of this type commonly include safety latches, 'dead man's handle' controls, and emergency stops.
Mobility: Mobile units are fitted with castors, allowing for flexible positioning within a facility.
Drum compatibility: Designed for specific drum types (e.g., Blue Mauser); other units may accommodate various drum, bin, or tote sizes with appropriate cradles.
