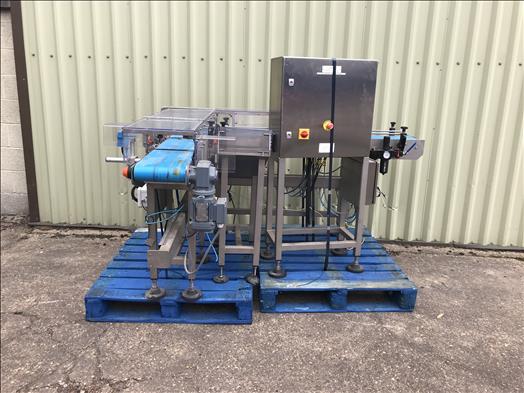

90 degree conveyor

• Changing product direction on a production line, often for packaging or further processing.
• Integrating different conveyor types or speeds within a single system.
• Optimising floor space by enabling tighter turns than straight conveyors.
• Transferring products between adjacent workstations or processing stages.

Typical throughput

Varies significantly based on product size, weight, and desired cycle time. Units of this type are designed for continuous or batch transfer.

Power supply

Commonly 400V, 3-phase, 50Hz for the motors, with control circuits potentially requiring 24V DC or 230V AC.

Motor power

For this class of equipment, individual conveyor motors typically range from 0.18kW to 0.75kW, depending on belt length, width, and load.

Frame material

Stainless steel is common for hygiene and corrosion resistance, particularly in food or pharmaceutical applications.

Belt types

Units often feature a combination of belt types, such as slat chain for robust handling and rubber or PU belts for gentler transfer or grip.

Control system

Typically includes basic start/stop, speed control (if variable speed drives are fitted), and potentially product sensing and counting functions.

• What products are suitable for this type of 90-degree transfer?

  This unit, with a pneumatic arm, is best suited for discrete, stable products that can be pushed without damage. The combination of belt types suggests versatility for various item characteristics.

• Can the speed of the conveyors be adjusted?

• Is this unit suitable for washdown environments?

• What maintenance is typically required for a used 90-degree conveyor?

• How is product orientation maintained during the turn?

Buyers typically value conveyor systems for their reliability and longevity when well-maintained. Key considerations when purchasing used units include belt condition, motor functionality, frame integrity, and available spare parts. Industry sentiment emphasises the importance of verifying operational history and cleanliness standards, particularly for food handling applications. Common strengths include robust construction, relatively straightforward maintenance requirements, and cost savings versus new equipment. Reputable manufacturers' models tend to hold their value well and integrate readily into existing production lines.

General overview for this equipment type
