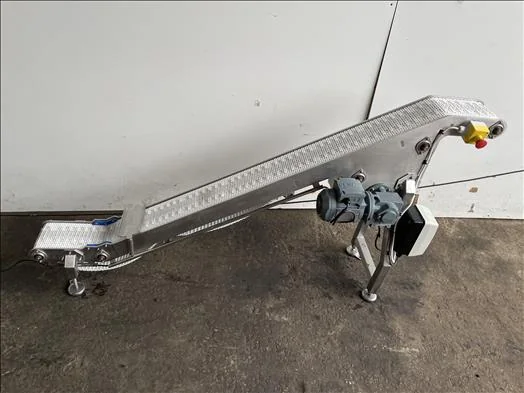

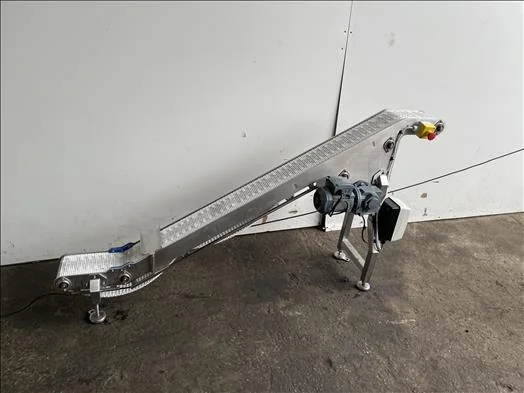

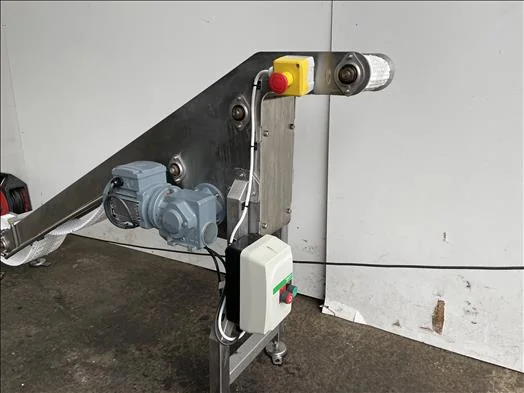

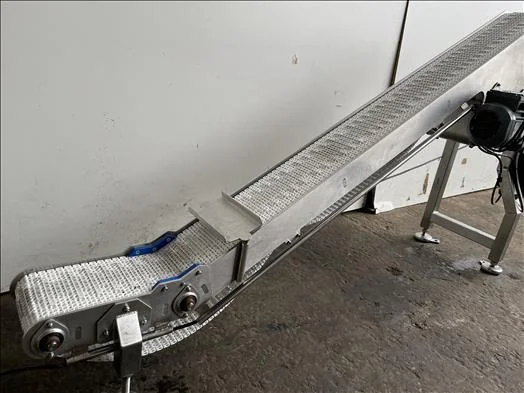

NNP Elevator Conveyor

Applications & Use Cases

• Moving bulk food products, such as snacks, vegetables, or confectionery, between different processing stages.
• Feeding packaging machinery from a lower-level conveyor or hopper.
• Transferring ingredients or finished products to elevated storage bins or hoppers.
• Integrating into automated production lines requiring vertical product movement.

Typical Specifications

Typical throughput

Throughput for this class of elevator conveyor typically depends on belt speed, product density, and incline angle, often ranging from hundreds of kilograms to several tonnes per hour.

Power supply

Units of this type commonly operate on single-phase (1Ph) or three-phase (3Ph) electrical supplies, with voltages typically found in UK industrial settings (e.g., 230V 1Ph or 400V 3Ph).

Construction material

For food processing applications, frames and contact parts are typically constructed from food-grade stainless steel to meet hygiene standards.

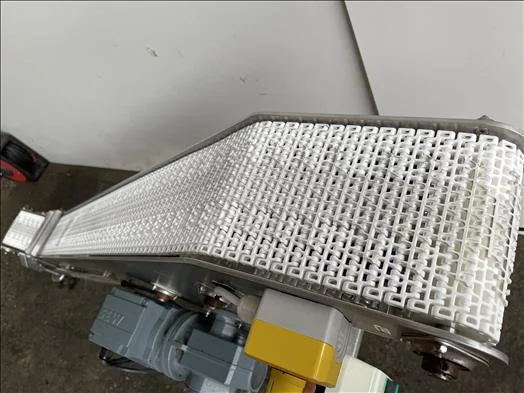

Belt material

Belts are commonly made from food-grade PVC, PU, or modular plastic, selected based on product characteristics and temperature requirements.

Typical incline angle

Elevator conveyors commonly feature incline angles between 30 and 60 degrees, depending on the product and cleat configuration.

Footprint

The footprint for this type of equipment is largely determined by the required elevation change and belt length, often requiring several square metres of floor space.

Frequently Asked Questions

• What types of products are suitable for an elevator conveyor?

  Elevator conveyors are suitable for a wide range of free-flowing and semi-free-flowing food products, including granules, powders, small components, and certain packaged goods. The specific belt type and cleat configuration will determine suitability.

• How do I determine the correct belt width and elevation for my application?

• What maintenance is typically required for an elevator conveyor?

• Are spare parts readily available for used elevator conveyors?

• What safety features should I look for?
