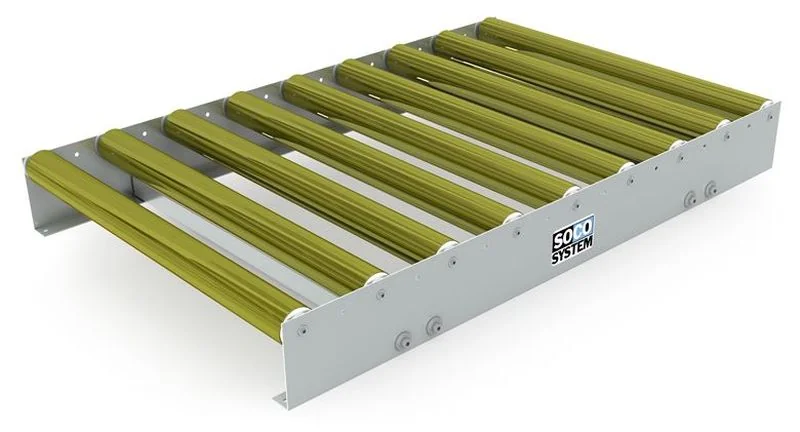

Non Driven Pallet Roller Conveyor

Specifications Surface treatment Electro galvanized steel with the exception of gear motor, chains, and roller axles. Rollers are electro galvanized with yellow crome. Frames Cold-bend angle profiles bolted to C-profile cross bars with supports. Rollers ? 80 mm electro galvanized steel tubes. Axle diameter ? 17 mm. Bearings rs. Roller fittings Rollers suspended between side frames by means of M10 axle. Payload For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM. Standard height The total height from floor to top of rollers is 190 mm. Subject to alteration.
