Name: Pallet Elevator
Brand: Base Handling Ltd
SKU: PLM/250/3700/B
Availability: InStock

Price: Contact seller for price

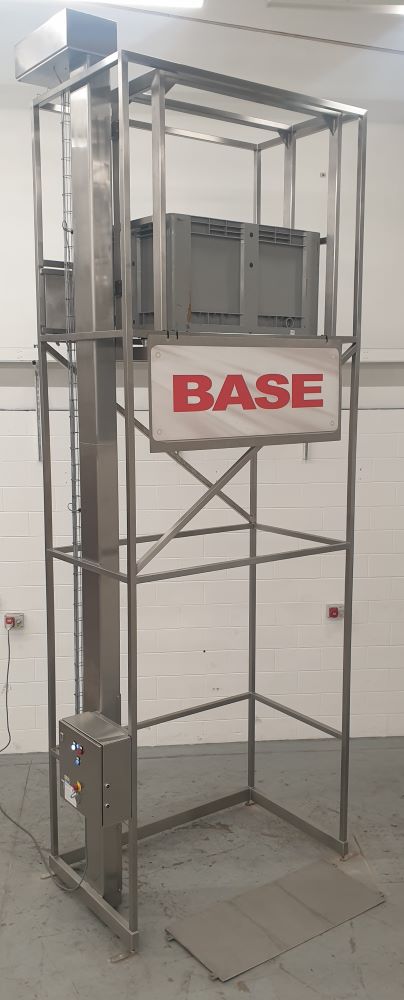

PLM/250/3700/B Single Pillar Pallet Elevator.

This Pallet Elevator was a single column lift with a Safe Working Load of 250 Kgs and a lift height of 3700mm to the top of the pallet.

The lifting platform was big enough to allow a pallet (1200 x 800mm) to be loaded using a hand pallet truck and included a ramp at the ground floor.

At the upper level the ingredients were unloaded over a handrail by hand.

The Pallet Elevator was manufactured from Grade 304 stainless steel and was designed to be bolted to the floor without the need for a pit.

The lifting is accomplished via a motor gearbox mounted at the top of the main column and a ¾” Duplex chain.

This Pallet Elevator was fitted with a safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Pallet Elevator Electrical Control.

The pallet Elevator was fitted with an IP65 Stainless Steel Control Panel mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

The main control panel at the bottom of the Pallet Elevator incorporates the following controls;

Up
Down
Emergency Stop.

The push button station at the upper level incorporates the following controls;

Up
Down
Emergency Stop.

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The Pallet Elevator operation is on a ‘hold to run’ dual push button principle so that a pressing the ‘Run’ button and the respective ‘Up’ or ‘Down’ push buttons will raise or lower at both the main control panel and the push button station.

The control was configured such that from the ground level, the Pallet Elevator can be sent to an intermediate limit switch at a height of 2000mm and once it reaches this limit switch control will transfer to the upper push button station.

The operator can now control the Pallet Elevator from the upper push button station to allow all product to be unloaded.

After unloading, the operator can send the Pallet Elevator back to the intermediate limit switch where control will transfer to the main control panel for the rest of the travel to full down.

The operator at the bottom will not be able to drive the Pallet Elevator all the way up and the operator at the top will not be able to drive the Pallet Elevator all the way down.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Single Pillar Pallet Elevator

Model No.

PLM/250/3700/B

Capacity

250 Kgs

Overall Height

5395mm

Machine Handing

Left Hand

Maximum Headroom

6000mm

Container Description

Pallet (1200 x 800mm)

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

6000 Kgs, 3000 Kgs

Lift Speed

6.4 Meters/Minute

Tension Chain

¾” Simplex

Platform Size

1250 x 850mm

Lift Height

3700mm

Lift Chain

¾" Duplex

Stock Number

PLM/250/3700/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Elevating palletised ingredients or finished products between different floor levels in food production facilities.
Transferring goods from ground level to mezzanines or elevated platforms for further processing or storage.
Integrating into automated or semi-automated material handling systems within a processing line.
Lifting heavy sacks, boxes, or containers on pallets to ergonomic heights for manual unloading or loading.
Facilitating vertical movement of materials in areas where forklift access is restricted or impractical.

Safe Working Load (SWL): Typically ranges from 250 kg to 1000 kg for this class of single-pillar pallet elevators.
Lift Height: Commonly found with lift heights between 2.5 metres and 5 metres, measured to the top of the pallet.
Pallet Compatibility: Designed to accommodate standard Euro pallets (1200 x 800 mm) or similar industrial pallet sizes.
Construction Material: Units for food processing are typically manufactured from Grade 304 or 316 stainless steel for hygiene and corrosion resistance.
Installation: Many units are designed for floor mounting without the need for a pit, simplifying installation.
Drive Mechanism: Often features a motor gearbox and chain drive system, mounted at the top of the main column.
Electrical Control: Typically includes an IP65 rated stainless steel control panel with Up, Down, and Emergency Stop functions at both ground and upper levels.
Safety Features: Commonly equipped with safety latches to prevent platform descent in the event of chain failure, and upper/lower limit switches.

These units commonly operate on a 3-phase electrical supply, typically 400V, 50Hz, with a motor power rating suitable for the SWL and lift speed. Buyers should confirm specific electrical requirements with the seller.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.

General overview for this equipment type

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
