Pharmaceutical Drum Tipper
Copied to clipboard!
Price: Contact seller for price

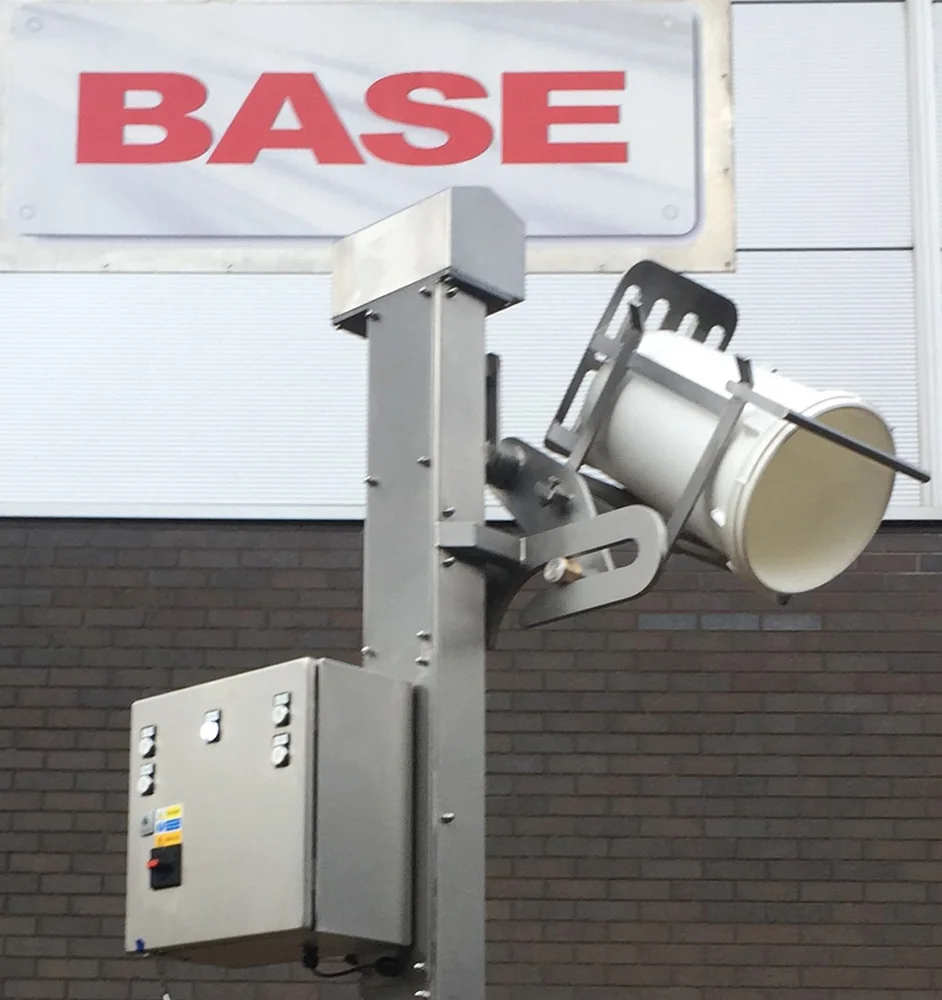

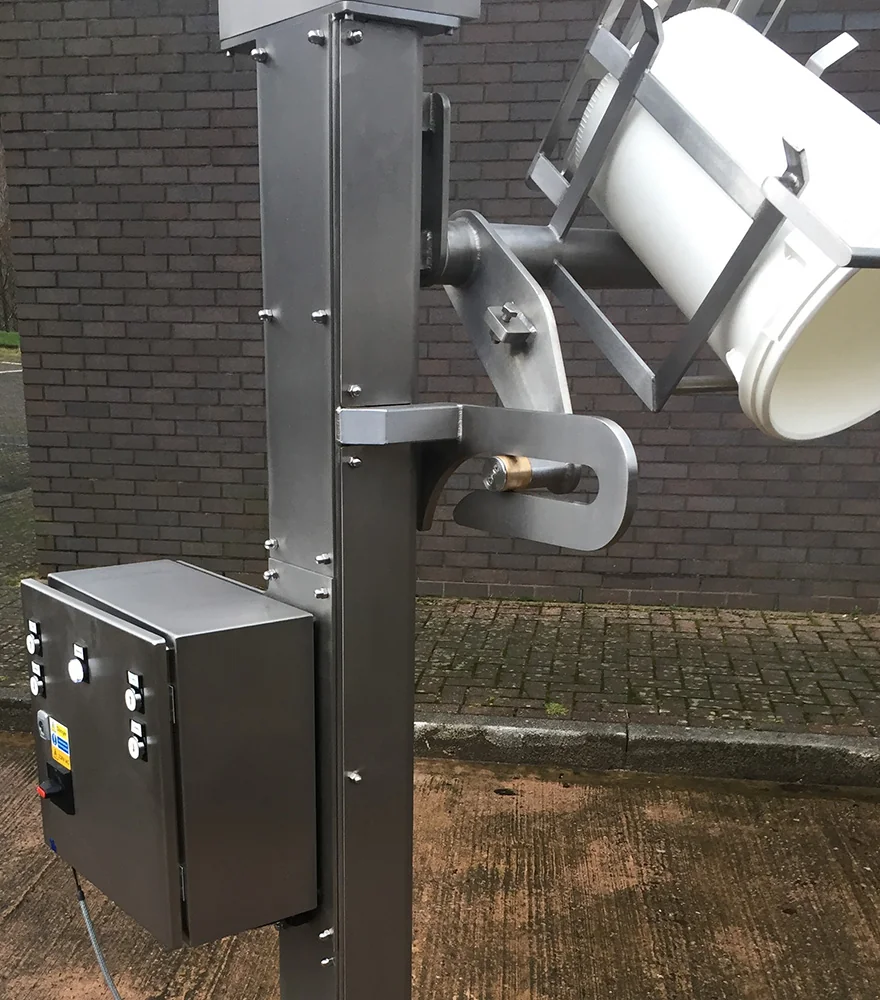

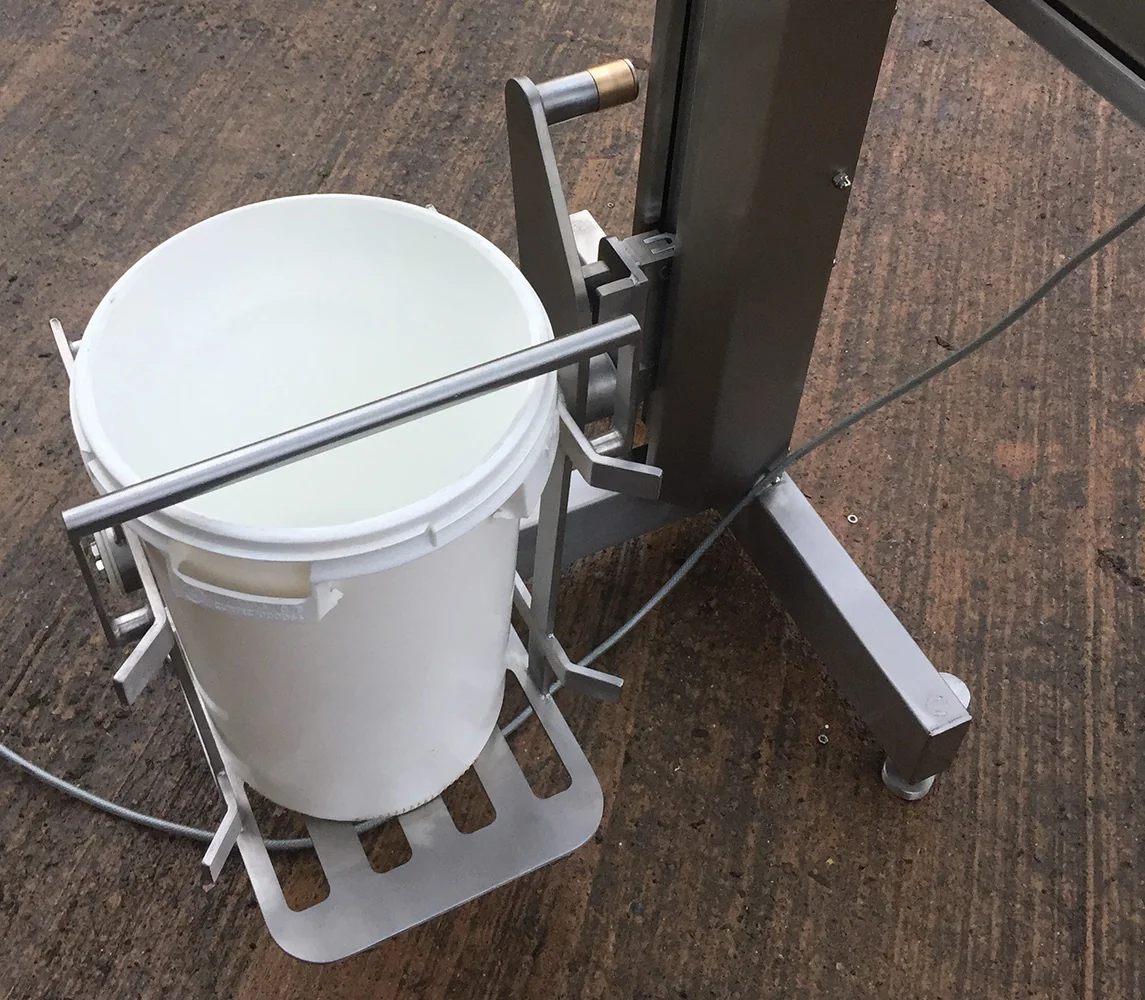

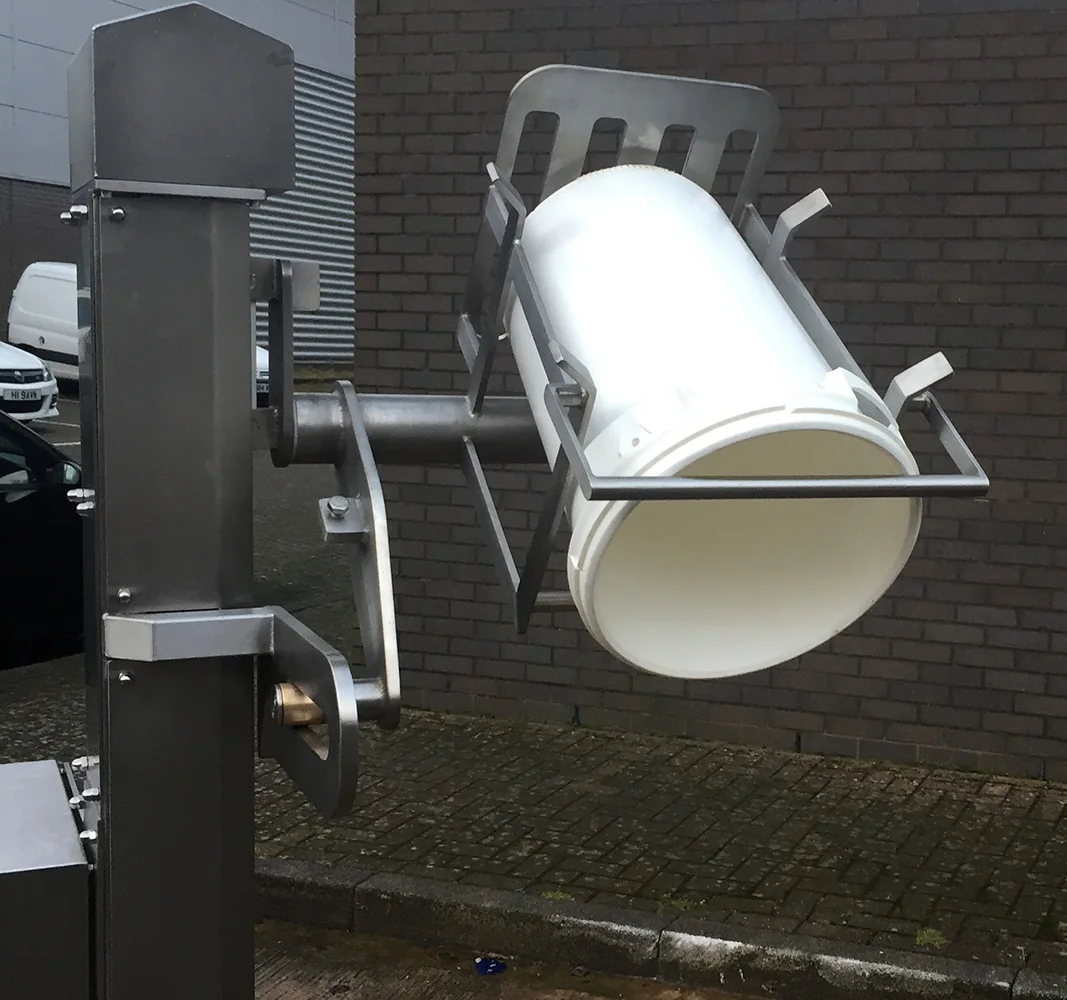

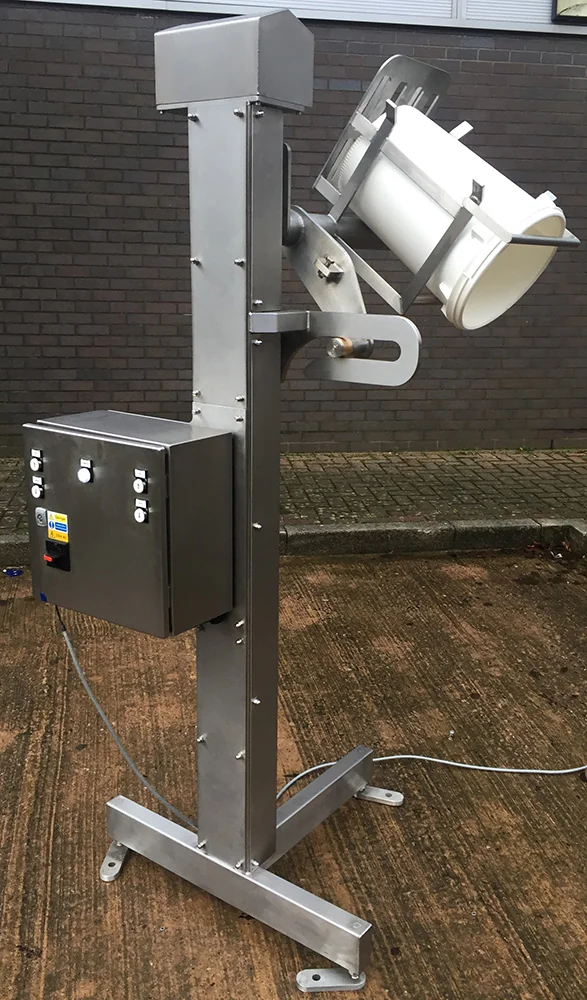

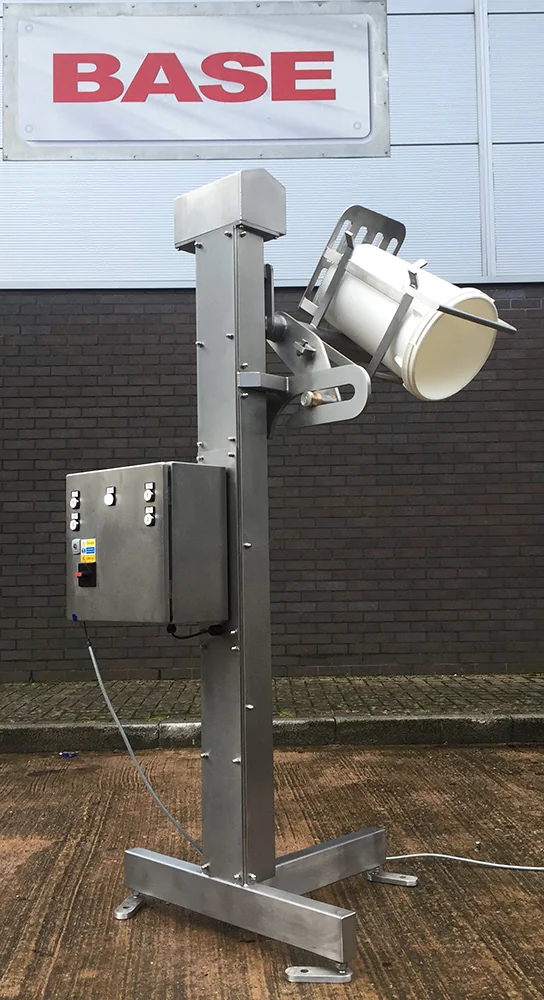

BTM/75/1650/B Single Pillar Pharmaceutical Drum TipperThis Single Pillar Pharmaceutical Drum Tipper was designed to lift and tip a plastic drum at a discharge height of 1650mm. The Pharmaceutical Drum Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by an Electrical Screw Driven Actuator mounted in the main column. The electrical actuator has a backup safety nut which will engage in the extremely unlikely event of the lift failure. Pharmaceutical Drum Tipper Electrical ControlThis Pharmaceutical Drum Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Control Panel is fitted with a 4 Meter flexible armoured power supply cable which should be connected to a suitable isolator elsewhere. The Pharmaceutical Drum Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Pharmaceutical Drum Tipper to operate. These buttons are monitored by simultaneous push buttons relays. As soon as any button is released, the Pharmaceutical Drum Tipper will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required. |
Blaenau Gwent County Borough, United Kingdom5,762 km away
Description
Pharmaceutical Drum Tipper
Model No.
BTM/75/1650/B
Capacity
75 Kgs
Tipping Height
1650mm
Tipping Angle
130 Degrees
Overall Height
1987mm
Machine Handing
Right Hand
Maximum Headroom
2000mm
Tipping Chute
Yes, Fitted To Lift Carriage
Container Description
Pharmaceutical Drum
Base Arrangement
Bolt Down Base Frame
Control Circuit
24Vac
Electrical Rating
IP65
Lift Mechanism
Thompson Linear Motor Actuator 24Vdc
Lift Speed
3.0 Meters/Minute TBC
Stock Number
BTM/75/1650/B
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Transferring pharmaceutical ingredients from drums to processing vessels.
- Loading powders or granules into tablet presses or capsule filling machines.
- Discharging raw materials into mixers or blenders in a controlled manner.
- Feeding packaging lines with bulk product from drums.
- Handling sensitive or high-value materials in hygienic environments.
Typical Specifications
- Typical drum capacity
- Units of this type commonly handle drums ranging from 50 kg to 200 kg.
- Discharge height
- For this class of equipment, discharge heights typically range from 1200mm to 2500mm, with this unit specified at 1650mm.
- Construction material
- Grade 304 stainless steel is standard for pharmaceutical applications, ensuring hygiene and corrosion resistance.
- Lifting mechanism
- Electrical screw-driven actuators are common, offering precise and controlled lifting with inherent safety features.
- Control panel rating
- An IP65 rating is typical for pharmaceutical environments, providing protection against dust and water jets.
- Safety features
- 'Dead man's handle' controls and backup safety nuts are standard safety provisions for drum tippers.
- Power supply
- Units commonly require a 3-phase electrical supply, with specific voltage and amperage dependent on the motor size.
- Footprint
- Single pillar designs typically offer a compact footprint, suitable for integration into existing production lines.
Frequently Asked Questions
- This type of tipper is typically designed for plastic drums, but many units can be adapted for stainless steel or fibre drums with appropriate cradles. Buyers should confirm compatibility with their specific drum types.
