What type of bins can this equipment handle?

This equipment is typically designed for standard 200L or 300L stainless steel tote bins, commonly used in food processing.

What are the power requirements for a pneumatic bin wash tipper?

These units are pneumatically powered, meaning they require a reliable supply of compressed air. Buyers should verify their existing air supply capacity.

Is this equipment suitable for washdown environments?

Yes, constructed from Grade 304 stainless steel with an IP65 rated control panel, units of this type are built for rigorous washdown procedures in hygienic environments.

What safety features are typically included?

Commonly, these units feature 'dead man's handle' controls, requiring continuous button depression for operation, stopping immediately upon release for enhanced operator safety.

Does this unit require floor mounting?

Units of this design are typically bolted to the floor to ensure stability and safe operation during the lifting and tipping cycles.

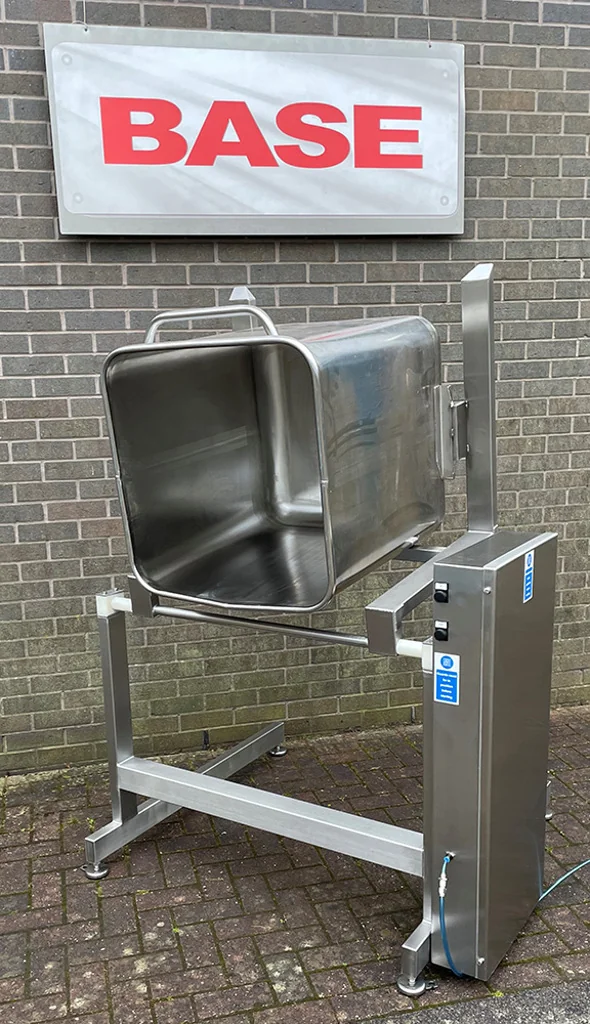

Pneumatic Bin Wash Tipper - Lifting & Tipping, photo 1

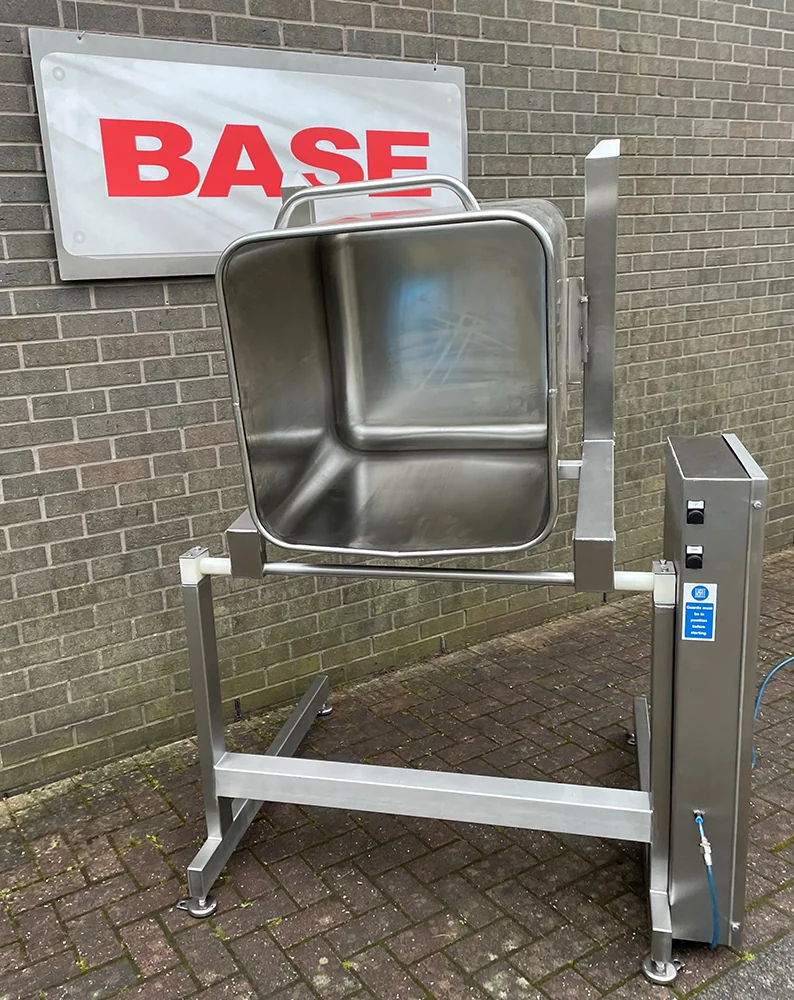

Pneumatic Bin Wash Tipper - Lifting & Tipping, photo 2

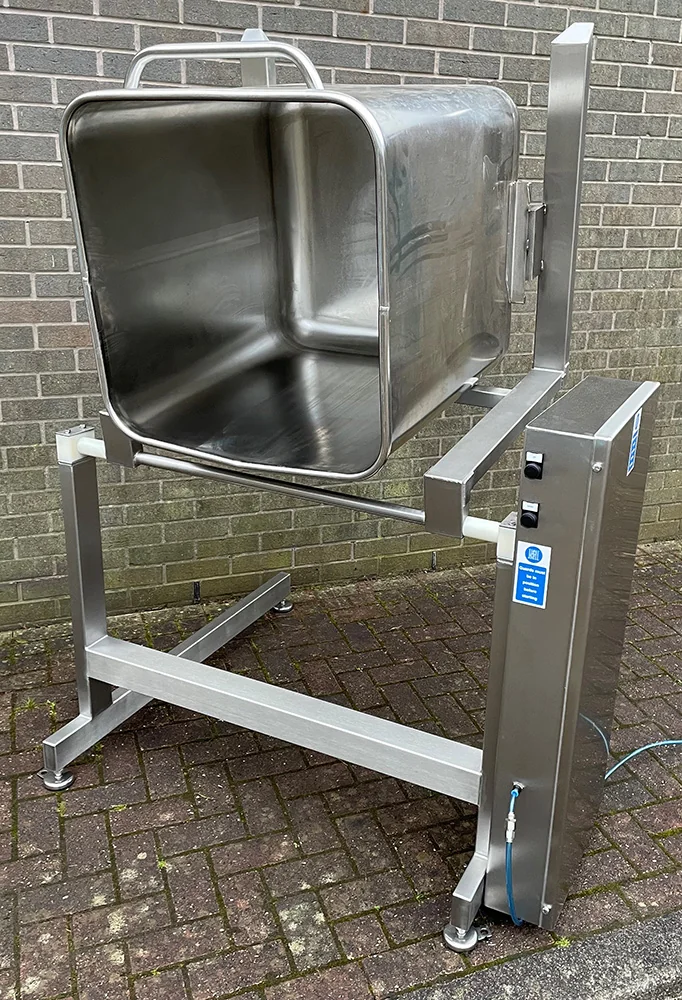

Pneumatic Bin Wash Tipper - Lifting & Tipping, photo 3

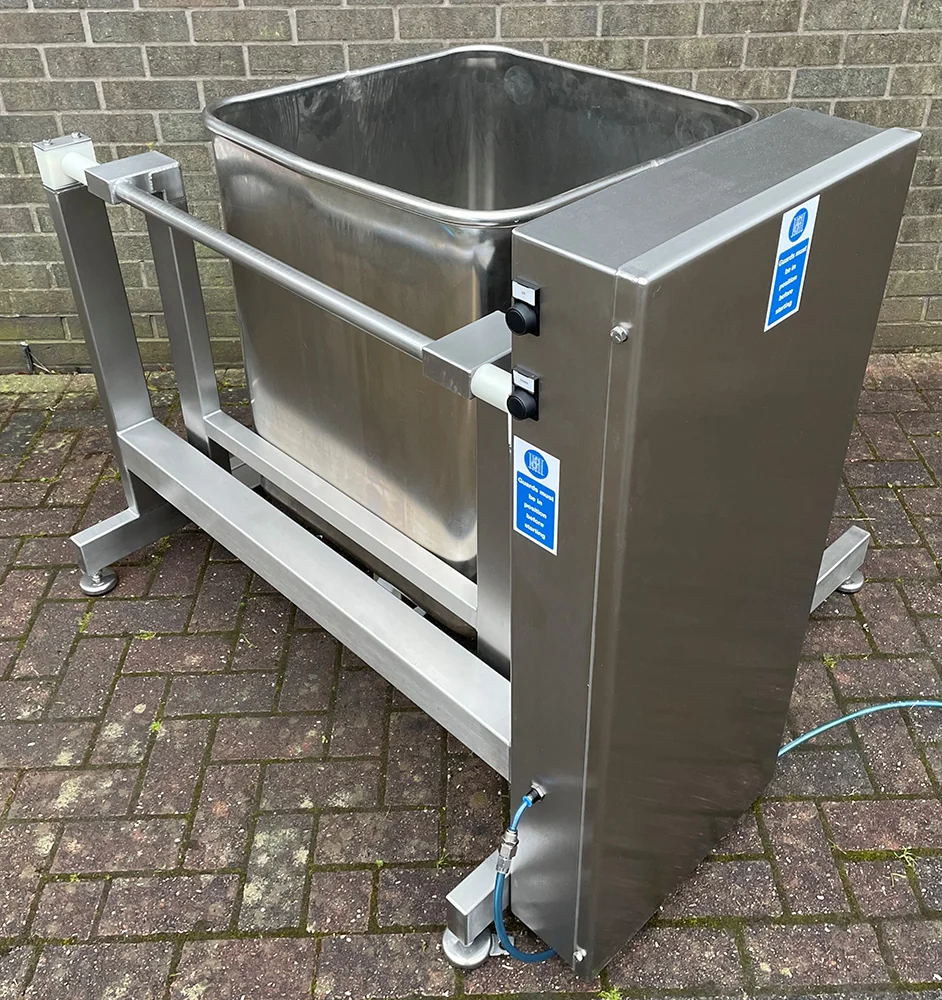

Pneumatic Bin Wash Tipper - Lifting & Tipping, photo 4

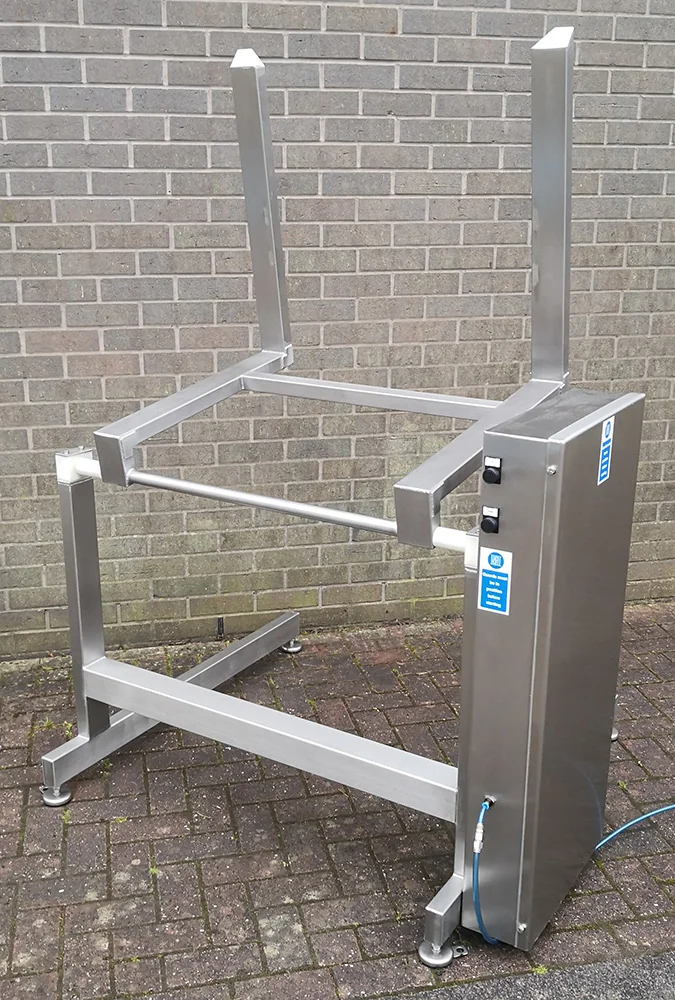

Pneumatic Bin Wash Tipper - Lifting & Tipping, photo 5

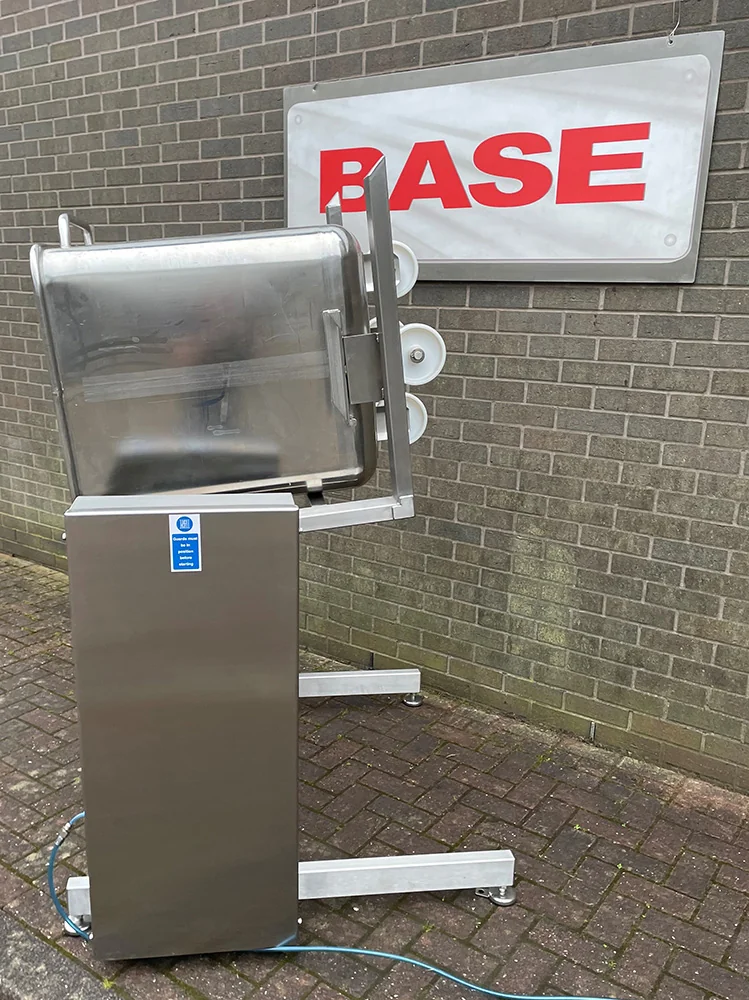

Pneumatic Bin Wash Tipper - Lifting & Tipping, photo 6

Pneumatic Bin Wash Tipper - Lifting & Tipping

Available

Verified seller

Pneumatic Bin Wash Tipper

Name: Pneumatic Bin Wash Tipper
SKU: BTP/75/900/B
Availability: InStock

Price: Contact seller for price

BTP/75/900/B Pneumatic Bin Wash Tipper

This Pneumatic Bin Wash Tipper is designed to lift and tip a 200 or 300 Litre Stainless Steel Tote Bin to a tip height of approximately 900mm from the floor. This Pneumatic Bin Wash Tipper would be powered pneumatically and the bin would be tipped over by a pneumatic cylinder to an angle of 10 degrees past the horizontal. This will allow both the inside and the outside of the bin to be pressure washed. The Pneumatic Bin Wash Tipper is constructed from Grade 304 stainless steel, is a fully TIG welded construction throughout and would be bolted to the floor.

Pneumatic Bin Wash Tipper Control

This Pneumatic Bin Wash Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame. The unguarded Pneumatic Bin Wash Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the pneumatic bin washer to operate. As soon as the button is released, the Pneumatic Bin Wash Tipper will stop.

Blaenau Gwent County Borough, United Kingdom

5,762 km away

Description

Pneumatic Bin Wash Tipper

Model No.

BTP/75/900/B

Lifting Capacity

75 Kgs

Tipping Height

900mm

Tipping Angle

100 Degrees

Machine Handing

Left Hand

Container Description

Stainless Steel Tote Bin

Base Arrangement

Free Standing

Pneumatic Cylinder

Festo 100mm Bore x 320mm Long

Stock Number

BTP/75/900/B

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Cleaning and sanitising 200L or 300L tote bins in food processing environments.
Facilitating thorough washing of both interior and exterior bin surfaces.
Integrating into hygiene stations within food production lines.
Use in pharmaceutical or chemical industries requiring high levels of sanitation for containers.

Typical Specifications

Typical bin capacity: Designed for standard 200L or 300L stainless steel tote bins.
Power supply: Pneumatically powered, requiring a compressed air supply.
Construction material: Typically Grade 304 stainless steel, fully TIG welded for hygiene and durability.
Tipping height: For this class of equipment, a tip height of approximately 900mm from the floor is common.
Tipping angle: Commonly tips to an angle of 10 degrees past horizontal to aid drainage and cleaning.
Control system: Often features an IP65 rated stainless steel control panel with 'dead man's handle' operation for safety.
Mounting: Typically designed to be bolted to the floor for stability during operation.
