PW1000

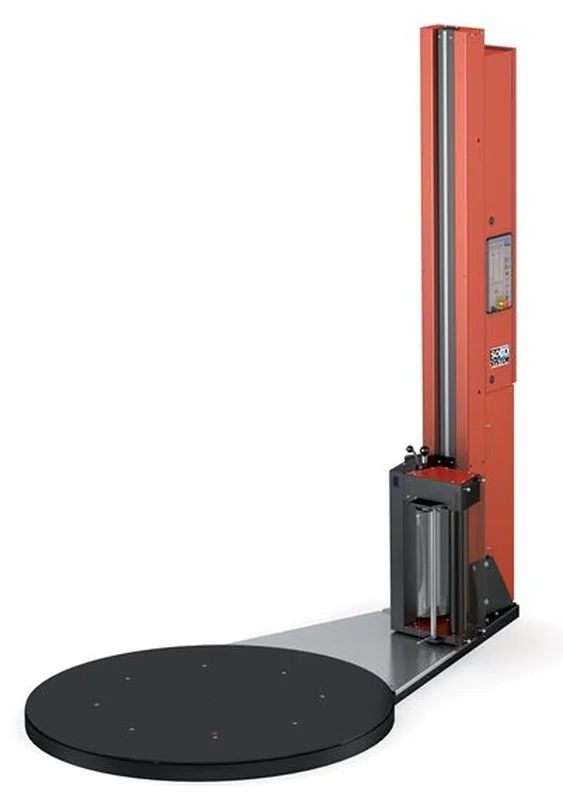

PW-1000 Semi-automatic pallet stretch-wrapper For film with or without pre-stretch. Simple and efficient machine for the everyday job. The compact size facilitates location and relocation. The PW-1000 is available for different-sized pallet loads (see table). Safety The sealed tower, the emergency stop as well as the safety switch built into the foot plate under the film carriage make the PW-1000 a very safe machine. The standard equipment includes, among other things: Independent setting of film carriage and turntable speed, which makes it possible to fully utilize the film and to determine the extent of film overlap. Soft start on turntable. A great advantage where pallet loads are light or fragile. The turntable starts up slowly and then accelerates until the required speed has been reached. Memory stores the last used settings for the turntable and film carriage speeds. Programme for rainproof pallet stretch-wrapping, offering efficient protection against rain and humidity (requires separate top film application). Automatic setting of pallet load height, a photocell registers the height of the pallet load. Variable number of wraps at top and bottom available upon selection (1-9). Independent setting of turntable and up/down speed of film carriage during operation as required. The option of manual operation and, with this, the possibility of choosing, for instance only top wrapping. Specifications PW-) PW-) PW-) PW-) Pallet load dimensions Max. length (mm) Max. width (mm) Max height (mm) Max. pallet load (kg) Machine dimensions Length (mm) Width (mm) * 1630* Height (mm) Min. height above floor (mm) Film roll dimension (mm) Length max. 440-520, outer diameter max. 400, inner diameter 76. Capacity Max. 50 pallets per hour. Electric specifications 3 x 230/400 V, 50 Hz, power consumption 0.5 kW. Other specifications upon request. Surface treatment All parts are powder-coated or electro-galvanised. Colours Red RAL 2002, black RAL 9005 (available in other colours at a surcharge).
