QuattroFlow - QF150 Diaphragm Pump

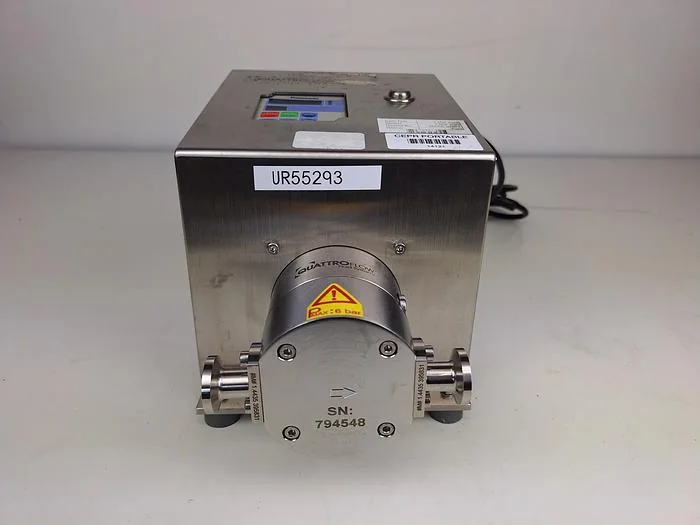

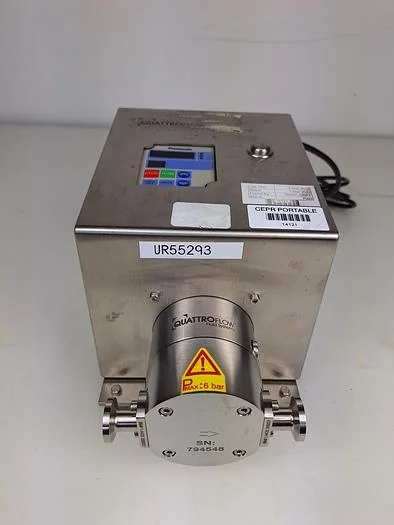

This listing is for a QuattroFlow QF150 Diaphragm Pump.
The unit is in full working condition and is ready for immediate release.
The Quattroflow 150S is a 4-piston Diaphragm pump, which is mainly used to pump water-like fluids
that are typically handled in research-, pilot plant- or production facilities of the pharmaceutical, biotech,
food or cosmetic research centres or plants.
Examples:
• Solutions containing proteins (albumin, IgG, Clotting factors, monoclonal antibodies, enzymes,
vaccines.)
• Solutions of polymers or suspensions (silicon, latex, chromatography media)
• Cell suspensions (bacteria, yeast, algae, fungi, mammalian cells)
• colloidal solutions
• Suspensions of viruses or phage
• Dairy products
• Gelatine
• Supplements and ingredients for cosmetic and food
Flow rate max.:
Eccentric shaft 3° l/h (lpm) )
Eccentric shaft 5° l/h (lpm) )
Flow rate min.:
Eccentric shaft 3° l/h (lpm) )
Eccentric shaft 5° l/h (lpm) )
Pressure:
Temperature of fluid < 40°C bar (psi) )
Temperature of fluid > 40°C bar (psi) )
Temperature max.:
Fluid °C (°F) )
CIP °C (°F) )
SIP °C (°F) )
Autoclave °C (°F) )
Suction lift dry at: 3000 rpm 3000 rpm
Eccentric shaft 3° m (ft) 1-1,,)
Eccentric shaft 5° m (ft) )
Volume specifications:
Approximated volume per revolution at
free output ml 0,72 (3°)
1,2 (5°)
0,72 (3°)
1,2 (5°)
Filling volume without connectors ml 15 15
Residual volume (after idle with highspeed motor) ml 1-3 1-3
Product wetted surface (approx.) cm² (inch²) )
Speed range pump rpm
Connection specification inlet
(standard)
Connector " 1/4" TC 1/4" TC
Flange diameter mm (inch) 25 25
Internal diameter mm (inch) 4,7 4,7
Connection specification outlet
(standard)
Connector " 1/4" TC 1/4" TC
Flange diameter mm 25 25
Internal diameter mm (inch) 4,,7 (0.19)
Position of connectors Inline Inline
Number of flow directions 4 4
Diameter drive shaft mm 7 7
Product wetted materials (standard):
Pump housing SS316L SS316L
Valve plate SS316L SS316L
Diaphragms Santoprene Santoprene
Valves EPDM EPDM
O-rings EPDM EPDM
Non-product wetted materials
(standard):
Pump housing SS316L SS316L
Bearing housing SS316L SS316L
Base plate SS316 SS316
Hood SS316 SS316
Dimensions pump with motor and
housing:
Length mm (inch) 257 (10,)
Width mm (inch) 164 (6,,87)
Height mm (inch) 185 (7,,67)
Weight pump with motor and housing kg (lb) 9,,2 (25)
IP protection class pump IP 54 54
Operating temperature range °C (°F) 0…40 (32…104) 10…30 (50…86)
5,791 km away

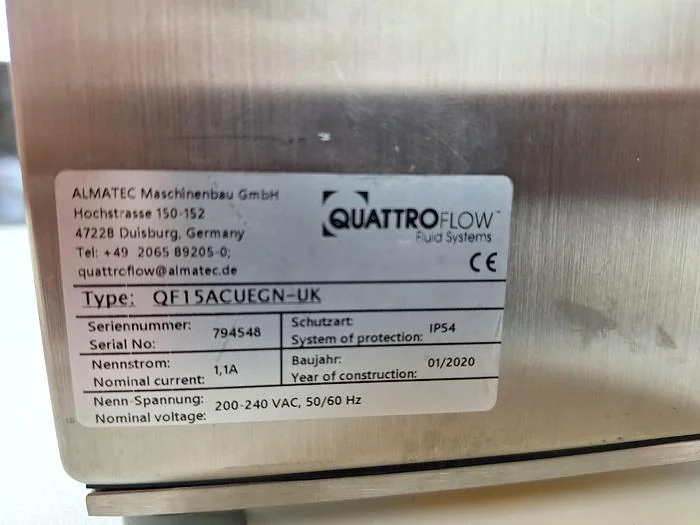

Model Number
QF15ACUEGN-UK
Stock Number
413006
Machinery Masters View
Typical context for this category of equipment. Always confirm specifics with the seller.
Applications & Use Cases
- Handling sensitive biological solutions such as proteins, antibodies, and vaccines in pharmaceutical and biotech research and production.
- Transferring cell suspensions including bacteria, yeast, and mammalian cells without causing damage.
- Pumping colloidal solutions, suspensions of viruses, or phage in laboratory and pilot plant settings.
- Processing dairy products, gelatine, and various supplements and ingredients in food and cosmetic industries.
- Managing chromatography media and other viscous or shear-sensitive fluids.
Typical Specifications
- Typical flow rate
- For this class of equipment, flow rates commonly range from a few litres per hour up to approximately 150 litres per hour, depending on the eccentric shaft setting.
- Operating pressure
- Units of this type typically operate at pressures suitable for sensitive fluid transfer, often up to 4-6 bar.
- Fluid temperature range
- Commonly, these pumps can handle fluid temperatures up to 80-90°C, with higher temperatures possible for CIP/SIP cycles.
- Wetted materials
- Product-wetted surfaces are typically made from biocompatible materials such as stainless steel (e.g., 316L) and medical-grade elastomers to ensure product integrity and hygiene.
- Motor type
- Often equipped with a brushless DC motor or similar, allowing for precise speed control and consistent flow.
- Power supply
- Typically requires a standard industrial power supply, commonly 230V single-phase or 400V three-phase, with appropriate frequency for UK operations.
- Cleaning compatibility
- Units are commonly designed for Clean-in-Place (CIP) and Sterilise-in-Place (SIP) processes, crucial for pharmaceutical and food applications.
Frequently Asked Questions
- While both are gentle, diaphragm pumps like the Quattroflow QF150 offer a pulsatile flow with minimal shear, making them highly suitable for very sensitive biological materials such as cells and proteins, often with higher flow rates and pressures than typical peristaltic pumps.
