What type of racks can this lift accommodate?

This type of lift is typically designed to accommodate standard food processing racks or trolleys, often up to 1200mm wide x 1000mm deep x 1940mm high, allowing for loading via a pump truck.

Is a pit required for installation?

Many rack platform lifts are designed for floor-bolted installation, meaning a pit is often not required. Buyers should confirm specific installation requirements with the seller.

What safety features are typically included?

Common safety features include fixed guards, electrically interlocked hinged gates at loading/unloading points, and mechanical locks to prevent operation with doors open or opening doors during transit.

What is the typical maximum lifting height?

The lifting height for this class of equipment varies, but units are commonly designed for specific floor-to-floor height differences, which can range from a few hundred millimetres to several metres.

Is this equipment suitable for washdown environments?

Given the Grade 304 stainless steel construction and welded design, units of this type are generally suitable for washdown environments common in food processing. Specific IP ratings should be confirmed.

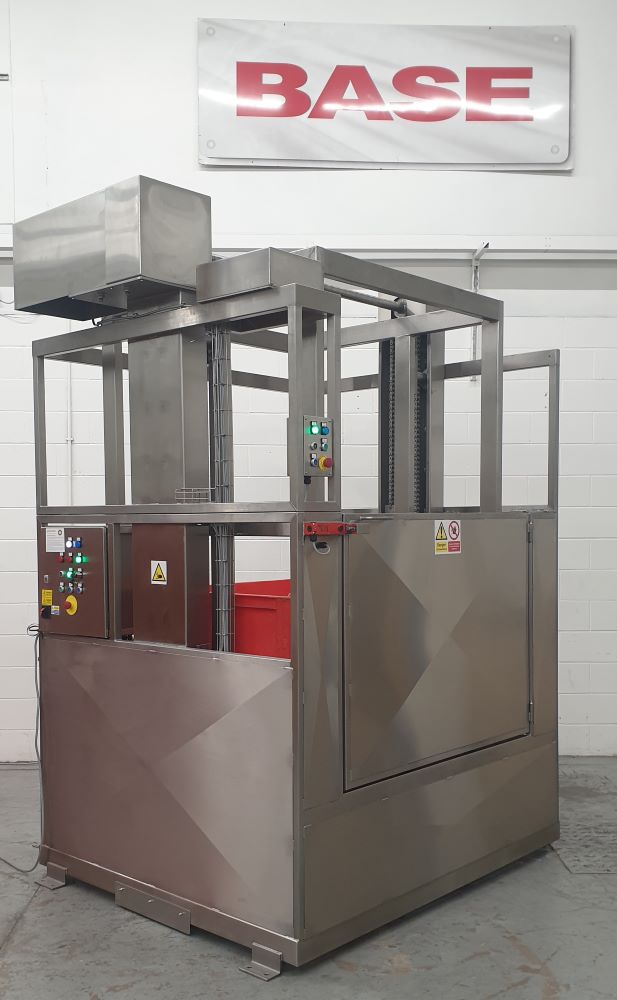

Rack Platform Lift - Lifting & Tipping, photo 1

Rack Platform Lift - Lifting & Tipping, photo 2

Rack Platform Lift - Lifting & Tipping, photo 3

Rack Platform Lift - Lifting & Tipping, photo 4

Rack Platform Lift - Lifting & Tipping, photo 5

Rack Platform Lift - Lifting & Tipping, photo 6

Available

Verified seller

Base Handling Ltd - Rack Platform Lift

Name: Rack Platform Lift
Brand: Base Handling Ltd
SKU: PLM/1000/640/B/G
Availability: InStock

Price: Contact seller for price

PLM/2P/1000/640/B/G Rack Platform Lift.

This Rack Platform Lift had a Safe Working Load of 1000 Kgs to raise a Rack (1200 Wide x 1000 Deep x 1940mm High) between floor levels with a height difference of 640mm.

The lifting platform was 1400 x 1300mm to allow a standard pump truck to load a Rack onto the lift carriage.

At the upper level, there was a landing plate to allow easy unloading.

The machine was manufactured from Grade 304 stainless steel and is a welded construction throughout.

The Rack Platform Lift was designed to be bolted to the floor without the need for a pit.

The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

The Rack Platform Lift was supplied with fixed low level guards on each side to a height of 1100mm and hinged gates at the loading and unloading positions.

The safety guards were constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet.

At each level, there was a hinged door through which the machine can be loaded and unloaded.

The doors are electrically interlocked to prevent the machine being operated with a door open and in addition, the doors are mechanically locked closed whilst the machine is running.

Each door may only be opened when the lifting carriage is at the appropriate level.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

1000Kgs Rack Platform Lift

Model No.

PLM/2P/1000/640/B/G

Capacity

1000 Kgs

Overall Height

3025mm

Machine Handing

Right Hand

Maximum Headroom

3300mm

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

2.2kW, 415V, 3 PHASE, 50 CYCLE C/W BRAKE

Gearbox Detail

SEW Eurodrive

Tensile Strength

6000 Kgs, 3000 Kgs

Lift Speed

6.4 Meters/Minute

Tension Chain

¾” Simplex

Platform Size

1400mm Wide x 1400mm Long

Lift Height

640mm

Lift Chain

1" Simplex

Stock Number

PLM/1000/640/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring food racks or trolleys between different floor levels in processing plants.
Integrating into automated or semi-automated food production lines requiring vertical transport.
Facilitating ergonomic loading and unloading of ingredients or finished products in bakeries, dairies, or meat processing facilities.
Optimising space utilisation in multi-level food production environments by enabling vertical material flow.

Typical Safe Working Load (SWL): Units of this class commonly handle loads up to 1000 kg, suitable for standard food racks.
Construction Material: Typically manufactured from Grade 304 stainless steel for hygiene and corrosion resistance in food environments.
Lifting Mechanism: Often employs a chain-driven motor gearbox system, commonly mounted at the top of a column.
Installation: Many units are designed for floor-bolted installation, often negating the need for a pit.
Safety Features: Commonly includes fixed low-level guards, interlocked hinged gates, and mechanical door locks for operational safety.
Platform Dimensions: Lifting platforms are typically sized to accommodate standard pump trucks and food racks, often around 1400 x 1300 mm.

This type of lift is typically designed to accommodate standard food processing racks or trolleys, often up to 1200mm wide x 1000mm deep x 1940mm high, allowing for loading via a pump truck.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
