What type of containers can this skip loader handle?

This unit is described as a 'tote bin tipper', indicating suitability for standard tote bins. Other skip loaders may handle various containers such as euro bins, drums, or custom skips; buyers should confirm compatibility with the seller.

Is this unit suitable for outdoor use?

While constructed from stainless steel and featuring an IP65 control panel, prolonged outdoor exposure may require additional weather protection. Buyers should discuss specific environmental conditions with the seller.

What are the typical maintenance requirements for a skip loader?

Maintenance commonly involves routine inspection of the lifting chain, motor gearbox, limit switches, and safety interlocks. Lubrication of moving parts and general cleaning are also typically required.

Does this skip loader comply with current safety standards?

This unit was supplied with a safety guard meeting BS EN 14120:2015. Buyers should verify that the current setup and any modifications comply with relevant PUWER regulations and current site-specific safety requirements.

Can the discharge height be adjusted?

This unit is described with a fixed discharge height of 3700mm. While some skip loaders offer adjustable heights, this is typically a fixed parameter for single-pillar designs. Buyers should confirm with the seller if adjustability is required.

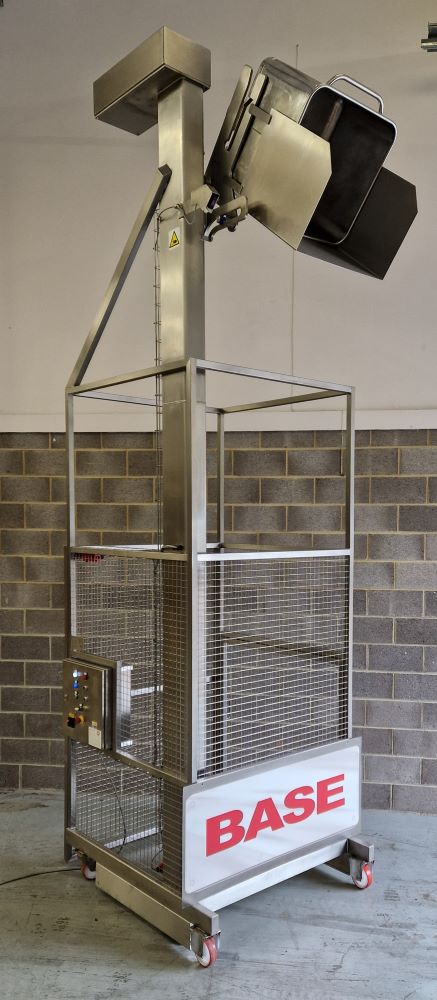

RORO Skip Loader - Lifting & Tipping, photo 1

RORO Skip Loader - Lifting & Tipping, photo 2

RORO Skip Loader - Lifting & Tipping, photo 3

RORO Skip Loader - Lifting & Tipping, photo 4

RORO Skip Loader - Lifting & Tipping, photo 5

RORO Skip Loader - Lifting & Tipping, photo 6

Available

Verified seller

Base Handling Ltd - RORO Skip Loader

Name: RORO Skip Loader
Brand: Base Handling Ltd
SKU: BTM/300/3000/M/G
Availability: InStock

Price: Contact seller for price

BTM/300/3700/M/G RORO Skip Loader.

This RORO Skip Loader was a single pillar tote bin tipper that was designed to lift and tip at a discharge height of 3700mm.

The machine was manufactured from Grade 304 stainless steel and is a welded construction throughout.

The RORO Skip Loader was mobile on castors to allow it to load waste along the full length of the Waste Skip.

The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards.

The RORO Skip Loader was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards.

The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 40 x 40 x 3mm wire, mesh.

It encloses the RORO Skip Loader to a height of 2200mm on three sides with a hinged guard door on the fourth side.

The guard door is electrically and mechanically interlocked preventing the machine from operating when the door is open.

Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

RORO Skip Loader Electrical Control.

This RORO Skip Loader is fitted with an IP65 Stainless Steel Control Panel mounted on the safety guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER).

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates the following controls;

Up
Down
Guard Release
Emergency Stop and a Reset Facility.

The RORO Skip Loader operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position.

Once the product has been discharged, pressing the ‘Down’ push button once will return the RORO Skip Loader to the full down position.

The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

RORO Skip Loader

Model No.

BTM/300/3700/M/G

Capacity

300 Kgs

Overall Height

4890mm

Machine Handing

Right Hand

Maximum Headroom

Mounted Outside

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

200 Litre Tote Bin

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Tip Height

12ft 1 ½” (3700mm)

Tip Angle

135 Degrees

Load/Tension Chain

¾” Simplex

Stock Number

BTM/300/3000/M/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring bulk materials from tote bins into larger skips or hoppers.
Loading waste products from production lines into disposal containers.
Feeding ingredients into mixers or processing vessels at elevated heights.
Handling and emptying various containers in food processing environments.
Facilitating ergonomic material transfer to reduce manual handling.

Construction Material: Typically Grade 304 stainless steel for food processing applications, ensuring hygiene and corrosion resistance.
Discharge Height: For this unit, a discharge height of 3700mm is specified; other units in this class commonly range from 1500mm to over 4000mm.
Lifting Mechanism: Units of this type commonly utilise chain-driven systems, often with a motor gearbox for controlled lifting and lowering.
Mobility: Many skip loaders are mobile on castors, allowing for flexible positioning along a skip or processing line.
Safety Guarding: Typically includes safety guarding to standards such as BS EN 14120:2015, with interlocked doors to prevent operation when open.
Electrical Control: Commonly features an IP-rated control panel, often stainless steel, positioned for safe operation and maintenance access.
Typical Load Capacity: For this class of equipment, capacities typically range from 200kg to 1000kg, depending on the specific model and design.
Power Supply: Units commonly require a 3-phase electrical supply, typically 400V, 50Hz, with appropriate motor protection.

This unit is described as a 'tote bin tipper', indicating suitability for standard tote bins. Other skip loaders may handle various containers such as euro bins, drums, or custom skips; buyers should confirm compatibility with the seller.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
