What types of products are best suited for a rotary table?

Rotary tables are ideal for small to medium-sized, stable products such as bottles, jars, cartons, pouches, and components that can accumulate without damage.

How does a rotary table improve efficiency?

It creates a buffer, allowing operators to work continuously without waiting for products and preventing line stoppages due to temporary upstream interruptions. Products are always within easy reach.

Are rotary tables easy to integrate into existing lines?

Yes, their standalone nature and adjustable height legs typically allow for straightforward integration with existing conveyors or processing equipment at the start or end of a line.

What maintenance is typically required for a rotary table?

Maintenance is generally low, involving routine cleaning, periodic inspection of the motor and drive system, and ensuring bearings are free-running. Specifics depend on the model and usage.

Can the speed of the rotary table be adjusted?

Some units offer fixed speeds, while others can be supplied with adjustable speed control, often via a variable frequency drive, to match specific production requirements.

used Equipment

Available

Verified seller

/images/stories/virtuemart/product/DG00083.jpg - Rotary Table

Name: Rotary Table
Brand: /images/stories/virtuemart/product/DG00083.jpg
SKU: DG00057
Availability: InStock

Price: Contact seller for price

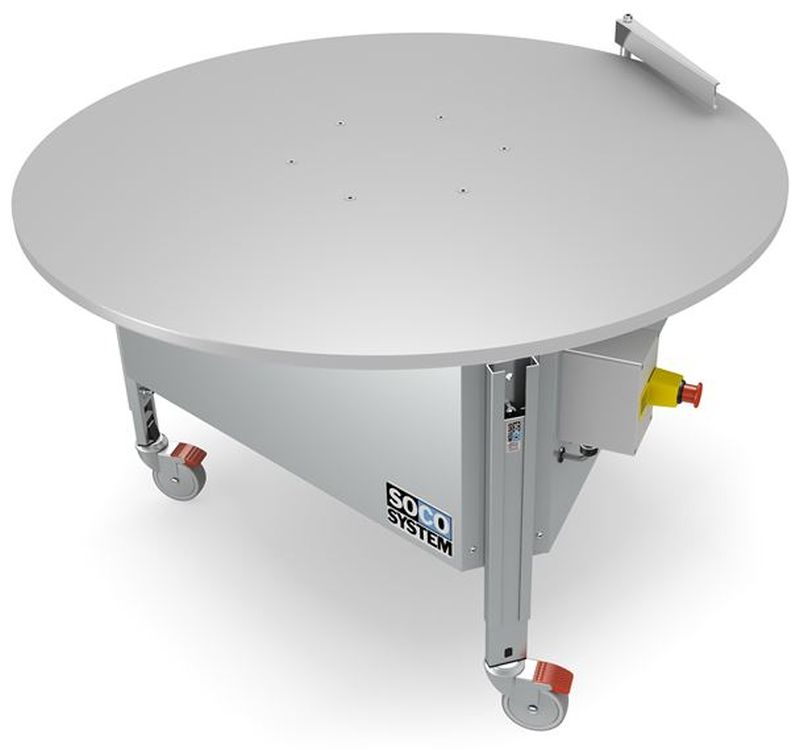

Rotary tables for packaging stations A simple and cost-efficient solution to accumulation. SOCO SYSTEM's rotary table is suitable for accumulation of e.g. retail products. The operator is free to perform other jobs, while, at the same time, interruption of the arrival of products is avoided. Rotating on the table, the articles are constantly within easy reach. A rational work station offering correct working conditions. A fan directs the products, and the table is prepared for side guides. The legs are height adjustable. Diameter: ? 1200 mm. Height: Min. 715 mm. Speed: Standard 6.00 rotations per minute. Upon request 3.77, 2.81 and 2.20 rotations per minute are available. Adjustable speed control can also be supplied. The rotary table is available in three different versions: Model A: Rotary table with plastic laminated tabletop. Model B: Rotary table with tabletop made of solid plastic. Model C: Rotary table in 18/8 stainless steel with tabletop made of solid plastic. Braked castors: SOCO SYSTEM castors are of sturdy construction with efficient brakes that lock in the direction of travel and rotation. Standard on SOCO SYSTEM rotary tables.

Galway, Ireland

5,966 km away

Stock Number

DG00057

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Applications & Use Cases

Accumulation of products at the end of a packaging line.
Providing a buffer for manual packing or inspection stations.
Feeding products into subsequent processing or labelling equipment.
Organising items for kitting or assembly operations.
Temporary storage of small retail products or components.

Typical Specifications

Typical diameter: Commonly ranges from 800 mm to 1500 mm, with this unit indicating approximately 1200 mm.
Typical height: Adjustable height is standard, typically allowing for ergonomic working positions between 700 mm and 900 mm.
Speed range: Fixed speeds are common, with variable speed control often available as an option, typically from 2 to 10 rotations per minute.
Construction materials: Often available in plastic laminated, solid plastic, or stainless steel for tabletops, with mild steel or stainless steel frames.
Power supply: Typically single-phase 230V, 50Hz for the UK market, requiring a standard industrial plug.
Footprint: The footprint is primarily determined by the table's diameter, plus any motor housing or control panel.
Accumulation capacity: Depends on product size and shape; designed to hold a buffer of items within easy reach of an operator.

Frequently Asked Questions

Rotary tables are ideal for small to medium-sized, stable products such as bottles, jars, cartons, pouches, and components that can accumulate without damage.

Machinery Masters Intelligence. General guidance for this category of equipment only, not a substitute for the seller's exact specifications. Always confirm details with the seller.
